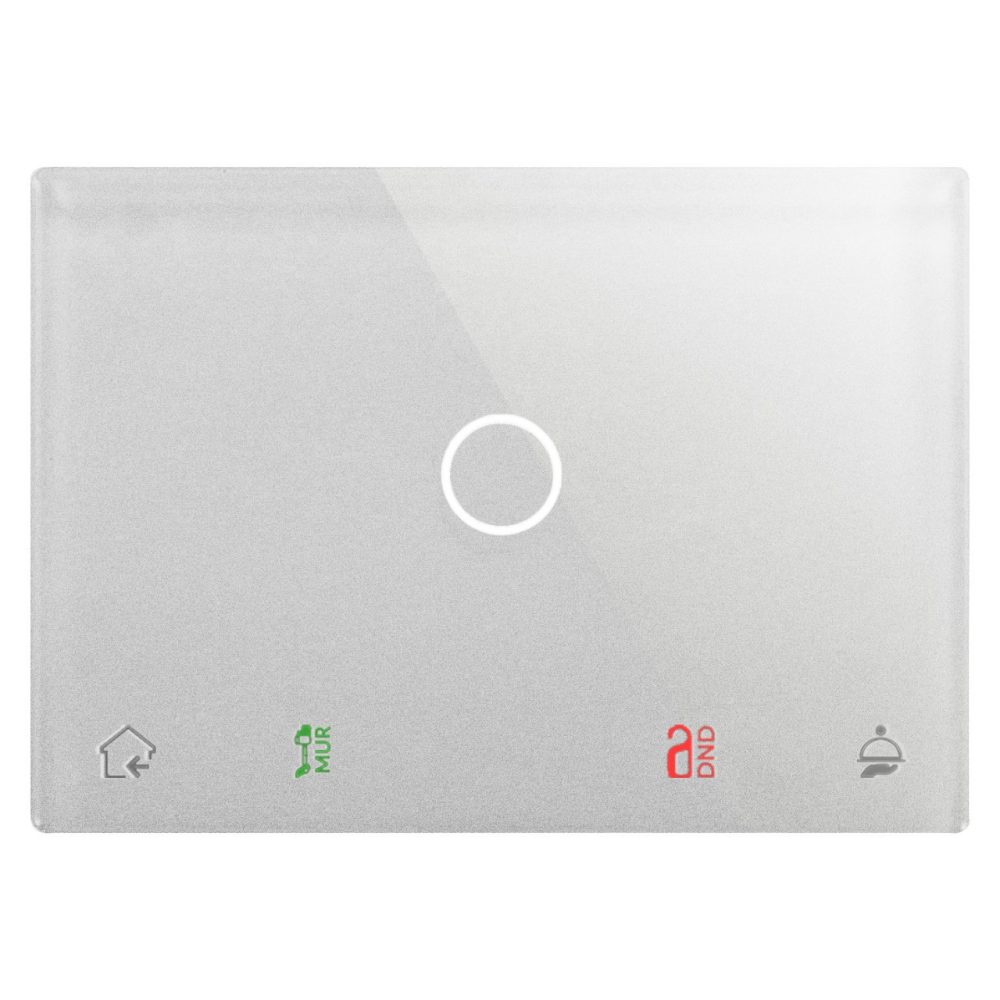

TRANSPONDER CARD READER UNIT - KNX - 12-24Vac 12-32Vdc - FLUSH MOUNTING - TITANIUM - CHORUSMART
Code:
GW16891CT
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.
IP20 (with plate fitted)
Technical Info
Information
Download
Software
Certificates
Category
Transponder card reader unit MIFARE®
Colour
Titanium
Material
Front plate in technoplymer (included)
Installation
Flush mounting on 3-modules rectangular (GW24403, GW24403PM), round (GW24234, GW24234PM) or square (GW24231) boxes
Power supply
SELV: 12-24 Vac 50/60Hz, 12-32 Vdc
Current absorbed by power supply
30 mA a 24 V dc
Interfaces
KNX TP1
Current absorbed by KNX bus (mA)
Max 10 mA a 29 V
Technology
Trasponder RFID-MIFARE®
No. output channels
2
Output contacts
Max switching voltage 30Vdc / 24Vac Max switching current 5A(AC1) 1A (AC3)
No. input channels
2
Input voltage
Potential free
Wiring terminals
With screw
Terminal tightening capacity stranded cables (mm²)
Max. 1,5
Terminal tightening capacity solid cables (mm²)
Max. 1,5
Working temperature
-5 ÷ +45 °C
Relative humidity (non-condensative)
Max 90%
Stocking temperature
-5 ÷ +55 °C
Connection to the KNX bus
KNX bus terminal
Dimensions LxHxD (mm)
110,0x78,0x12,1
IP degree
IP20 (with plate fitted)
Standard
Directive RED 2014/53/UE; Directive RoHS 2011/65/EU + 2015/863; EN 63044-3; EN 63044-5-1; EN 63044-5-2; EN 300 330;_x000D_ EN 301 489-3; EN IEC 63000
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: the transponder card reader unit allows the recognition of cards with RFID-MIFARE® transponder technology, use the cards from Gewiss catalogue. Card recognition is reported to the hotel access control and management software and can be configured to control other actions and automations. The devices are equipped with 2 inputs for potential-free contacts and 2 NO relay outputs for SELV circuits (max switching voltage 30Vdc / 24Vac, max switching current 5A(AC1) 1A (AC3)).
APPLICATIONS: the inputs can be used to detect the status of sensors or to send on/off and toggle commands, dimming commands (1 or 2 buttons), shutter commands, sequence commands, scenario commands, short/long press commands; the pulse counter function is also available. The outputs can control generic loads on, off, timed on, with flashing. The devices implement advanced logical functions and the "Virtual holder" function.
NOTES: the devices include a technopolymer front plate and a KNX bus terminal; the devices are suitable for screw fixing on 3-module rectangular (GW24403, GW24403PM), round (GW24234, GW24234PM) or square (GW24231) boxes.
APPLICATIONS: the inputs can be used to detect the status of sensors or to send on/off and toggle commands, dimming commands (1 or 2 buttons), shutter commands, sequence commands, scenario commands, short/long press commands; the pulse counter function is also available. The outputs can control generic loads on, off, timed on, with flashing. The devices implement advanced logical functions and the "Virtual holder" function.
NOTES: the devices include a technopolymer front plate and a KNX bus terminal; the devices are suitable for screw fixing on 3-module rectangular (GW24403, GW24403PM), round (GW24234, GW24234PM) or square (GW24231) boxes.
