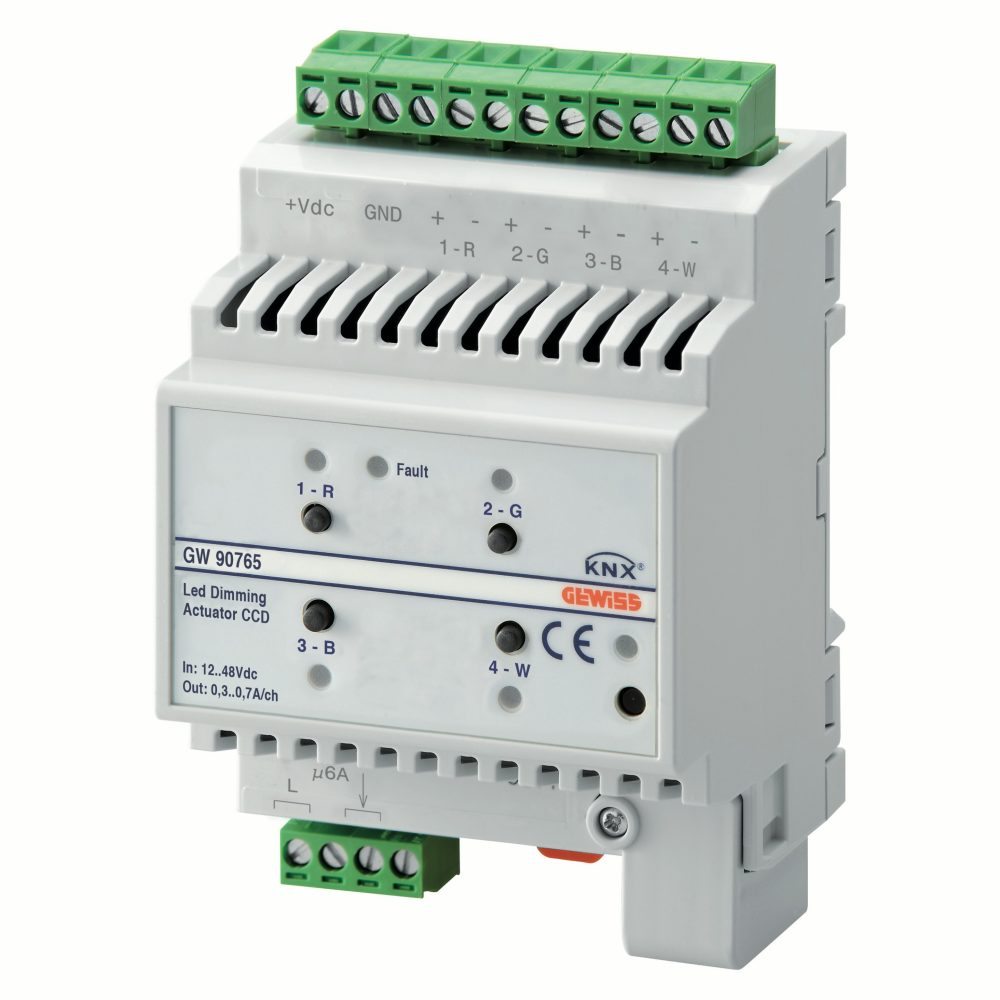

DIMMER ACTUATOR FOR LED - 12-48Vdc - CCD - 4 CHANNELS - KNX - IP20 - 4 MODULES - DIN RAIL MOUNTING
Code:
GW90765
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential and non-residential solutions. Thanks to the ThinKnx platform, Home&Building Pro solutions can be integrated with other Gewiss systems and with third-party systems (such as video door entry systems, IP cameras, burglar alarms, entertainment systems, etc.). All functions can be controlled via voice assistants (Siri and Alexa) and managed both locally and remotely using touchscreen devices, app and PC. In particular, ThinKnx allows functions and devices from Gewiss ZigBee wireless Smart Home solution to be integrated into a KNX system.
Technical Info
Information
Download
Software
Certificates
Supply voltage
12-48 V dc
No. output channels
4
Type of control
CCD
No. DIN modules
4
Ware Number
85365080
EQUIPMENT AND NOTES
CHARACTERISTICS: dimmer in CVD version (control with constant voltage) for regulating RGB(W) LED strips, and in CCD version (control with constant current) for regulating "power" LEDs. 4 front button keys for testing the outputs and 4 front LEDs for signalling the load status and other operating parameters. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, regulation and setting of the light intensity level for each single channel (and the 4 channels simultaneously), selection of feedback on status or light intensity value, scene management, timed sequences, priority commands, logic functions. The 4 outputs can be used to control each of the 4 channels R, G, B and W of a single LED lamp, or up to 4 independent LEDs.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
GW90764: product available while stock lasts.
APPLICATIONS: execution of ON-OFF commands, regulation and setting of the light intensity level for each single channel (and the 4 channels simultaneously), selection of feedback on status or light intensity value, scene management, timed sequences, priority commands, logic functions. The 4 outputs can be used to control each of the 4 channels R, G, B and W of a single LED lamp, or up to 4 independent LEDs.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
GW90764: product available while stock lasts.
