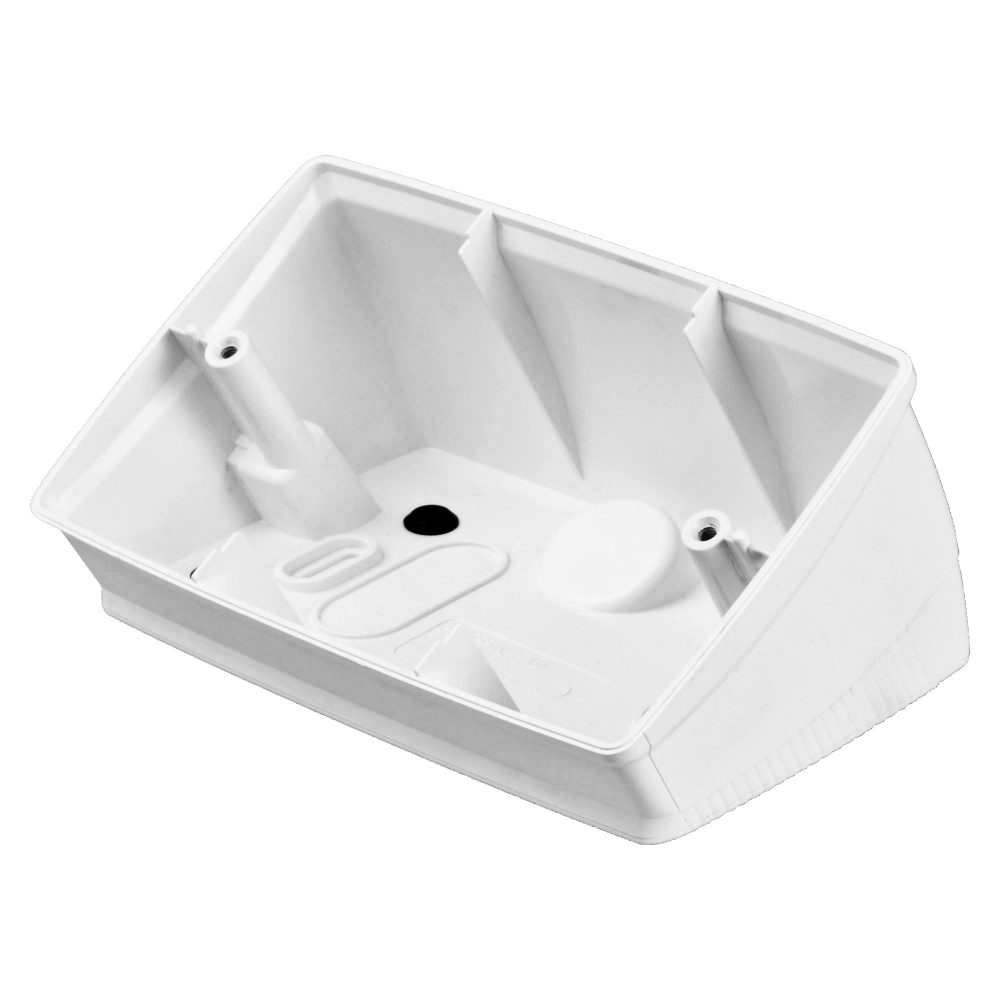

WALL-MOUNTING INSTRUMENT PANEL - 4 GANG - WHITE - CHORUSMART
Code:
GW16854
Range: CHORUSMART - Domestic range
Installation accessories
Installation accessories
Wide variety of installation accessories for all modular devices and plates from the ChoruSmart range. Watertight plates with ergonomic membrane and 2 to 4 modules. Self-supporting plates for profiles and panels. Free-standing and surface-mounted panels. Surface-mounted boxes and self-supporting protected watertight enclosures. Supports for rectangular, round and square boxes available in standard and smart versions. Covers for flush-mounted boxes from 2 to 7 modules for painting and finishing.
650 °C
70 °C
Technical Info
Information
Download
Software
Certificates
Description
4 modules
Colour
Satin white
Support
GW16804
Suitable for plates
ONE
Torque screws tightening
0.8 Newton/meter
Outer dim. LxHxD (mm)
140x90x69
Glow wire test
650 °C
Thermo-pressure with ball
70 °C
Standard
EN 60670-1
Electrocod
0122
Ware Number
85381000
EQUIPMENT AND NOTES
CHARACTERISTICS: support and plate not included. Use ONE plates (interchangeability with the entire colour range of plates).
Diameter for cable input max. 10mm.
NOTES: cable gland and safety cable fastener included. For wall-mounting, use wall plugs with a countersunk head, max Ø 3.5mm.
Diameter for cable input max. 10mm.
NOTES: cable gland and safety cable fastener included. For wall-mounting, use wall plugs with a countersunk head, max Ø 3.5mm.
