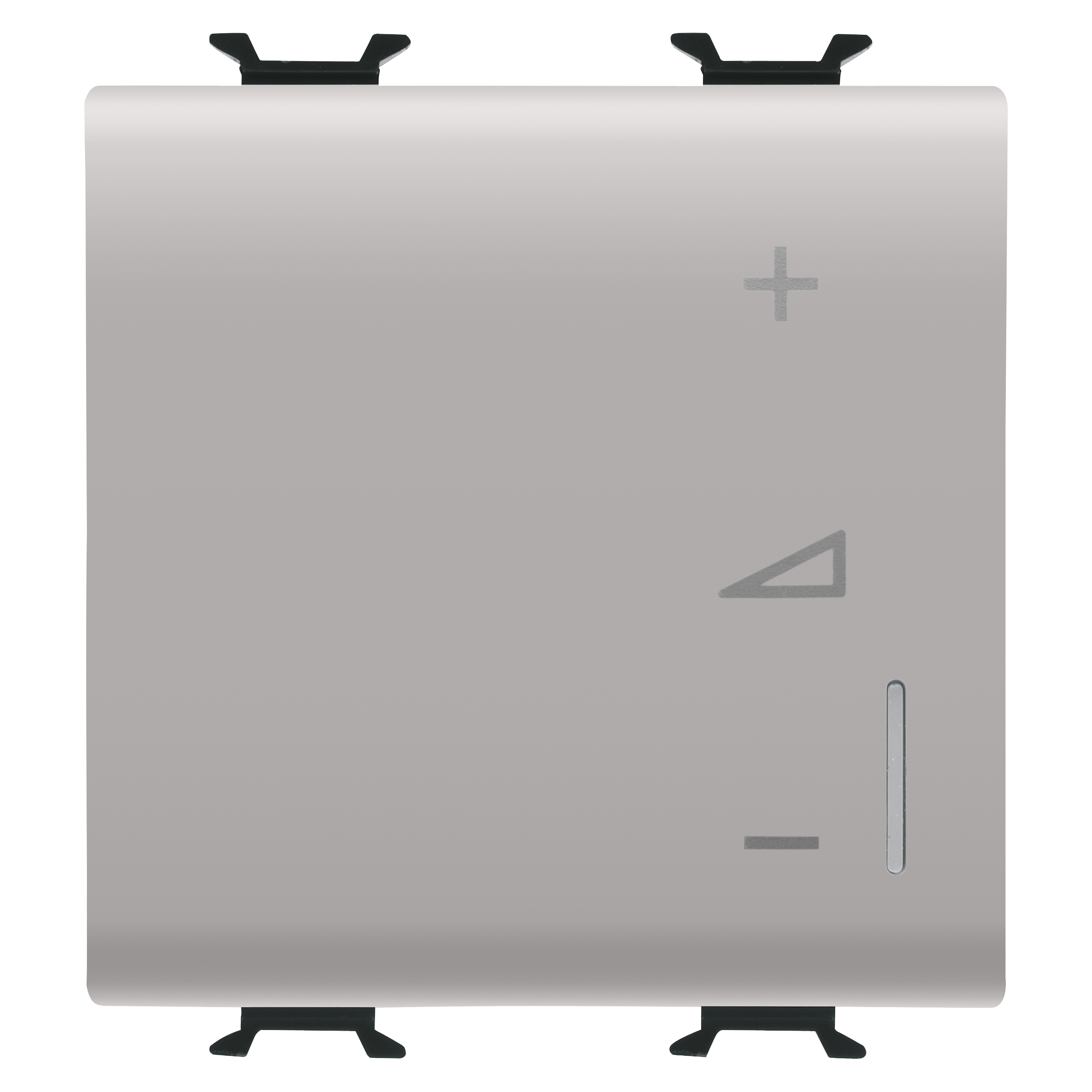

UNIVERSAL ELECTRONIC REGULATOR - PUSH-BUTTON - 230V ac 50/60Hz - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
Code:
GW13573A
Range: CHORUSMART - domestic range
Satin natural beige modular devices
Satin natural beige modular devices
The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Available in satin natural beige, warm and enveloping, they include rocker button keys with ½, 1 and 2 modules to optimise space, and axial keys in EVO or SMART version for advanced functions. The front attachment system facilitates assembly and release without removing the support.
Technical Info
Information
Download
Software
Certificates
Category
Dimmers
Colour
Natural satin beige
Wiring terminals
With screw
Standard
EN 60669-2-1; 2014/35/EU; 2014/30/EU
Supply voltage
230 V ac - 50/60 Hz
Terminal tightening capacity stranded cables (mm²)
Max. 1,5
Terminal tightening capacity solid cables (mm²)
Max. 2,5
No. modules
2
230V incandescent/halogen lamps
40 ÷ 300W
230V LED lamps
5 ÷ 150W (max 10 lamps)
Halogen lamps 12Vac with winding transf.
40 ÷ 300W
LED lamps 12Vac with electronic transf.
40 ÷ 300W (max 2 transf.)
LED colour
Orange
Electrocod
0781
Material
Technopolymer
Ware Number
85365080
EQUIPMENT AND NOTES
CHARACTERISTICS: for the regulation and switching of incandescent and halogen lamps 230V AC (40-300W), low voltage halogen and LED lamps with electronic and winding transformers (40-300W), LED lamps 230V AC with dimmer function (5-150W). Manual selection of the type of load (Leading Edge or Trailing Edge piloting), soft-start function for lamp protection. Possibility to command and regulate from remote control push-buttons with NO contacts. Equipped with orange signalling LED.
NOTES: to avoid overheating, the side-by-side installation of several products in a single container is not permitted; insert a blanking module between two electronic devices. If two regulators are installed in the same box, the maximum loads that can be commanded by each regulator must be reduced by 50%.
NOTES: to avoid overheating, the side-by-side installation of several products in a single container is not permitted; insert a blanking module between two electronic devices. If two regulators are installed in the same box, the maximum loads that can be commanded by each regulator must be reduced by 50%.
