CHORUSMART - domestic range
Satin natural beige modular devices

The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colors and finishes: natural satin beige, warm and enveloping. Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.

See all product
Benefits
Scalable
Scalable
ChoruSmart began as a traditional domestic series, but with the addition of a few Connected Smart Home or Home&Building Pro elements, it can become smart and suitable for both renovations and new buildings. The combination of colours, materials, finishes and shapes offers something for every taste and need.
Aesthetic variability
Aesthetic variability
The wide range of options for customising the devices, in terms of colour and modularity, ensures a vast choice of solutions. Six colourways are
available: three with a satin finish and three with a glossy finish, for a perfect match between the device and the plate.
Innovative
Innovative
For the traditional domestic series, new products have been designed with advanced functions, both in the versions with axial and touch buttons, including centralisation, which can be achieved with the same button for both lights and roller shutters, and the silent operation of the button keys with microswitches (also touch activated).
Connected
Connected
The range offers a wide selection of options for building control, from traditional axial or rocker control units to soft-click push buttons, touch devices, voice commands, and the app for tablets and smartphones.

The products of this series

341 products

Command

Command devices - screw terminals

Category
One-way switches 1P - 250V ac

Change category

One-way switches 1P - 250V ac
One-way switches 2P - 250V ac
One-way switch 2P - 250V ac - heavy duty loads
Two-way switches 1P - 250V ac
Intermediate switches 1P - 250V ac
Three-way switches 1P - 250V ac
Three-way switch 2P - 250V ac
Push-buttons 1P - 250V ac
Push-buttons 2P - 250V ac
Push-buttons 1P with illuminated name plate - 250V ac
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps

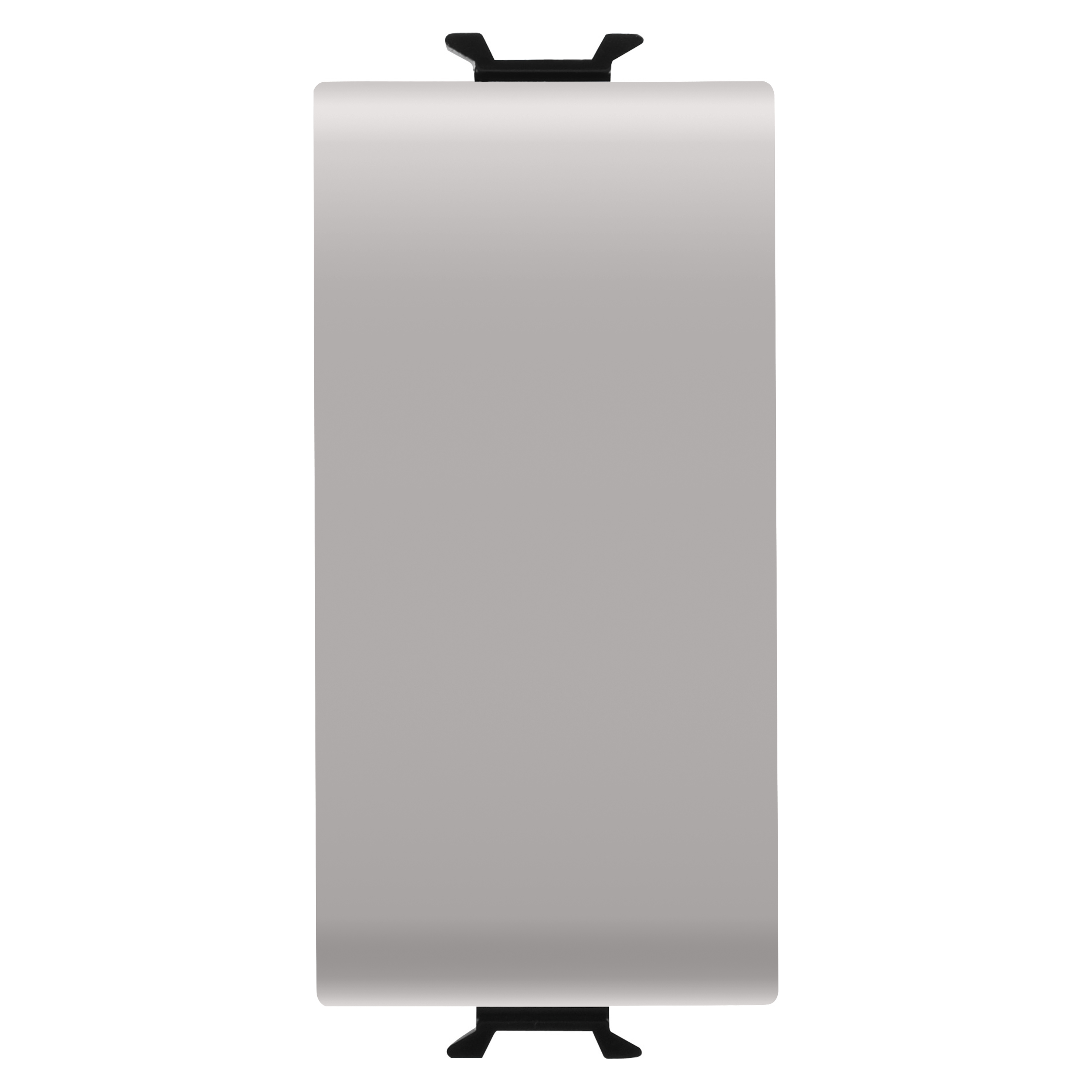

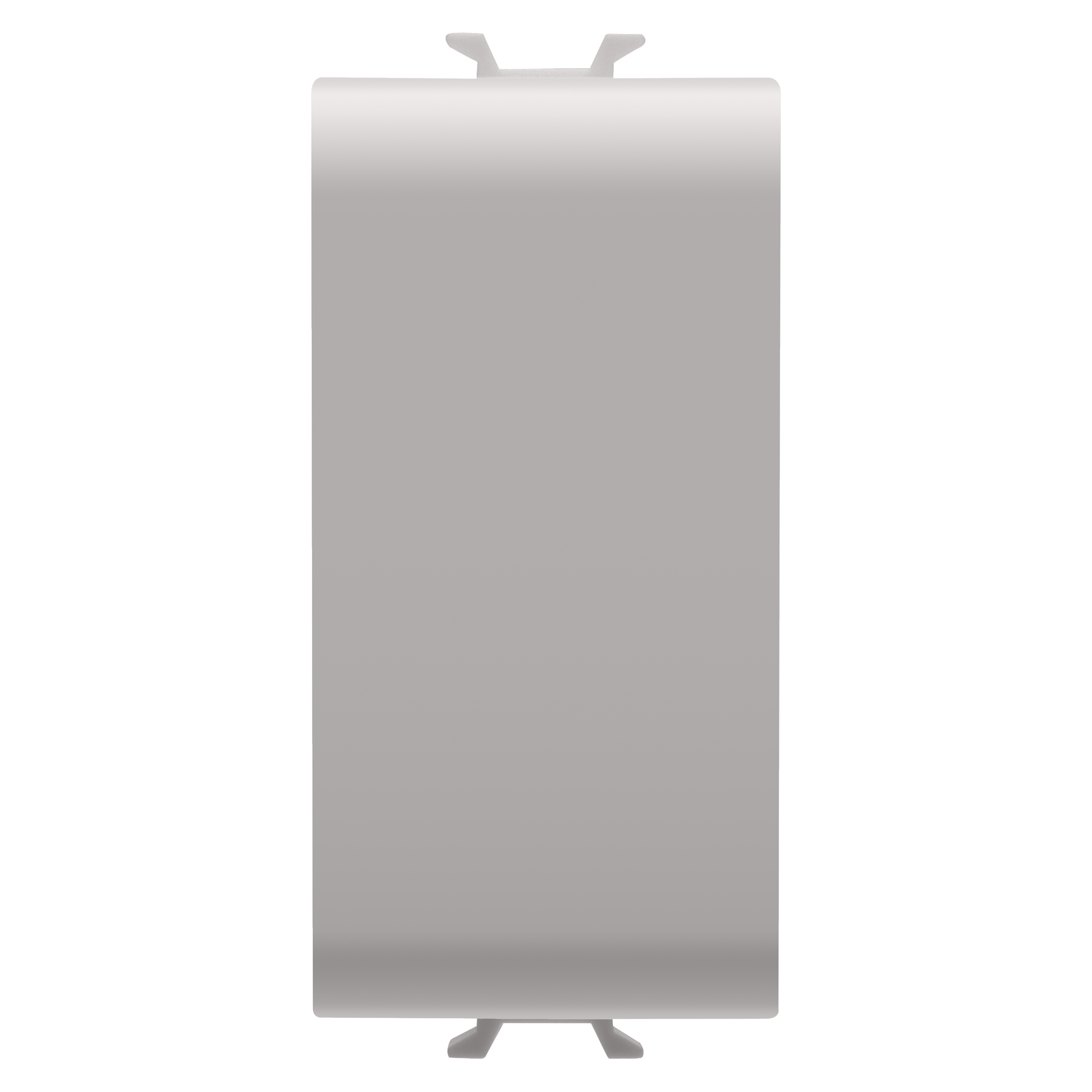

ONE-WAY SWITCH 1P 250V ac - 16AX - NEUTRAL BUTTON - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13001
1
1P - 16AX
Neutral
200 W

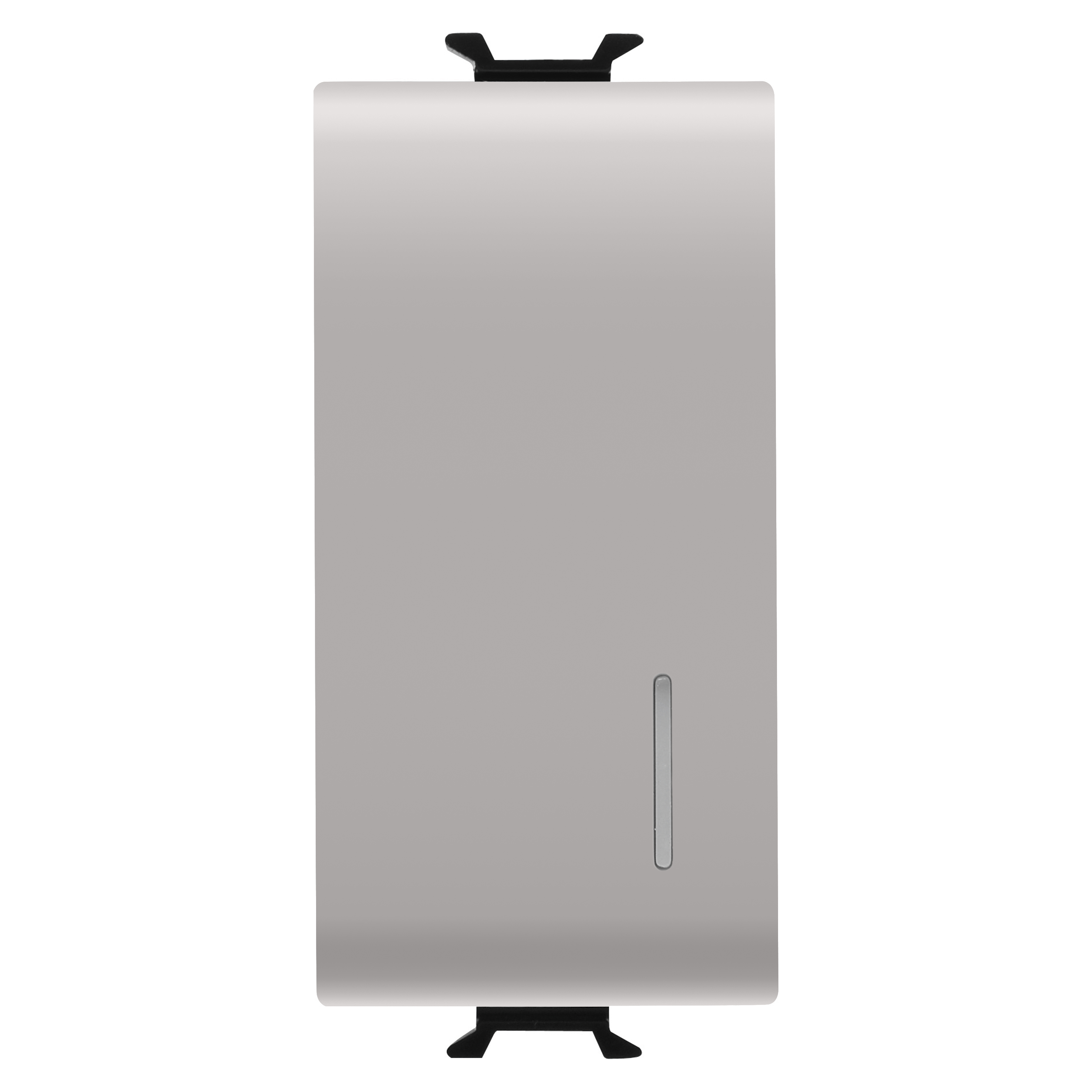

ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13002
1
1P - 16AX illuminable
With diffuser
200 W
ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13003
1
1P - 16AX illuminable
With replaceable neutral lens
200 W
ONE-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL BUTTON - 1/2 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13021
1/2
1P - 10AX
Neutral
100 W

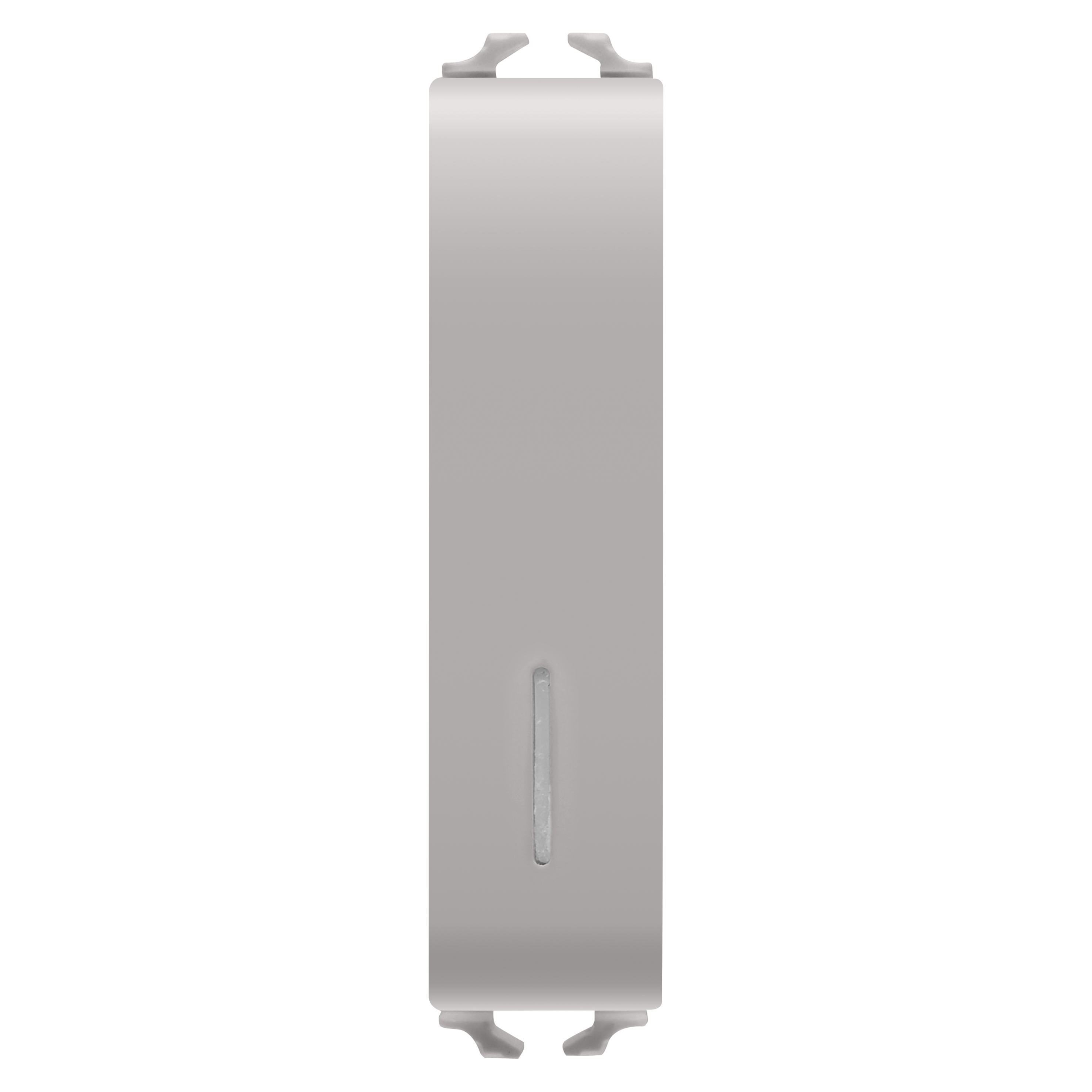

ONE-WAY SWITCH 1P 250V ac - 10AX ILLUMINABLE - WITH DIFFUSER - 1/2 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13022
1/2
1P - 10AX illuminable
With diffuser
100 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps

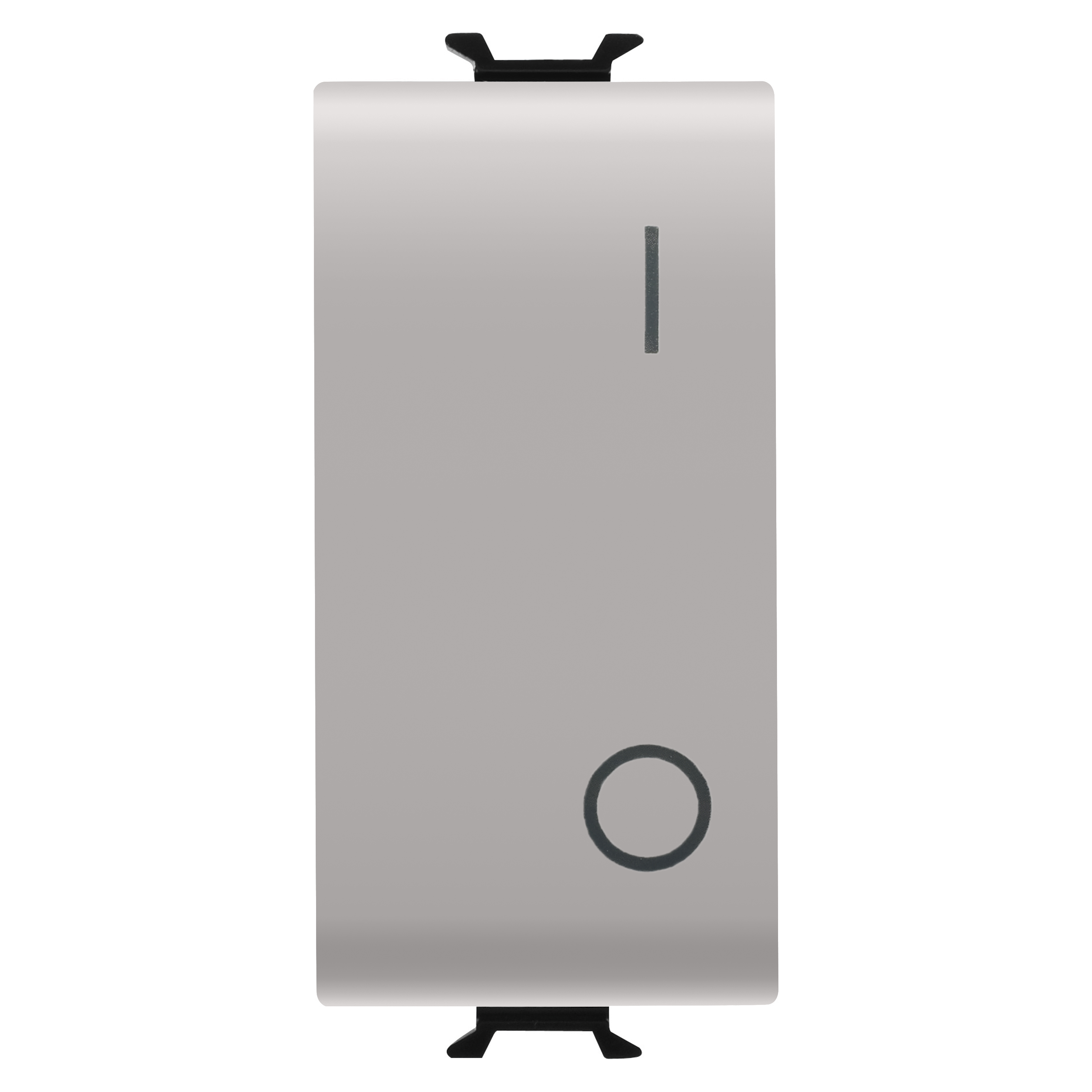

ONE-WAY SWITCH 2P 250V ac - 16AX - NEUTRAL BUTTON - SYMBOL 0/1 - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13004
1
2P - 16 AX
Neutral
0/1
200 W
ONE-WAY SWITCH 2P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13005
1
2P - 16AX illuminable
With replaceable neutral lens
-
200 W

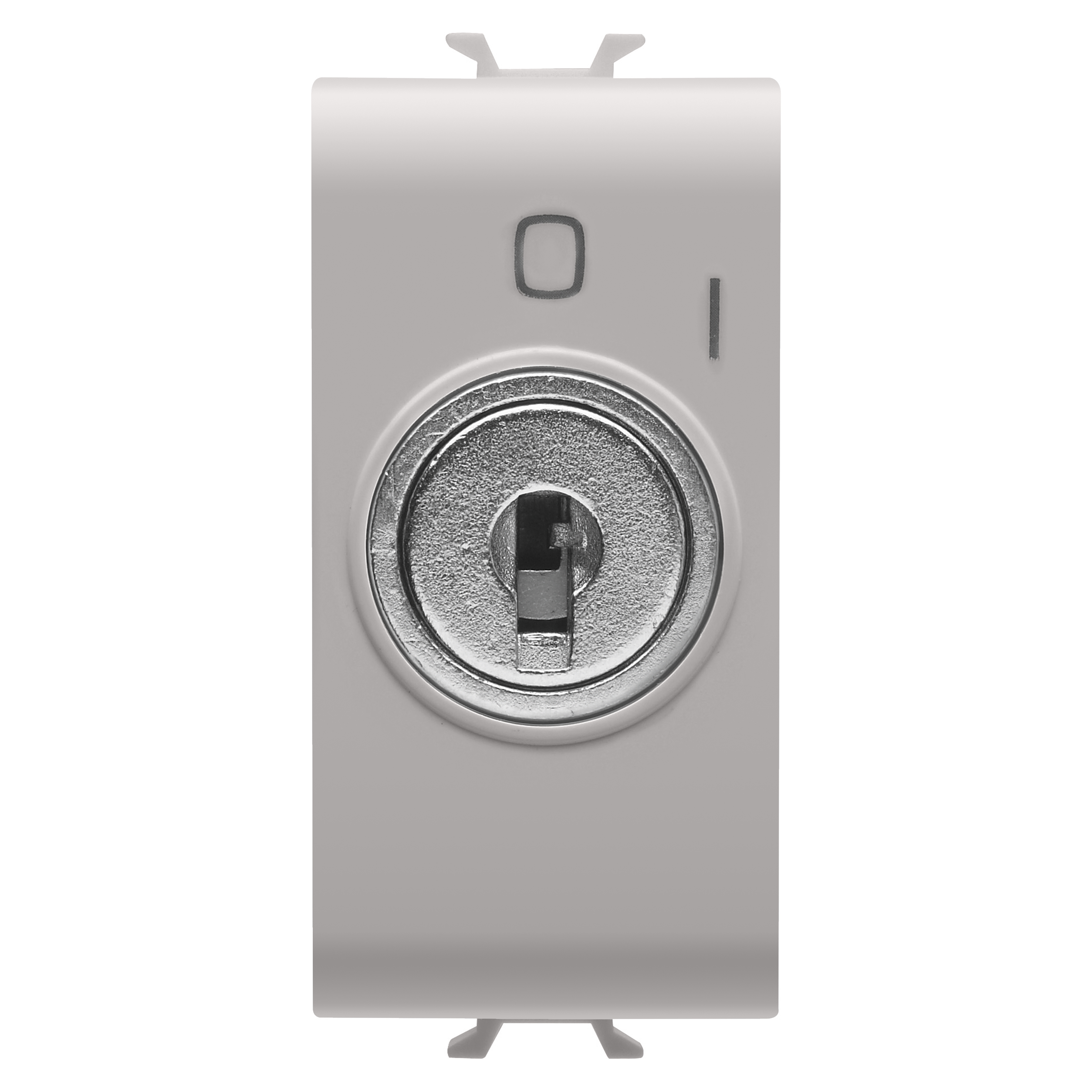

ONE-WAY SWITCH 2P 250V ac - 10AX - WITH KEY - SYMBOL 0/1 - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13006
1
2P - 10AX
With key
0/1
100 W

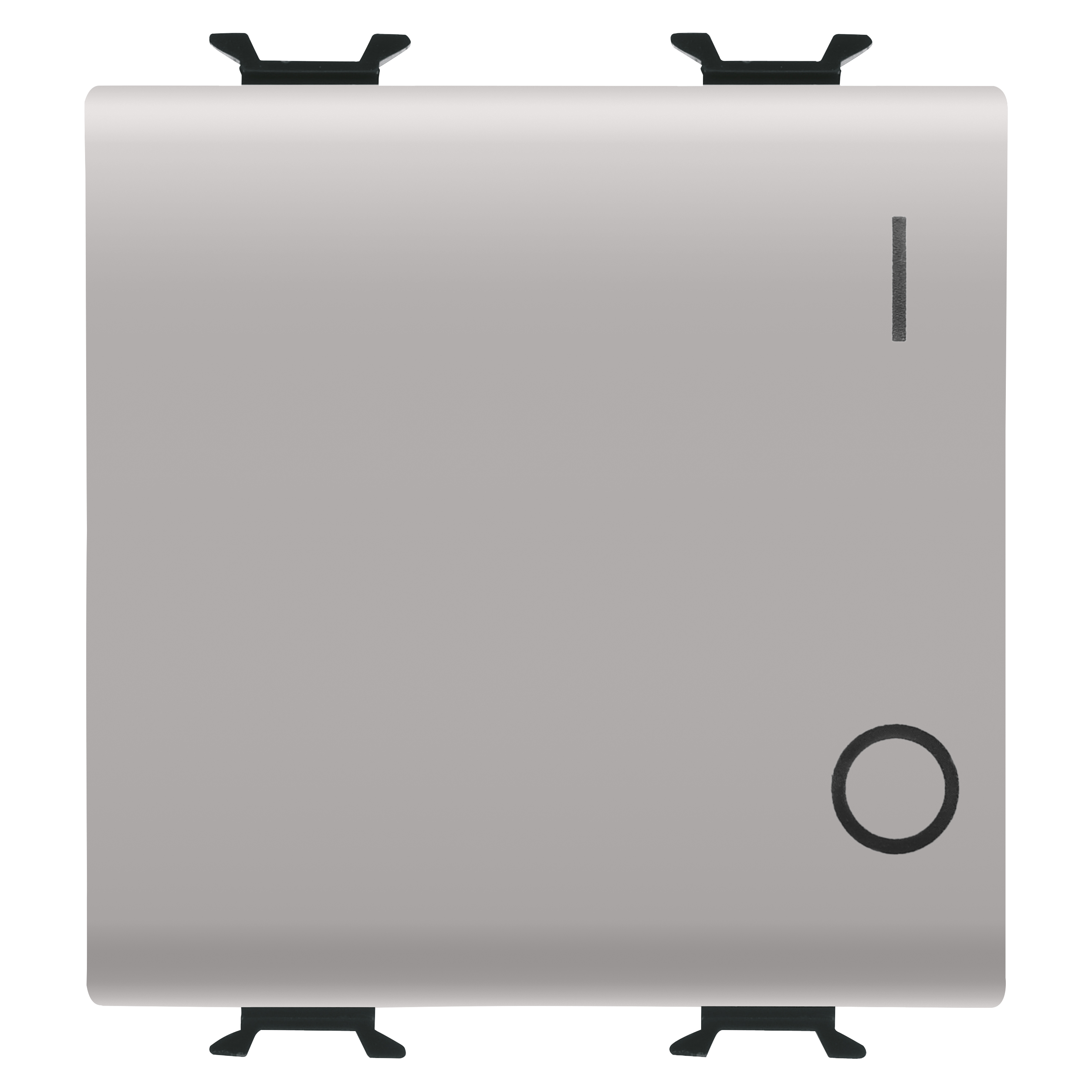

ONE-WAY SWITCH 2P 250V ac - 16AX - NEUTRAL BUTTON - SYMBOL 0/1 - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13034
2
2P - 16 AX
Neutral
0/1
200 W
ONE-WAY SWITCH 2P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13035
2
2P - 16AX illuminable
With replaceable neutral lens
-
200 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
ONE-WAY SWITCH 2P 250V ac HEAVY DUTY - 25AX - NEUTRAL BUTTON - SYMBOL 0/1 - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13007
1
2P - 25 AX
Neutral
0/1
250 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
TWO-WAY SWITCH 1P 250V ac - 16AX - NEUTRAL BUTTON - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13051
1
1P - 16AX
Neutral
200 W
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13052
1
1P - 16AX illuminable
With diffuser
200 W
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13053
1
1P - 16AX illuminable
With replaceable neutral lens
200 W
TWO-WAY SWITCH 1P 250V ac - 10AX - WITH KEY - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13054
1
1P - 10AX
With key
100 W
TWO-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL BUTTON - 1/2 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13061
1/2
1P - 10AX
Neutral
100 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
INTERMEDIATE SWITCH 1P 250V ac - 16AX - NEUTRAL BUTTON - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13091
1
1P - 16AX
Neutral
200 W
INTERMEDIATE SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13092
1
1P - 16AX illuminable
With diffuser
200 W
INTERMEDIATE SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13093
1
1P - 16AX illuminable
With replaceable neutral lens
200 W
INTERMEDIATE SWITCH 1P 250V ac - 16AX - NEUTRAL BUTTON - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13101
2
1P - 16AX
Neutral
200 W
INTERMEDIATE SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13102
2
1P - 16AX illuminable
With diffuser
200 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
THREE-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL BUTTON - SYMBOL UP-DOWN - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13121
1
1P - 10AX
Neutral
UP - DOWN
100 W
THREE-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL BUTTON - SYMBOL UP-DOWN - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13123
2
1P - 10AX
Neutral
UP - DOWN
100 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
THREE-WAY SWITCH 2P - 250V ac - 10AX - NEUTRAL BUTTON - SYMBOL UP-DOWN - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13122
1
2P - 10AX
Neutral
UP - DOWN
100 W
Cod Gewiss
No. modules
Description
Button key
Symbol
PUSH-BUTTON 1P 250V ac - NO 16A - NEUTRAL BUTTON - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13131
1
1P NO - 16A
Neutral
-
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - WITH DIFFUSER - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13132
1
1P NO - 16A illuminable
With diffuser
-
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13133
1
1P NO - 16A illuminable
With replaceable neutral lens
-

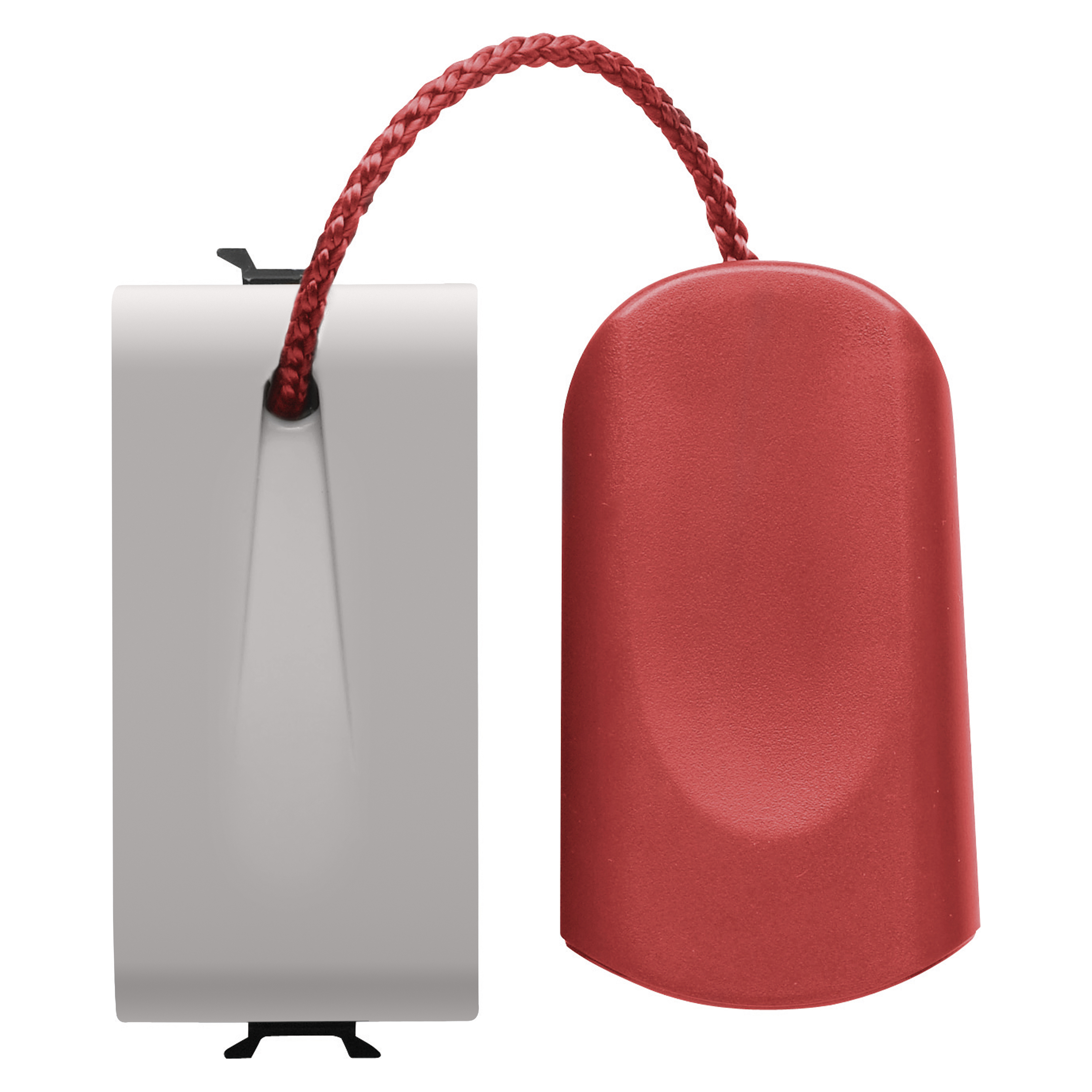

PUSH-BUTTON 1P 250V ac - NO 16A - PULL-CORD - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13136
1
1P NO - 16A
Pull-cord
-

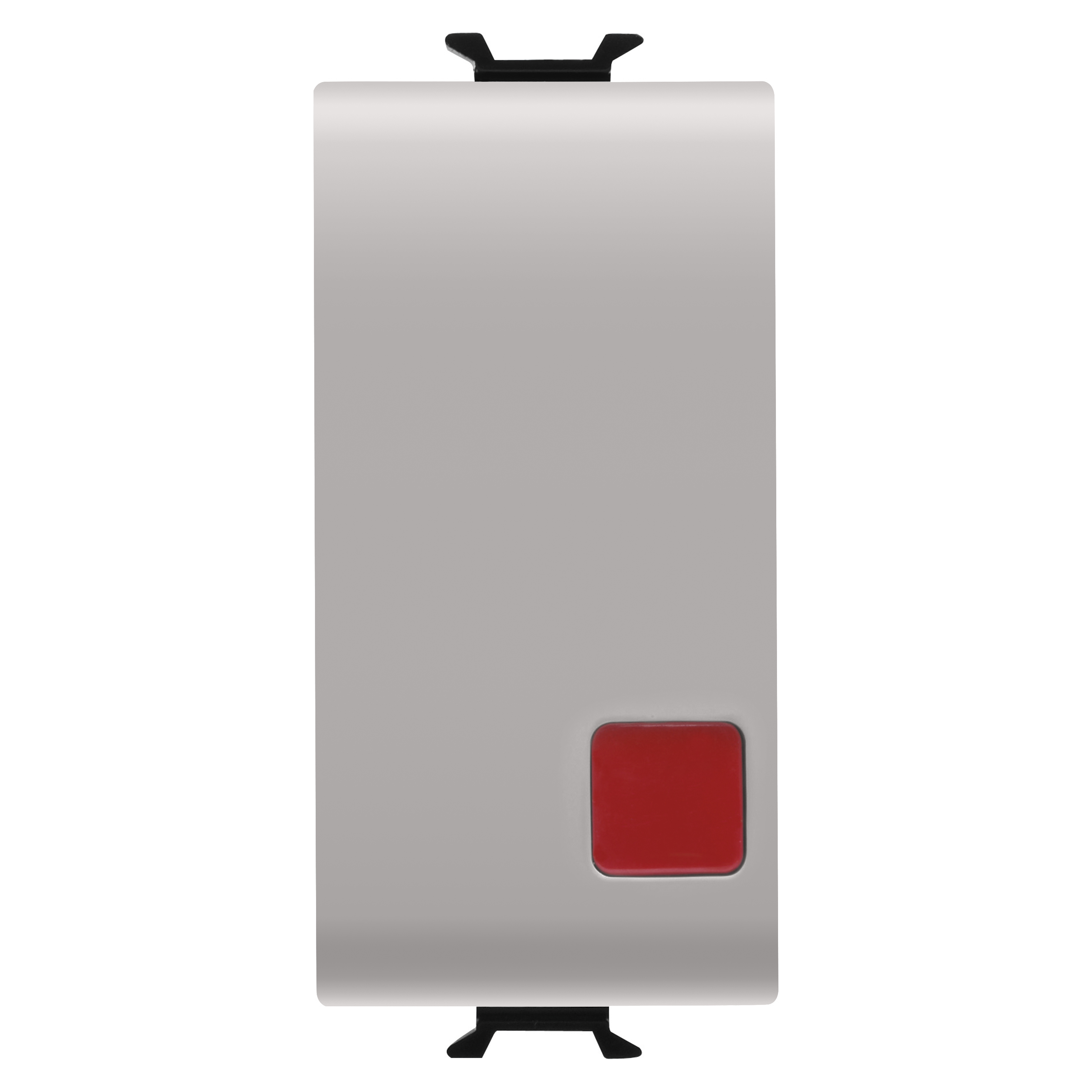

PUSH-BUTTON 1P 250V ac - NC 16A - NEUTRAL BUTTON - SYMBOL 0 RED - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13137
1
1P NC - 16A
Neutral
O red
Cod Gewiss
No. modules
Description
Button key
Symbol
PUSH-BUTTON 2P 250V ac - NO 16A - NEUTRAL BUTTON - SYMBOL 0 - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13134
1
2P NO - 16A
Neutral
O
PUSH-BUTTON 2P 250V ac - NO 16A ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13135
1
2P NO - 10A illuminable
With replaceable neutral lens
-
PUSH-BUTTON 2P 250V ac - NO 10A - WITH KEY - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13145
1
2P NO - 10A
With key
-
Cod Gewiss
No. modules
Description
Lamp voltage
Lamp
Lamp power

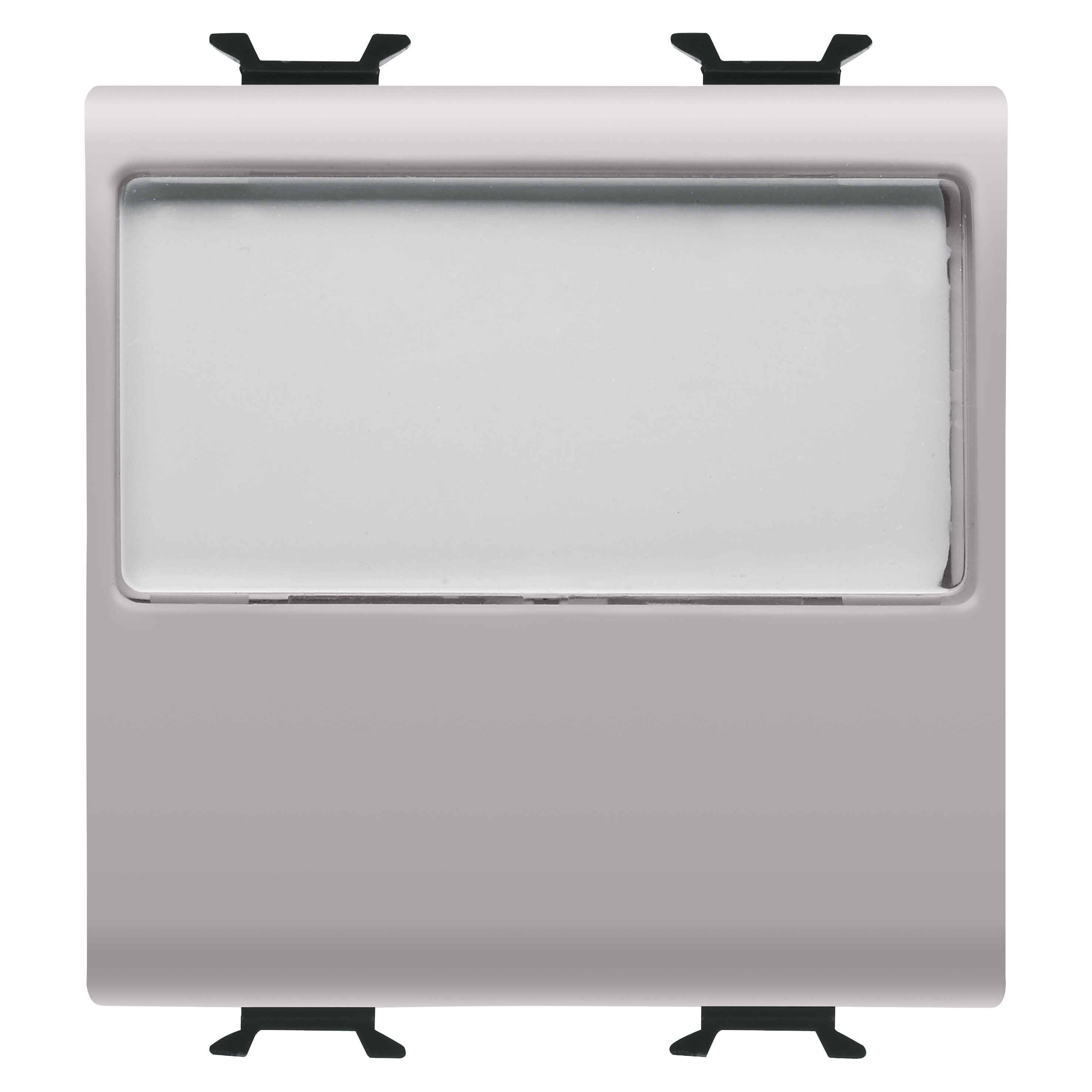

PUSH-BUTTON WITH ILLUMINATED NAME PLATE 250V ac - NO 10A - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13191
2
1P NO - 10A
12-24V ac/dc
Cartridge lamp S6x36 mm (not included)
2 W
PUSH-BUTTON WITH ILLUMINATED NAME PLATE 250V ac - NO 10A - 3 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13192
3
1P NO - 10A
12-24V ac/dc
Cartridge lamp S6x36 mm
2 W

Command devices - quick wiring terminals

Category
One-way switches 1P - 250V ac

Change category

One-way switches 1P - 250V ac
One-way switches 2P - 250V ac
Two-way switches 1P - 250V ac
Intermediate switches 1P - 250V ac
Push-buttons 1P - 250V ac
Combined command devices - 250V ac
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps

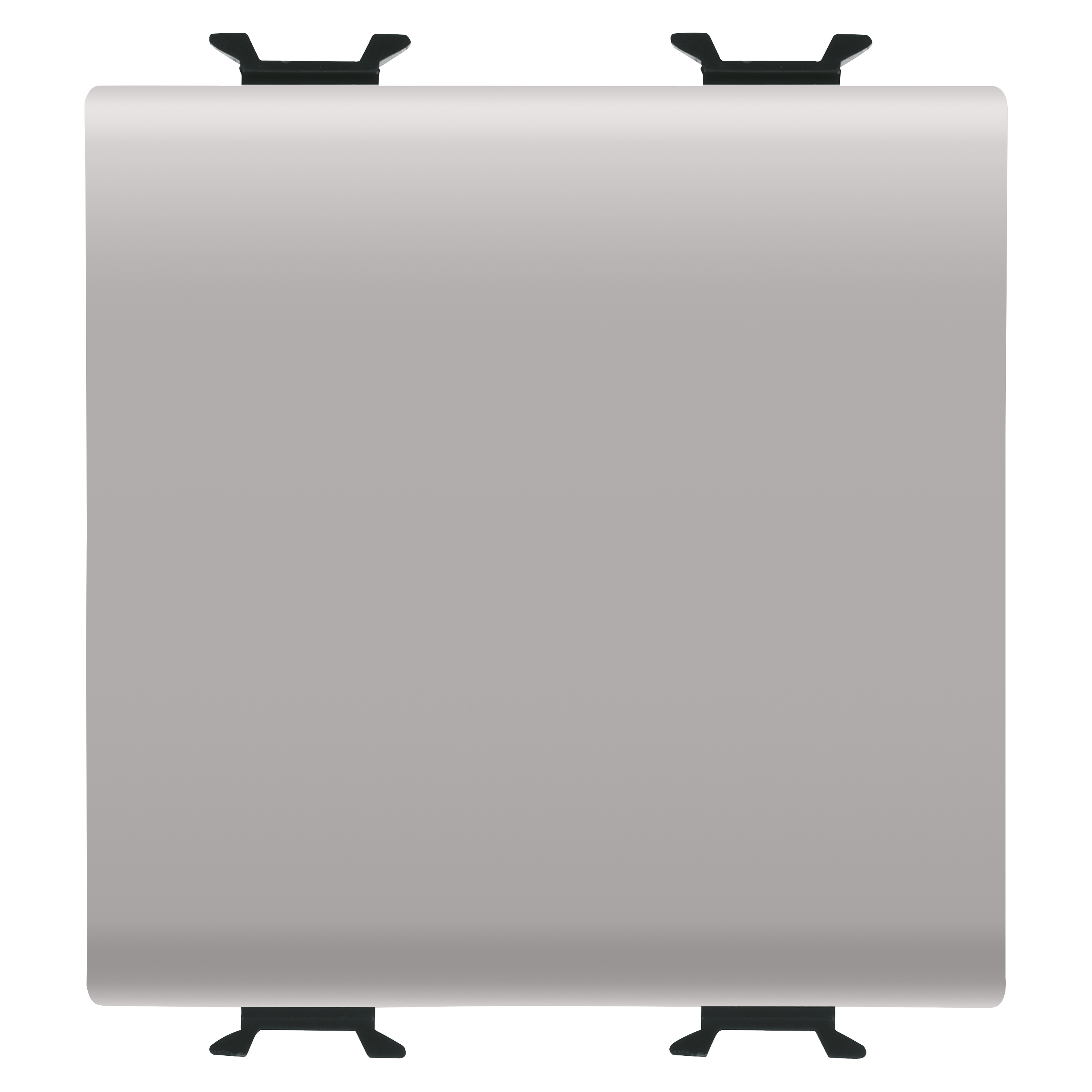

ONE-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX - NEUTRAL BUTTON - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13031F
2
1P - 16AX
Neutral
200 W
ONE-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13032F
2
1P - 16AX illuminable
With diffuser
200 W
ONE-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13033F
2
1P - 16AX illuminable
With replaceable neutral lens
200 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
ONE-WAY SWITCH 2P 250V ac - QUICK WIRING TERMINALS - 16AX - NEUTRAL BUTTON - SYMBOL 0/1 - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13034F
2
2P - 16 AX
Neutral
0/1
200 W
ONE-WAY SWITCH 2P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13035F
2
2P - 16AX illuminable
With replaceable neutral lens
-
200 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
TWO-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX - NEUTRAL BUTTON - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13071F
2
1P - 16AX
Neutral
200 W
TWO-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13072F
2
1P - 16AX illuminable
With diffuser
200 W
TWO-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13073F
2
1P - 16AX illuminable
With replaceable neutral lens
200 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
INTERMEDIATE SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX - NEUTRAL BUTTON - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13101F
2
1P - 16AX
Neutral
200 W
INTERMEDIATE SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13102F
2
1P - 16AX illuminable
With diffuser
200 W
INTERMEDIATE SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - NAT. SATIN BEIGE - CHORUSMART
GW13103F
2
1P - 16AX illuminable
With replaceable neutral lens
200 W
Cod Gewiss
No. modules
Description
Button key
PUSH-BUTTON 1P 250V ac - QUICK WIRING TERMINALS - NO 16A - NEUTRAL BUTTON - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13171F
2
1P NO - 16A
Neutral
PUSH-BUTTON 1P 250V ac - QUICK WIRING TERMINALS - NO 16A ILLUMINABLE - WITH DIFFUSER - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13172F
2
1P NO - 16A illuminable
With diffuser
PUSH-BUTTON 1P 250V ac - QUICK WIRING TERMINALS - NO 16A ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13173F
2
1P NO - 16A illuminable
With replaceable neutral lens
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
TWIN TWO-WAY SWITCH 250V ac - QUICK WIRING TERMINALS - 1P 16AX - NEUTRAL BUTTON - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13078F
2
Twin two-way switch 1P - 16 AX
Neutral
-
200 W
TWO-WAY SWITCH + PUSH BUTTON - 250V ac - QUICK WIRING TERMINALS - 1P 16AX / 1P NO 16A - NEUTRAL BUTTON - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13159F
2
Two-way switch 1P - 16 AX / Push-button 1P NO - 16A
Neutral
-
200 W

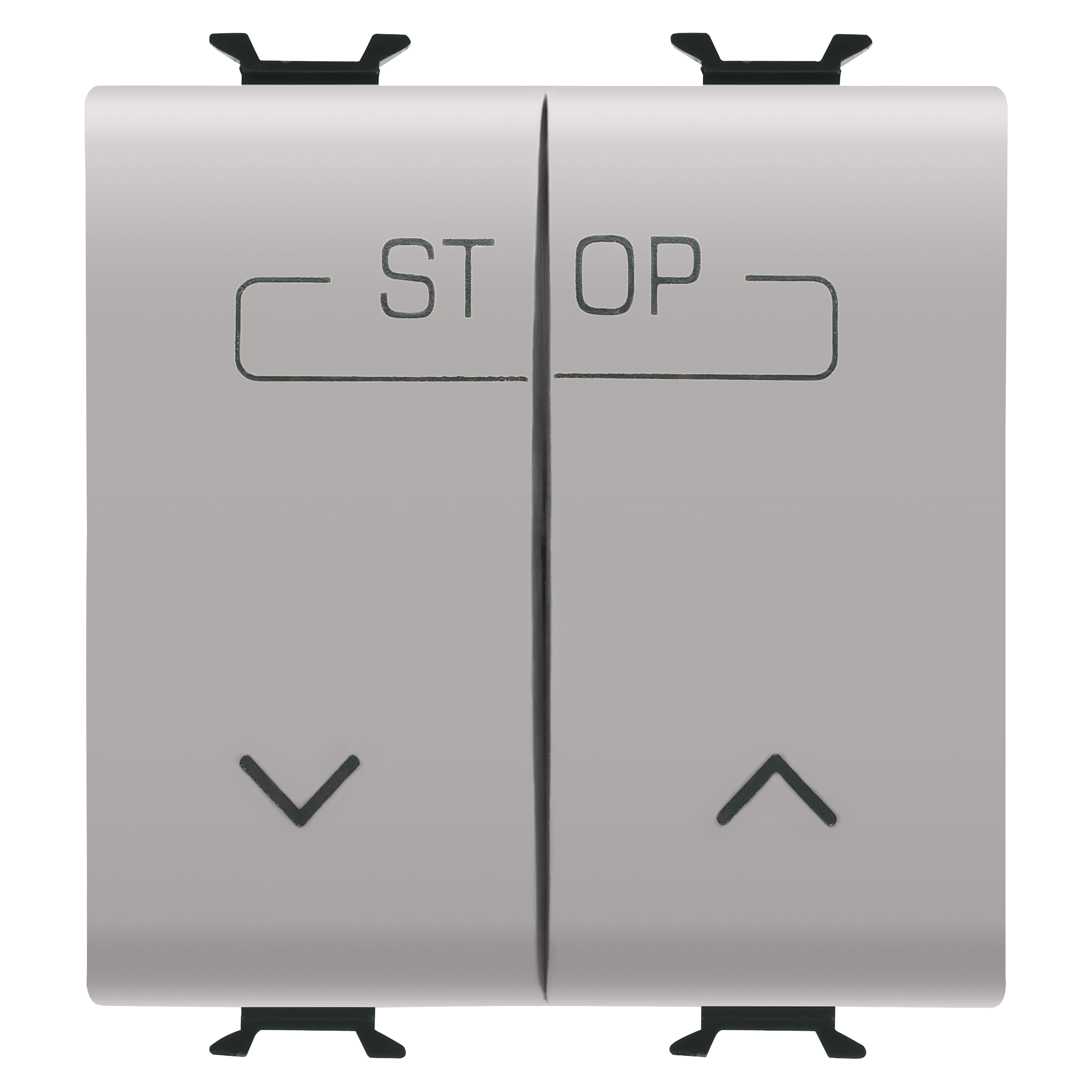

TWIN PUSH-BUTTON 250V ac - QUICK WIRING TERMINALS - 1P NO 16A - SYMBOL UP-DOWN-STOP - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13160F
2
Twin push-button 1P NO - 16 A
Neutral
UP - DOWN - STOP
-

Command devices - axial - screw terminals

Category
Axial switch module - EVO

Change category

Axial switch module - EVO
Axial dimmer module - EVO
Axial roller shutter module - EVO
Auxiliary touch 1-channel control modules
Auxiliary touch 2-channel control modules
Interchangeable keys and diffusers for axial devices
Cod Gewiss
Supply voltage
Output contacts
No. modules
AXIAL ONE-WAY SWITCH MODULE EVO - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10671
100 ÷ 240 V ac - 50/60 Hz
1 NO 5A (AC1) 240 V ac
1
AXIAL ONE-WAY SWITCH MODULE EVO - 100-240 V ac - 50/60 Hz - 2 MODULES - CHORUSMART
GW10672
100 ÷ 240 V ac - 50/60 Hz
1 NO 5A (AC1) 240 V ac
2
Cod Gewiss
Supply voltage
Halogen load
Inductive load
LED load
No. modules
AXIAL DIMMER MODULE EVO - 100-240 V ac  - 50/60 Hz - 4-150W 240 Vac - 1 MODULE - CHORUSMART
GW10673
100 ÷ 240 V ac - 50/60 Hz
4 ÷ 150 W
4 - 150 VA
4 ÷ 150 W
1
AXIAL DIMMER MODULE EVO - 100-240 V ac - 50/60 Hz - 4-150W 240 Vac - 2 MODULES - CHORUSMART
GW10674
100 ÷ 240 V ac - 50/60 Hz
4 ÷ 150 W
4 - 150 VA
4 ÷ 150 W
2
Cod Gewiss
Supply voltage
Max current supplied
No. modules
AXIAL ROLLER SHUTTER/VENETIAN MODULE EVO - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10675
100 ÷ 240 V ac - 50/60 Hz
2,3 A 240 V ac (according to IEC 60669-2-1)
1
AXIAL ROLLER SHUTTER/VENETIAN MODULE EVO - 100-240 V ac - 50/60 Hz - 2 MODULE - CHORUSMART
GW10676
100 ÷ 240 V ac - 50/60 Hz
2,3 A 240 V ac (according to IEC 60669-2-1)
2
Cod Gewiss
Supply voltage
Output contacts
No. modules
AUXILIARY AXIAL 1 COMMAND MODULE - 100-240 V ac 50/60 Hz - 1 MODULE - CHORUSMART
GW10677
100 ÷ 240 V ac - 50/60 Hz
1A (AC1)
1
AUXILIARY AXIAL 1 COMMAND MODULE - 100-240 V ac 50/60 Hz - 2 MODULES - CHORUSMART
GW10678
100 ÷ 240 V ac - 50/60 Hz
1A (AC1)
2
Cod Gewiss
Supply voltage
Output contacts
No. modules
AUXILIARY AXIAL 2 COMMANDS MODULE - 100-240 V ac 50/60 Hz - 1 MODULE - CHORUSMART
GW10679
100 ÷ 240 V ac - 50/60 Hz
n. 2 x 1A (AC1)
1

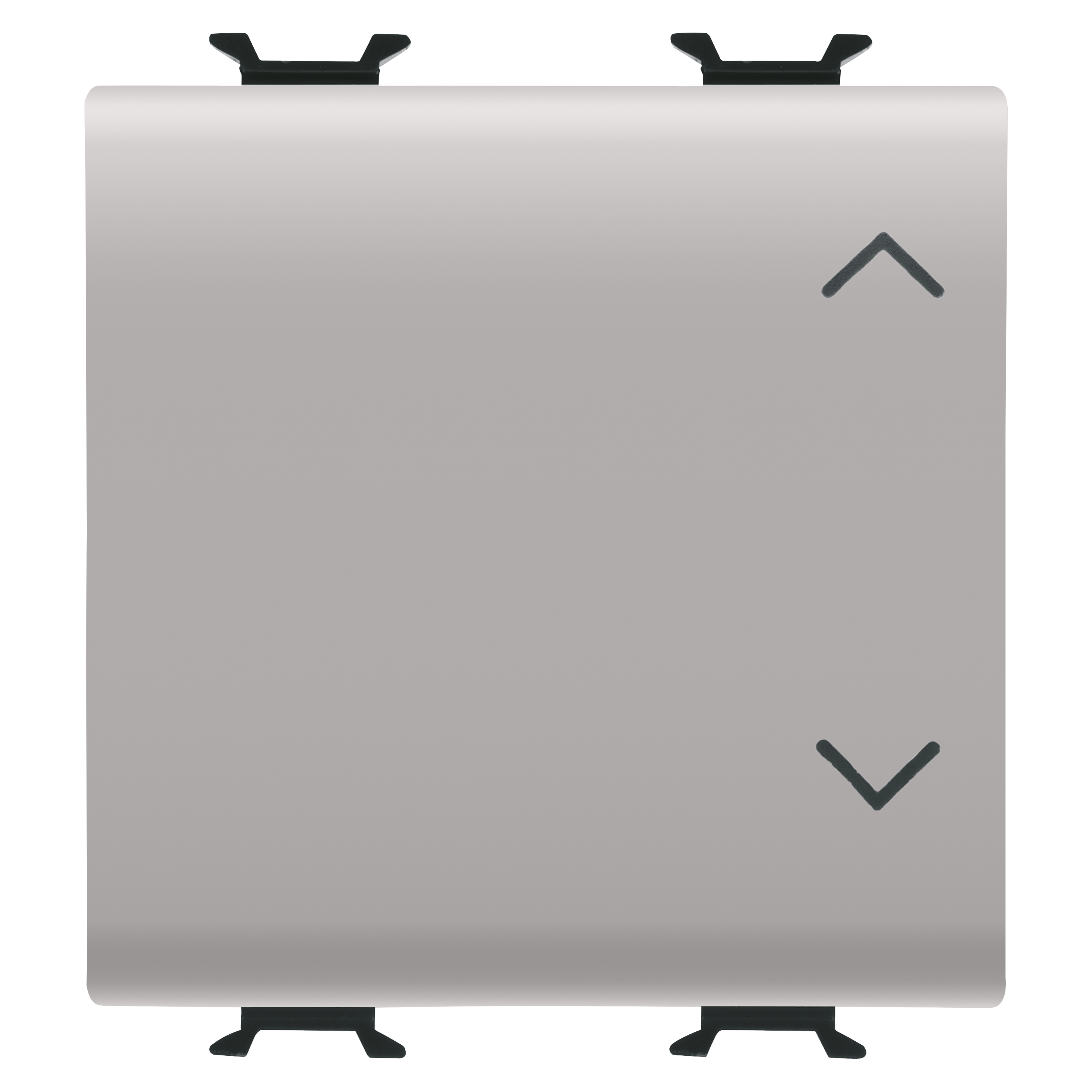

AUXILIARY AXIAL 2 COMMANDS MODULE - 100-240 V ac 50/60 Hz - 2 MODULES - CHORUSMART
GW10680
100 ÷ 240 V ac - 50/60 Hz
n. 2 x 1A (AC1)
2
Cod Gewiss
Colour
Button key
No. modules
REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - TO BE COMPLETED WITH LENS - 1 MODULE - SATIN NATURAL BEIGE - CHORUSMART
GW13551S
Natural satin beige
To be completed with lens
1

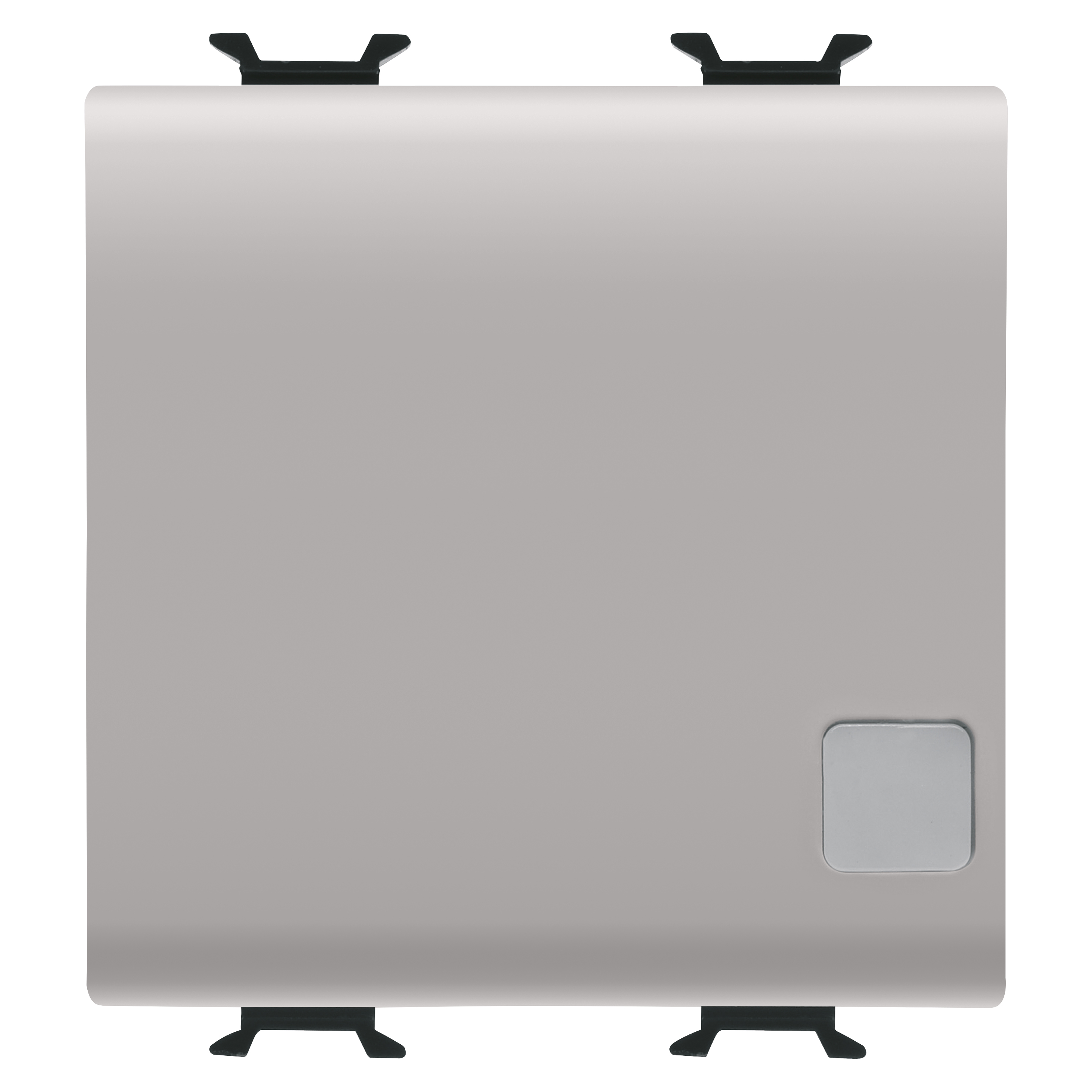

REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - TO BE COMPLETED WITH LENS - 2 MODULES - SATIN NATURAL BEIGE - CHORUSMART
GW13552S
Natural satin beige
To be completed with lens
2
REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - TO BE COMPLETED WITH 2 LENS - 1 MODULE - SATIN NATURAL BEIGE - CHORUSMART
GW13553S
Natural satin beige
To be completed with 2 lenses
1
REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - TO BE COMPLETED WITH 2 LENS - 2 MODULES - SATIN NATURAL BEIGE - CHORUSMART
GW13554S
Natural satin beige
To be completed with 2 lenses
2
REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - WITH DIFFUSER - 1 MODULE - SATIN NATURAL BEIGE - CHORUSMART
GW13555S
Natural satin beige
With 1 diffuser
1

Lenses with illuminated symbol

Category
Symbols for illuminable switches and push-buttons

Change category

Symbols for illuminable switches and push-buttons
Lenses with illuminating symbols for axial button keys
Cod Gewiss
Suitable for
Symbol
SYMBOL FOR ILLUMINABLE COMMAND DEVICES - TRANSPARENT - CHORUSMART
GW10501
General services
Neutral
SYMBOL FOR ILLUMINABLE COMMAND DEVICES - LIGHT - CHORUSMART
GW10502
General services
Light
SYMBOL FOR ILLUMINABLE COMMAND DEVICES - STAIR LIGHT - CHORUSMART
GW10503
General services
Stair light
SYMBOL FOR ILLUMINABLE COMMAND DEVICES - TABLE LIGHT - CHORUSMART
GW10504
General services
Table light
SYMBOL FOR ILLUMINABLE COMMAND DEVICES - BELL - CHORUSMART
GW10505
General services
Bell
Cod Gewiss
Symbol
LENS WITH ILLUMINABLE SYMBOL - TRANSPARENT
GW10501A
Neutral
LENS WITH ILLUMINABLE SYMBOL - LIGHT
GW10502A
Light
LENS WITH ILLUMINABLE SYMBOL - STAIR LIGHT
GW10503A
Stair light
LENS WITH ILLUMINABLE SYMBOL - TABLE LIGHT
GW10504A
Table light
LENS WITH ILLUMINABLE SYMBOL - BELL
GW10505A
Bell

Interchangeable button keys and diffusers

Category
Interchangeable button keys and diffusers

Change category

Interchangeable button keys and diffusers
Cod Gewiss
Description
Symbol
INTERCHANGEABLE BUTTON KEY - 22X22mm - GENERAL - NATURAL SATIN BEIGE - CHORUSMART
GW13541
Keys 22x22 mm
General
INTERCHANGEABLE BUTTON KEY - 22X22mm - KEY - NATURAL SATIN BEIGE - CHORUSMART
GW13543
Keys 22x22 mm
Key

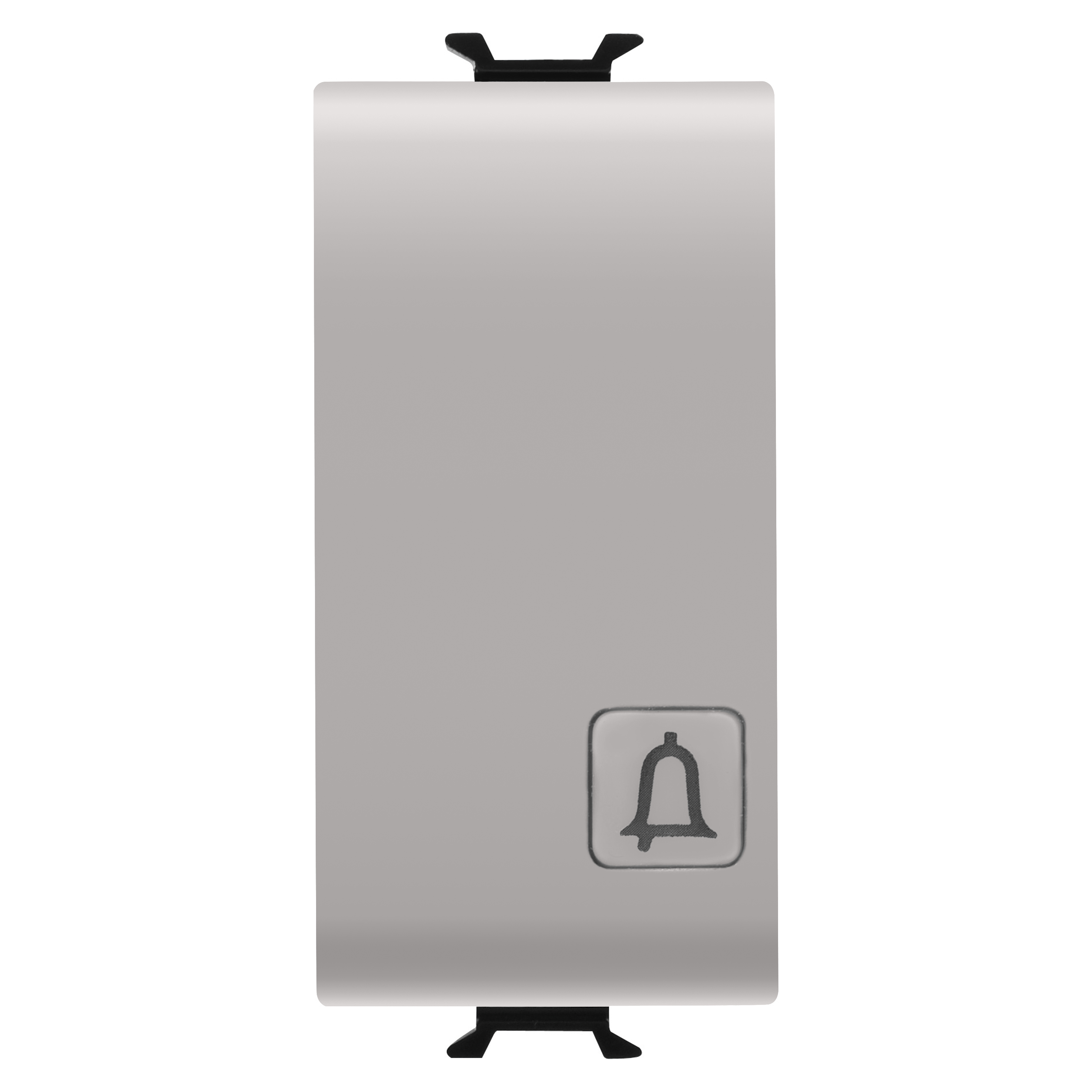

INTERCHANGEABLE BUTTON KEY - 22X22mm - BELL - NATURAL SATIN BEIGE - CHORUSMART
GW13544
Keys 22x22 mm
Bell
INTERCHANGEABLE BUTTON KEY - 22X22mm - VERTICAL ARROW - NATURAL SATIN BEIGE - CHORUSMART
GW13545
Keys 22x22 mm
Vertical arrow
INTERCHANGEABLE BUTTON KEY - 22X22mm - HORIZONTAL ARROW - NATURAL SATIN BEIGE - CHORUSMART
GW13546
Keys 22x22 mm
Horizontal arrow

Soft-click electronic push-buttons

Category
Universal

Change category

Universal
Backlit
Back-lights for BUS inputs
Double
Cod Gewiss
Type of contact
Button key
Type of use
No. modules

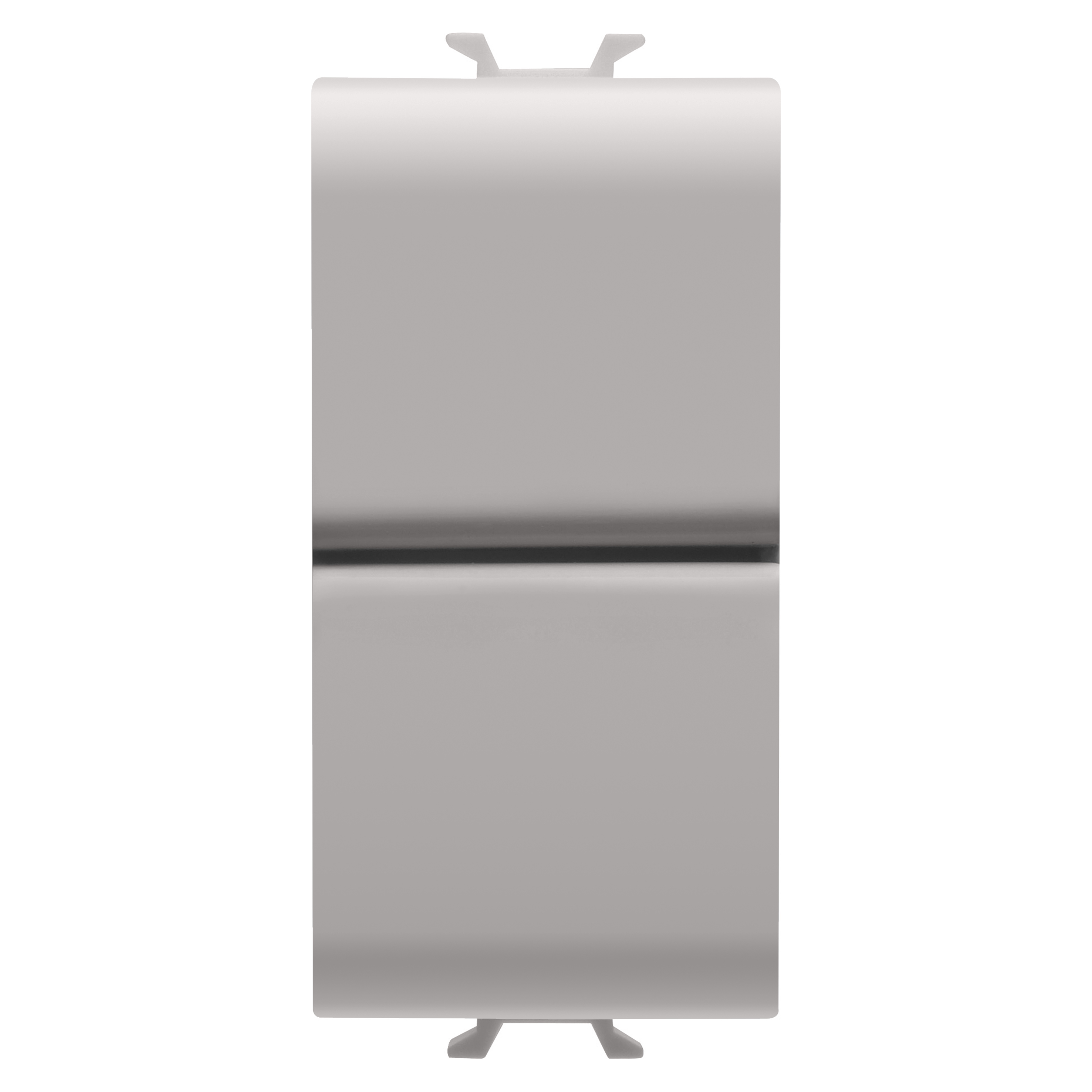

ELECTRONIC SOFT-CLICK PUSH-BUTTON - NEUTRAL BUTTON - FOR RELAY/DIMMER/BUS C.INTERF. - 1P NO/NC 4A POT.-FREE - 1 MODULE - N. SATIN BEIGE - CHORUSMART
GW13915
1NO/NC 4A (AC1) 230 V ac - Potential-free
Neutral
Relay, dimmer, bus contacts interfaces
1
Cod Gewiss
Supply voltage
Type of contact
Button key
Type of use
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH DIFFUSER - FOR RELAY/DIMMER - 1P NO 4A - 230V ac 50/60Hz - 1 MODULE - NAT. SATIN BEIGE - CHORUSMART
GW13912
230 V ac - 50/60 Hz
1NO 4A (AC1) 230 V ac
With diffuser
Relay, dimmer
Cod Gewiss
No. modules
Type of contact
Button key
Type of use
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH DIFFUSER - FOR BUS CONTACTS INTERFACES - 1P NO POTENTIAL-FREE - 1M - N. SATIN BEIGE - CHORUSMART
GW13913
1
1NO - Potential-free
With diffuser
Bus contacts interfaces
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH REP.NEUTRAL LENS - FOR BUS CONTACTS INTERF. - 1P NO POT.-FREE - 1M - N. SATIN BEIGE - CHORUSMART
GW13916
1
1NO - Potential-free
With replaceable neutral lens
Bus contacts interfaces
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH DIFFUSER - FOR BUS CONTACTS INTERF. - 1P NO POTENTIAL-FREE - 2 MODULES - N.SATIN BEIGE - CHORUSMART
GW13917
2
1NO - Potential-free
With diffuser
Bus contacts interfaces
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH REP.NEUTRAL LENS - FOR BUS CONT.INTERF. - 1P NO POT.-FREE - 2 MODULES - N. SATIN BEIGE - CHORUSMART
GW13918
2
1NO - Potential-free
With replaceable neutral lens
Bus contacts interfaces
Cod Gewiss
Type of contact
Button key
Symbol
No. modules
ELECTRONIC SOFT-CLICK PUSH-BUTTON - DOUBLE - FOR BUS CONTACTS INTERFACES - 1P 2NO/NC POTENTIAL-FREE - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13914
Dual, potential-free and with interlock
Neutral
UP - DOWN
1

Touch command modules

Category
Touch one-way switch module

Change category

Touch one-way switch module
Touch dimmer module
Touch roller shutter module
Auxiliary touch 1-channel control module
Auxiliary touch 2-channel control module
Cod Gewiss
Supply voltage
Output contacts
No. modules
TOUCH ONE WAY SWITCH MODULE - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10922
100 ÷ 240 V ac - 50/60 Hz
1 NO 5A (AC1) 240 V ac
1
Cod Gewiss
Supply voltage
Halogen load
Inductive load
LED load
No. modules
TOUCH DIMMER MODULE - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10923
100 ÷ 240 V ac - 50/60 Hz
4 ÷ 150 W
4 - 150 VA
4 ÷ 150 W
1
Cod Gewiss
Supply voltage
Maximum output power
No. modules
TOUCH ROLLER/SHUTTER MODULE - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10921
100 ÷ 240 V ac - 50/60 Hz
2,3 A 240 V ac (according to IEC 60669-2-1)
1
Cod Gewiss
Supply voltage
Output contacts
No. modules
TOUCH COMMAND DUPLICATOR MODULE FOR ONE WAY TOUCH SWITCH - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10924
100 ÷ 240 V ac - 50/60 Hz
-
1
Cod Gewiss
Supply voltage
Output contacts
No. modules
TOUCH COMMAND DUPLICATOR MODULE FOR TOUCH DIMMER/ROLLER-SHUTTER - 100-240 V ac - 50/60 Hz - I MODULE - CHORUSMART
GW10925
100 ÷ 240 V ac - 50/60 Hz
-
1

ICE TOUCH plates

Category
Natural beige

Change category

Natural beige
Cod Gewiss
Description
For support codes

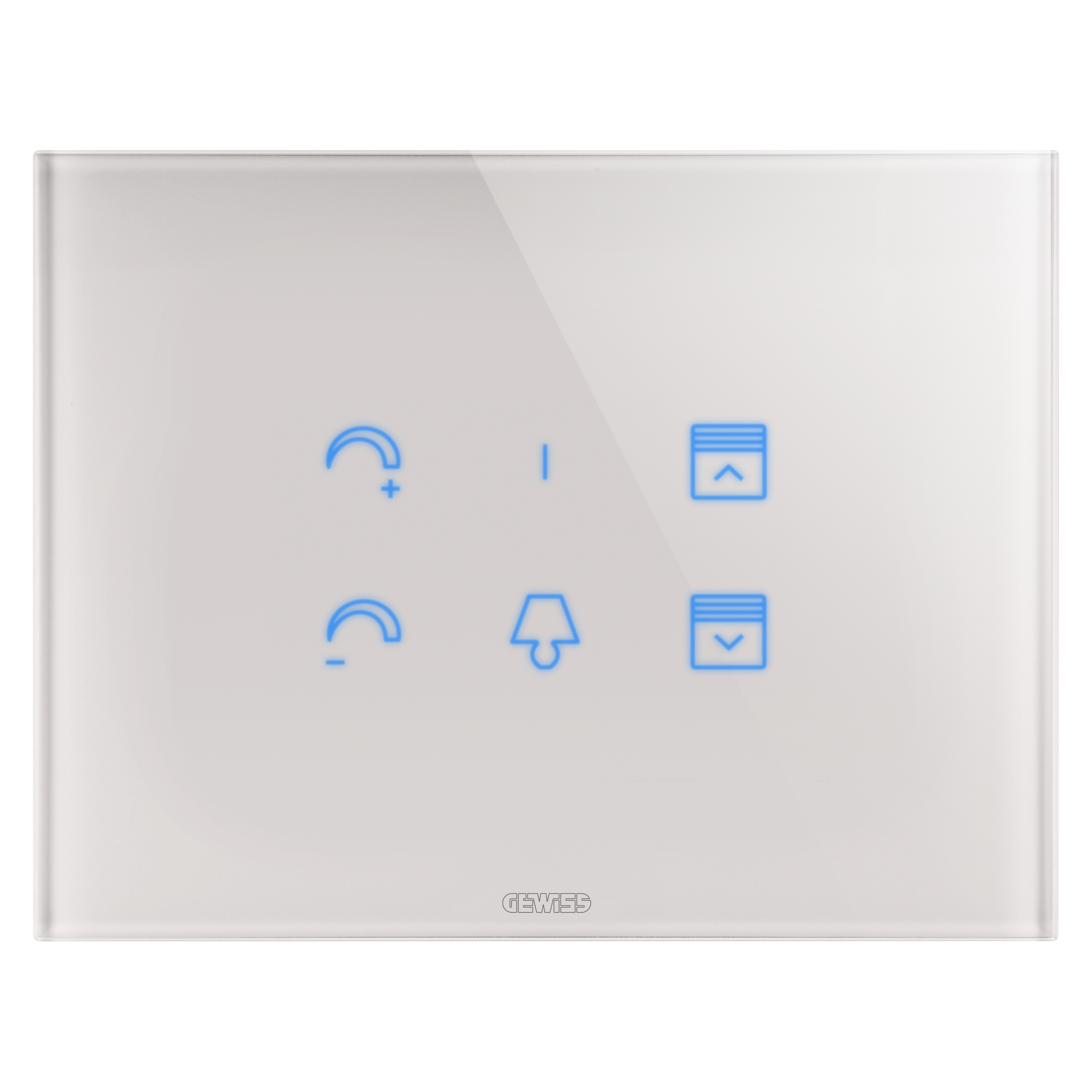

ICE TOUCH PLATE - IN GLASS - INTERCHANGEABLE SYMBOLS - NATURAL BEIGE - CHORUSMART
GW16955CL
6 touch areas
GW16803, GW16803N

Blanking modules and cable outlet

Category
Blanking modules

Change category

Blanking modules
Cable outlet
Cod Gewiss
Description
No. modules
BLANKING MODULE - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13195
1 module
1
BLANKING MODULE - 1/2 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13197
1/2 module
1/2
BLANKING MODULE - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13198
2 modules
2

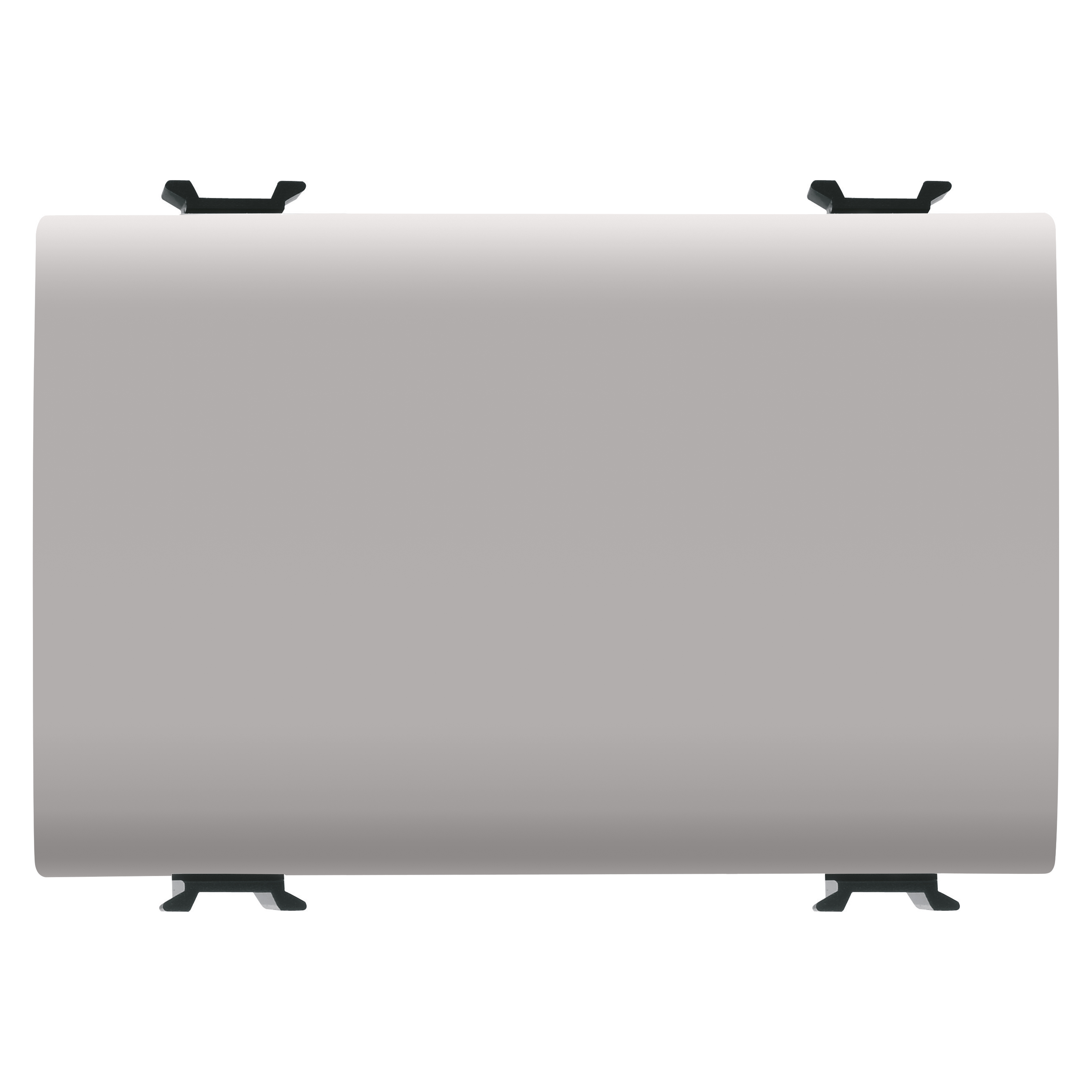

BLANKING MODULE - 3 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13199
3 modules
3
Cod Gewiss
Description
No. modules
CABLE OUTLET - 2 MODULES - NATURAL SATIN BEIGE - CHORUSMART
GW13194
2 modules
2

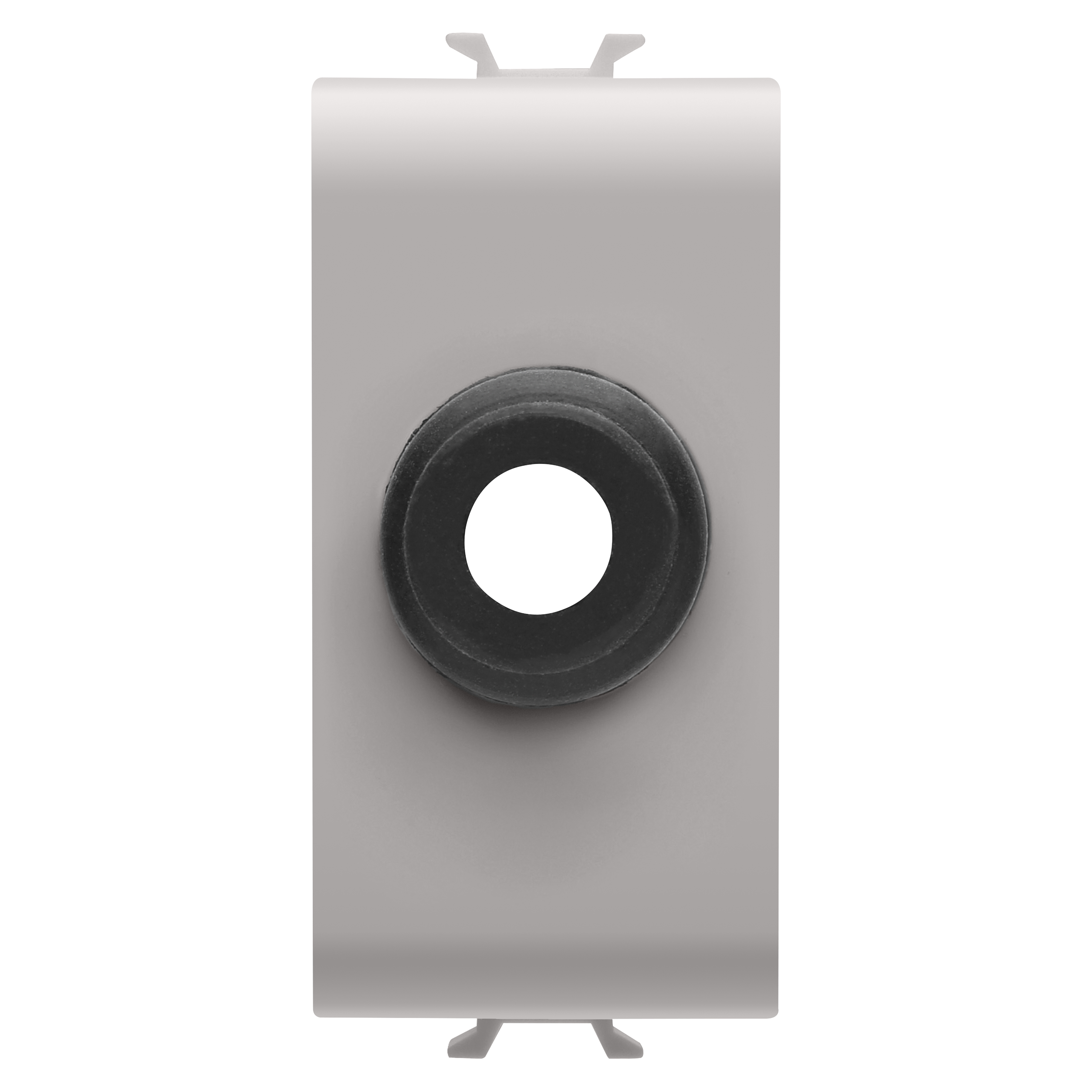

CABLE OUTLET - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13196
1 module
1

Movement detectors

Category
Movement detector

Change category

Movement detector
Ceiling-mounted presence detector
Cod Gewiss
Supply voltage
Output contacts
INFRARED MOVEMENT DETECTOR - 230 V ac 50/60 Hz - SATIN NATURAL BEIGE - 1 MODULE - CHORUSMART
GW13594
230V ac - 50/60 Hz
1NO 3 A (AC1) 230 V ac
Cod Gewiss
Supply voltage
Installation height (m)
Light sensor
Dimensions HxØ (mm)
CEILING PRESENCE DETECTOR - IP20 FLUSH MOUNTING APPLICATION OR IP44 WITH SURFACE DEDICATE BOX - 360° - CHORUSMART
GW10595
220/240 V ac - 50/60 Hz
From 2,2 to 6
< 3 ÷ 2000 Lux
44x111,5

Relay

Category
Relay - 230V ac 50/60Hz

Change category

Relay - 230V ac 50/60Hz
Call relay - 12V ac/dc
Cod Gewiss
No. modules
Type
No. of poles
Output contacts
Coil

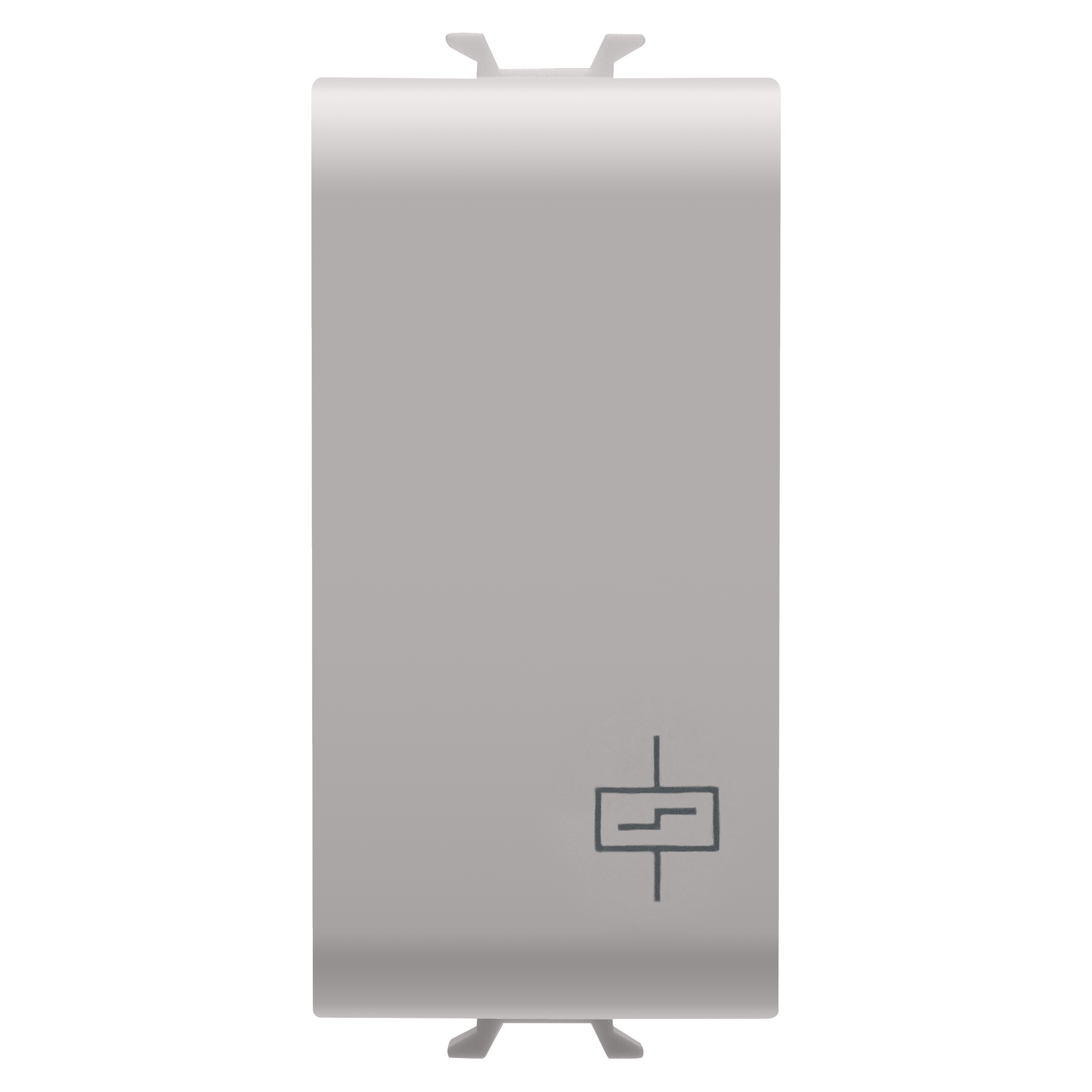

LATCHING RELAY 230V ac 50/60Hz - 1P 10AX 250V ac - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13721
1
Latching relay
1P
10 AX 250V ac
230V ac - 50/60 Hz
MOMENTARY RELAY 230V ac 50/60Hz - 1P 1NO/NC 10A(AC1)/2A(AC15)250Vac - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13724
1
Monostable relay
1P
1NO/NC 10A(AC1)/2A(AC15)250V ac
230V ac - 50/60 Hz
Cod Gewiss
Supply voltage
No. of poles
Output contacts
No. modules
CALL RELAY 12V ac/dc - 1P 1NO/NC 12V - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
GW13726
12V ac/dc
1P
1NO/NC 12 V (max. 1A)
1
You saw 193 products on 341
Show others

Applications

Hospitality
Museums and Libraries
Show more
Hospitality
Hotels & Restaurants
Show more
Residential
Residences
Show more
Retail
Shops
Show more
Offices
Private Buildings
Show more
Hospitality
Theatres
Show more
Residential
Villas
Show more
Residential
Apartments
Show more
services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Write to us Write us
More info More info
Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us

Do you need information on Gewiss products or services?

Write to us Write to us

Wishlist Management

Privacy Policy

The privacy policy has been updated. Please review and provide your consent again. Thank you

Close Close

You can enter the Gewiss world by consulting the sites available for each country, differentiated by language, services, and catalogue offerings

Choose your country

Albania
IT EN
Belgium
FR NL
Chile
ES
Czech Republic
CZ
France
FR
Germany
DE
Hungary
HU
Israel
IL
Italy
IT
Holland
NL
Poland
PL
Romania
RO
Spain
ES
Swiss
IT FR DE
Turkey
TR
UK
EN

If your country is not among those available, you can consult the website

You are entering the site:

International - EN

GEWISS World websites are available for each country, differentiated by language, services and catalogue offerings.

Continue on international site Continue on international site

Do you want to change country?

Choose another country Choose another country
