I-FAST
DC charging stations

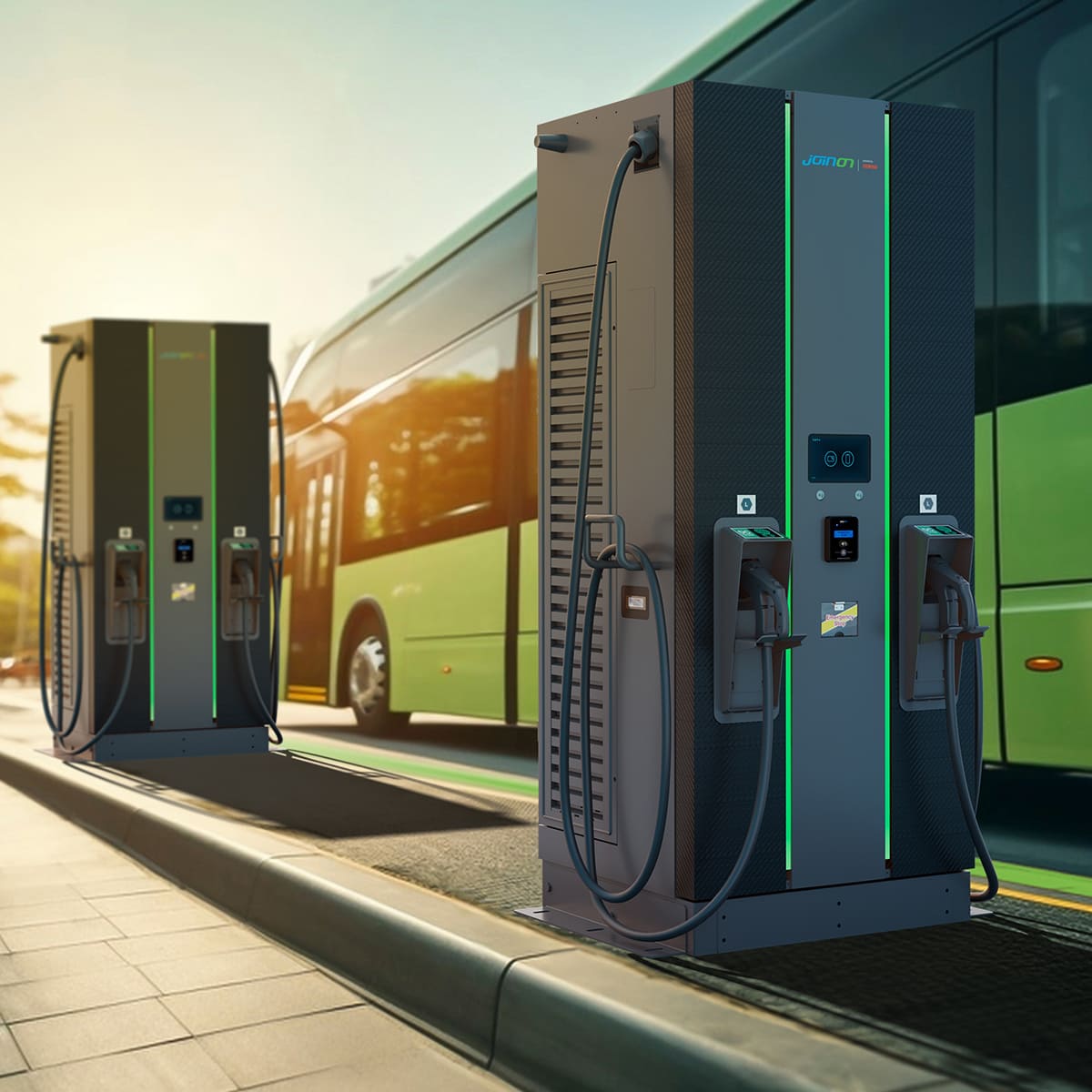

The I-FAST products are JOINON solutions for fast DC charging, ideal for charging all types of electric vehicles equipped with high-power systems in private or public high-traffic parking areas, highways, expressways, and service areas. They support any OCPP-compatible third-party app and platform. The range includes wallboxes up to 30 kW and stations up to 480 kW. They are characterized by an elegant design and finishes that make them an urban and extra-urban furniture, with a graphic display for a better User Experience and service use for the EV Driver.

Scalability
scalability
The presence of 30 kW modules allows both better maintenance of the product and, on the Station series, simpler scalability and management.
User Experience
user experience
The electric driver is guided in all phases of recharging thanks to the presence of a graphic display that allows for better iteration. Also available is an on-board portal, accessible remotely, which allows for better management of the infrastructure.
Simplified maintenance
simplified maintenance
Maintenance of charging points is simple, convenient and economical. Access to electronic and electromechanical components is facilitated by the front opening, while the modules can be easily added or removed from the side compartment.

The products of this series

114 products

I-FAST charging systems for electric vehicles - DC (MODE 4)

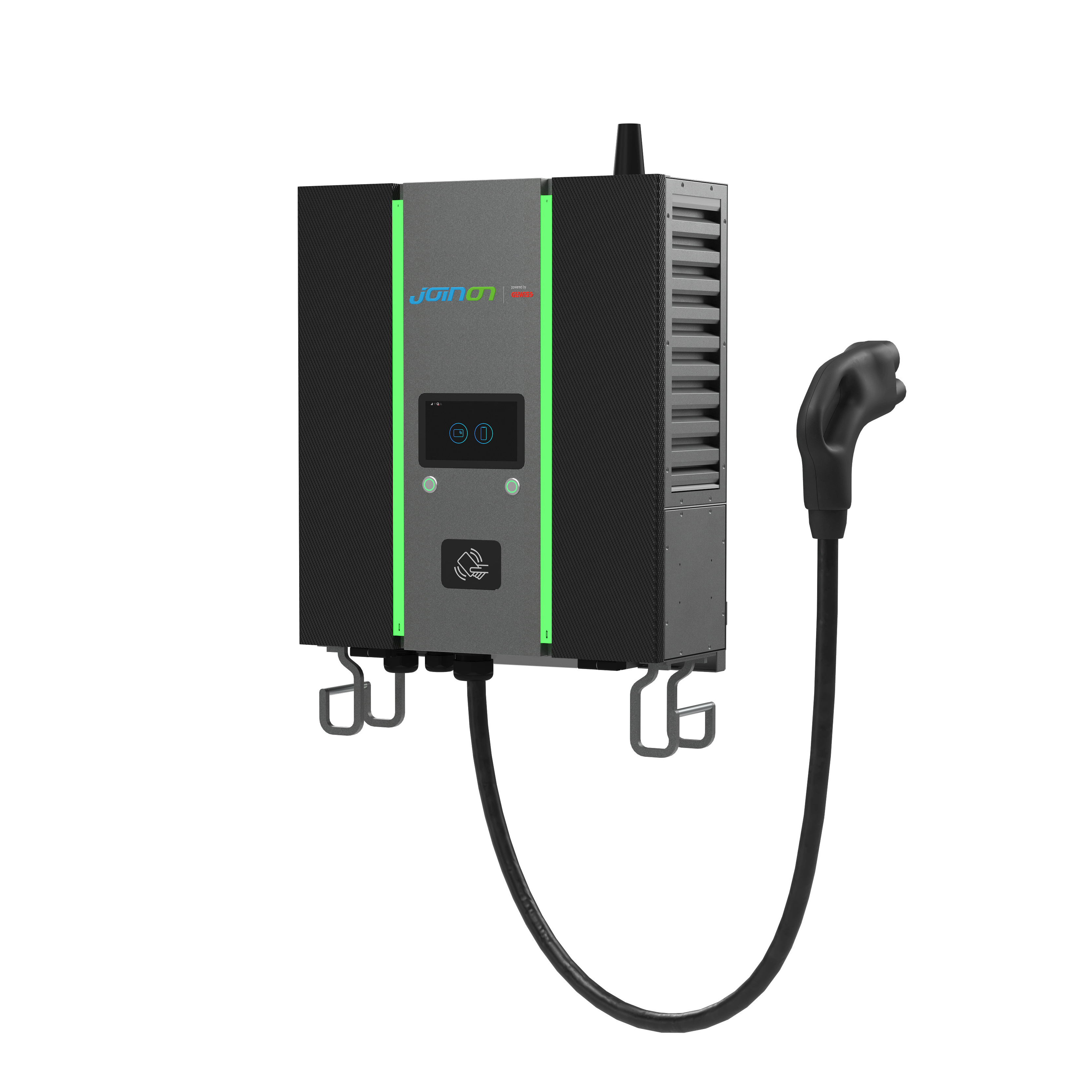

I-FAST WALLBOX

Category
30kW DC Wallbox

Change category

Cod Gewiss
No. of sockets
Power max.
Max output current
RFID Reader
Meter
Payment terminal

I-FAST MOVABLE

Category
30kW DC Movable charger

Change category

Cod Gewiss
No. of sockets
Power max.
Max output current
RFID Reader
Meter
Payment terminal

I-FAST COMPACT

Category
60 kW Base DC Charging Station

Change category

Cod Gewiss
No. of sockets
Power max.
Max output current
RFID Reader
Meter
Payment terminal
Cod Gewiss
No. of sockets
Power max.
Max output current
RFID Reader
Meter
Payment terminal
Cod Gewiss
No. of sockets
Power max.
Max output current
RFID Reader
Meter
Payment terminal
Cod Gewiss
No. of sockets
Power max.
Max output current
RFID Reader
Meter
Payment terminal
GWJ9122K
2
60 kW
CCS2: 150 A
No
DC PTB Meter
Yes, Payter Apollo Polar

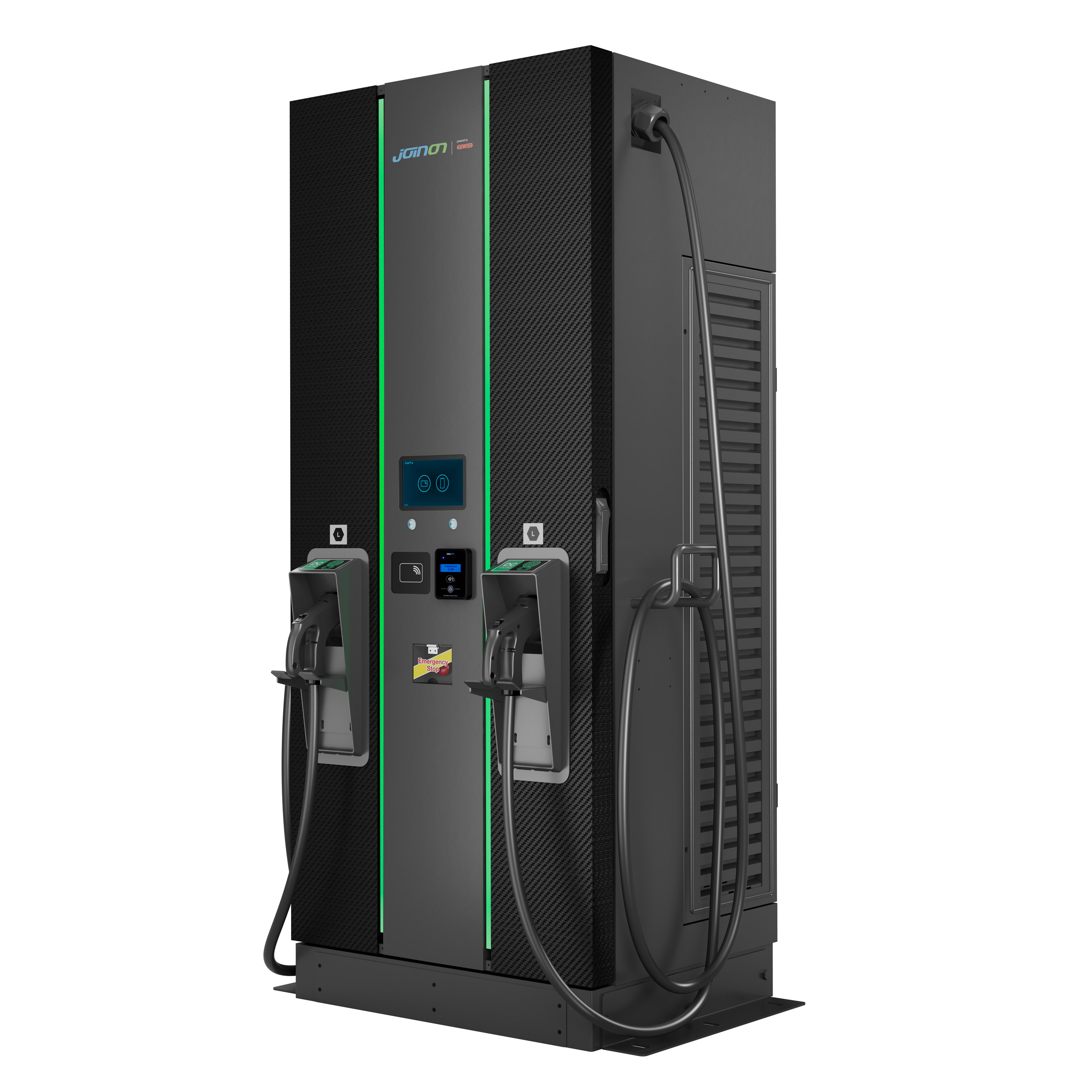

I-FAST STATION

Category
90-180 kW Base DC Charging Station

Change category

Cod Gewiss
Connector type
No. of sockets
Power max.
Max output current
RFID Reader
Meter
Payment terminal
Cod Gewiss
Connector type
No. of sockets
Power max.
Max output current
RFID Reader
Meter
Payment terminal
Cod Gewiss
POS type
No. of sockets
Power max.
Max output current
RFID Reader
Meter
Payment terminal
GWJ9232K
PAX IM30
2
90 kW
CCS2: 250 A
Yes
DC PTB Meter
Yes, Payter Apollo Polar
GWJ9242K
PAX IM30
2
120 kW
CCS2: 250 A
Yes
DC PTB Meter
Yes, Payter Apollo Polar
GWJ9252K
PAX IM30
2
150 kW
CCS2: 250 A
Yes
DC PTB Meter
Yes, Payter Apollo Polar
GWJ9262K
PAX IM30
2
180 kW
CCS2: 250 A
Yes
DC PTB Meter
Yes, Payter Apollo Polar

I-FAST HPC COMPACT

Category
240 kW Base DC Charging Station

Change category

Cod Gewiss
No. of sockets
Power max.
Max output current
Cable length
Meter
Payment terminal
GWJ9372Y
2
240 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
No
GWJ9373Y
1 + 1
240 kW
CCS2: 300A (peak 500A) CHAdeMO: 200A
4.5 m
Integrated DC Meter
No
GWJ9372YS7
2
240 kW
CCS2: 300A (peak 500A)
7 m
Integrated DC Meter
No
GWJ9373YS7
1 + 1
240 kW
CCS2: 300A (peak 500A) CHAdeMO: 200A
7 m
Integrated DC Meter
No
Cod Gewiss
POS type
No. of sockets
Power max.
Max output current
Cable length
Meter
Payment terminal
GWJ9372P
Payter P66
2
240 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
Yes, Payter P66
GWJ9372X
PAX IM30
2
240 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
Yes, PAX IM30
GWJ9372A
Apollo Polar
2
240 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
Yes, Payter Apollo Polar
Cod Gewiss
No. of sockets
Power max.
Max output current
Cable length
Meter
Payment terminal
Cod Gewiss
POS type
No. of sockets
Power max.
Max output current
Cable length
Meter
Payment terminal
GWJ9372K
Apollo Polar
2
240 kW
CCS2: 300A (peak 500A)
4.5 m
DC PTB Meter
Yes, Payter Apollo Polar
GWJ9372KS7
Apollo Polar
2
240 kW
CCS2: 300A (peak 500A)
7 m
DC PTB Meter
Yes, Payter Apollo Polar

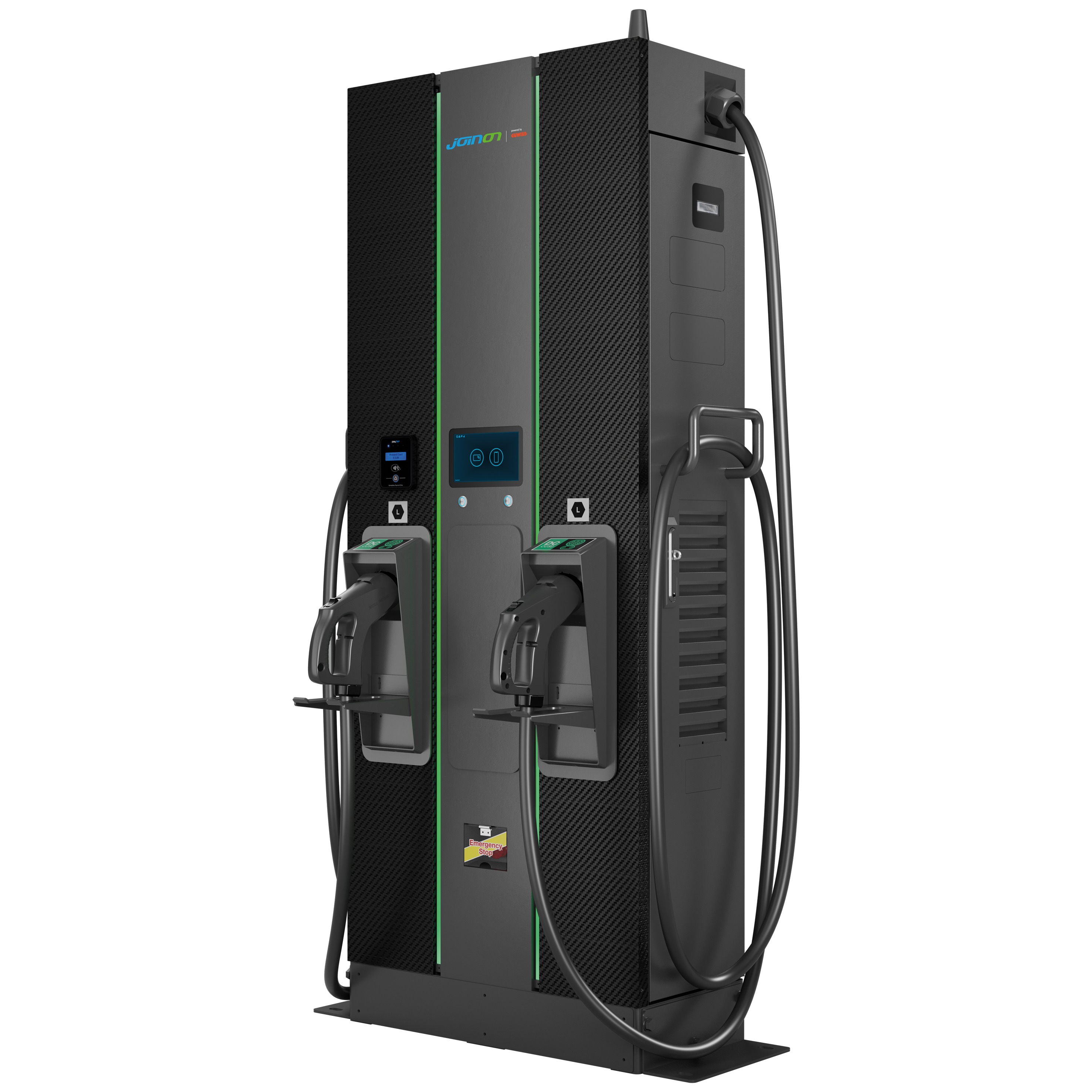

I-FAST HPC STATION

Category
320-480 kW Base DC Charging Station

Change category

Cod Gewiss
Connector type
No. of sockets
Power max.
Max output current
Cable length
Meter
Payment terminal
GWJ9482Y
2 x CCS2 300 A
2
320 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
No
GWJ9492Y
2 x CCS2 300 A
2
400 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
No
GWJ9402Y
2 x CCS2 300 A
2
480 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
No
GWJ9482YS7
2 x CCS2 300 A
2
320 kW
CCS2: 300A (peak 500A)
7 m
Integrated DC Meter
No
GWJ9492YS7
2 x CCS2 300 A
2
400 kW
CCS2: 300A (peak 500A)
7 m
Integrated DC Meter
No
Cod Gewiss
POS type
No. of sockets
Power max.
Max output current
Cable length
Meter
Payment terminal
GWJ9482P
Payter P66
2
320 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
Yes, Payter P66
GWJ9492P
Payter P66
2
400 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
Yes, Payter P66
GWJ9402P
Payter P66
2
480 kW
CCS2: 300A (peak 500A)
4.5 m
Integrated DC Meter
Yes, Payter P66
GWJ9482PS7
Payter P66
2
320 kW
CCS2: 300A (peak 500A)
7 m
Integrated DC Meter
Yes, Payter P66
GWJ9492PS7
Payter P66
2
400 kW
CCS2: 300A (peak 500A)
7 m
Integrated DC Meter
Yes, Payter P66
Cod Gewiss
Connector type
No. of sockets
Power max.
Max output current
Cable length
Meter
Payment terminal
GWJ9482H
2 x CCS2 300 A
2
320 kW
CCS2: 300A (peak 500A)
4.5 m
DC PTB Meter
No
GWJ9492H
2 x CCS2 300 A
2
400 kW
CCS2: 300A (peak 500A)
4.5 m
DC PTB Meter
No
GWJ9402H
2 x CCS2 300 A
2
480 kW
CCS2: 300A (peak 500A)
4.5 m
DC PTB Meter
No
GWJ9482HS7
2 x CCS2 300 A
2
320 kW
CCS2: 300A (peak 500A)
7 m
DC PTB Meter
No
GWJ9492HS7
2 x CCS2 300 A
2
400 kW
CCS2: 300A (peak 500A)
7 m
DC PTB Meter
No
Cod Gewiss
POS type
No. of sockets
Power max.
Max output current
Cable length
Meter
Payment terminal
GWJ9482K
Apollo Polar
2
320 kW
CCS2: 300A (peak 500A)
4.5 m
DC PTB Meter
Yes, Payter Apollo Polar
GWJ9492K
Apollo Polar
2
400 kW
CCS2: 300A (peak 500A)
4.5 m
DC PTB Meter
Yes, Payter Apollo Polar
GWJ9402K
Apollo Polar
2
480 kW
CCS2: 300A (peak 500A)
4.5 m
DC PTB Meter
Yes, Payter Apollo Polar
GWJ9482KS7
Apollo Polar
2
320 kW
CCS2: 300A (peak 500A)
7 m
DC PTB Meter
Yes, Payter Apollo Polar
GWJ9492KS7
Apollo Polar
2
400 kW
CCS2: 300A (peak 500A)
7 m
DC PTB Meter
Yes, Payter Apollo Polar
You saw 97 products on 114
Show others

Applications

Hospitality
Hotels & Restaurants
Show more
Healthcare
Medical centres
Show more
Hospitality
Theatres
Show more
Healthcare
Retirement homes
Show more

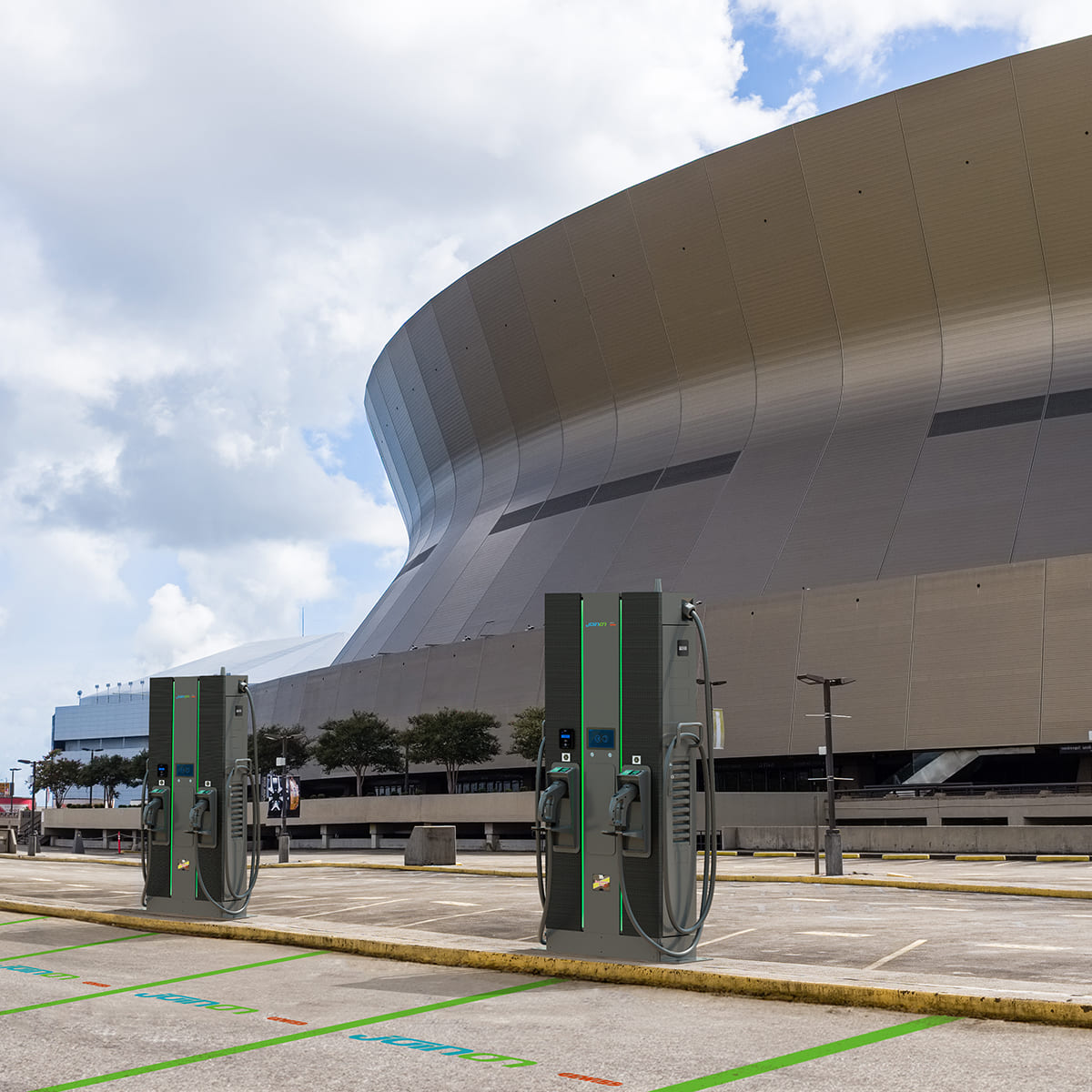

Sports
