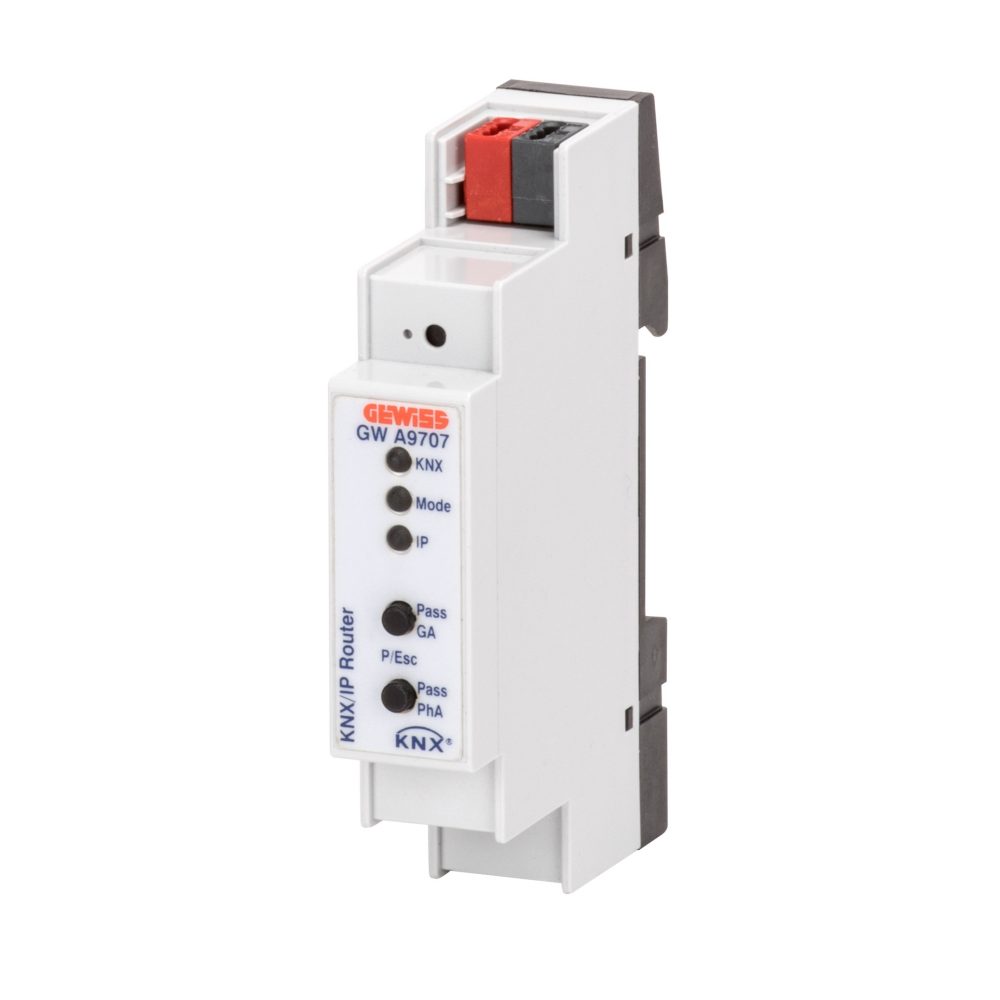

KNX/IP ROUTER - IP20 - 1 MODULE - DIN RAIL MOUNTING
Code:
GWA9707
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.
IP20
Technical Info
Information
Download
Software
Certificates
Description
KNX/IP router
Comunication
KNX
Power supply
Via KNX BUS, 29V DC SELV
Connection to the KNX bus
KNX bus terminal
Working temperature
-5 ÷ +45 °C
Stocking temperature
-25 +70 °C
IP degree
IP20
Relative humidity (non-condensative)
Max 93%
Standard
Low Voltage Directive 2014/35/EU;
Electromagnetic Compatibility Directive 2014/30/EU,
EN 50491, EN 50581, EN 61000-6-2,
EN 61000-6-3 + A1
Electromagnetic Compatibility Directive 2014/30/EU,
EN 50491, EN 50581, EN 61000-6-2,
EN 61000-6-3 + A1
No. DIN modules
1
Interfaces
IP/KNX TP1
Current absorbed by KNX bus (mA)
15 mA (<500 mW)
Ethernet
Presa LAN RJ-45;
10BaseT (10Mbit/s)
10BaseT (10Mbit/s)
Supported Internet protocols
ARP, ICMP, IGMP, UDP/IP, DHCP and Auto IP
MAX simultaneous connections
Max. 5 (KNXnet/IP Tunneling)
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: equipped with RJ45 port.
APPLICATIONS: for connecting the KNX lines to the IP backbones and the PC interface via LAN to the KNX BUS. Supports up to 5 simultaneous connections.
NOTES: equipped with coupling terminal for connection to bus.
APPLICATIONS: for connecting the KNX lines to the IP backbones and the PC interface via LAN to the KNX BUS. Supports up to 5 simultaneous connections.
NOTES: equipped with coupling terminal for connection to bus.
