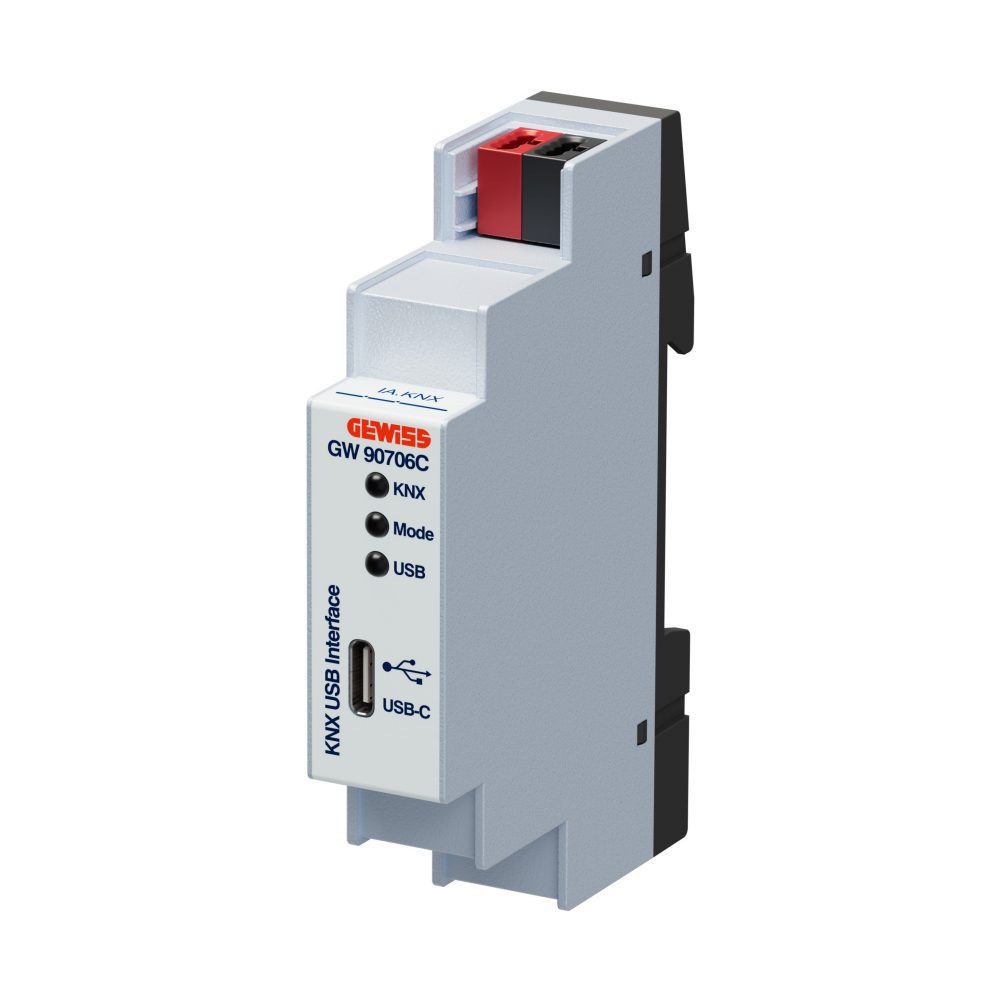

KNX/USB-C INTERFACE - KNX - IP20 - 1 MODULE - DIN RAIL MOUNTING
Code:
GW90706C
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.
IP20
Technical Info
Information
Download
Certificates
Description
Interface KNX/USB
Comunication
KNX
Connection to the KNX bus
KNX bus terminal
No. DIN modules
1
Power supply
Tramite bus KNX
Current absorbed by KNX bus (mA)
3 mA
Connectors
USB type C
Working temperature
-5 ... +45°C
Stocking temperature
-25... +70°C
IP degree
IP20
Relative humidity (non-condensative)
Max 93%
Wiring terminals
With screw
Terminal tightening capacity stranded cables (mm²)
Max. 2,5
Standard
Directive EMC; Directive RoHS; EN 63044-3; EN 63044-5-1; EN 63044-5-2; EN 63044-5-3; EN 61000-6-2; EN 61000-6-3; EN 63000
Ware Number
85389099
CE marking
Download
EQUIPMENT AND NOTES
APPLICATIONS:for connecting a PC equipped with a USB port to the KNX bus. Specifically, the GW90706C is an interface capable of supporting “KNX long frames,” suitable for use in both secure and non-secure KNX networks.NOTES:equipped with a plug-in terminal for connection to the bus.
GW90706B available while stock lasts.
GW90706B available while stock lasts.
