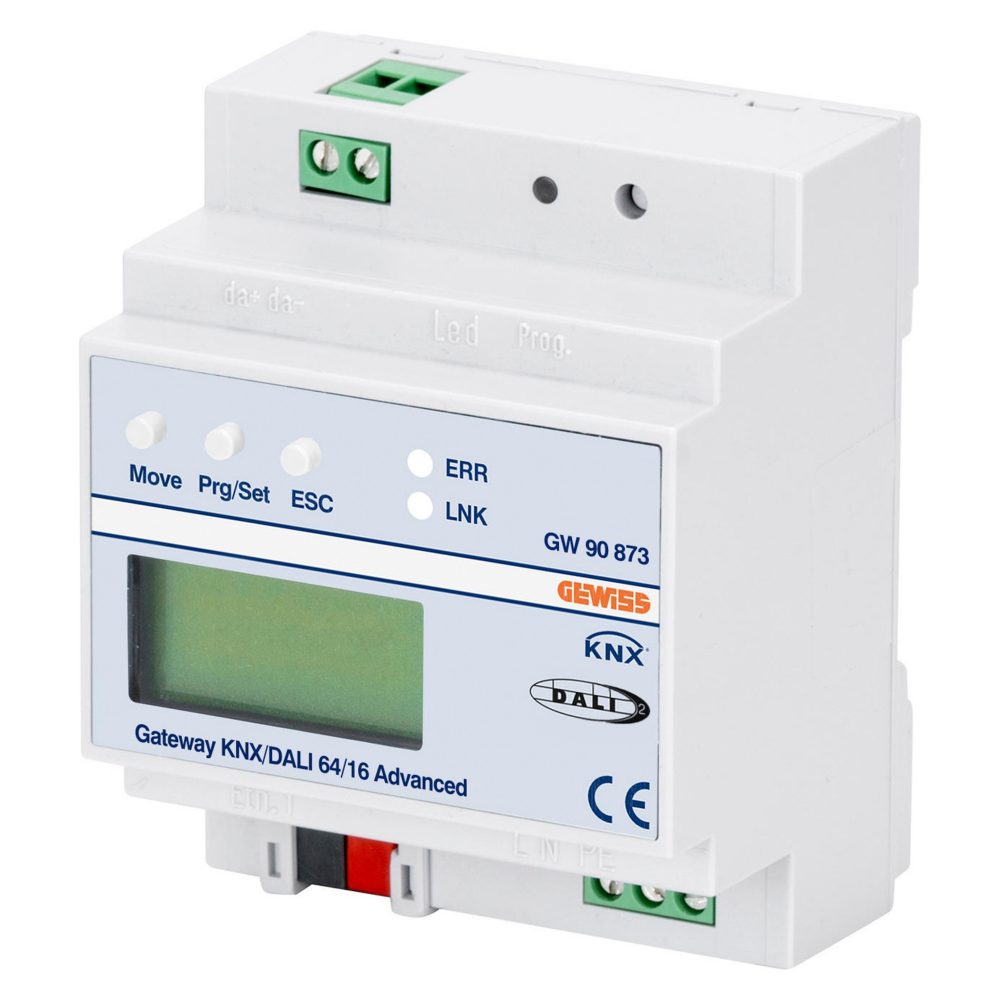

GATEWAY KNX/DALI2 ADVANCED - MULTIMASTER 64/16 - IP20 - 4 MODULES - DIN RAIL MOUNTING
Datasheet GATEWAY KNX/DALI2 ADVANCED - MULTIMASTER 64/16 - IP20 - 4 MODULES - DIN RAIL MOUNTING

 GATEWAY KNX/DALI2 ADVANCED - MULTIMASTER 64/16 - IP20 - 4 MODULES - DIN RAIL MOUNTING

Code: GW90873
Range: Home&Building Pro
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.

IP20

Technical Info

Information
Download
Software
Certificates
Comunication KNX
Power supply 100 to 240V ac/dc, 50/60Hz;
KNX 29 V dc SELV bus via bus
Interfaces KNX TP1/Ethernet
Wiring terminals With screw
Terminal tightening capacity
stranded cables (mm²)
Max. 2,5
Connection to the KNX bus KNX bus terminal
Working temperature -5 ÷ +45 °C
Stocking temperature  -25 ÷ +55 °C
IP degree IP20
Relative humidity (non-condensative) Max 93%
Standard Low Voltage Directive 2014/35/EU (LVD);
Electromagnetic Compatibility Directive 2014/30/EU (EMC);
RoHS Directive 2004/108/EC + 2011/65/EC;
DIIA compliant with EN 62386-101 ed 2 and EN 62386-103 ed 2
Description Advanced KNX\\DALI2 gateway
No. DIN modules 4
Max no. DALI devices 64 lighting fixtures
Max no. DALI units 16
Ethernet RJ45 socket; Type: 100BaseT (100Mbit/s);
IP address: fixed or via DHCP server
Dispersible max power (W) 8 W
Ware Number 85389099

Product Data Sheet

ETS5 Data Base

DCA

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Disposal

User guide (IT-EN-FR-ES-DE-PT)

User guide (RO-AR-TR-HU)

Technical manual (IT)

Technical manual (EN)

CADpro

Advanced design of electrical systems

Show more

PBT-Q

Low voltage systems and boards

Show more

PROJEX

Low voltage system design

Show more

PRICE

Estimation of electrical systems

Show more

KNX

Database with GEWISS products for ETS software

Show more

SMART GATEWAY

APP for managing the KNX home automation system

Show more

Display the certificate

Display the certificate

Conformity declaration

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: gateway capable of controlling up to 64 lamps managed with the DALI protocol via a KNX bus. In addition, up to 8 DALI motion detectors or DALI light sensors can be connected. The device supports DALI2 with multimaster operation in accordance with EN 62386-103 ed. 2. The power required for the connected DALI lamps and sensors is supplied directly by the device and no additional DALI power supplies are required.
The device supports KNX Secure and is configured via ETS software.
The device has an RJ45 LAN port for configuration and/or IP access. Category 1 equipment (in accordance with EN 62386-103).
APPLICATIONS: the device also enables the control of emergency lamps (with Data Type DT1) and lamps with colour control (with Data Type DT8).
NOTES: equipped with a coupling terminal for bus connection.
Contact the GEWISS sales department for the availability date.
