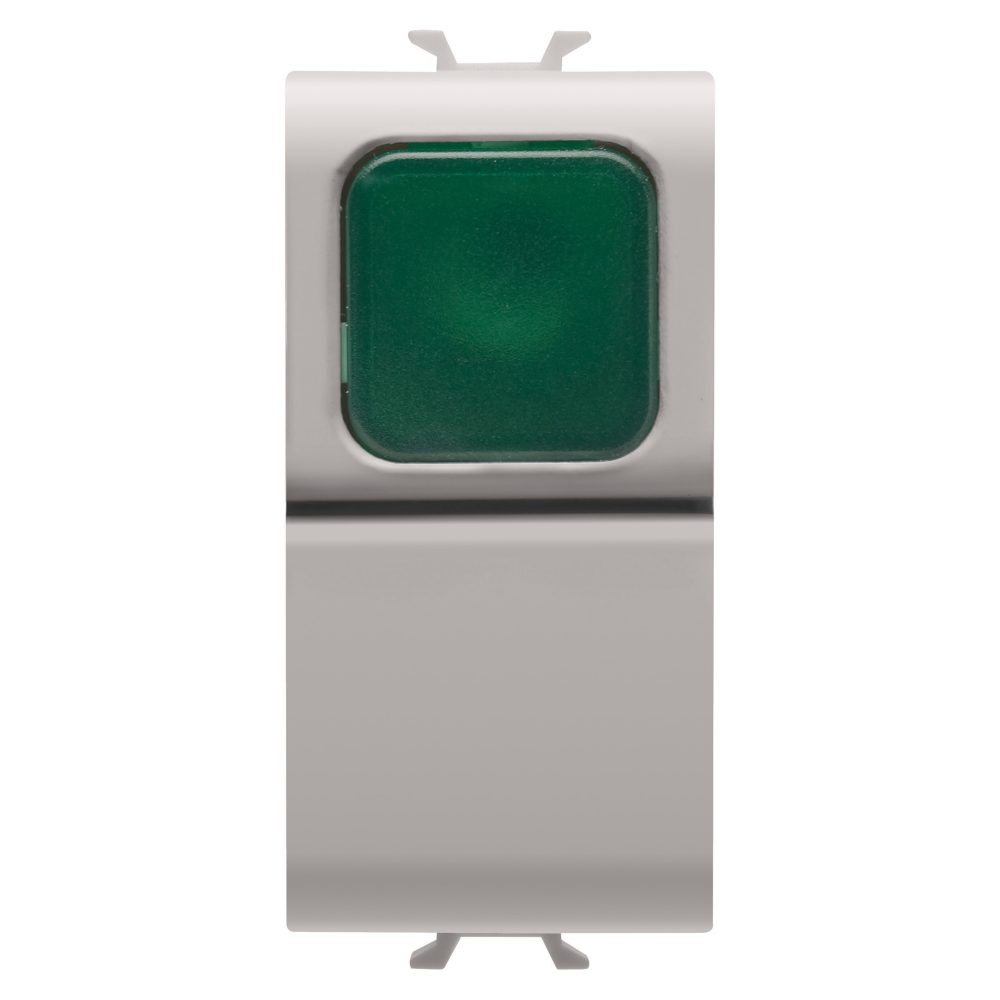

PUSH-BUTTON 1P 250V ac - NO 16A - GREEN DIFFUSER - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART
Code:
GW13142
Range: CHORUSMART - domestic range
Satin natural beige modular devices
Satin natural beige modular devices
The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colors and finishes: natural satin beige, warm and enveloping. Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
Colors and finishes: natural satin beige, warm and enveloping. Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Push-button
Button key
Green diffuser
Colour
Natural satin beige
Description
1P NO - 16A illuminable
Voltage
250 V ac
Standard
EN 60669-1
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Insulation resistance
> 5 MOhm
Wiring terminals
With screw
Prolonged operation switch (no.of position changes)
40.000 at In 250 V ac cosφ=0,6
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity
stranded cables (mm²) min. 0,75 - max. 2x4
stranded cables (mm²) min. 0,75 - max. 2x4
Terminal tightening capacity
solid cables (mm²) min. 0,5 - max. 2x2,5
solid cables (mm²) min. 0,5 - max. 2x2,5
No. modules
1
Material
Technopolymer
Electrocod
0130
Ware Number
85365080
EQUIPMENT AND NOTES
CHARACTERISTICS: the illuminable articles use LED signalling units, not included.
GW13136 Cord in insulating material, 140cm long, with red knob.
GW13140 Button with mechanical interlock. Both contacts are open in the central position (OFF); advisable for activating motorised devices with direction reversal (e.g. roller-shutters, curtains, etc.).
GW13141 independent push-buttons that can also be activated simultaneously.
GW13136 Cord in insulating material, 140cm long, with red knob.
GW13140 Button with mechanical interlock. Both contacts are open in the central position (OFF); advisable for activating motorised devices with direction reversal (e.g. roller-shutters, curtains, etc.).
GW13141 independent push-buttons that can also be activated simultaneously.
