JOINON

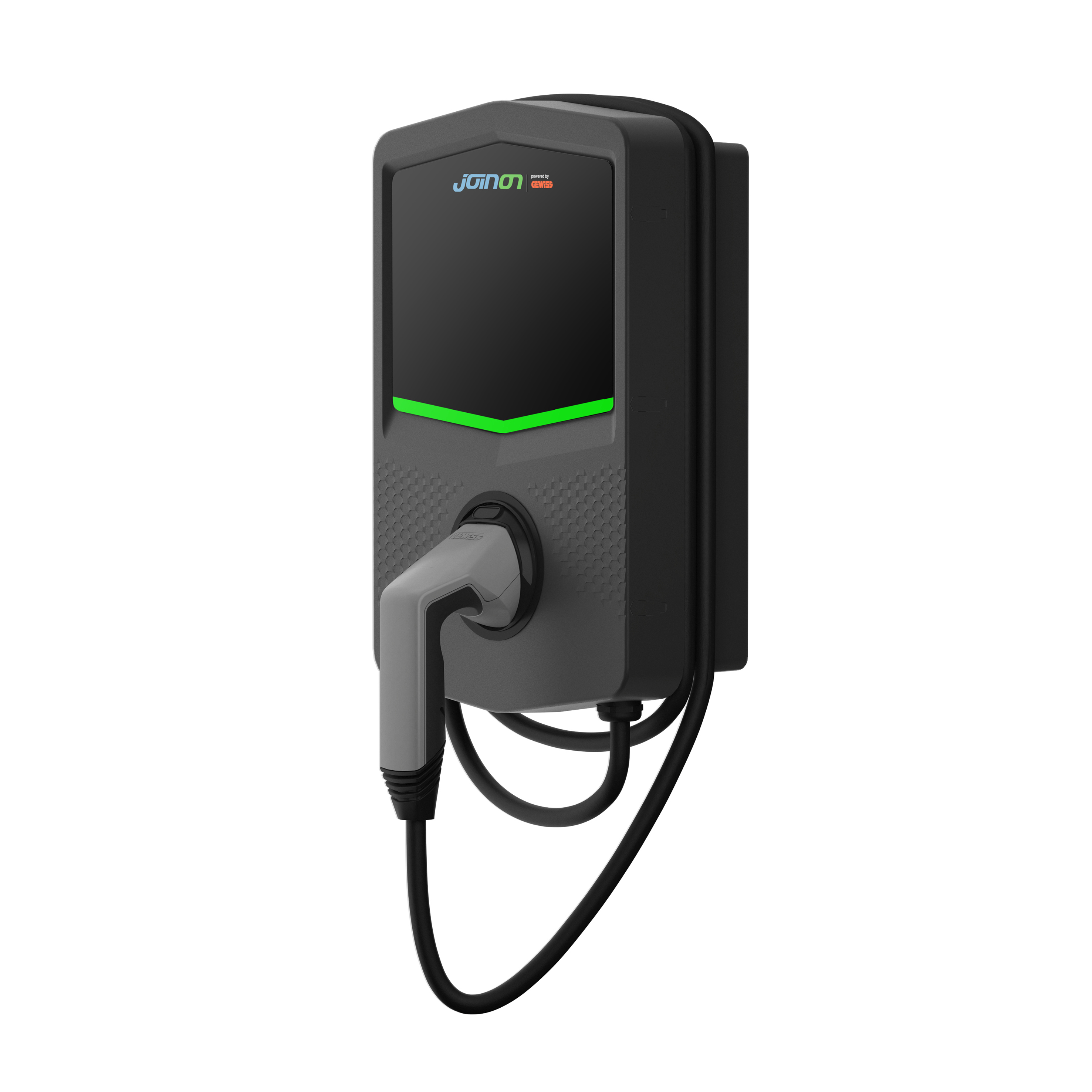

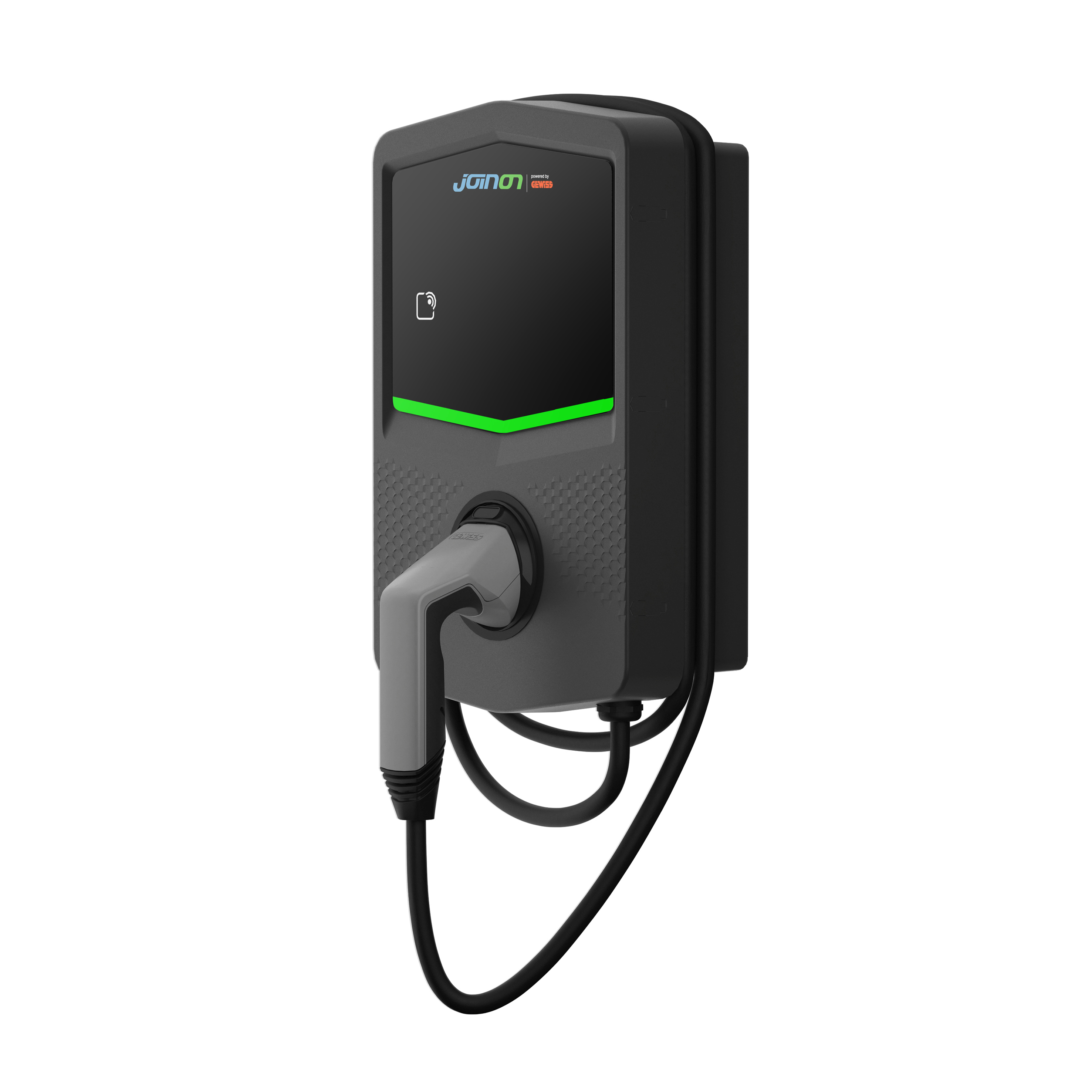

Charging wallbox for electric vehicles I-CON EVO

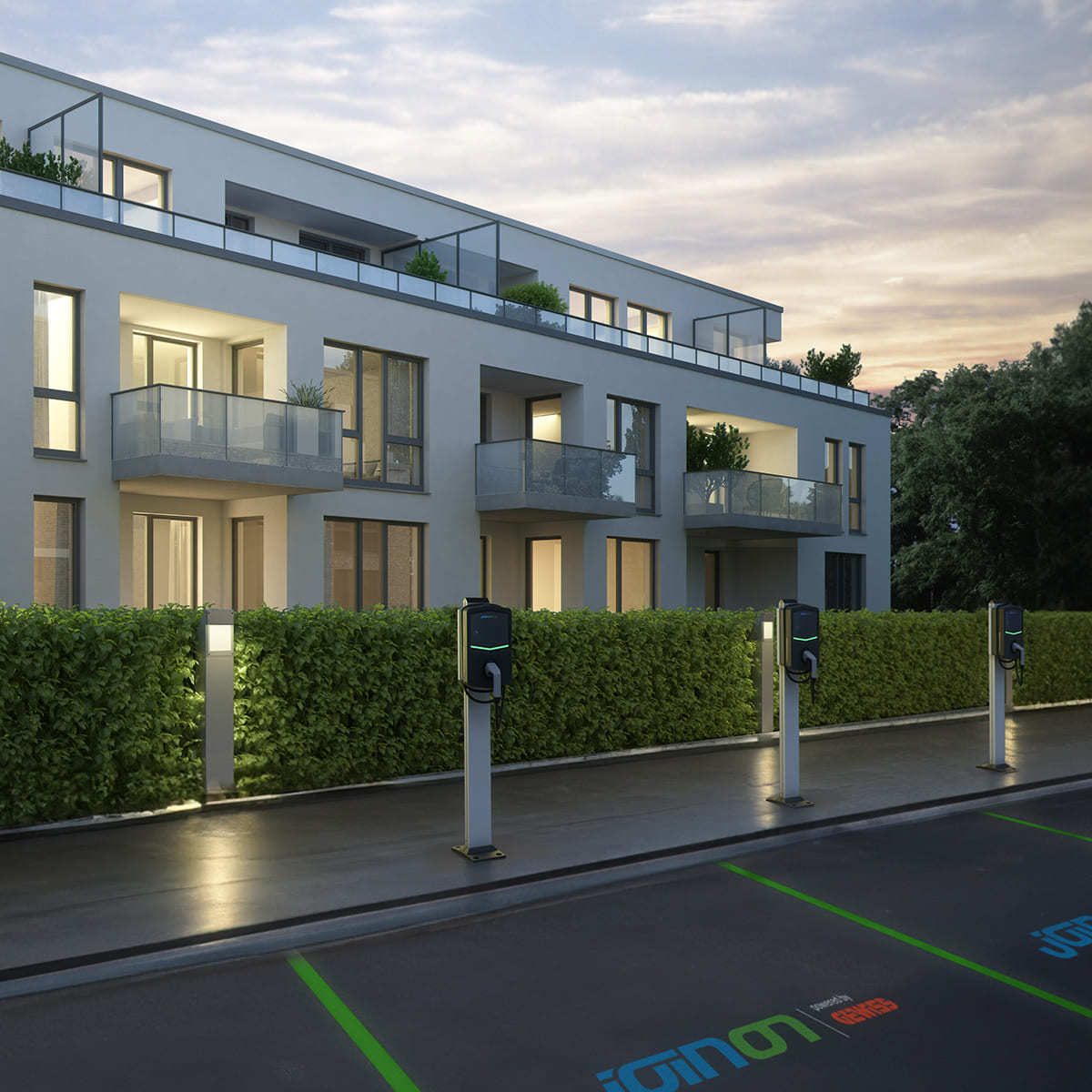

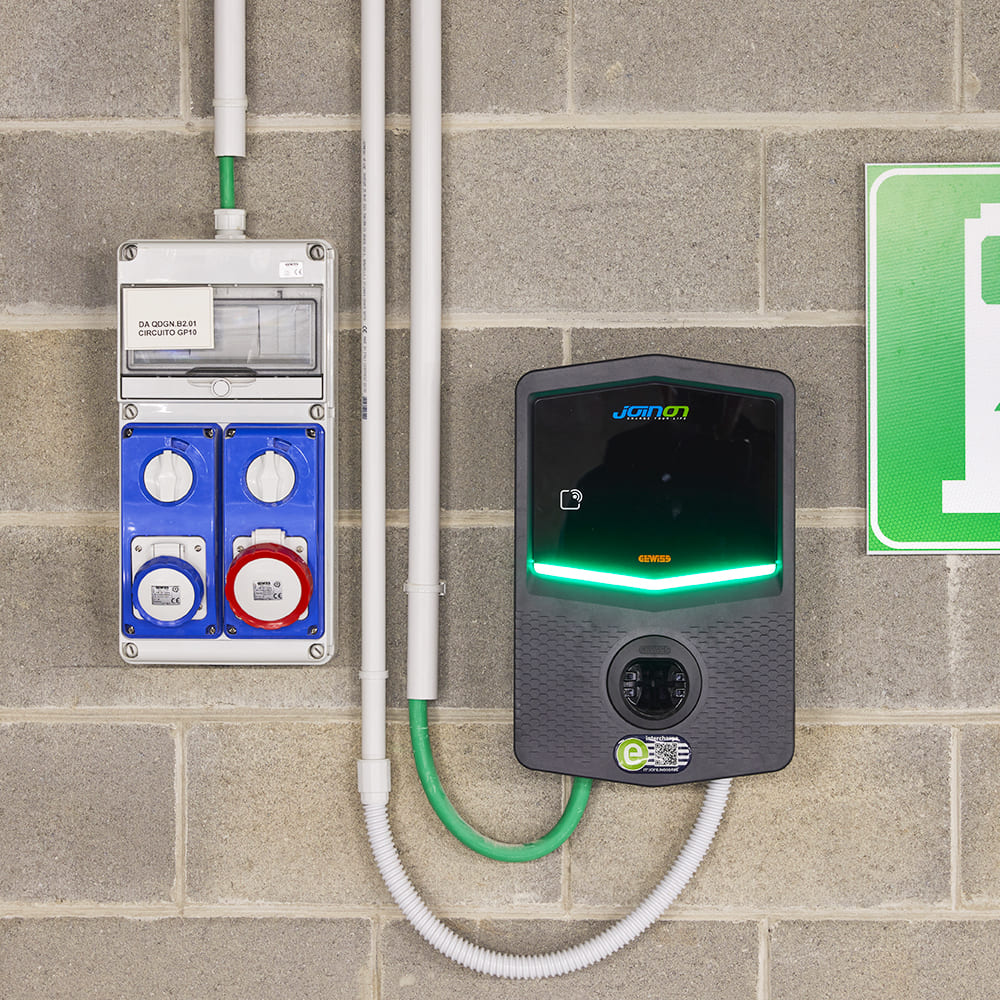

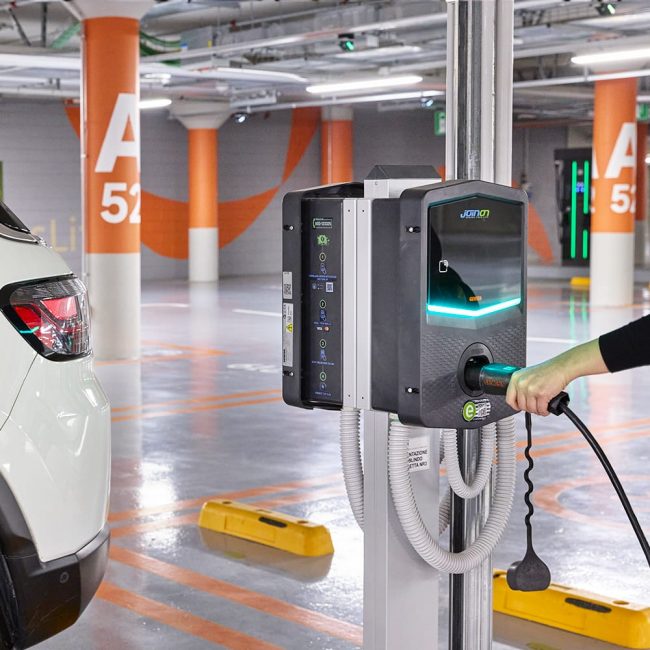

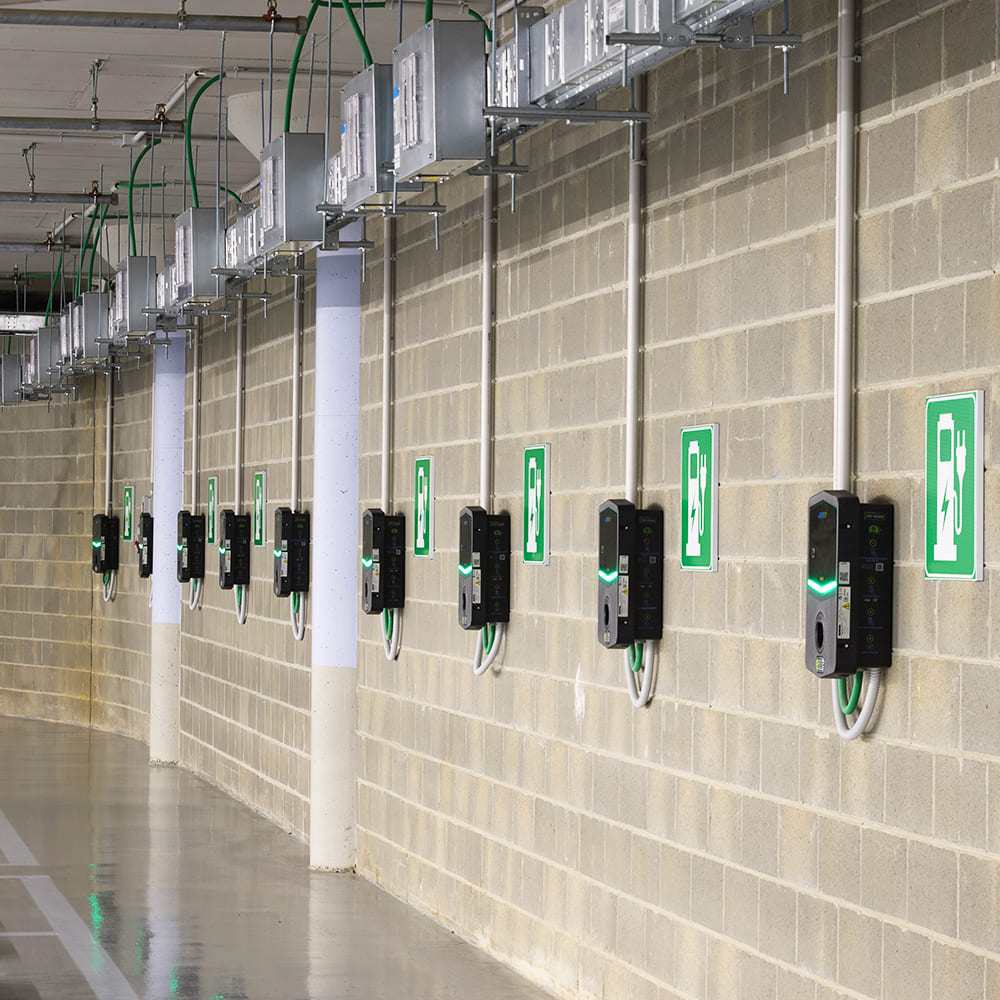

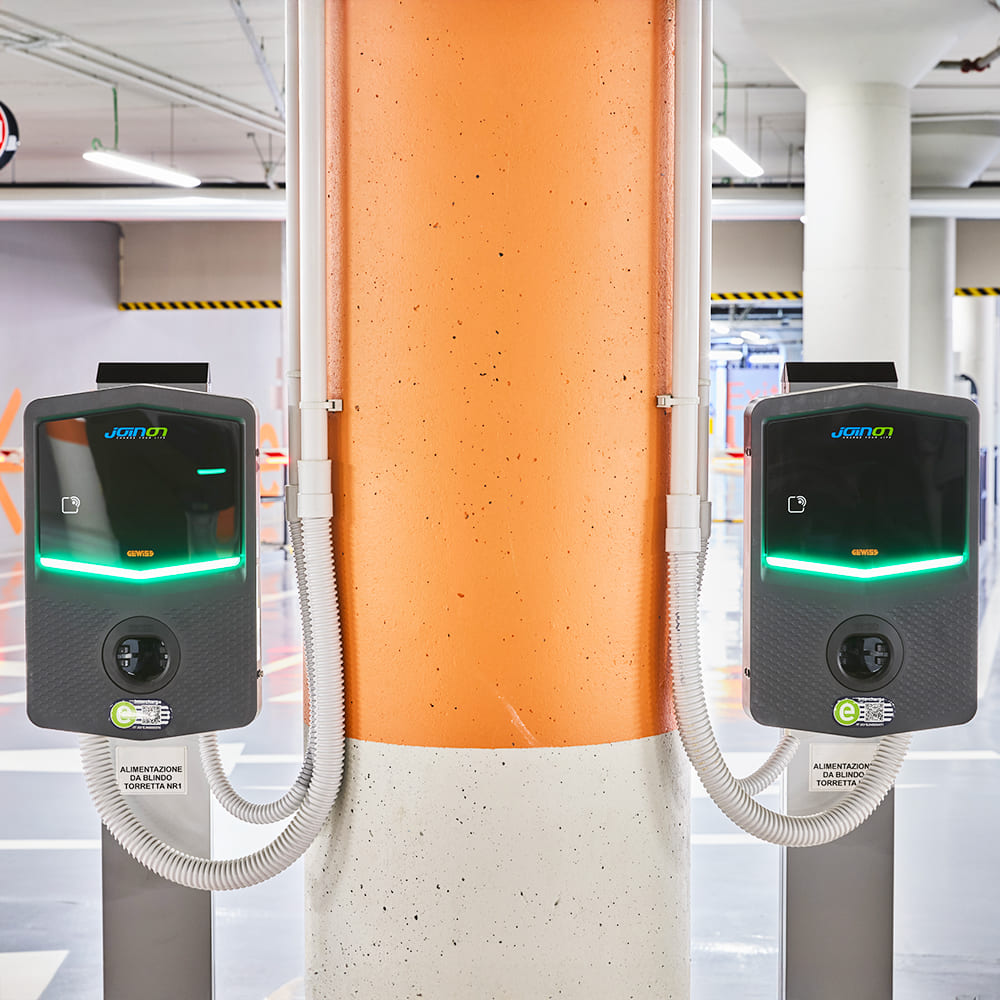

I-CON EVO wallboxes are JOINON solutions designed to integrate into private and semi-public scenarios in accordance with the international standard IEC 61851-1 ed. 3. They are distinguished by both an elegant and compact design and special "one-hand charge" functionality. At the same time, the presence of a vandal-proof socket and IP55 degree combined with IK11-certified mechanical strength make them safe and reliable solutions. In addition, I-CON EVO wallboxes feature full connectivity to support the related JOINON EVO App for full and easy control of charging, intelligent management of loads and additional energy produced by any photovoltaic panels (also in Master/Slave mode), and several installation options: wall-mounted, flush-mounted, or floor-mounted.

See all product
Benefits
Dynamic Load Management
Dynamic Load Management
The entire range includes dynamic load management in both Master/Slave and Single installation modes
Over The Air updates
Over The Air updates
New features will be added or upgradeable with the Over The Air update option.

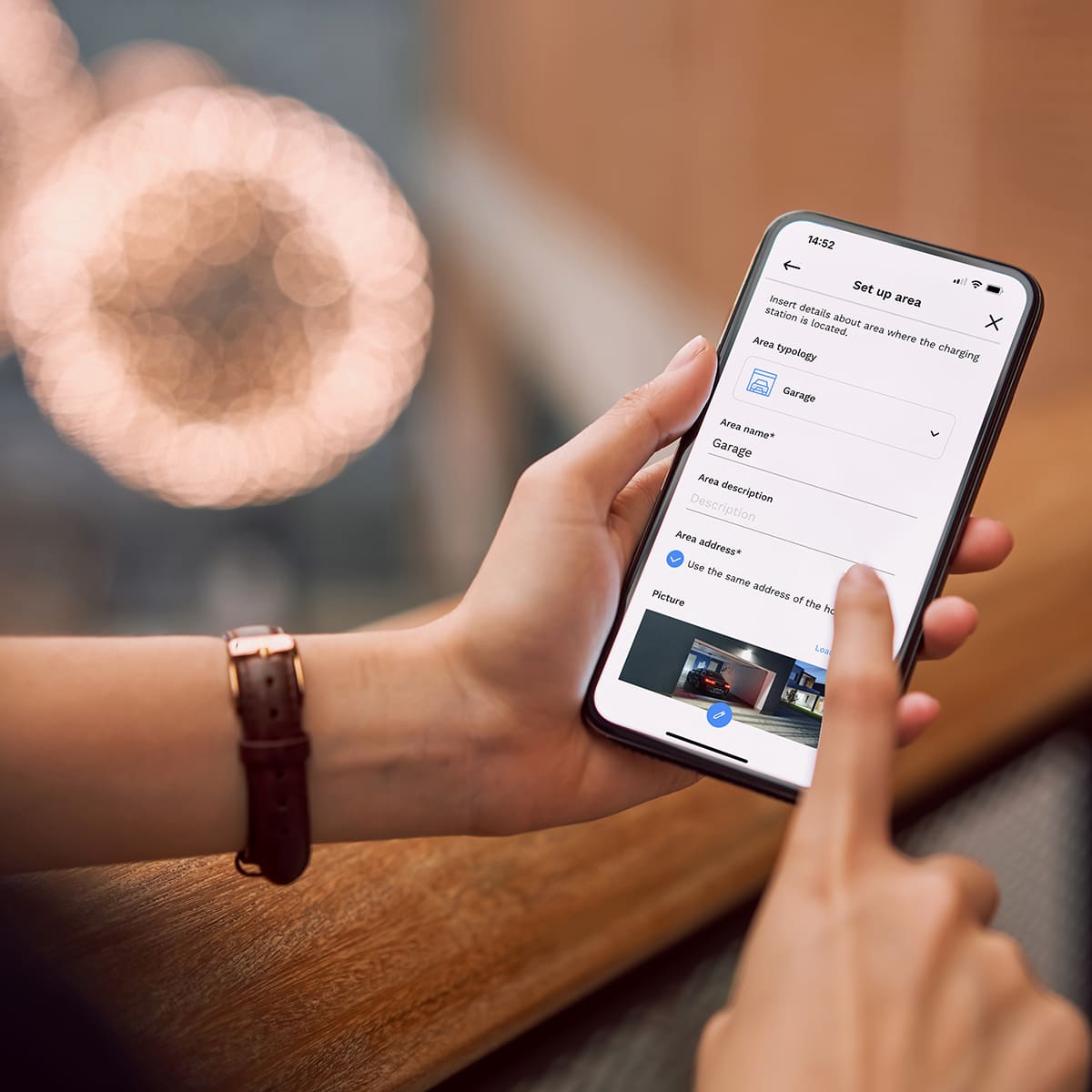

New management and configuration app
New management and configuration app
A single App for management and configuration is available: designed for both the installer and the owner, it makes it simple, immediate and the start-up of the charging station and the monitoring of consumption are intuitive.
Solar Boost
Solar Boost
Management of the power generated by photovoltaic panels, for increasingly green recharging.

The products of this series

32 products

I-CON EVO charging systems for electric vehicles - AC (MODE 3)

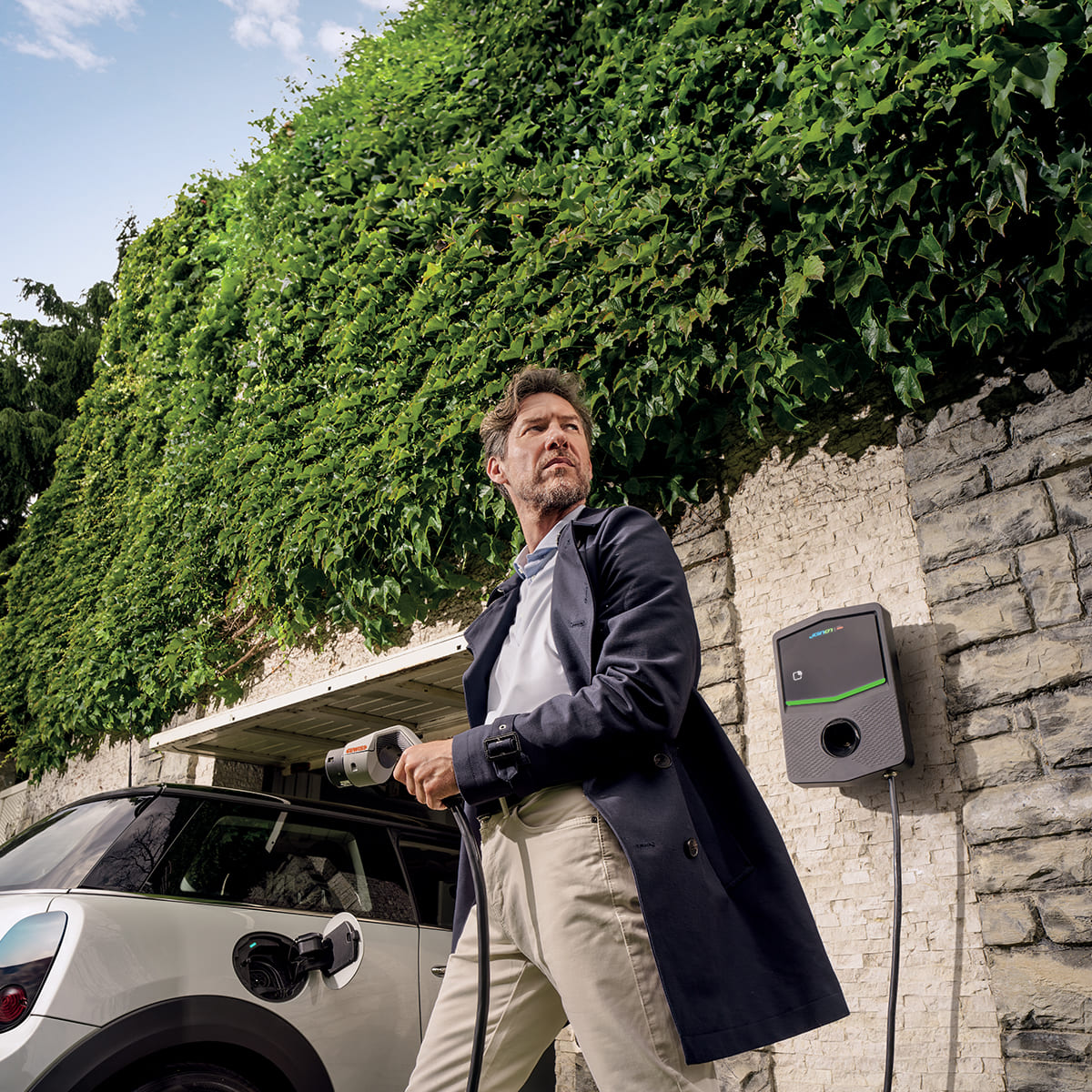

For residential scenarios

Category
I-CON EVO Wallbox - free access or via APP

Change category

I-CON EVO Wallbox - free access or via APP
Cod Gewiss
Type of Socket
N. of sockets Type 2
Power max.
Protection integrated
Connectivity
RFID Reader
Energy meter
I-CON EVO WALLBOX - FOR RESIDENTIAL SCENARIOS - SOCKET T2S - FREE ACCESS OR VIA APP - WiFi - 7,4KW - DC LEAKAGE
GWJ3402C
Vandal-proof recessed with shutter
1
7,4 kW
DC Leakage
Wifi
No
Yes
I-CON EVO WALLBOX - FOR RESIDENTIAL SCENARIOS - SOCKET T2S - FREE ACCESS OR VIA APP - WiFi - 22KW - DC LEAKAGE
GWJ3404C
Vandal-proof recessed with shutter
1
22 kW
DC Leakage
Wifi
No
Yes
I-CON EVO WALLBOX - FOR RESIDENTIAL SCENARIOS - SOCKET T2C - FREE ACCESS OR VIA APP - WiFi - 7,4KW - DC LEAKAGE
GWJ3412C
Mobile with cable
1
7,4 kW
DC Leakage
Wifi
No
Yes
I-CON EVO WALLBOX - FOR RESIDENTIAL SCENARIOS - SOCKET T2C - FREE ACCESS OR VIA APP - WiFi - 11KW - DC LEAKAGE
GWJ3413C
Mobile with cable
1
11 kW
DC Leakage
Wifi
No
Yes
I-CON EVO WALLBOX - FOR RESIDENTIAL SCENARIOS - SOCKET T2C - FREE ACCESS OR VIA APP - WiFi - 22KW - DC LEAKAGE
GWJ3414C
Mobile with cable
1
22 kW
DC Leakage
Wifi
No
Yes

For complex residential/condominium scenarios

Category
I-CON EVO Wallbox - free access or via APP connectable in Master/Slave

Change category

I-CON EVO Wallbox - free access or via APP connectable in Master/Slave
Cod Gewiss
Type of Socket
N. of sockets Type 2
Power max.
Protection integrated
Connectivity
RFID Reader
Energy meter
I-CON EVO WALLBOX - SOCKET T2S - FREE ACCESS OR VIA APP IN M/S - WiFi + LAN - 7,4KW - DC LEAKAGE + SPD
GWJ3502G
Vandal-proof recessed with shutter
1
7,4 kW
DC Leakage + SPD
Wifi+Ethernet
No
Yes
I-CON EVO WALLBOX - SOCKET T2S - FREE ACCESS OR VIA APP IN M/S - WiFi + LAN - 22KW - DC LEAKAGE + SPD
GWJ3504G
Vandal-proof recessed with shutter
1
22 kW
DC Leakage + SPD
Wifi+Ethernet
No
Yes
I-CON EVO WALLBOX - SOCKET T2C - FREE ACCESS OR VIA APP IN M/S - WiFi + LAN - 7,4KW - DC LEAKAGE + SPD
GWJ3512G
Mobile with cable
1
7,4 kW
DC Leakage + SPD
Wifi+Ethernet
No
Yes
I-CON EVO WALLBOX - SOCKET T2C - FREE ACCESS OR VIA APP IN M/S - WiFi + LAN - 11KW - DC LEAKAGE + SPD
GWJ3513G
Mobile with cable
1
11 kW
DC Leakage + SPD
Wifi+Ethernet
No
Yes
I-CON EVO WALLBOX - SOCKET T2C - FREE ACCESS OR VIA APP IN M/S - WiFi + LAN - 22KW - DC LEAKAGE + SPD
GWJ3514G
Mobile with cable
1
22 kW
DC Leakage + SPD
Wifi+Ethernet
No
Yes

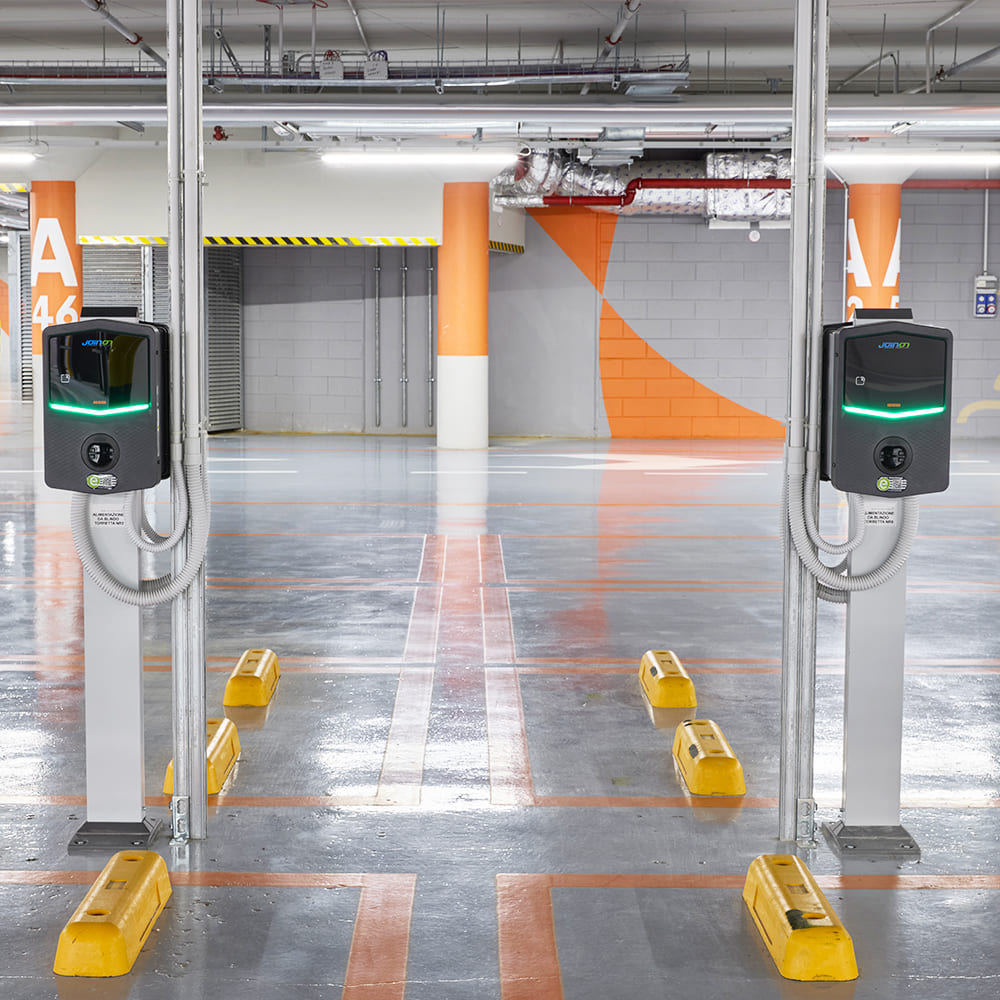

For corporate or semi-public scenarios

Category
I-CON EVO Wallbox - controlled access connectable in Master/Slave

Change category

I-CON EVO Wallbox - controlled access connectable in Master/Slave
I-CON EVO Wallbox - controlled access connectable in Master/Slave
Cod Gewiss
Type of Socket
N. of sockets Type 2
Power max.
Protection integrated
Connectivity
RFID Reader
Energy meter
I-CON EVO WALLBOX - SOCKET T2S - CONTROLLED ACCESS IN M/S - WiFi + LAN - 7,4KW - RFID - DC LEAKAGE + SPD
GWJ3602T
Vandal-proof recessed with shutter
1
7,4 kW
DC Leakage + SPD
Wifi+Ethernet
Yes
Yes
I-CON EVO WALLBOX - SOCKET T2S - CONTROLLED ACCESS IN M/S - WiFi + LAN - 22KW - RFID - DC LEAKAGE + SPD
GWJ3604T
Vandal-proof recessed with shutter
1
22 kW
DC Leakage + SPD
Wifi+Ethernet
Yes
Yes
I-CON EVO WALLBOX - SOCKET T2C - CONTROLLED ACCESS IN M/S - WiFi + LAN - 7,4KW - RFID - DC LEAKAGE + SPD
GWJ3612T
Mobile with cable
1
7,4 kW
DC Leakage + SPD
Wifi+Ethernet
Yes
Yes
I-CON EVO WALLBOX - SOCKET T2C - CONTROLLED ACCESS IN M/S - WiFi + LAN - 22KW - RFID - DC LEAKAGE + SPD
GWJ3614T
Mobile with cable
1
22 kW
DC Leakage + SPD
Wifi+Ethernet
Yes
Yes
Cod Gewiss
Type of Socket
N. of sockets Type 2
Power max.
Protection integrated
Connectivity
RFID Reader
Energy meter
I-CON EVO WALLBOX - SOCKET T2S - CONTROLLED ACCESS IN M/S - WiFi + LAN - 7,4KW - RFID - DC LEAKAGE + SPD - MID
GWJ3702T
Vandal-proof recessed with shutter
1
7,4 kW
DC Leakage + SPD
Wifi+Ethernet
Yes
Yes, MID type
I-CON EVO WALLBOX - SOCKET T2S - CONTROLLED ACCESS IN M/S - WiFi + LAN - 22KW - RFID - DC LEAKAGE + SPD - MID
GWJ3704T
Vandal-proof recessed with shutter
1
22 kW
DC Leakage + SPD
Wifi+Ethernet
Yes
Yes, MID type
I-CON EVO WALLBOX - SOCKET T2C - CONTROLLED ACCESS IN M/S - WiFi + LAN - 7,4KW - RFID - DC LEAKAGE + SPD - MID
GWJ3712T
Mobile with cable
1
7,4 kW
DC Leakage + SPD
Wifi+Ethernet
Yes
Yes, MID type
I-CON EVO WALLBOX - SOCKET T2C - CONTROLLED ACCESS IN M/S - WiFi + LAN - 22KW - RFID - DC LEAKAGE + SPD - MID
GWJ3714T
Mobile with cable
1
22 kW
DC Leakage + SPD
Wifi+Ethernet
Yes
Yes, MID type
You saw 18 products on 32
Show others
