68 Q-DIN Range
Distribution boards

A complete system of IP65 boards for distributing energy in tertiary, commercial sector and building applications, available both empty and pre-wired, in accordance with the international standard IEC 61439. The Q-DIN range comprises boards from 5 to 20 DIN modules, plus supplementary modules of 14 or 20 M to add even more DIN spaces. They can accommodate flush-mounting socket-outlets and interlocked socket-outlets of up to 63 A, and they can be combined with numerous accessories.

Benefits
Wide and configurable range
Wide and configurable range
The power distribution board range is made up of 23 empty casings with IP65 degree of protection, for flushmounted and interlocked socketoutlets up to 63A, and with numerous complementary items that increase the fields of application.
Innovative technical solutions
Innovative technical solutions
The boards have many innovative technical features, such as the ergonomic handle, which simplifies the opening of the door, and the screws to “hinge” the front facilitating wiring. Additional enclosures 14 and 20M modules are also available, ideal for increasing the modular space.
Top-level accessory options
Top-level accessory options
The boards can be equipped with a key lock with a metal cylinder and mushroom emergency button. They can be fixed to a pole, surfacemounted, flush-mounted or on accident prevention mobile supports.
Integrated handle
Integrated handle
The large ergonomic handle makes it easy to operate the door even when wearing work gloves. The door can be fitted with a security key lock to make the compartment inaccessible.

The products of this series

108 products

Empty boards for mobile and fixed installations

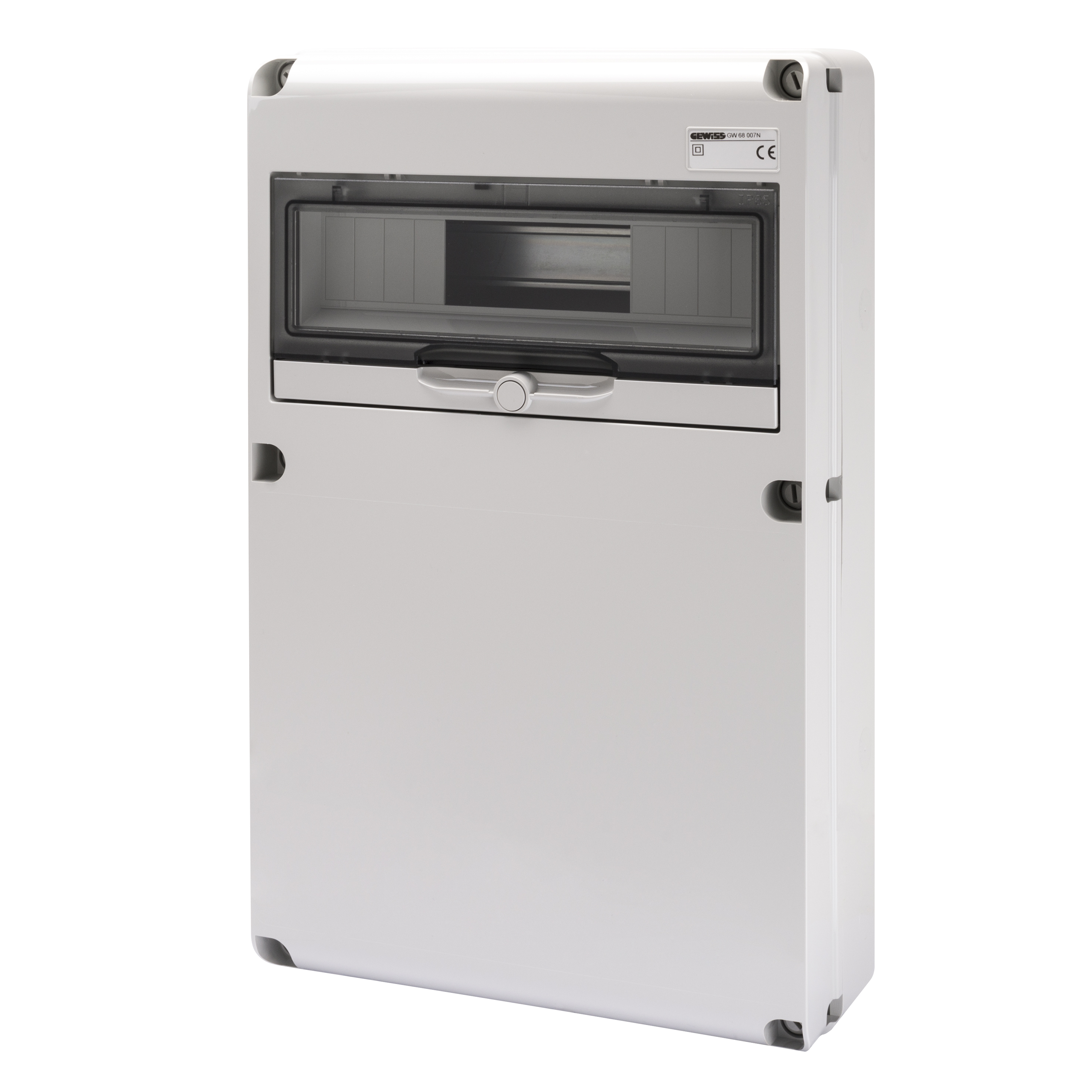

Q-DIN 5 - Surface-mounting - IP65

Category
Q-DIN 5 watertight boards - unwired - RAL 7035 - IP65

Change category

Q-DIN 5 watertight boards - unwired - RAL 7035 - IP65
Cod Gewiss
No. of modules EN 50022
Houseable socket
No. of provided blank lids
Dispersible power A (W)
Dispersible power B (W)

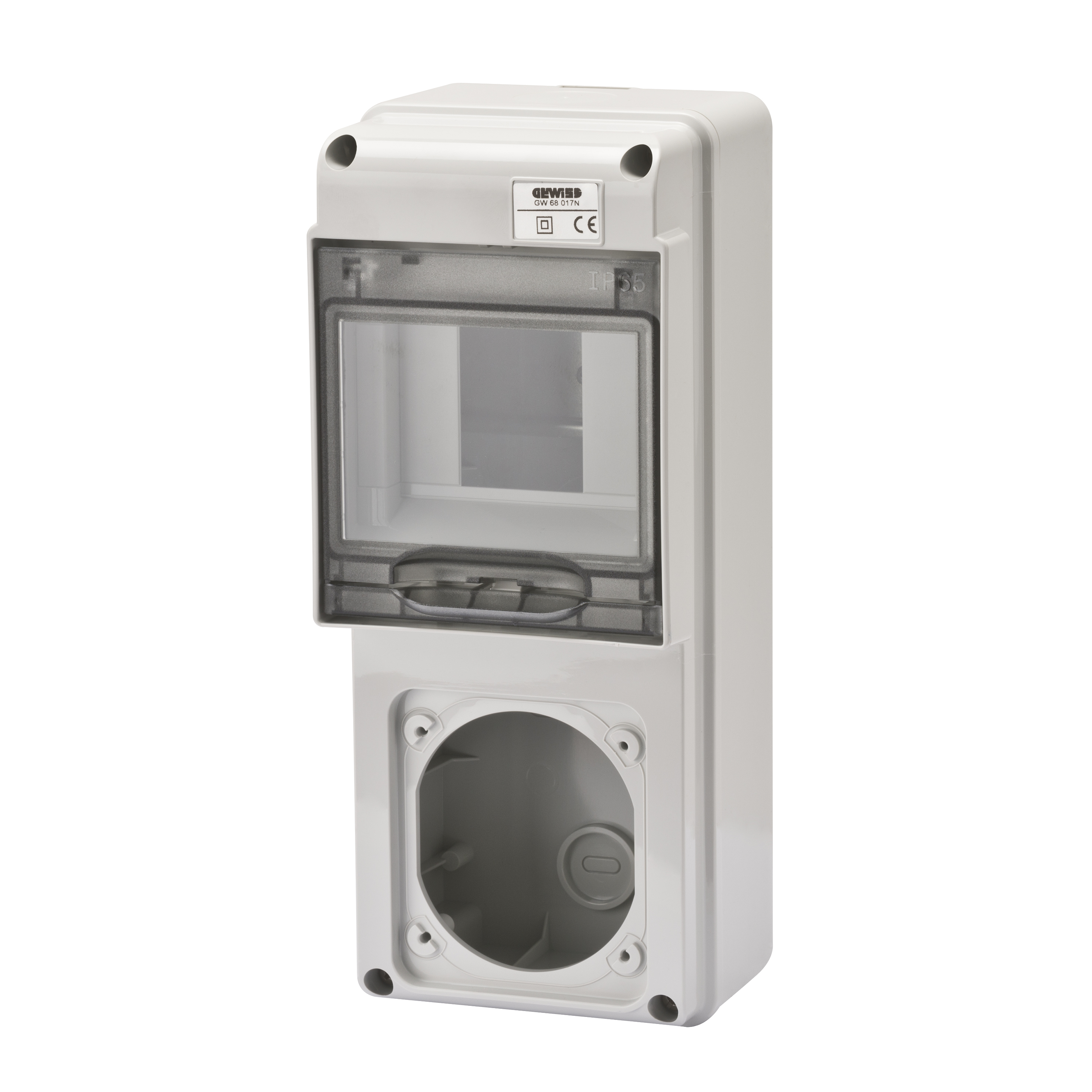

Q-DIN 5 MODULES  - 1 FLANGE IEC 309 16A IP44/67 - IP65
GW68017N
5
1 IEC 309 16A IP44/67
-
10
37
Q-DIN 5 MODULES - 2 FLANGE IEC 309 16A IP44/67 -  IP65
GW68018N
5
2 IEC 309 16A IP44/67
-
10
37
Q-DIN 5 MODULES - 3 FLANGE IEC 309 16A IP44/67 - IP65
GW68001N
5
3 IEC 309 16A IP44/67
1 IEC 16A
10
37
Q-DIN 5 MODULES - 3 FLANGE IEC 309 16A IP44/67 - IP65
GW68031N
5
3 IEC 309 16A IP44/67
1 IEC 16A
10
37
Q-DIN 5 MODULES - 2 FLANGE IEC 309 16/32A IP44/67 - IP65
GW68020N
5
2 IEC 309 16/32A IP44/67
1 IEC 16/32A
10
37

Q-DIN 10 - Surface-mounting - IP65

Category
Q-DIN 10 watertight boards - unwired - RAL 7035 - IP65

Change category

Q-DIN 10 watertight boards - unwired - RAL 7035 - IP65
Cod Gewiss
No. of modules EN 50022
Houseable socket
No. of provided blank lids
Dispersible power A (W)
Dispersible power B (W)
Q-DIN 10 MODULES - BLANK LID - IP65
GW68002N
10
Blank lid
-
16
42
Q-DIN 10 MODULES - 2 FLANGE - 2 IB VERTICAL FLANGE - 16/32A - IP65
GW68025N
10
2 IB Vert. 16-32A IP67
1 IB 16/32A
16
42
Q-DIN 10 MODULES - 2 FLANGE IEC 16A + 2 IEC 16/32 A - IP65
GW68003N
10
2 IEC 16A + 2 IEC 16/32A
1 IEC 309 16A+1 16/32A
16
42

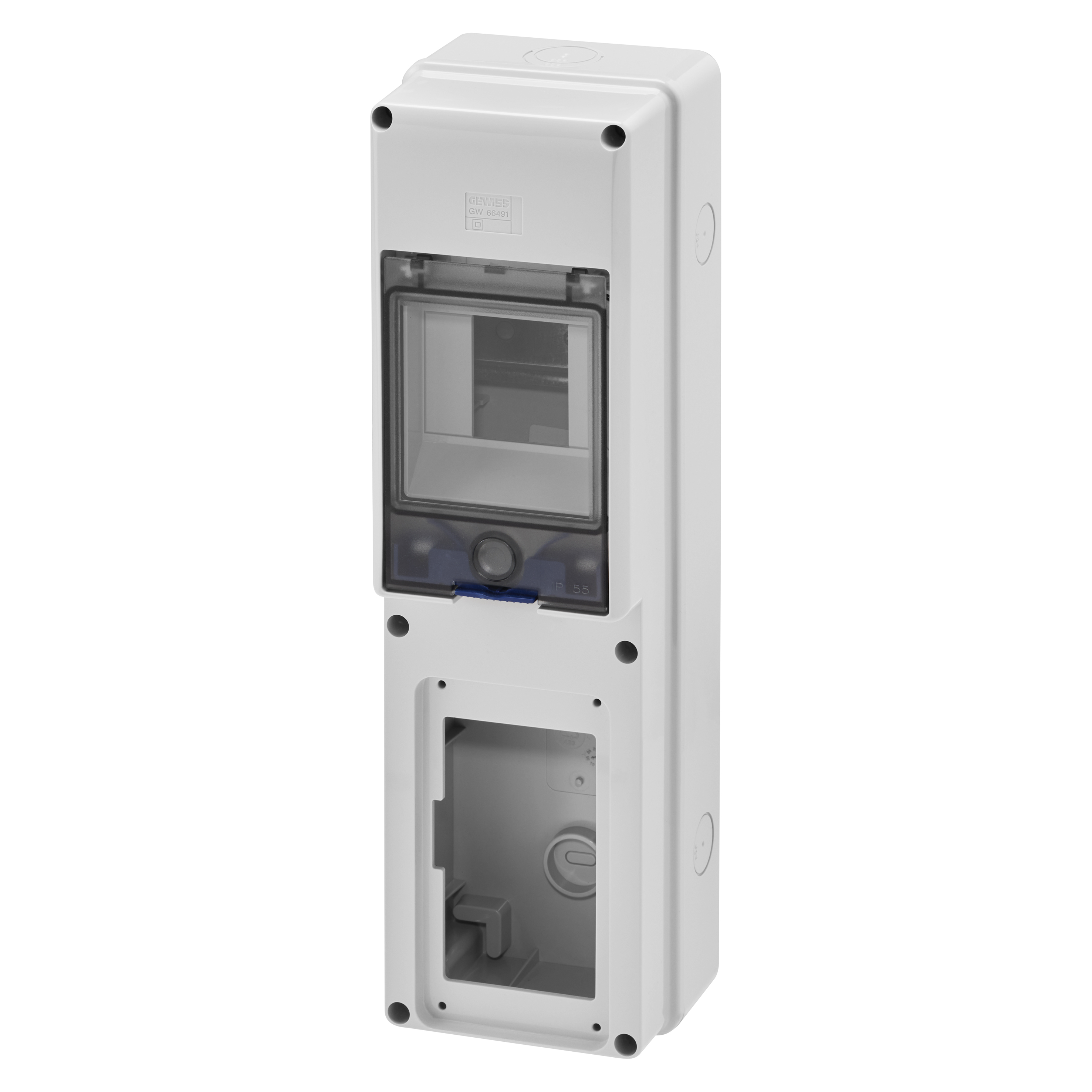

Q-DIN 10 14 MODULES - 2 FLANGE IB HORIZONTAL 16/32A SBF - IP65
GW68019N
10
2 IB Horiz. 16/32A SBF IP44 overlapping
1 IB 16/32A
16
42
Q-DIN 10 MODULES - 3 FLANGE SOCKET-OUTLET 50X50 mm + 2 FLANGE IEC 16/32 A - IP65
GW68027N
10
3 dom.socket 50x50 mm + 2 IEC 16/32 A
1 domestic + 1 IEC 16 A
16
42

Q-DIN 14 - Surface-mounting - IP65

Category
Q-DIN 14 watertight boards - unwired - RAL 7035 - IP65

Change category

Q-DIN 14 watertight boards - unwired - RAL 7035 - IP65
Cod Gewiss
No. of modules EN 50022
Houseable socket
No. of provided blank lids
Dispersible power A (W)
Dispersible power B (W)

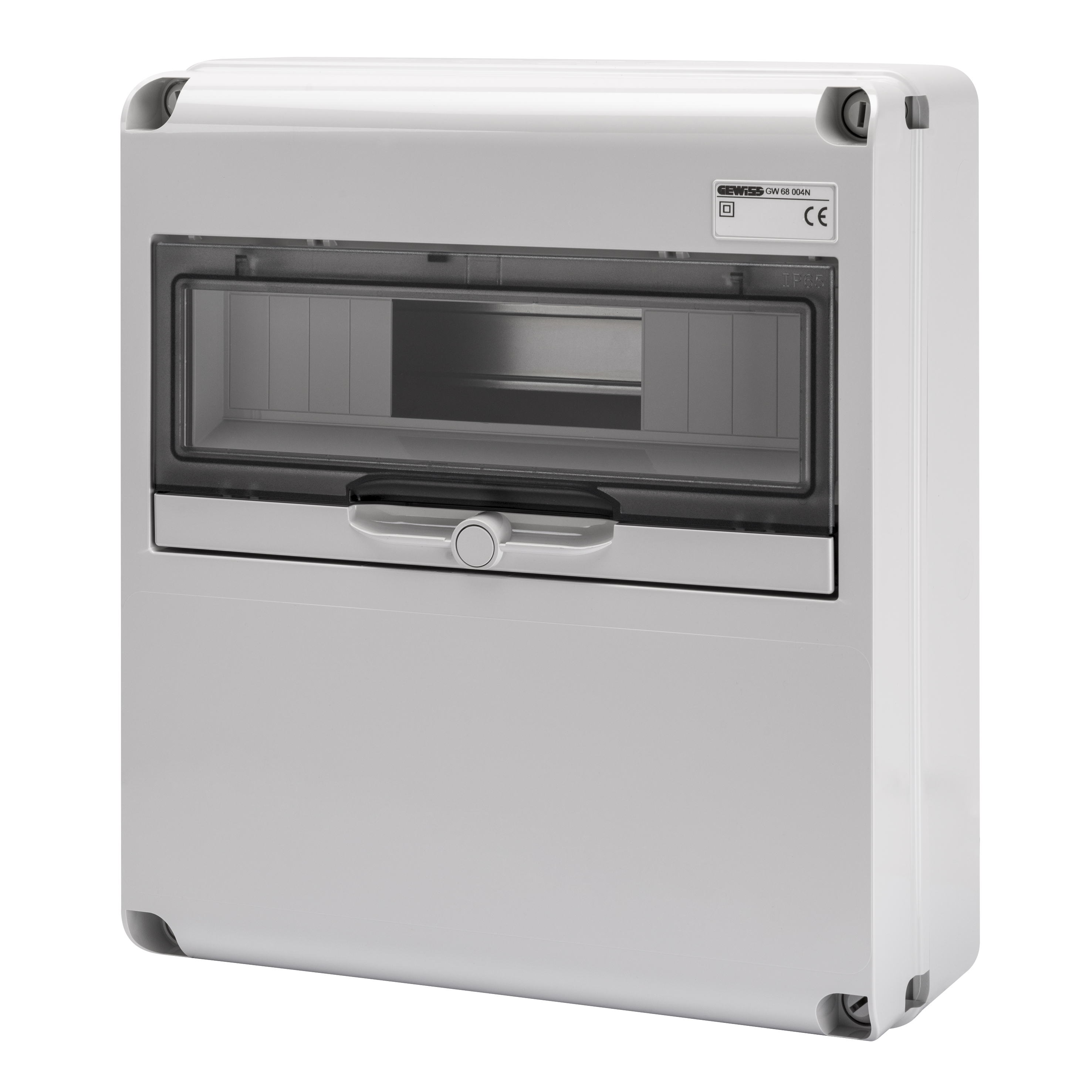

Q-DIN 14 MODULES - BLANK LID - IP65
GW68004N
14
Blank lid
-
24
64
Q-DIN 14 MODULES - 3 FLANGE IEC 309 16/32A IP44/67 - IP65
GW68005N
14
3 IEC 309 16/32A IP44/67
1 IEC 16/32A
24
64
Q-DIN 14 14 MODULES - 2 FLANGE IB HORIZONTAL 16/32A SBF IP44 - IP65
GW68006N
14
2 IB Horiz. 16/32A SBF IP44 side by side
1 IB 16/32A
24
64

Q-DIN 14 - Surface-mounting - IP65

Category
Q-DIN 14 watertight boards - unwired - RAL 7035 - IP65

Change category

Q-DIN 14 watertight boards - unwired - RAL 7035 - IP65
Cod Gewiss
No. of modules EN 50022
Houseable socket
No. of provided blank lids
Dispersible power A (W)
Dispersible power B (W)
Q-DIN 14 MODULES - BLANK LID - IP65
GW68007N
14
Blank lid
-
24
64
Q-DIN 14 MODULES - 6 FLANGE IEC 309 16/32A IP44/67 - IP65
GW68008N
14
6 IEC 309 16/32A IP44/67
2 IEC 16/32A
24
64
Q-DIN 14 14 MODULES - 4 FLANGE IB HORIZONTAL 16/32A SBF IP44 - IP65
GW68009N
14
4 IB Horiz. 16/32A SBF IP44
2 IB 16/32A
24
64

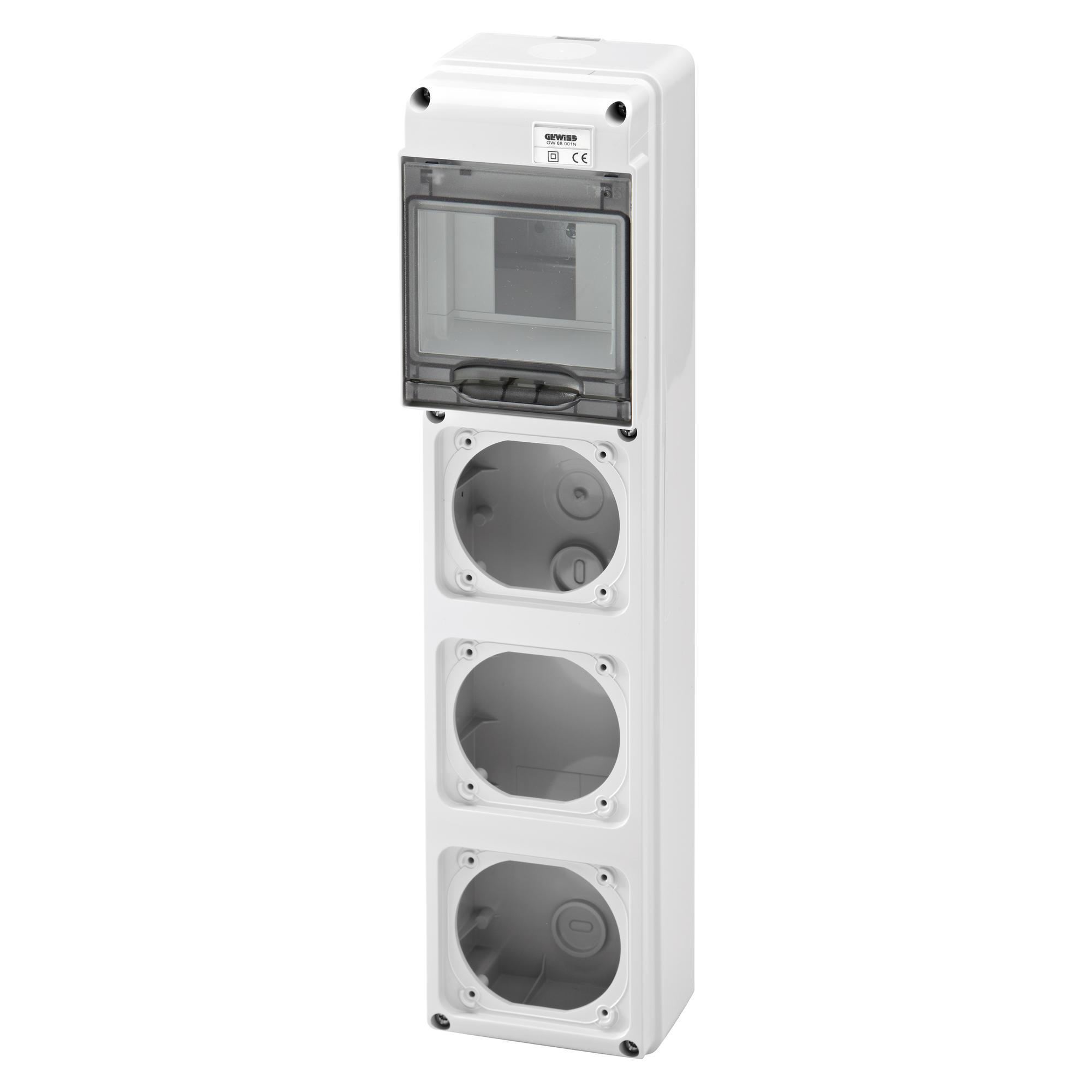

Q-DIN 14 MODULES - 3 FLANGE - 3 INTERLOCKED VERTICAL FLANGE - 16/32A - IP65
GW68010N
14
3 IB Vert. 16/32A IP67
1 IB 16/32A
24
64

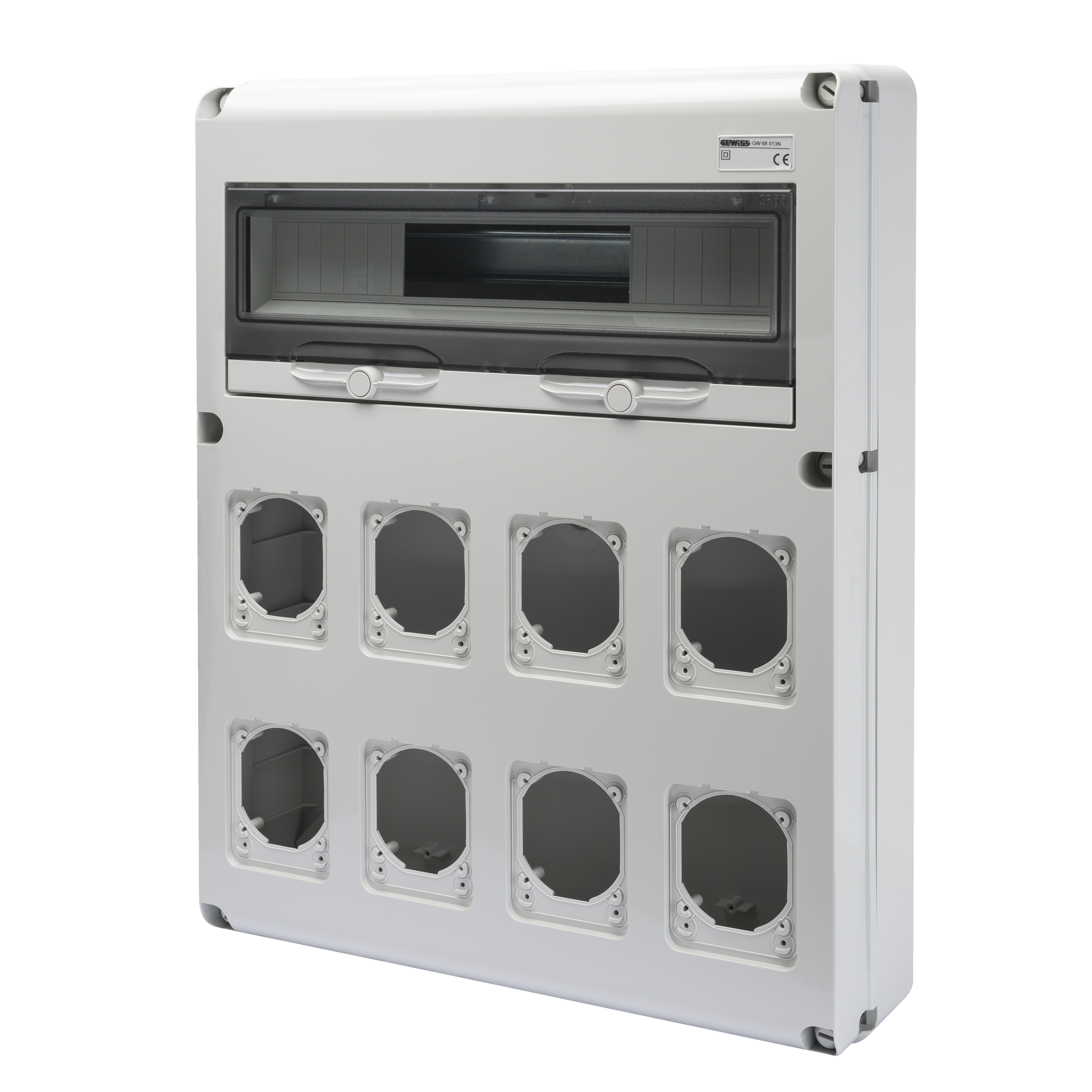

Q-DIN 20 - Surface-mounting - IP65

Category
Q-DIN 20 watertight boards - unwired - RAL 7035 - IP65

Change category

Q-DIN 20 watertight boards - unwired - RAL 7035 - IP65
Cod Gewiss
No. of modules EN 50022
Houseable socket
No. of provided blank lids
Dispersible power A (W)
Dispersible power B (W)
Q-DIN 20 MODULES - BLANK LID - IP65
GW68012N
20
Blank lid
-
30
92
Q-DIN 20 MODULES - 8 FLANGE IEC 16/32A IP44/67 - IP65
GW68013N
20
8 IEC 309 16/32A IP44/67
2 IEC 16/32A
30
92
Q-DIN 20 MODULES - 4 FLANGE IB HORIZONTAL 16/32A CBF IP44 - IP65
GW68014N
20
4 IB Horiz. 16/32A CBF IP44
2 IB 16/32A
30
92
Q-DIN 20 MODULES - 2 FLANGE IEC 309 63A + 4 FLANGE IEC 309 16/32A - IP65
GW68021N
20
2 IEC 309 63A - 4 IEC 309 16/32A
2 IEC 309 16/32A+1 63A
30
92

Q-DIN 20 - Surface-mounting - IP65

Category
Q-DIN 20 watertight boards - unwired - RAL 7035 - IP65

Change category

Q-DIN 20 watertight boards - unwired - RAL 7035 - IP65
Cod Gewiss
No. of modules EN 50022
Houseable socket
No. of provided blank lids
Dispersible power A (W)
Dispersible power B (W)
Q-DIN 20 MODULES - 4 FLANGE IB 16/32A IP67 + 4 FLANGE IEC MAX.3P+T 16A - IP65
GW68015N
20
4IB 16/32A IP67 + 4 IEC MAX 3P+E 16A
2 IB 16/32A + 4 IEC 16A
30
92
Q-DIN 20 MODULES - 1 FLANGE IB VERTICAL 63A IP67 + 2 IB VERTICAL 16/32A IP67 - IP65
GW68022N
20
1 IB Vert. 63A IP67 + 2 IB Vert. 16/32A IP67
1 IB 16/32A
30
92

Additional Q-DIN modules - IP65

Category
Additional Q-DIN modules - RAL 7035 - IP65

Change category

Additional Q-DIN modules - RAL 7035 - IP65
Cod Gewiss
No. of modules EN 50022
Dispersible power (W)
SUPPLEMENTARY MODULE Q-DIN - 14 MODULES - IP65
GW68023N
14
40
SUPPLEMENTARY MODULE Q-DIN - 20 MODULES - IP65
GW68024N
20
52

Complementary items

Category

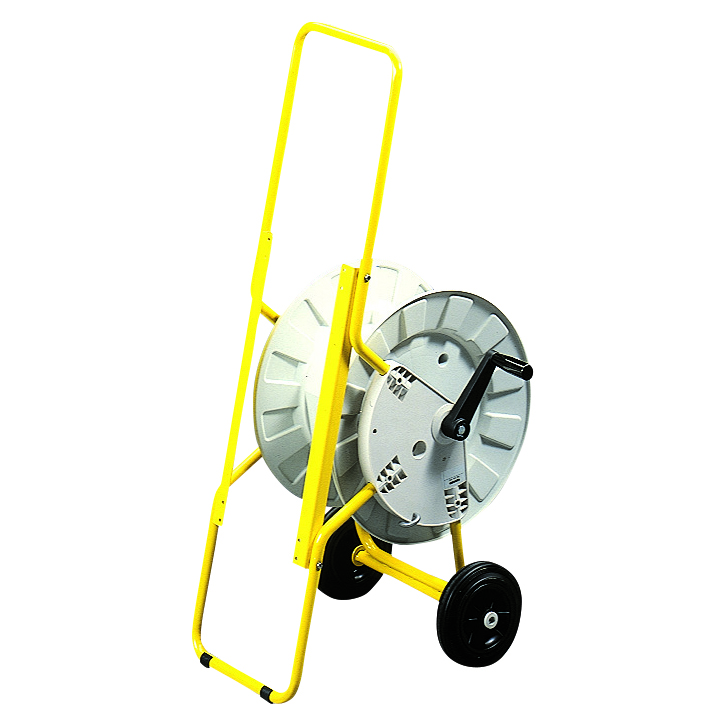

Safety yellow conduit support with holder for cables of up to 20 m

Change category

Safety yellow conduit support with holder for cables of up to 20 m
Yellow conduit carriage with two wheels and rotary drum for cables up to 50 m
Pole support kit for 68 Q-DIN boards
Brackets for fixing boards to the wall
Domestic socket outlet - IP54
Round mushroom-head emergency push-button - Mushroom Ø 40mm
Contacts - ITH=10A - 250V AC
Cylindrical security lock

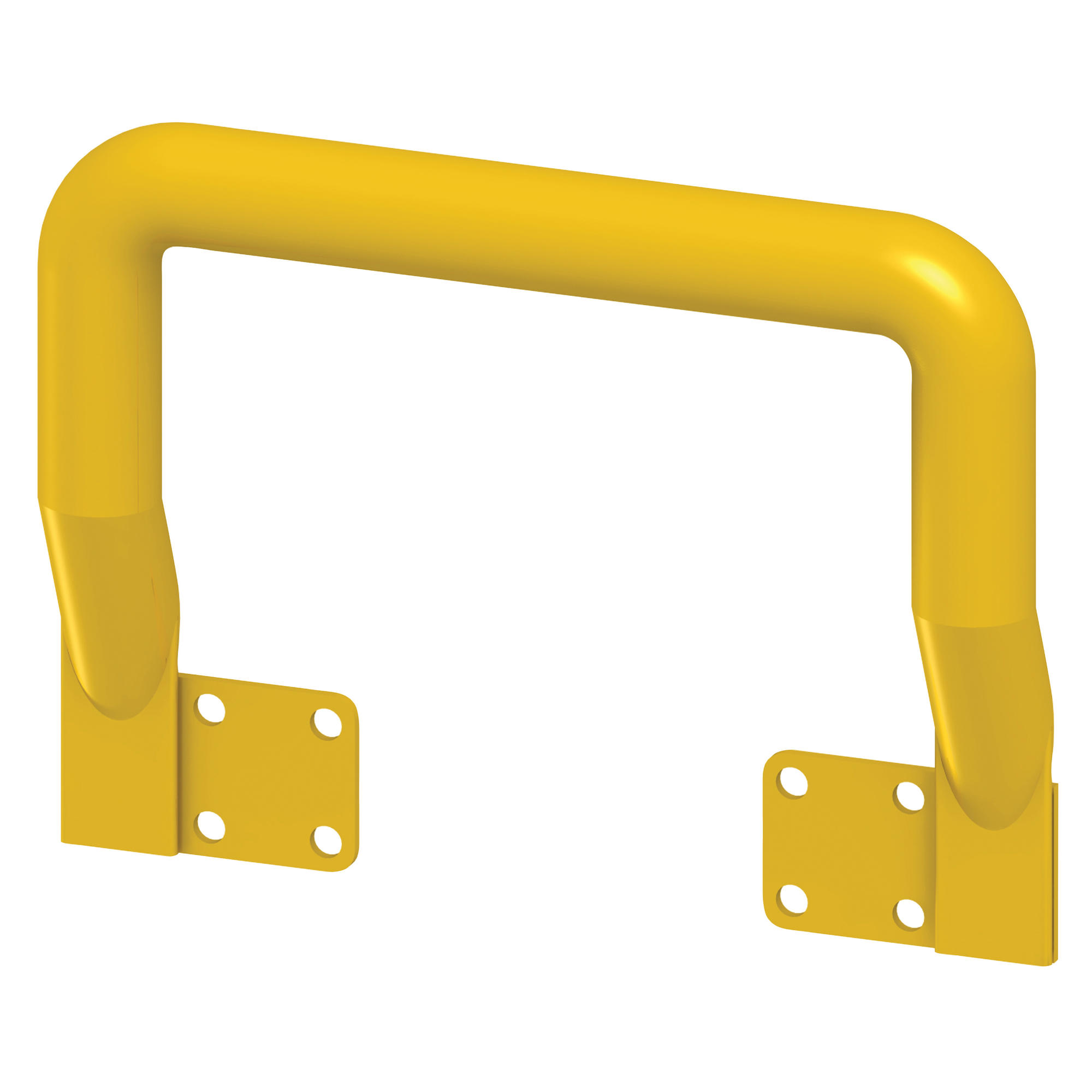

Q-DIN transportation handle
Blank lids for closing compartment containing IEC and IB vertical socket-outlets
Blank lids for closing compartment containing IB horizontal socket-outlets
Flanged lid prearranged for 2 caps - IP67
Adapter
COMBI-IN watertight covers for 2 System range modules
Watertight lids
Back-mounting plate in insulated material with self-tapping fixing screws
Insulated screw terminal block bipolar and unipolar for enclosures and boards
Adapters for screw terminal blocks
Coupling for 68Q-DIN boards - IP65
Cod Gewiss
Outer dim. LxHxD (mm)
For distribution board type
TUBOLAR METAL STAND YELLOW PAINTED - FOR Q-DIN 10M
GW68431
350x715x435
Q-DIN 10
TUBOLAR METAL STAND YELLOW PAINTED - FOR Q-DIN14/20
GW68433
350x770x520
Q-DIN 14/20
Cod Gewiss
Outer dim. LxHxD (mm)
For distribution board type
TUBOLAR METAL STAND YELLOW PAINTED -  WITH ROTATING DRUM AND 50M OF CABLE - FOR Q-DIN14/20
GW68432
495x1000x605
Q-DIN 14/20
Cod Gewiss
For Q-DIN
Max sustainable load (kg)
POLE SUPPORT KIT FOR BOARDS 46QP - FOR BOARDS 310X425
GW46552
14
12
POLE SUPPORT KIT FOR BOARDS 46QP - FOR BOARDS 405X500/405X650
GW46553
20
125
Cod Gewiss
Material
For Q-DIN
Accessories supplied
WALL FIXING BRACKET
GW44621
Insulation
5
Self-tapping fixing screws
SET OF 4 GALVANISED STEEL BRACKETS FOR FIXING SURFACE-MOUNTING BOARDS
GW46446
Galvanised steel
10/14/20
Self-tapping fixing screws
SET OF 4 STAINLESS STEEL BRACKETS FOR FIXING SURFACE-MOUNTING BOARDS
GW46451
Stainless steel
10/14/20
Self-tapping fixing screws
Cod Gewiss
Standard
No. of poles
Rated current (A)
Rated voltage
Colour
Frequency
Flange dimensions (mm)
10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET - GERMAN STANDARD - 2P+E 16A 230V 50/60HZ - 50X50 - BLUE - SCREW WIRING
GW62393
German
2P+E
16
230 V
Blue
50/60 Hz
50x50
10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET - 2P+E 16A 200-250V 50/60HZ - 85X75 - BLUE - SCREW WIRING
GW62392
German
2P+E
16
200 - 250 V
Blue
50/60 Hz
85x75
10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET - FRANCH STANDARD - 2P+T 16A 230V 50/60HZ - 50X50 - BLUE - SCREW WIRING
GW62394
French
2P+E
16
230 V
Blue
50/60 Hz
50x50
Cod Gewiss
Functions
Characteristics
MUSHROOM-HEAD ENERGENCY BUTTON - ROUND - DIAMETER 40MM -  WITH HOLDING  - NOT ILLUMINATED
GW74361
With holding
Not illuminated
Cod Gewiss
Type
Colour

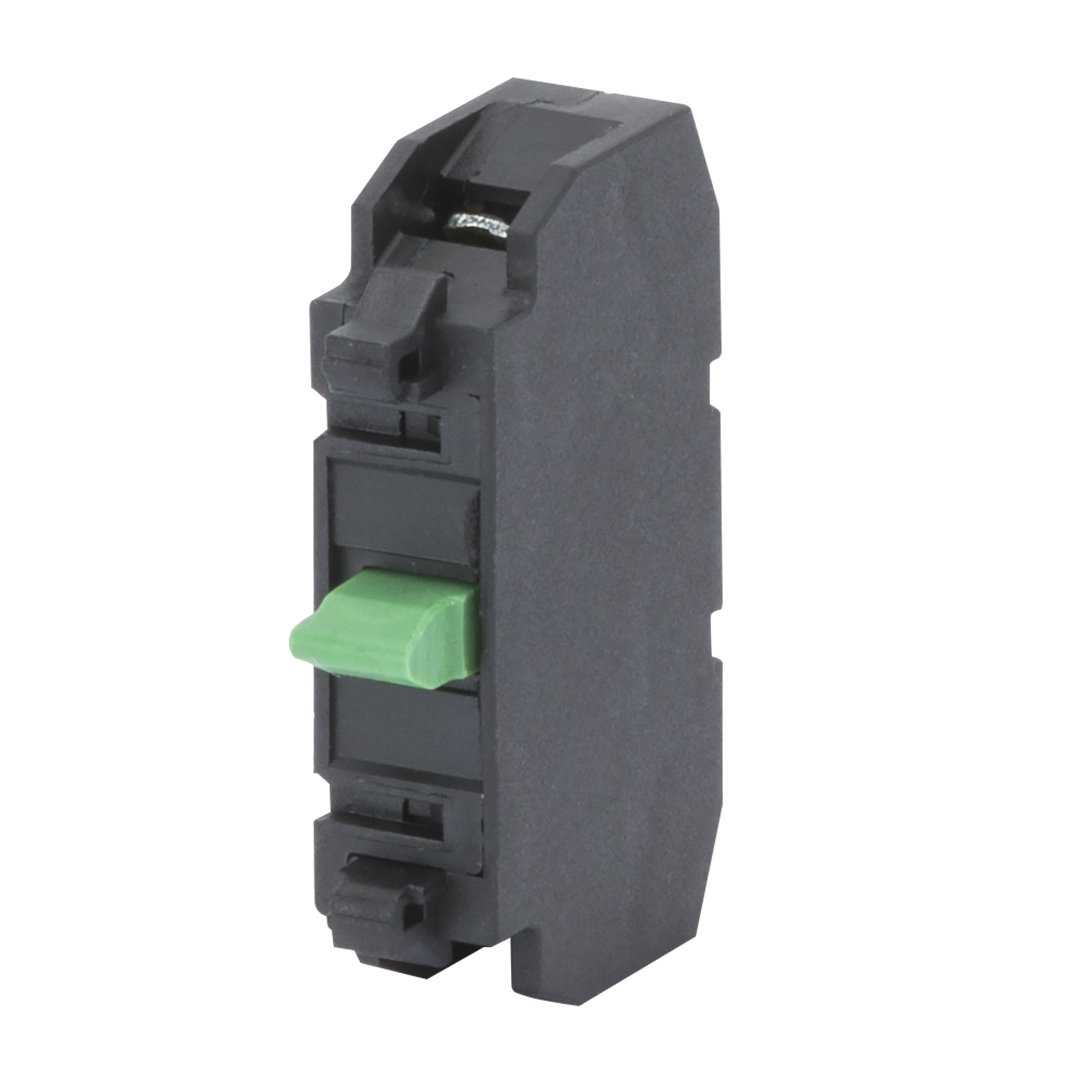

CONTACT - ITH=10 A - 1 NO - 250V - GREEN
GW74501
1 NO
Green
CONTACT - ITH=10 A - 1 NC - 250V - RED
GW74502
1 NC
Red
CONTACT - ITH=10 A - 250 V ac  - 2 N.A. -GREEN
GW74503
2 NO
Green
CONTACT - ITH=10 A - 250 V ac  - 1 N.A. - 1 N.C. - WHITE
GW74504
1 NO + 1 NC
White
CONTACT - ITH=10 A - 250 V ac  - 2 N.C. - RED
GW74505
2 NC
Red
Cod Gewiss
Material
For distribution board type
CYLINDRICAL SECURITY LOCK WITH KEY
GW40422
Pressure die-cast metal
Q-DIN 10/14/20 and additional modules
Cod Gewiss
Description
For distribution board type
Q-DIN 10/14/20 TRANSPORTATION HANDLE
GW68436N
Handle
Q-DIN 10/14/20 and additional modules
Cod Gewiss
Description
Dimensions LxH (mm)

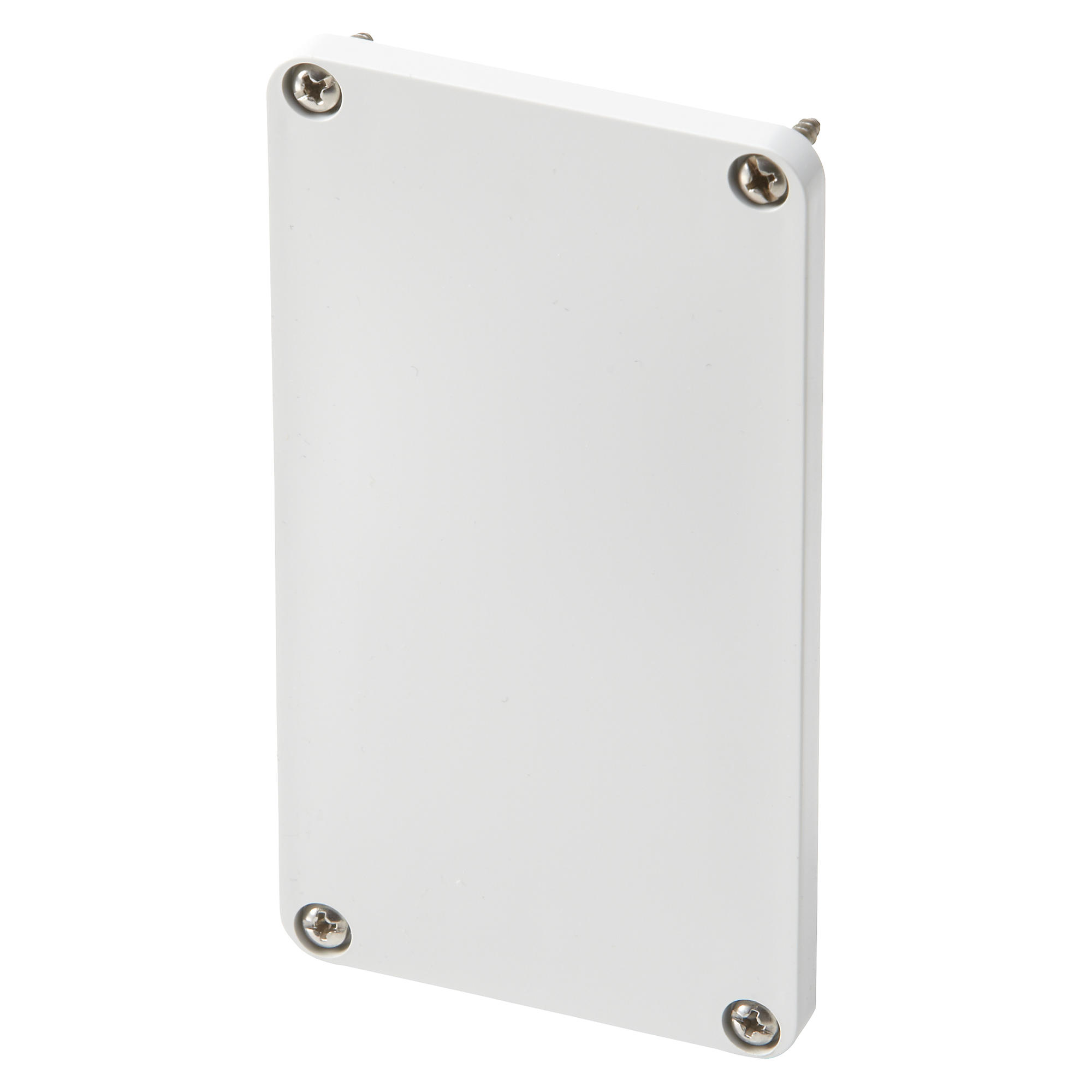

BLANK LIDS FOR IEC 309 - 16A
GW68292
Lid for IEC 309 16A
85x75
BLANK LIDS FOR IEC 309 - 32A
GW68293
Lid for IEC 309 32A
95x80
BLANK LIDS FOR IEC 309 - 63A
GW68294
Lid for IEC 309 63A
110x100
BLANK LID FOR CLOSING INTERLOCKED SOCKET-OUTLET COMPARTMENT 16-32A - IP65
GW66703N
Lid for vertical interlocked socket-outlet 16-32A
220x103
BLANK LID FOR CLOSING INTERLOCKED SOCKET-OUTLET COMPARTMENT 63A - IP65
GW66705N
Lid for vertical interlocked socket-outlet 63A
270x145
Cod Gewiss
For distribution boards
For back boxes
For flush-mounting boxes
BLANK LID FOR FIXED HORIZONTAL SOCKET-OUTLET - COMPARTMENT - SBF - IP44
GW66701
GW68006N/09N/19N
GW66676
GW66681 - GW66681PM
BLANK LIDS FOR CLOSING HORIZONTAL FIXED SOCKET-OUTLES - 16/32A CBF - IP44
GW66702
GW68014N
GW66677
GW66682 - GW66682PM
Cod Gewiss
Houseable IB socket-outlets
FLANGED COVER FITTED FOR 2 LIDS SBF - IP67
GW66709N
N. 1 IEC 309 16-32A IP44/67 + N.1 16A MAX 3P+E or GW27401/GW27403
Cod Gewiss
Suitable for

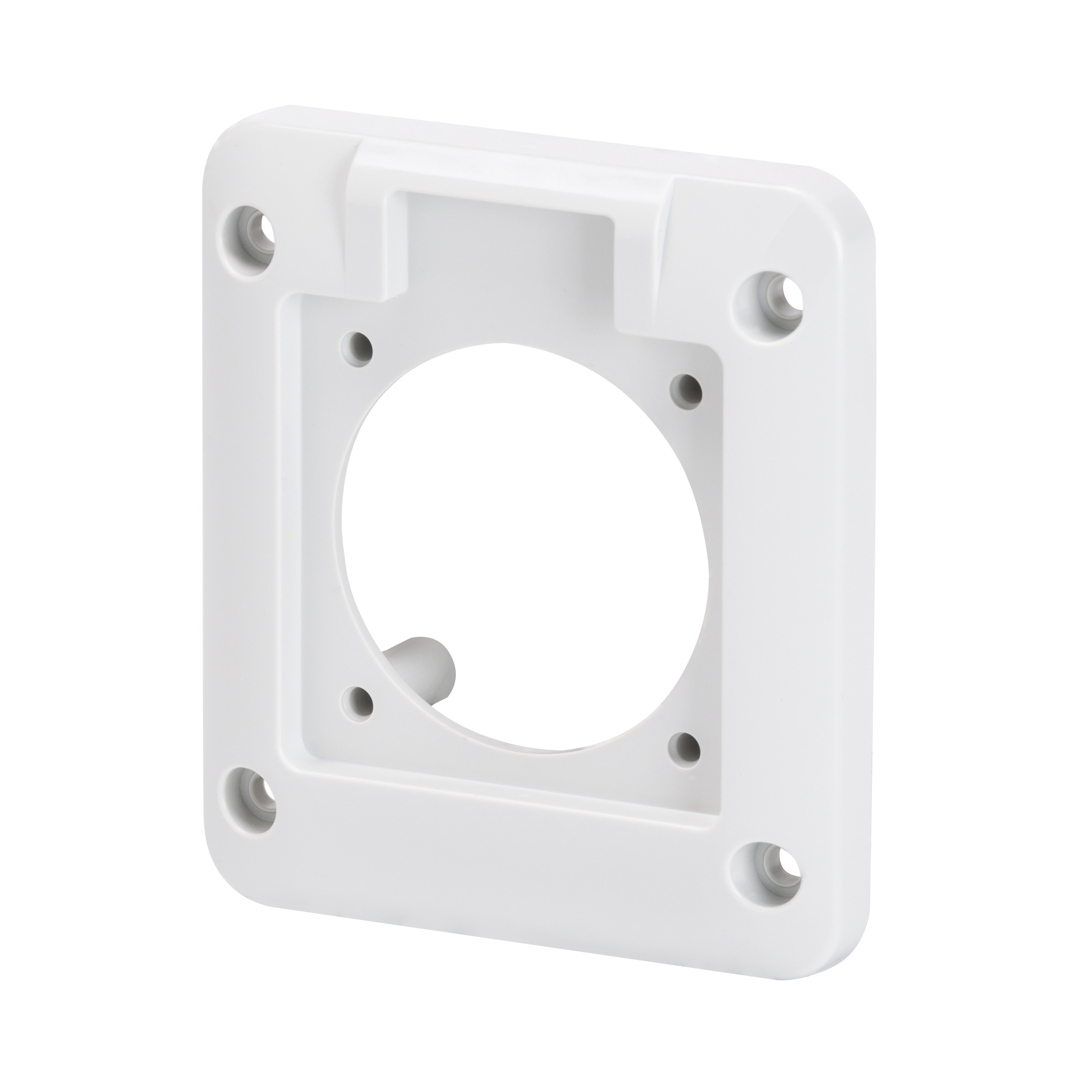

ADAPTER FLANGE CBF 16/32A
GW66715N
IP67 16/32A vertical socket-outlets
ADAPTER FLANGE CBF 63A
GW66716N
IP67 63A Vertical socket-outlets
FLANGIA ADATTATORE PR.50X50
GW68281
Domestic socket outlet std.50x50 mm
Cod Gewiss
Dimensions LxH (mm)
Door type
IP degree
Colour
COMBI IN - WATERTIGHT CAP 2 MODULES - SYSTEM - IP55 - GREY RAL 7035
GW27401
75x85
With membrane
IP55
Grey RAL 7035
COMBI IN - WATERTIGHT CAP 2 MODULES - SYSTEM - SOLID SMOCKED TRANSPARENT DOOR - IP65 - GREY RAL 7035
GW27403
75x85
Rigid IK09
IP65
Grey RAL 7035
Cod Gewiss
Dimensions LxH (mm)
Suitable for
Colour
WATERTIGHT COVER FOR 1 PUSH-BUTTON/SIGNALLER - 85X75 MM - SUITABLE FOR BUTTON - GREY
GW66708
75x85
1 Button Ø22 mm Range 74 PS
Grey
WATERTIGHT COVER FOR 1 PUSH-BUTTON/SIGNALLER - 85X75 MM - SUITABLE FOR BUTTON - YELLOW
GW66745
75x85
1 Button Ø22 mm Range 74 PS
Yellow
Cod Gewiss
For Q-DIN
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 240X190 - IN INSULATED MATERIAL
GW44626
10
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 300X220 - IN INSULATED MATERIAL
GW44627
14
BACK-MOUNTING PLATE WITH SELF-TAPPING FIXING SCREWS - FOR BOXES 380X300 - IN INSULATED MATERIAL
GW44628
20
Cod Gewiss
Type
Pole 1 (mm²)
Pole 2 (mm²)
Suitable for
Fastener to supports
TERMINAL BLOCK FOR ENCLOSURE (1X35) + (7X10)
GW40401
Bipolar - Rated current 125 A
N (1x35) + (7x10)
E (1x35) + (7x10)
Q-DIN 10/14/20
With screws
TERMINAL BLOCK FOR ENCLOSURE (3X35) + (10X10)
GW40402
Bipolar - Rated current 125 A
N (3x35) + (10x10)
E (3x35) + (10x10)
Q-DIN 14/20
With screws and/or clip
SCREW TERMINAL BLOCK - 80A - IP20 - BIPOLAR - POLE 1 N/T (2X16)+(7X10) POLE 2 N/T (2X16)+(7X10)
GW40408B
Bipolar - Rated current 80 A - IP20
N/E (2x16) + (7x10)
N/E (2x16) + (7x10)
Q-DIN 10/14/20
With screws
SCREW AND/OR CLIP TERMINAL BLOCK - 80A - IP20 - BIPOLAR - POLE 1 N/T (3X16)+(11X10) POLE 2 N/T (3X16)+(11X10)
GW40412B
Bipolar - Rated current 80 A - IP20
N/E (3x16) + (11x10)
N/E (3x16) + (11x10)
Q-DIN 14/20
With screws and/or clip
SCREW TERMINAL BLOCK - 80A - IP20 - UNIPOLAR - POLE 1 N/T (2X16)+(7X10)
GW40408U
Unipolar - Rated current 80 A - IP20
N/E (2x16) + (7x10)
-
Q-DIN 10/14/20
With screws
Cod Gewiss
Suitable for
Fastener to supports
ADAPTER FOR TERMINAL BLOCK
GW40413
Q-DIN 14/20
With screws
Cod Gewiss
Description
COUPLING FOR MODULAR BASE - IP56
GW66673
Coupler PG29

Surface-mounted for COMBIBLOC compact socket-outlets - IP44/IP54

Category
Empty boards for fixed compact socket-outlets

Change category

Empty boards for fixed compact socket-outlets
Blank covers for COMBIBLOC interlocked switched socket-outlets
Insulated screw terminal block bipolar and unipolar for enclosures and boards
Adapters for screw terminal blocks
Cod Gewiss
No. IB socket-outlets houseable
No. of modules EN 50022
No. of blank lids supplied
Dispersible power (W)
BOARD FOR FIXED COMPACT SOCKET OUTLET - UNWIRED - 1 FLANGE FOR COMBIBLOC 16/32A
GW66491
1 COMBIBLOC 16/32A
4
None
10
BOARD FOR FIXED COMPACT SOCKET OUTLET - UNWIRED - 2 FLANGE FOR COMBIBLOC 16/32A
GW66492
2 COMBIBLOC 16/32A
8
1
13
BOARD FOR FIXED COMPACT SOCKET OUTLET - UNWIRED - 3 FLANGE FOR COMBIBLOC 16/32A
GW66493
3 COMBIBLOC 16/32A
12
1
24
Cod Gewiss
Dimensions LxH (mm)
BLANK LID FOR COMBIBLOC CAP - IP55
GW68295
132x71
Cod Gewiss
Type
Pole 1 (mm²)
Pole 2 (mm²)
Suitable for
Fastener to supports
TERMINAL BLOCK FOR ENCLOSURE (1X35) + (7X10)
GW40401
Bipolar - Rated current 125 A
N (1x35) + (7x10)
E (1x35) + (7x10)
GW66492 and GW66493
With screws
TERMINAL BLOCK FOR ENCLOSURE (3X35) + (10X10)
GW40402
Bipolar - Rated current 125 A
N (3x35) + (10x10)
E (3x35) + (10x10)
GW66493
With screws and/or clip
SCREW TERMINAL BLOCK - 80A - IP20 - BIPOLAR - POLE 1 N/T (2X16)+(7X10) POLE 2 N/T (2X16)+(7X10)
GW40408B
Bipolar - Rated current 80 A - IP20
N/E (2x16) + (7x10)
N/E (2x16) + (7x10)
GW66492 and GW66493
With screws
SCREW AND/OR CLIP TERMINAL BLOCK - 80A - IP20 - BIPOLAR - POLE 1 N/T (3X16)+(11X10) POLE 2 N/T (3X16)+(11X10)
GW40412B
Bipolar - Rated current 80 A - IP20
N/E (3x16) + (11x10)
N/E (3x16) + (11x10)
GW66493
With screws and/or clip
SCREW TERMINAL BLOCK - 80A - IP20 - UNIPOLAR - POLE 1 N/T (2X16)+(7X10)
GW40408U
Unipolar - Rated current 80 A - IP20
N/E (2x16) + (7x10)
-
GW66492 and GW66493
With screws
Cod Gewiss
Suitable for
Fastener to supports
ADAPTER FOR TERMINAL BLOCK
GW40413
GW66493
With screws
You saw 85 products on 108
Show others

Applications

Hospitality
Museums and Libraries
Show more
Hospitality
Hotels & Restaurants
Show more
Healthcare
Retirement homes
Show more
Healthcare
Hospitals
Show more
Industry
Warehouse logistics
Show more
Retail
Shops
Show more
Offices
Private Buildings
Show more
Offices
Public buildings
Show more
Hospitality
Theatres
Show more
Sports
Indoor sports facilities
Show more
services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us

Do you need information on Gewiss products or services?
