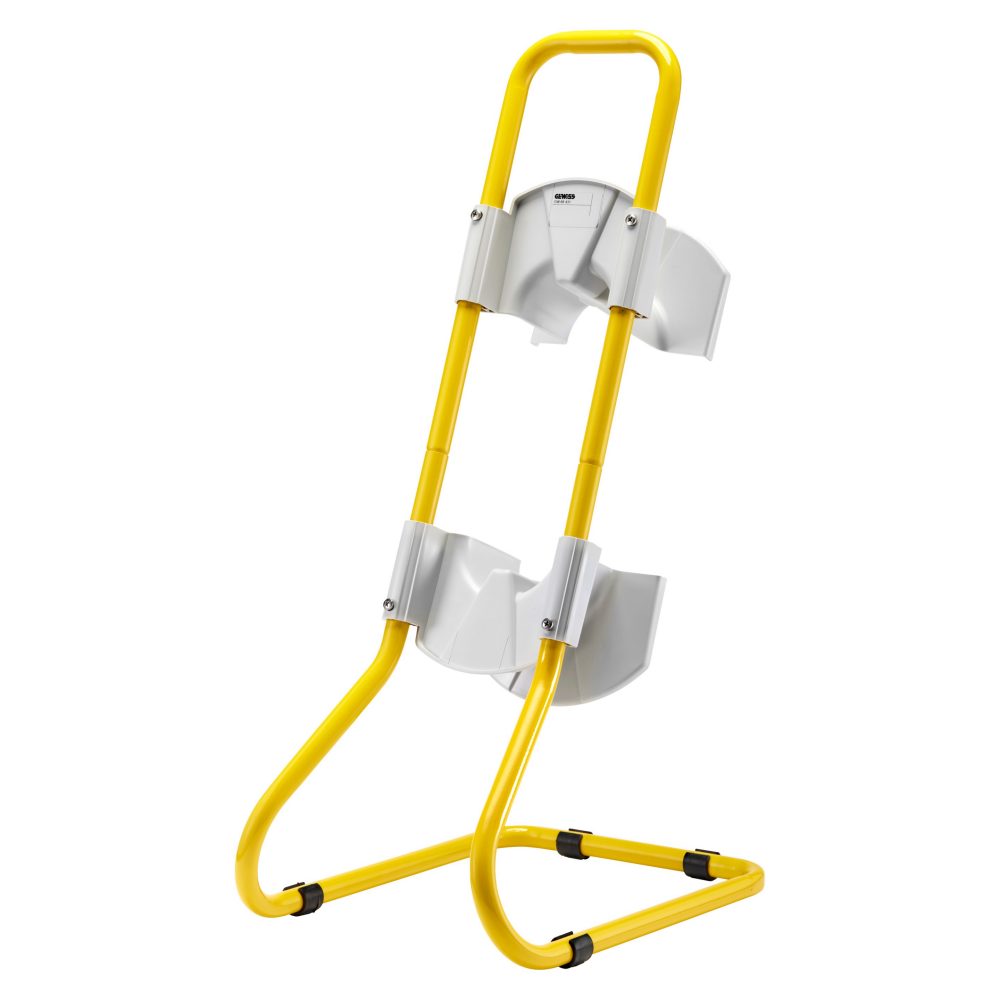

TUBOLAR METAL STAND YELLOW PAINTED - FOR Q-DIN 10M
Code:
GW68431
Range: 68 Q-DIN Range
Distribution boards
Distribution boards
A complete system of IP65 boards for distributing energy in tertiary, commercial sector and building applications, available both empty and pre-wired, in accordance with the international standard IEC 61439. The Q-DIN range comprises boards from 5 to 20 DIN modules, plus supplementary modules of 14 or 20 M to add even more DIN spaces. They can accommodate flush-mounting socket-outlets and interlocked socket-outlets of up to 63 A, and they can be combined with numerous accessories.
Technical Info
Information
Download
Software
Certificates
For distribution board type
Q-DIN 10
Electrocod
2241
Outer dim. LxHxD (mm)
350x715x435
Ware Number
85389099
EQUIPMENT AND NOTES
NOTES: the type of cable considered is H 07 RN - F 5 x 4 mm²; the length varies according to the type of cable.
GW68433: Q-DIN protection system against the front drops.
GW68433: Q-DIN protection system against the front drops.
