QDX 630 L range
Modular distribution boards up to 630A - IP43

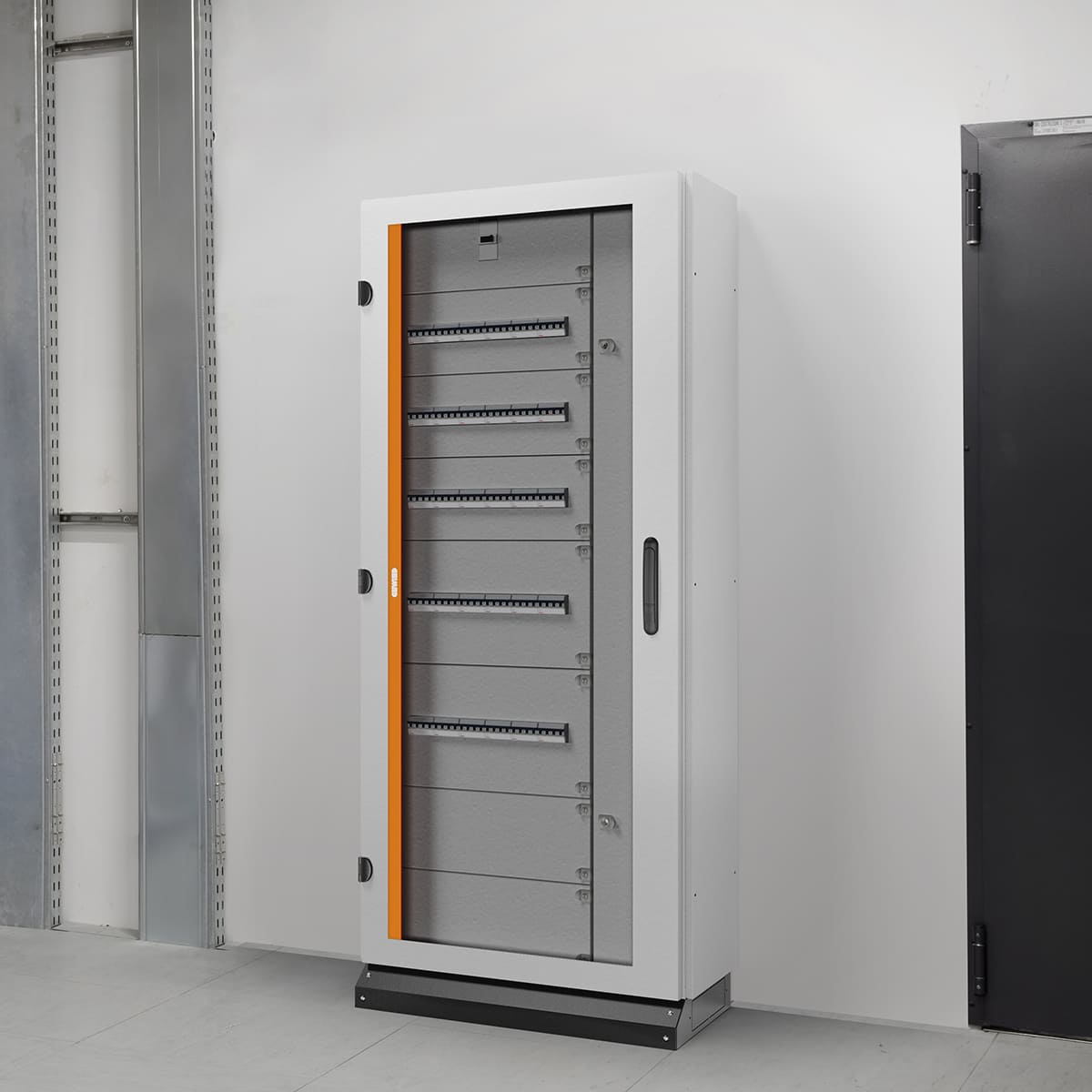

The QDX 630 L series of modular boards is available in both wall and floor versions. Both solutions share the same concept, accessories and quick and easy wiring modes. In fact, wiring is possible with the "structure completely open” and subsequently, the assembly of the board is completed.

See all product
Benefits
Integrated gasket
Integrated gasket
The IP43 rated seal is already fitted in the distribution board, with no need for an external roll.
DIN rail: quick assembly and disassembly
DIN rail: quick assembly and disassembly
The screw-free snap-in system is simple and immediate thanks to the quick assembly and disassembly of the dual aluminium DIN rails.
Facilitated maintenance
Facilitated maintenance
The independent fixing of the front part and the removable sidewalls ensure the best working conditions for the operator.

The products of this series

209 products

Structures - Degree of protection with door IP43

Wall-mounting distribution boards

Category
Bases and headboards

Change category

Bases and headboards
Rear frames
Pair of front uprights
Pair of side panels
Cod Gewiss
Functional dim. LxD (mm)
External dim. LxD (mm)
BASE AND HEADBOARD - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 600X200MM
GWD3001
600x200
650x205
BASE AND HEADBOARD - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 850X200MM
GWD3002
850x200
850x205
BASE AND HEAD - WALL-MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 600X300 MM
GWD3004
600x300
650x295
BASE AND HEAD - WALL-MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 850X300 MM
GWD3005
850x300
850x295
Cod Gewiss
Functional dim. LxH (mm)
REAR FRAME - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 600X1000MM
GWD3015
600x1000
REAR FRAME - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 600X1200MM
GWD3016
600x1200
REAR FRAME - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 850X1000MM
GWD3017
850x1000
REAR FRAME - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 850X1200MM
GWD3018
850x1200
Cod Gewiss
Functional dim. H (mm)
External dim H (mm)
PAIR OF FRONT UPRIGHTS - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 1000MM
GWD3007
1000
1060
PAIR OF FRONT UPRIGHTS - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 1200MM
GWD3008
1200
1260
Cod Gewiss
Functional dim. HxD (mm)
PAIR OF SIDE PANELS - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 1000X200MM
GWD3011
1000x200
PAIR OF SIDE PANELS - WALL MOUNTING DISTRIBUTION BOARD - QDX 630 L - 1200X200MM
GWD3012
1200x200
PAIR OF SIDE PANELS - WALL-MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 1000X300 MM
GWD3013
1000x300
PAIR OF SIDE PANELS - WALL-MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 1200X300 MM
GWD3014
1200x300

Floor-mounting distribution boards

Category
Bases and headboards

Change category

Bases and headboards
Rear frames
Pair of front uprights
Pair of side panels
Pair of ventilated side panels
Cod Gewiss
Functional dim. LxD (mm)
External dim. LxD (mm)

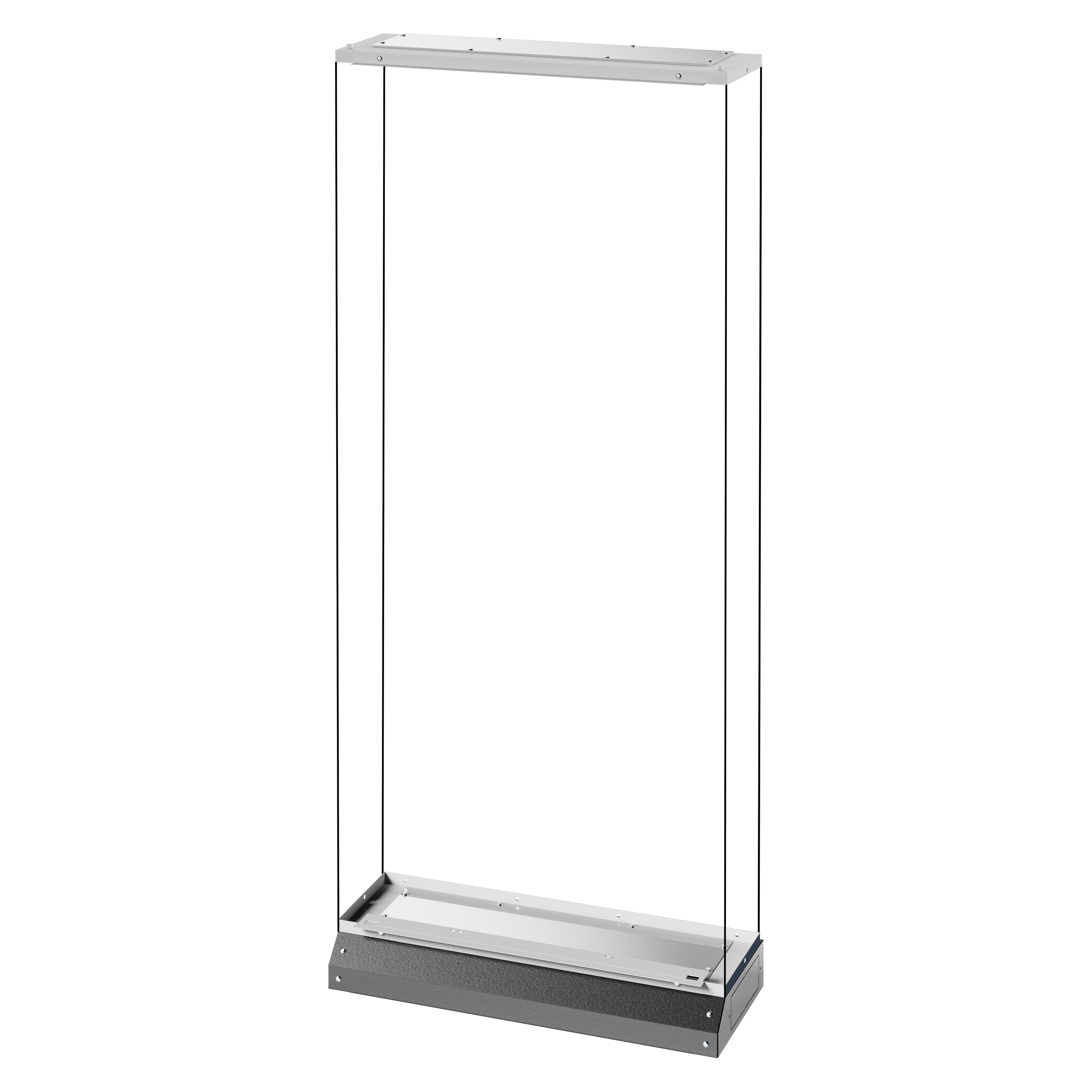

BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - 600x200mm
GWD3615
600x200
650x230
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - 600x300mm
GWD3616
600x300
650x320
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - 850x200mm
GWD3617
850x200
850x230
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - 850x300mm
GWD3618
850x300
850x320
Cod Gewiss
Functional dim. LxH (mm)
REAR FRAME - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 600X1600MM
GWD3059
600x1600
REAR FRAME - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 600X1800MM
GWD3060
600x1800
REAR FRAME - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 600X2000MM
GWD3061
600x2000
REAR FRAME - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 850X1600MM
GWD3062
850x1600
REAR FRAME - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 850X2000MM
GWD3064
850x2000
Cod Gewiss
Functional dim. H (mm)
External dim H (mm)
PAIR OF FRONT UPRIGHTS - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 1600MM
GWD3047
1600
1660
PAIR OF FRONT UPRIGHTS - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 1800MM
GWD3048
1800
1860
PAIR OF FRONT UPRIGHTS - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 2000MM
GWD3049
2000
2060
Cod Gewiss
Functional dim. HxD (mm)

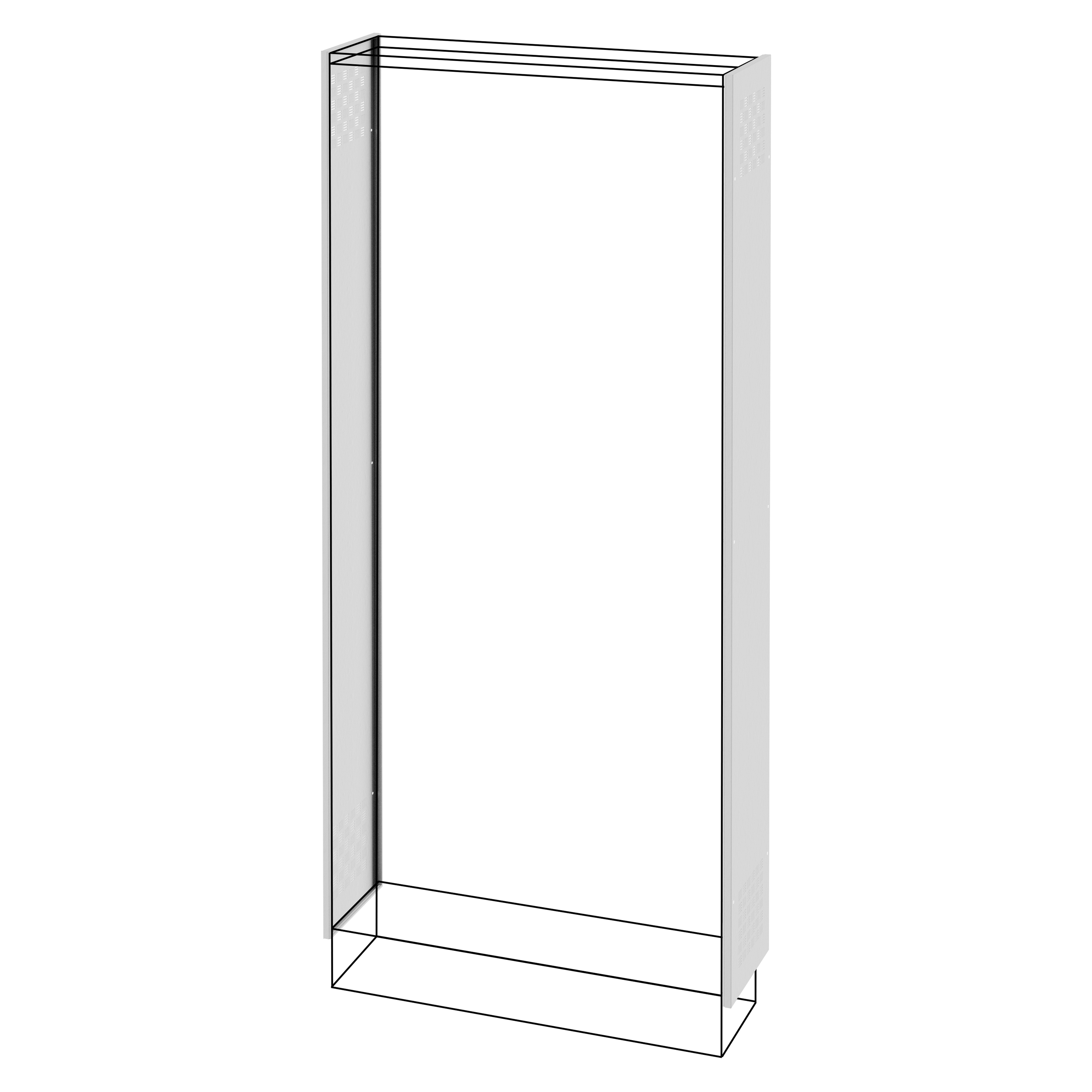

PAIR OF SIDE PANELS - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 1600X200MM
GWD3053
1600x200
PAIR OF SIDE PANELS - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 1600X300MM
GWD3054
1600x300
PAIR OF SIDE PANELS - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 1800X200MM
GWD3055
1800x200
PAIR OF SIDE PANELS - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 1800X300MM
GWD3056
1800x300
PAIR OF SIDE PANELS - FLOOR - MOUNTING DISTRIBUTION BOARDS - QDX 630 L - 2000X200MM
GWD3057
2000x200
Cod Gewiss
Functional dim. HxD (mm)
PAIR OF AERATED SIDE PANELS - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - 1600X300 MM
GWD3089
1600x300
PAIR OF AERATED SIDE PANELS - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - 1800X300 MM
GWD3090
1800x300
PAIR OF AERATED SIDE PANELS - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - 2000X300 MM
GWD3091
2000x300

Doors

Category
Glass doors

Change category

Glass doors
Blind doors
Cod Gewiss
Suitable for structures LxH (mm)
GLASS DOOR - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 600x1000mm
GWD3605
600x1000
GLASS DOOR - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 600x1200mm
GWD3606
600x1200
GLASS DOOR - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 850x1000mm
GWD3607
850x1000
GLASS DOOR - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 850x1200mm
GWD3608
850x1200
GLASS DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 600x1600mm
GWD3627
600x1600
Cod Gewiss
Suitable for structures LxH (mm)
BLIND DOOR - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 600x1000mm
GWD3609
600x1000
BLIND DOOR - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 600x1200mm
GWD3610
600x1200
BLIND DOOR - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 850x1000mm
GWD3611
850x1000
BLIND DOOR - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 850x1200mm
GWD3612
850x1200
BLIND DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 600x1600mm
GWD3633
600x1600

Internal compartment

Category
Internal compartments

Change category

Internal compartments
Cod Gewiss
Suitable for structures LxHxD (mm)
INTERNAL COMPARTMENT - QDX 630 L - FOR STRUCTURE 850X1000X200MM
GWD3031
850x1000x200
INTERNAL COMPARTMENT - QDX 630 L - FOR STRUCTURES 850X1000X300 MM
GWD3032
850x1000x300
INTERNAL COMPARTMENT - QDX 630 L - FOR STRUCTURE 850X1200X200MM
GWD3033
850x1200x200
INTERNAL COMPARTMENT - QDX 630 L - FOR STRUCTURES 850X1200X300 MM
GWD3034
850x1200x300
INTERNAL COMPARTMENT - QDX 630 L - FOR STRUCTURE 850X1600X200MM
GWD3083
850x1600x200

External compartment

Category
Bases and headboards

Change category

Bases and headboards
Rear frames
Pair of front uprights
Blind doors
Cod Gewiss
Functional dim. LxD (mm)
External dim. LxD (mm)
BASE AND HEADBOARD - FOR EXTERNAL COMPARTMENT - QDX 630 L - 300X200MM
GWD3003
300x200
290x205
BASE AND HEAD - FOR EXTERNAL COMPARTMENT - QDX 630 L - 300X300 MM
GWD3006
300x300
290x295
BASE AND HEADBOARD - EXTERNAL COMPARTMENT - QDX 630 L - 400x200mm
GWD3619
400x200
400x230
BASE AND HEADBOARD - EXTERNAL COMPARTMENT - QDX 630 L - 400x300mm
GWD3620
400x300
400x320
Cod Gewiss
Functional dim. LxH (mm)

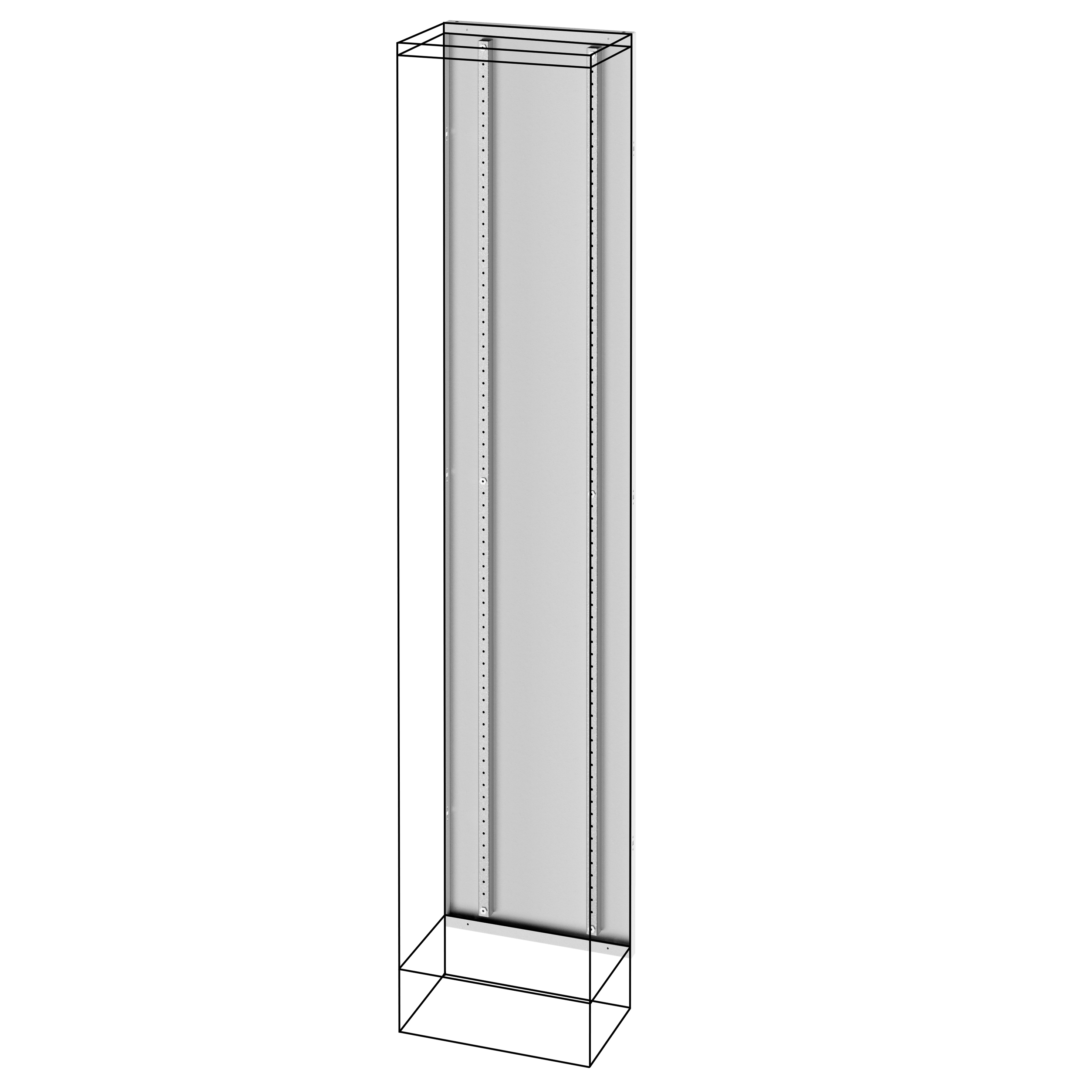

REAR FRAME - FOR EXTERNAL CABLE COMPARTMENT - QDX 630 L - 300X1000MM
GWD3019
300x1000
REAR FRAME - FOR EXTERNAL CABLE COMPARTMENT - QDX 630 L - 300X1200MM
GWD3020
300x1200
REAR FRAME - FOR EXTERNAL CABLE COMPARTMENT - QDX 630 L - 400X1600MM
GWD3065
400x1600
REAR FRAME - FOR EXTERNAL CABLE COMPARTMENT - QDX 630 L - 400X1800MM
GWD3066
400x1800
REAR FRAME - FOR EXTERNAL CABLE COMPARTMENT - QDX 630 L - 400X2000MM
GWD3067
400x2000
Cod Gewiss
Functional dim. H (mm)
External dim H (mm)
PAIR OF FRONT UPRIGHTS - FOR EXTERNAL COMPARTMENT - QDX 630 L - 1000MM
GWD3009
1000
1060
PAIR OF FRONT UPRIGHTS - FOR EXTERNAL COMPARTMENT - QDX 630 L - 1200MM
GWD3010
1200
1260
PAIR OF FRONT UPRIGHTS - FOR EXTERNAL COMPARTMENT - QDX 630 L - 1600MM
GWD3050
1600
1660
PAIR OF FRONT UPRIGHTS - FOR EXTERNAL COMPARTMENT - QDX 630 L - 1800MM
GWD3051
1800
1860
PAIR OF FRONT UPRIGHTS - FOR EXTERNAL COMPARTMENT - QDX 630 L - 2000MM
GWD3052
2000
2060
Cod Gewiss
Suitable for structures LxH (mm)
BLIND DOOR - EXTERNAL COMPARTMENT - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 300x1000mm
GWD3613
300x1000
BLIND DOOR - EXTERNAL COMPARTMENT - WALL-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 300x1200mm
GWD3614
300x1200
BLIND DOOR - EXTERNAL COMPARTMENT - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 400x1600mm
GWD3639
400x1600
BLIND DOOR - EXTERNAL COMPARTMENT - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 400x1800mm
GWD3640
400x1800
BLIND DOOR - EXTERNAL COMPARTMENT - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 L - FOR STRUCTURE 400x2000mm
GWD3641
400x2000
You saw 85 products on 209
Show others
