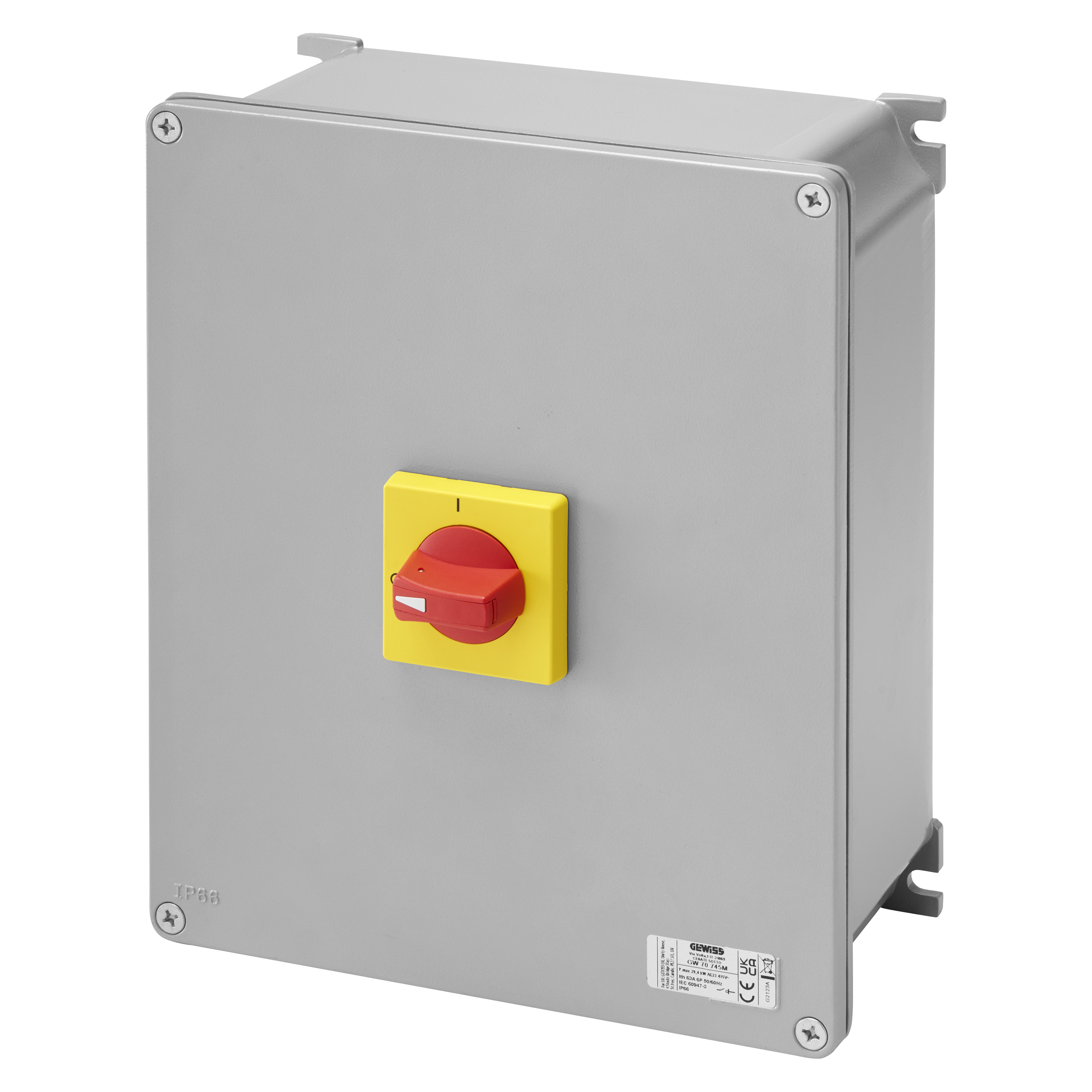

ROTARY ISOLATOR SWITCH - HP - SURFACE-MOUNTING - EMERGENCY - METAL BOX - 100A 6P - LOCKABLE RED KNOB - IP66
Code:
GW70747M
Range: 70 RT HP Range
Rotary isolators
Rotary isolators
70 RT HP is a complete offer of rotary isolator switches from 16A to 160A, available in boxes both in insulating material and aluminium, in control or emergency versions, compatible with the main applications for residential, tertiary and industrial contexts. DC versions for photovoltaic applications are also available from 16A to 40A in insulating box. The series is completed with versions for board from 16A to 1000A and for DIN rail fixing from 16A to 63A, which can be equipped with auxiliary contacts. The devices have been designed to reduce wiring time, facilitate installation and guarantee the maximum safety and robustness even in the most demanding conditions.
IP66
IK10 (box); IK08 (knob)
Technical Info
Information
Download
Software
Certificates
Related products
Gewiss Code
Rated current (A)
No. of poles
Outer dim. LxHxD (mm)
Holes entry
EQUIPMENT AND NOTES
NOTE: can be padlocked in OFF position with max. 3 locks with diameter max. 8 mm.
Versions 100-160A up to 4P and 63-100A 6P and 8P allow to install max. 2 x M63 cable glands.
Versions 100-160A up to 4P and 63-100A 6P and 8P allow to install max. 2 x M63 cable glands.
