70 RT HP Range
Rotary isolators

70 RT HP is a complete offer of rotary isolator switches from 16A to 160A, available in boxes both in insulating material and metal, in control or emergency versions, compatible with the main applications for residential, tertiary and industrial contexts. DC versions for photovoltaic applications are also available from 16A to 40A in insulating box. The series is completed with versions for board from 16A to 1000A and for DIN rail fixing from 16A to 63A, which can be equipped with auxiliary contacts. The devices have been designed to reduce wiring time, facilitate installation and guarantee the maximum safety and robustness even in the most demanding conditions.

See all product

Benefits

Total protection

Total protection

The versions in plastic box have a degree of protection up to IP66/IP67/IP69, which guarantee a total protection against the entry of dust and liquids. Thanks to their high impact resistance, this range is suitable for all the most demanding application contexts.

Versatile and innovative

Versatile and innovative

Double metric inputs, external points for wall fixing, large internal space for cable routing and accessorisability with different auxiliary contacts, are just some of the features that make this range suitable for various applications.

Quick mounting

The frontal part of the versions in plastic box i is fixed with only 4 captive and sealable screws with ¼ turn: a simple and innovative system, which allows to fix or remove the cover in less time than any other system currently available on the market.

Robust and reliable

Robust and reliable

The metal box versions (IP66) are made of coated aluminium alloy, providing long-lasting high performance even in harsh conditions. ATEX versions up to 100A are also available for applications in environments with high risk of explosion.

262 products

Rotary isolator switches in insulating box

Control versions

Category

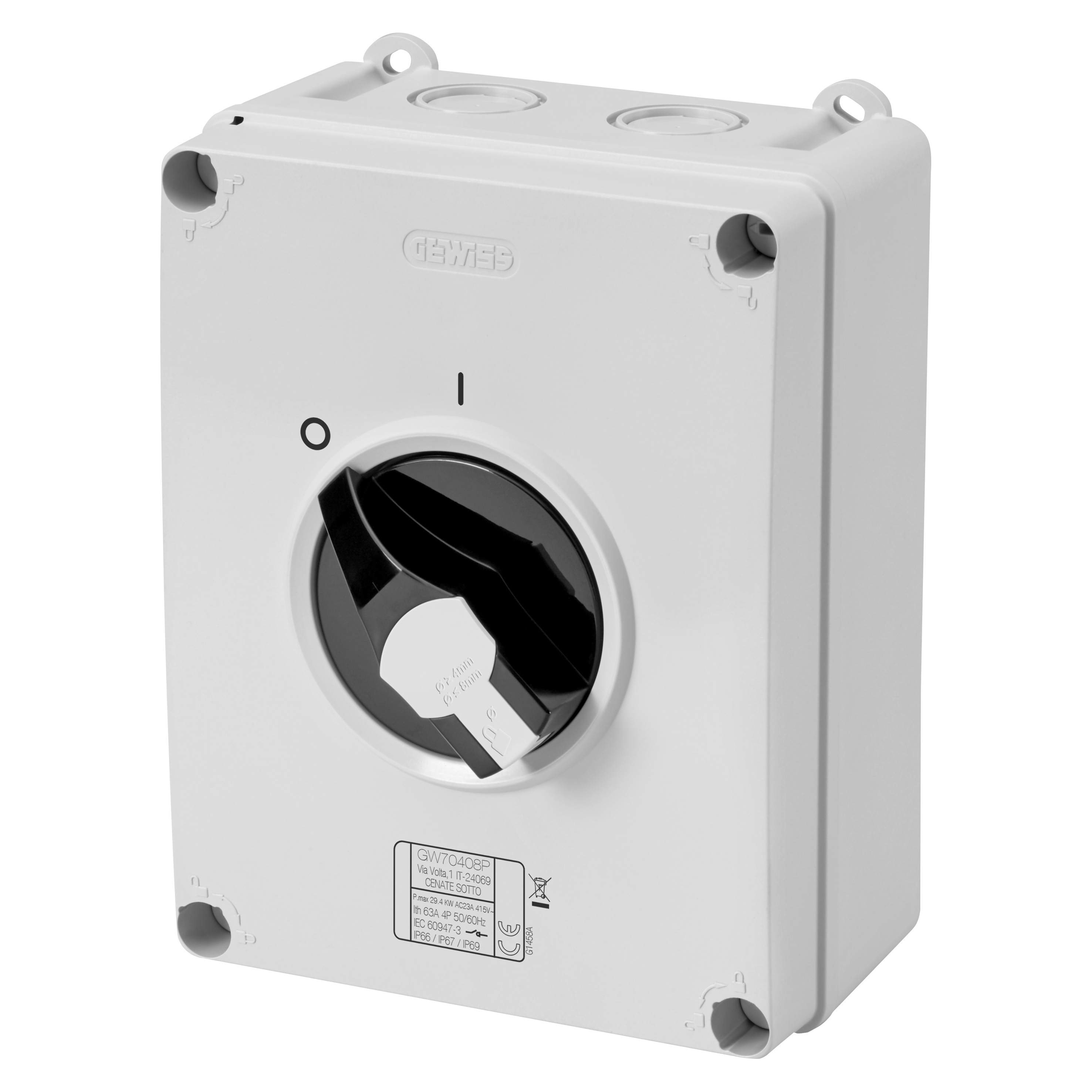

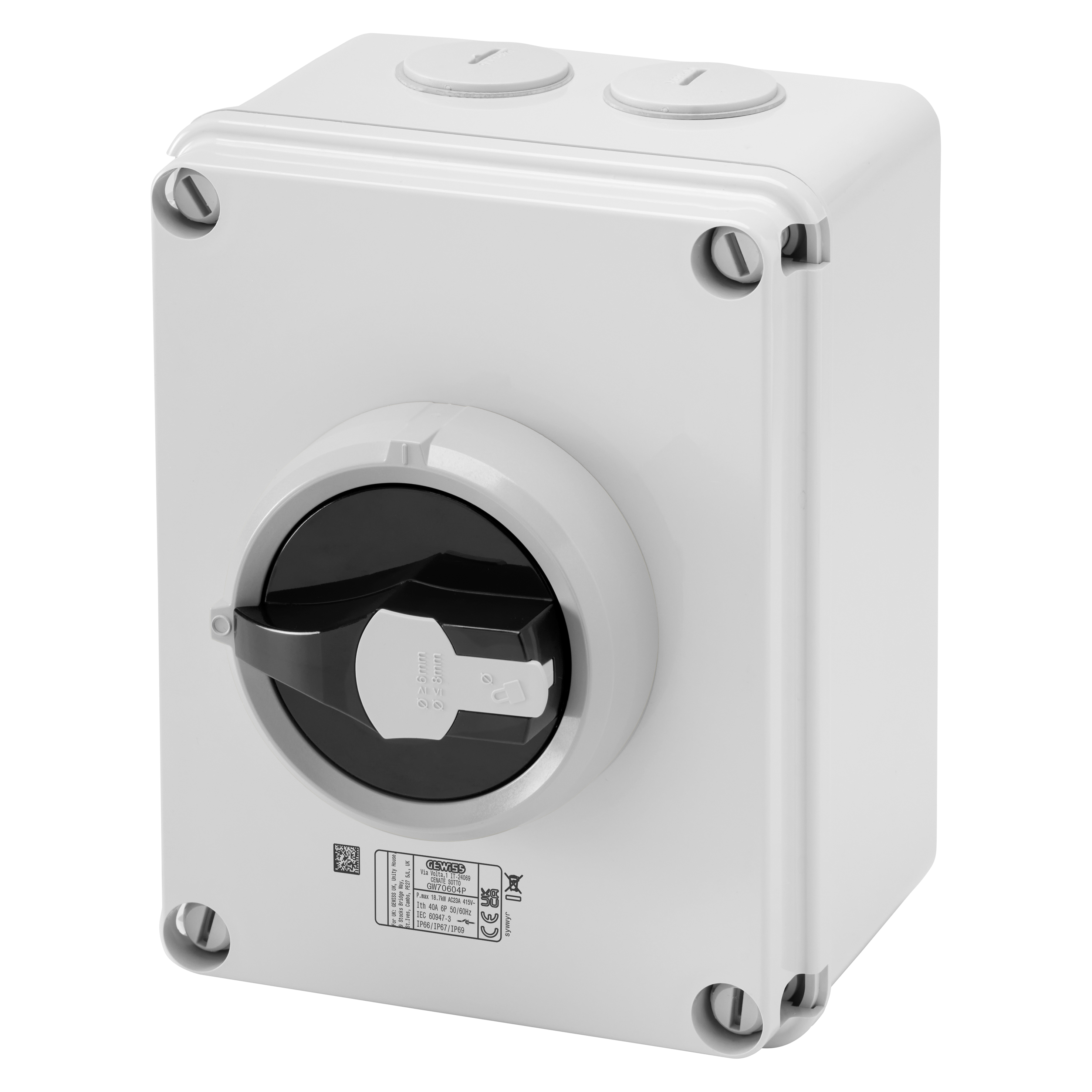

Surface-mounting isolator - control unit with lockable black knob

Cod Gewiss

Rated current (A)

No. of poles

Outer dim. LxHxD (mm)

Holes entry

Lid screws (no. and type)

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 2P - LOCKABLE BLACK KNOB - IP66/67/69

GW70401P

16

2P

125x150x75,5

2 x M20/25 + 2 x M20/25

4 insul. 1/4 turn

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 3P - LOCKABLE BLACK KNOB - IP66/67/69

GW70402P

16

3P

125x150x75,5

2 x M20/25 + 2 x M20/25

4 insul. 1/4 turn

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 3P+N - LOCKABLE BLACK KNOB - IP66/67/69

GW70402NP

16

3P+N

125x150x75,5

2 x M20/25 + 2 x M20/25

4 insul. 1/4 turn

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 4P - LOCKABLE BLACK KNOB - IP66/67/69

GW70403P

16

4P

125x150x75,5

2 x M20/25 + 2 x M20/25

4 insul. 1/4 turn

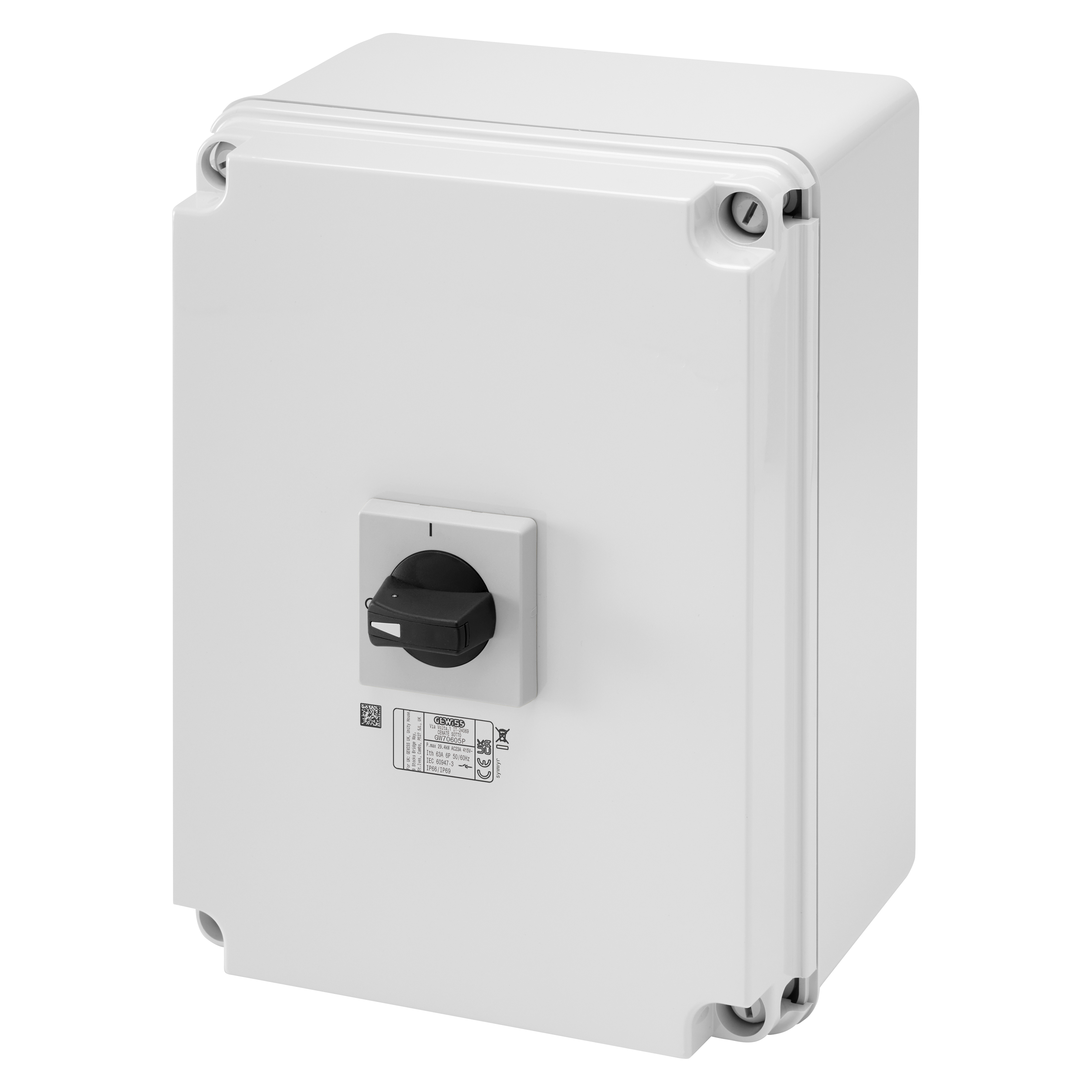

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 6P - LOCKABLE BLACK KNOB - IP66/67/69

GW70601P

16

6P

153,6x200,6x117

4xM20

4 insulation

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 2P - LOCKABLE BLACK KNOB - IP66/67/69

GW70401P

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 2P - LOCKABLE BLACK KNOB - IP66/67/69

Show

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 3P - LOCKABLE BLACK KNOB - IP66/67/69

GW70402P

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 3P - LOCKABLE BLACK KNOB - IP66/67/69

Show

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 3P+N - LOCKABLE BLACK KNOB - IP66/67/69

GW70402NP

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 3P+N - LOCKABLE BLACK KNOB - IP66/67/69

Show

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 4P - LOCKABLE BLACK KNOB - IP66/67/69

GW70403P

ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 4P - LOCKABLE BLACK KNOB - IP66/67/69

Show

Emergency versions

Category

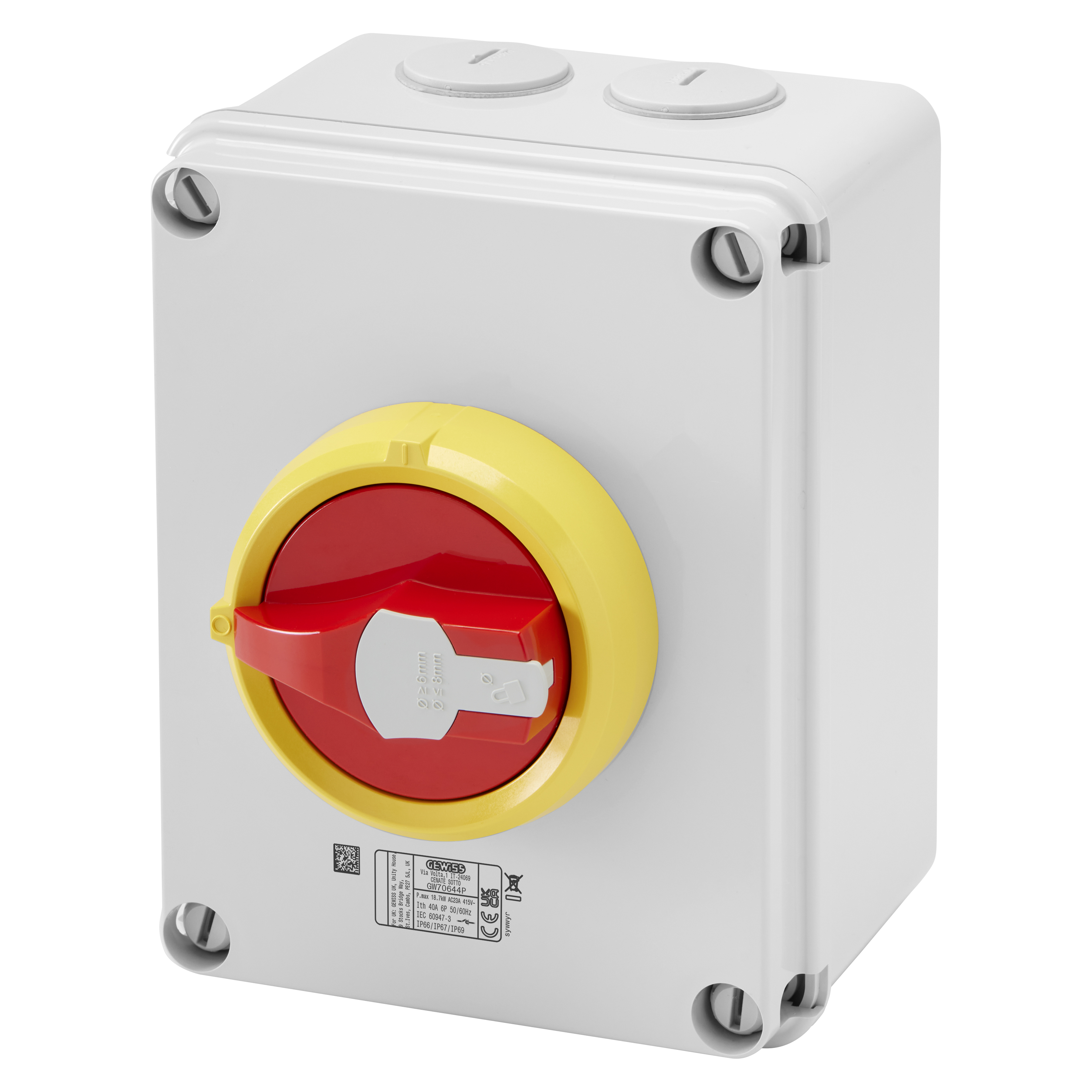

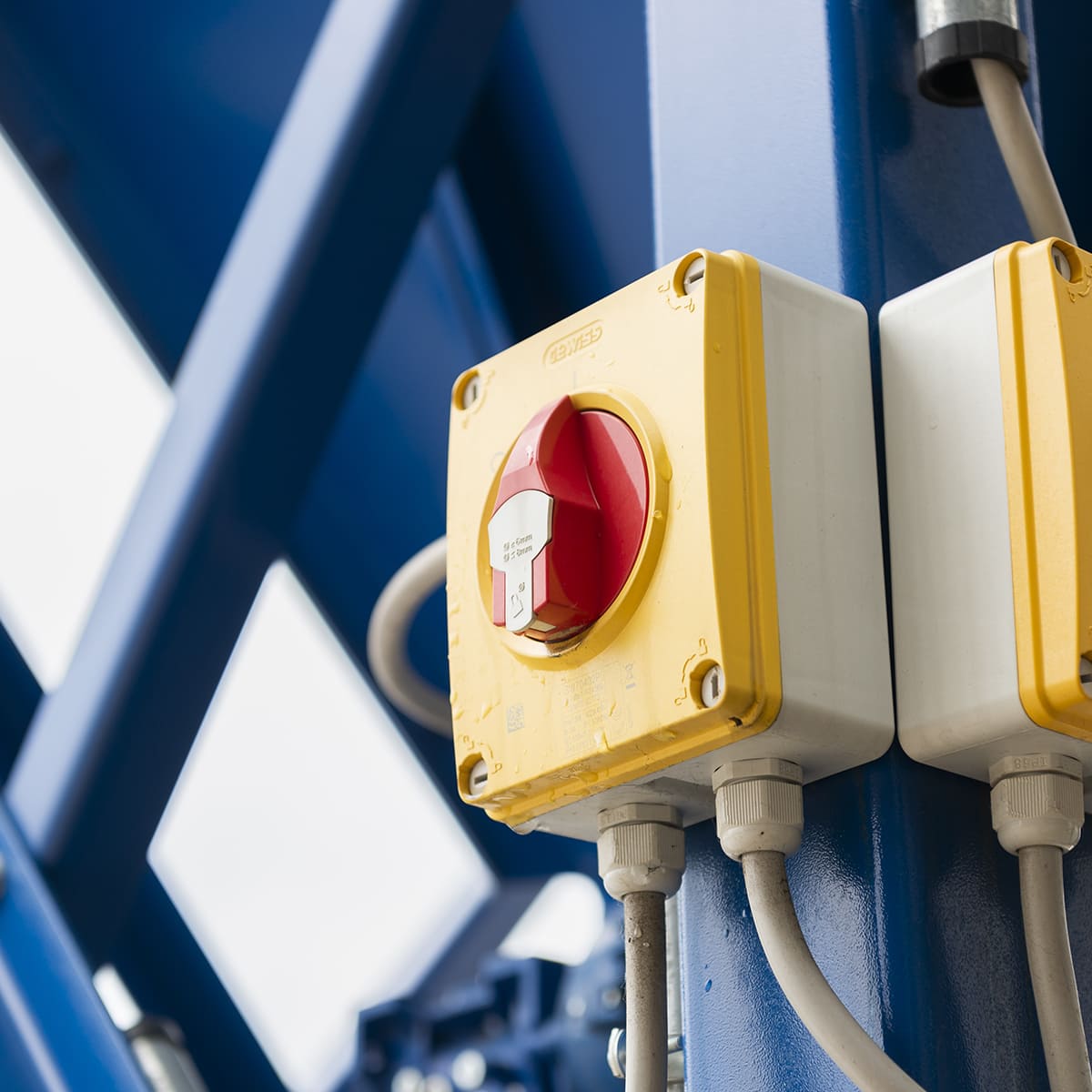

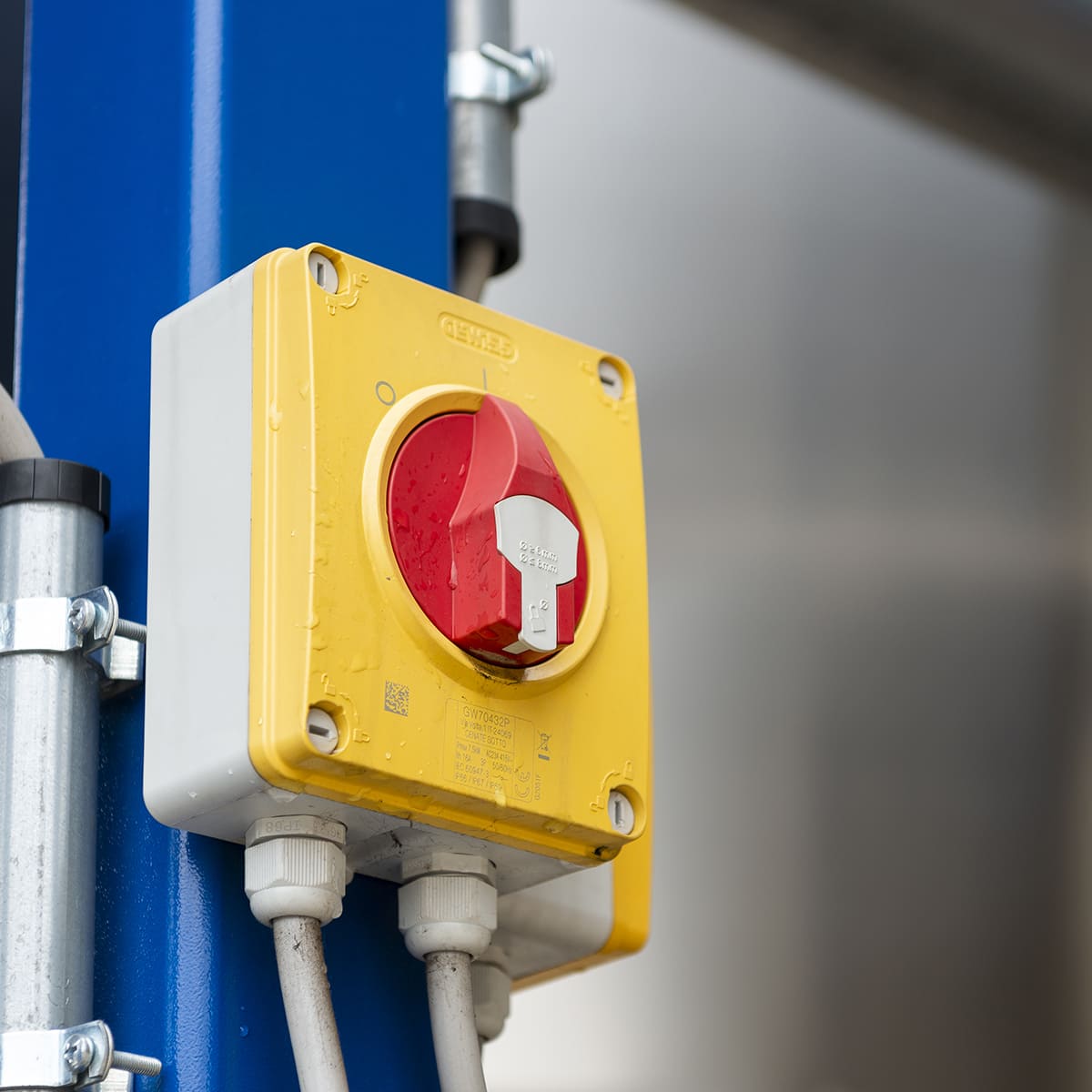

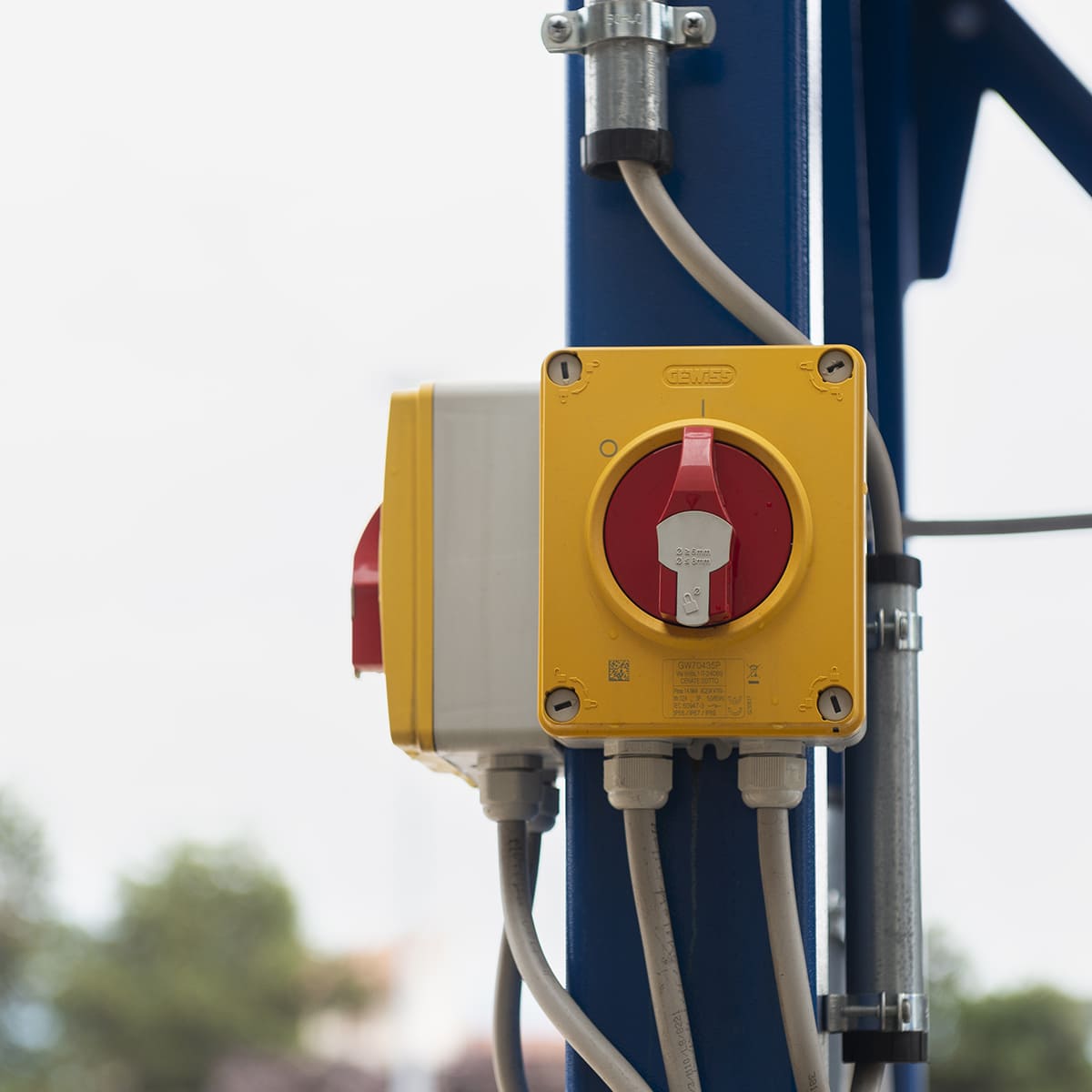

Surface-mounting isolator - emergency version with lockable red knob

Cod Gewiss

Rated current (A)

No. of poles

Outer dim. LxHxD (mm)

Holes entry

Lid screws (no. and type)

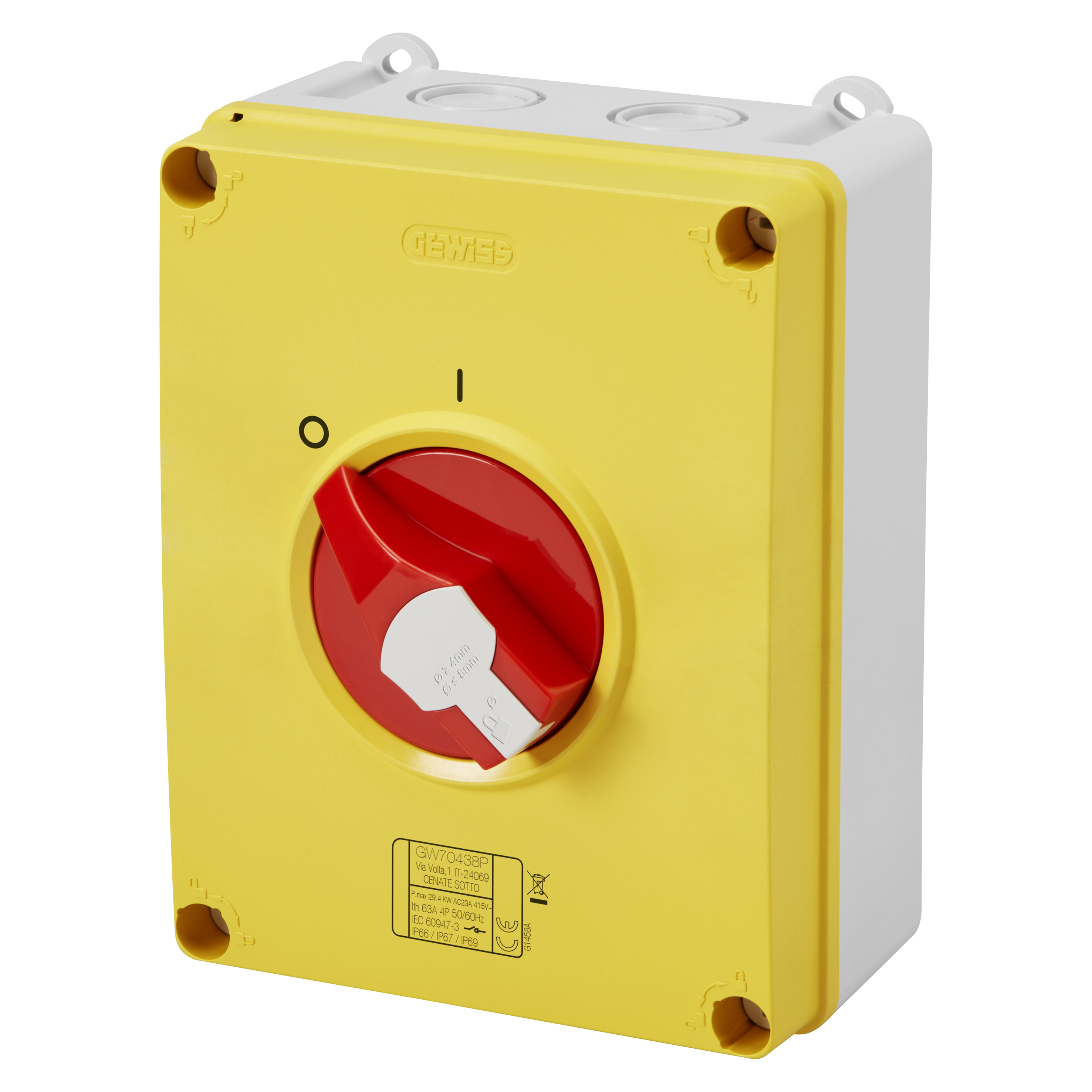

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 2P - LOCKABLE RED KNOB - IP66/67/69

GW70431P

16

2P

125x150x75,5

2 x M20/25 + 2 x M20/25

4 insul. 1/4 turn

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 3P - LOCKABLE RED KNOB - IP66/67/69

GW70432P

16

3P

125x150x75,5

2 x M20/25 + 2 x M20/25

4 insul. 1/4 turn

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 3P+N - LOCKABLE RED KNOB - IP66/67/69

GW70432NP

16

3P+N

125x150x75,5

2 x M20/25 + 2 x M20/25

4 insul. 1/4 turn

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 4P - LOCKABLE RED KNOB - IP66/67/69

GW70433P

16

4P

125x150x75,5

2 x M20/25 + 2 x M20/25

4 insul. 1/4 turn

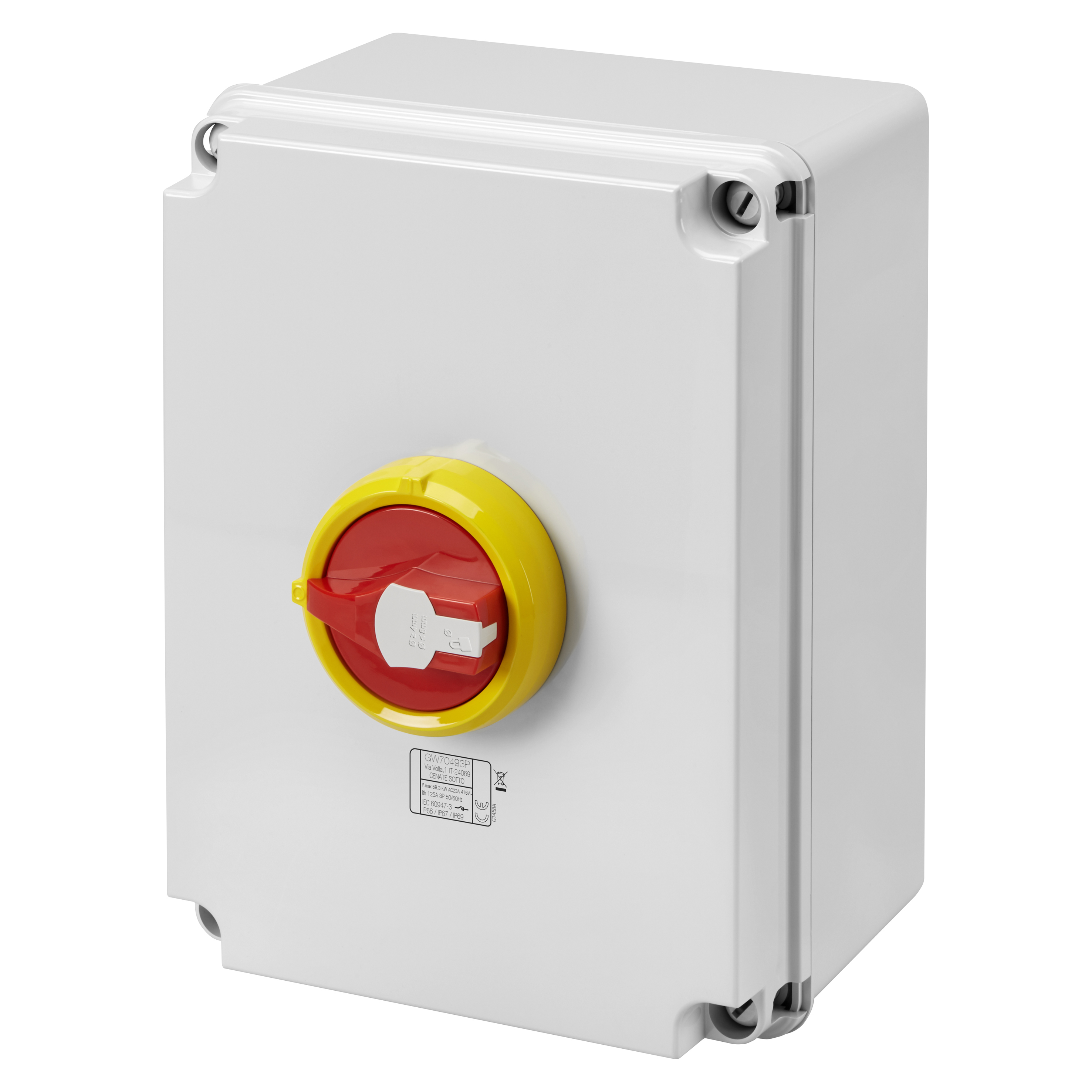

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 6P - LOCKABLE RED KNOB - IP66/67/69

GW70641P

16

6P

153,6x200,6x117

4xM20

4 insulation

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 2P - LOCKABLE RED KNOB - IP66/67/69

GW70431P

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 2P - LOCKABLE RED KNOB - IP66/67/69

Show

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 3P - LOCKABLE RED KNOB - IP66/67/69

GW70432P

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 3P - LOCKABLE RED KNOB - IP66/67/69

Show

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 3P+N - LOCKABLE RED KNOB - IP66/67/69

GW70432NP

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 3P+N - LOCKABLE RED KNOB - IP66/67/69

Show

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 4P - LOCKABLE RED KNOB - IP66/67/69

GW70433P

ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 4P - LOCKABLE RED KNOB - IP66/67/69

Show
