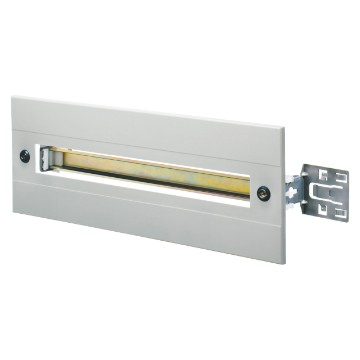

INSTALLATION KIT FOR MODULAR DEVICES / MOULDED CASE DIVICES MAX 160A - CVX 160E - 24 MODULES - 600X200
Code:
GW47172
Range: 47 CVX 160 E Range Wall-mounting distribution boards up to 160 A with extractable frame
The CVX 160 E range of surface-mounted distribution boards up to 160A can be configured according to any requirement, from a minimum capacity of 72 modules up to a maximum of 192, using the appropriate choice of installation kits with holes every 150 mm or 200 mm.
ACCESSORIES SUPPLIED: blanking module profile; pair of hinges; Standard EN 50022 (DIN 35) DIN rail in galvanised sheet metal with depth adjustment. CHARACTERISTICS: quick coupling front panel, in Grey RAL 7035 insulating material, with ergonomic Blue RAL 5003 grip. Option on the panels for rotation hinges (included). NOTES: for the assembly of the MSX moulded case circuit breakers on DIN rail, order the appropriate fixingl kit.
Depth adapter GWD3317 is necessary if modular devices are mounted close to MCCB on the same DIN rail.
Show more
Show less
