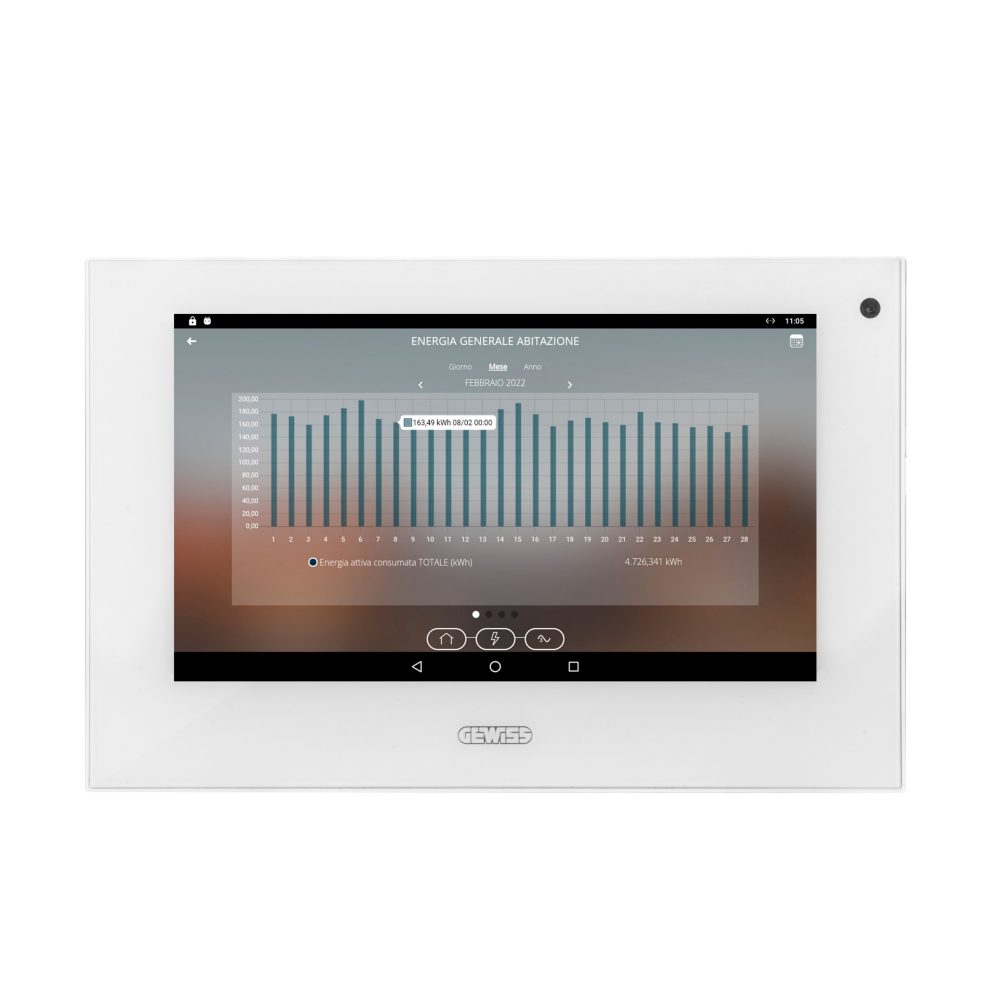

7" TOUCH SCREEN PANEL WITH VIDEO ENTRYPHONE AND SYSTEM SUPERVISION FUNCTIONS - WHITE
Code:
GWA9007CB
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.
IP20
Technical Info
Information
Download
Software
Certificates
Description
Touch panel
Colour
White
Display
7"
Resolution
1024x600
Contrast
800:1
Brightness (cd/m2)
340
Camera resolution
2 megapixel (FF)
Video compression
H.264
Audio interfaces
1 microphone, 2 speakers
Audio compression
G.711
Supply voltage
12-24 Vdc / PoE
Power input
13 VA
Radio connections
Wi-Fi (IEEE 802.11 a/b/g/n - 2.4GHz/5GHz)
Interfaces
micro-USB, micro-SD, RJ45
Standard
2014/53/UE, RoHS 2011/65/EU
IP degree
IP20
Dimensions LxHxD (mm)
196x128x19
Working temperature
-5 ÷ +45 °C
Stocking temperature
-25 ÷ +55 °C
Electrocod
3800
Ware Number
85389099
EQUIPMENT AND NOTES
CHARACTERISTICS: the device combines the function of a command and supervision panel in a H&B automation system (together with Smart Gateway) and of video entryphone indoor unit with speakerphone (together with 2N IP video entryphone outdoor units). Supply voltage via Power over Ethernet - PoE (IEEE 802.3af) or, as an alternative, with external power supply (eg: GW90802). The panel is based on SIP protocol with H.264 video coding.
NOTES: wall-mounting. To fix it, use flush-mounting Ø60mm round (eg: GW24232), square (eg: GW24231) or rectangular (eg: GW24403) boxes with the aid of the supplied wall metal bracket.
NOTES: wall-mounting. To fix it, use flush-mounting Ø60mm round (eg: GW24232), square (eg: GW24231) or rectangular (eg: GW24403) boxes with the aid of the supplied wall metal bracket.
