ELIA PL
LED Panel

ELIA is the family of GEWISS products designed for fast and easy installation and with a 5 year guarantee. ELIA PL - Panel LED - is the recessed panel for office and workplace lighting. Luminance and glare control, energy efficiency and comfort are the benefits of this product, for the perfect replacement of traditional lighting installations.

See all product
Benefits
Relamping
Relamping
The ELIA PL range has been designed to offer great value for money when replacing outdated appliances, ensuring a very fast return on investment.
Quality assurance
Quality assurance
The ELIA PL range is part of the GEWISS family of LED luminaires, designed for maximum reliability and innovation in terms of product quality and individual components.
Easy installation
Easy installation
The ELIA PL panels are compact, extremely thin and easy to install, thanks to their reduced weight. The various mounting accessories available also makes replacement of a pre-existing installation simple.
Versatile
Versatile
ELIA PL is available in three sizes for installation on any type of suspended ceiling. The range has been updated with the addition of an IP65 version, highly resistance to water infiltration, to meet all needs, even in the most challenging environments.

The products of this series

69 products

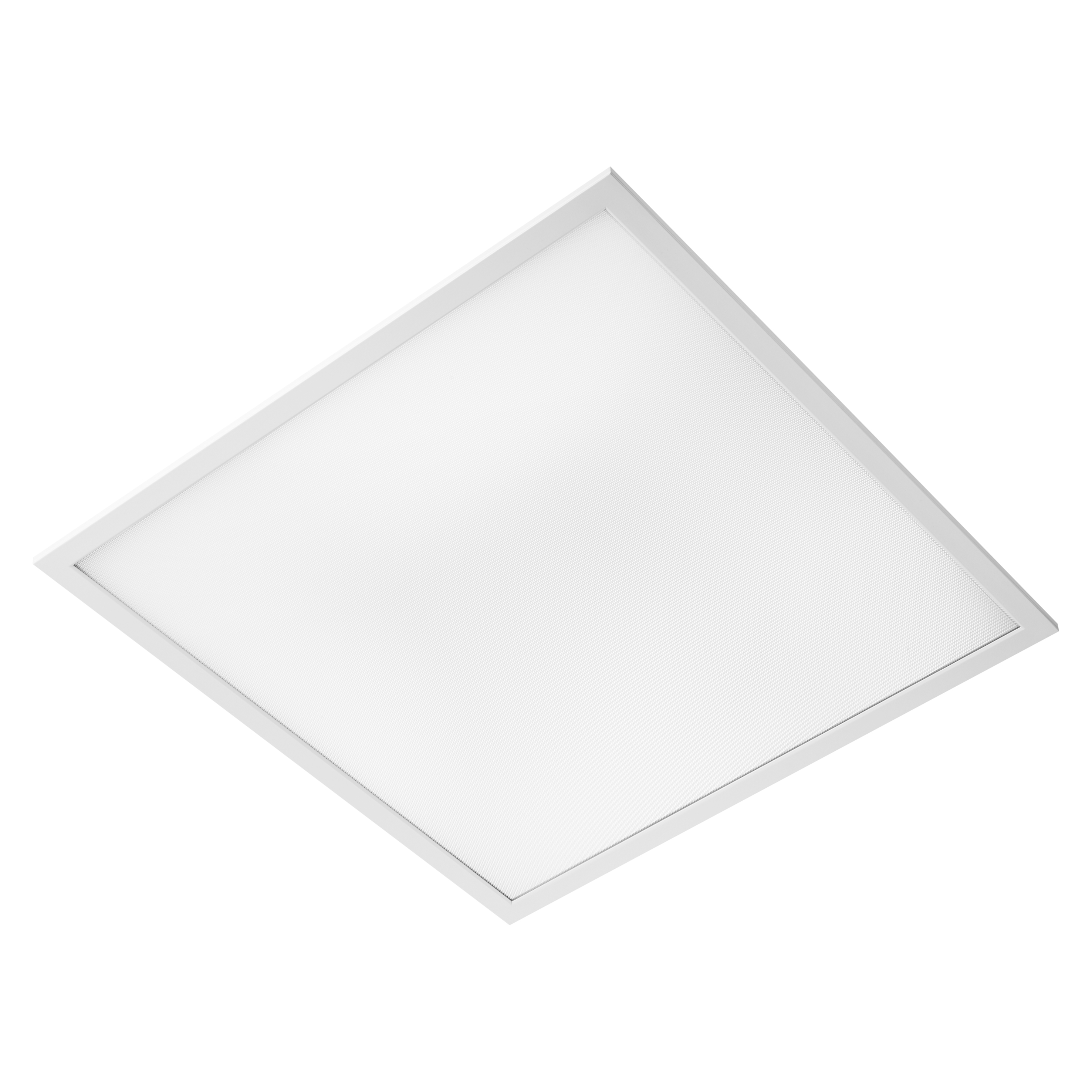

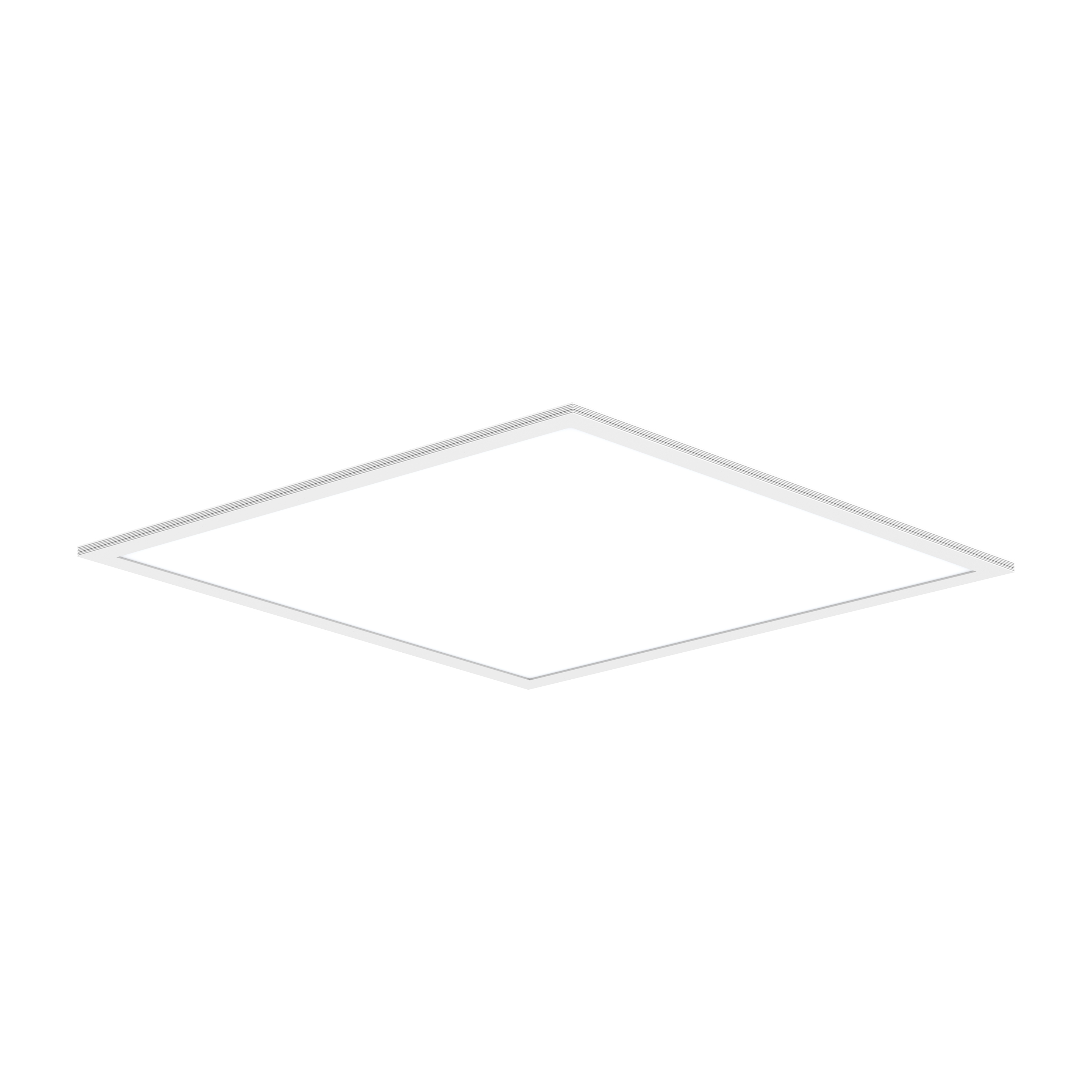

ELIA PL - Panel LED

LED Luminaires for diffused lighting

Category
M1 30x120 version

Change category

M1 30x120 version
M2 60x60 version
M3 62x62 version
Cod Gewiss
Control System
Optic
System power
Lumen output (lm)
Colour temperature
Colour Rendering Index
Weight (kg)
ELIA PL - M1 300X1200MM - OPAL - 3000K CRI80 - ON/OFF - IP20/IP40 - CLASS II - WHITE
GWF1610LA830
ON / OFF
Wide opal
33 W
4000
3000 K
CRI 80
2.4
ELIA PL - M1 300X1200MM - MICROPRISMATIC - 3000K CRI80 - ON/OFF - IP20/IP40 - CLASS II - WHITE
GWF1610LN830
ON / OFF
Microprismatic
33 W
4000
3000 K
CRI 80
2.4
ELIA PL - M1 300X1200MM - OPAL - 3000K CRI80 - DALI - IP20/IP40 - CLASS II - WHITE
GWF1611LA830
DALI
Wide opal
33 W
4000
3000 K
CRI 80
2.4
ELIA PL - M1 300X1200MM - MICROPRISMATIC - 3000K CRI80 - DALI - IP20/IP40 - CLASS II - WHITE
GWF1611LN830
DALI
Microprismatic
33 W
4000
3000 K
CRI 80
2.4
ELIA PL - M1 300X1200MM - OPAL - 4000K CRI80 - ON/OFF - IP20/IP40 - CLASS II - WHITE
GWF1610LA840
ON / OFF
Wide opal
33 W
4300
4000 K
CRI 80
2.4
Cod Gewiss
Control System
Optic
System power
Lumen output (lm)
Colour temperature
Colour Rendering Index
Weight (kg)
ELIA PL - M2 600X600MM - OPAL - 3000K CRI80 - ON/OFF - IP20/IP40 - CLASS II - WHITE
GWF1610MA830
ON / OFF
Wide opal
33 W
4000
3000 K
CRI 80
2.4
ELIA PL - M2 600X600MM - MICROPRISMATIC - 3000K CRI80 - ON/OFF - IP20/IP40 - CLASS II - WHITE
GWF1610MN830
ON / OFF
Microprismatic
33 W
4000
3000 K
CRI 80
2.4
ELIA PL - M2 600X600MM - OPAL - 3000K CRI80 - DALI - IP20/IP40 - CLASS II - WHITE
GWF1611MA830
DALI
Wide opal
33 W
4000
3000 K
CRI 80
2.4
ELIA PL - M2 600X600MM - MICROPRISMATIC - 3000K CRI80 - DALI - IP20/IP40 - CLASS II - WHITE
GWF1611MN830
DALI
Microprismatic
33 W
4000
3000 K
CRI 80
2.4
ELIA PL - M2 600X600MM - OPAL - 4000K CRI80 - ON/OFF - IP20/IP40 - CLASS II - WHITE
GWF1610MA840
ON / OFF
Wide opal
33 W
4300
4000 K
CRI 80
2.4
Cod Gewiss
Control System
Optic
System power
Lumen output (lm)
Colour temperature
Colour Rendering Index
Weight (kg)
ELIA PL - M3 620X620MM - OPAL - 3000K CRI80 - ON/OFF - IP20/IP40 - CLASS II - WHITE
GWF1610NA830
ON / OFF
Wide opal
33 W
4000
3000 K
CRI 80
2.6
ELIA PL - M3 620X620MM - MICROPRISMATIC - 3000K CRI80 - ON/OFF - IP20/IP40 - CLASS II - WHITE
GWF1610NN830
ON / OFF
Microprismatic
33 W
4000
3000 K
CRI 80
2.6
ELIA PL - M3 620X620MM - OPAL - 3000K CRI80 - DALI - IP20/IP40 - CLASS II - WHITE
GWF1611NA830
DALI
Wide opal
33 W
4000
3000 K
CRI 80
2.6
ELIA PL - M3 620X620MM - MICROPRISMATIC - 3000K CRI80 - DALI - IP20/IP40 - CLASS II - WHITE
GWF1611NN830
DALI
Microprismatic
33 W
4000
3000 K
CRI 80
2.6
ELIA PL - M3 620X620MM - OPAL - 4000K CRI80 - ON/OFF - IP20/IP40 - CLASS II - WHITE
GWF1610NA840
ON / OFF
Wide opal
33 W
4300
4000 K
CRI 80
2.6

IP65 Version

Category
M1 30x120 Version

Change category

M1 30x120 Version
M2 60x60 Version
M3 62x62 Version
Cod Gewiss
Control System
Optic
System power
Lumen output (lm)
Colour temperature
Colour Rendering Index
Weight (kg)
ELIA PL IP65 - M1 300X1200MM - OPAL - 3000K CRI80 - ON/OFF - IP65 - CLASS II - WHITE
GWF1910LA830
ON / OFF
Wide opal
36 W
3300
3000 K
CRI 80
3.31
ELIA PL IP65 - M1 300X1200MM - OPAL - 4000K CRI80 - ON/OFF - IP65 - CLASS II - WHITE
GWF1910LA840
ON / OFF
Wide opal
36 W
3600
4000 K
CRI 80
3.31
Cod Gewiss
Control System
Optic
System power
Lumen output (lm)
Colour temperature
Colour Rendering Index
Weight (kg)
ELIA PL IP65 - M2 600X600MM - OPAL - 3000K CRI80 - ON/OFF - IP65 - CLASS II - WHITE
GWF1910MA830
ON / OFF
Wide opal
36 W
3300
3000 K
CRI 80
3.16
ELIA PL IP65 - M2 600X600MM - OPAL - 4000K CRI80 - ON/OFF - IP65 - CLASS II - WHITE
GWF1910MA840
ON / OFF
Wide opal
36 W
3600
4000 K
CRI 80
3.16
Cod Gewiss
Control System
Optic
System power
Lumen output (lm)
Colour temperature
Colour Rendering Index
Weight (kg)
ELIA PL IP65 - M3 620X620MM - OPAL - 3000K CRI80 - ON/OFF - IP65 - CLASS II - WHITE
GWF1910NA830
ON / OFF
Wide opal
36 W
3300
3000 K
CRI 80
3.43
ELIA PL IP65 - M3 620X620MM - OPAL - 4000K CRI80 - ON/OFF - IP65 - CLASS II - WHITE
GWF1910NA840
ON / OFF
Wide opal
36 W
3600
4000 K
CRI 80
3.43

Complementary items

Category
Emergency kit

Change category

Emergency kit
Accessories
Cod Gewiss
Description
Autonomy

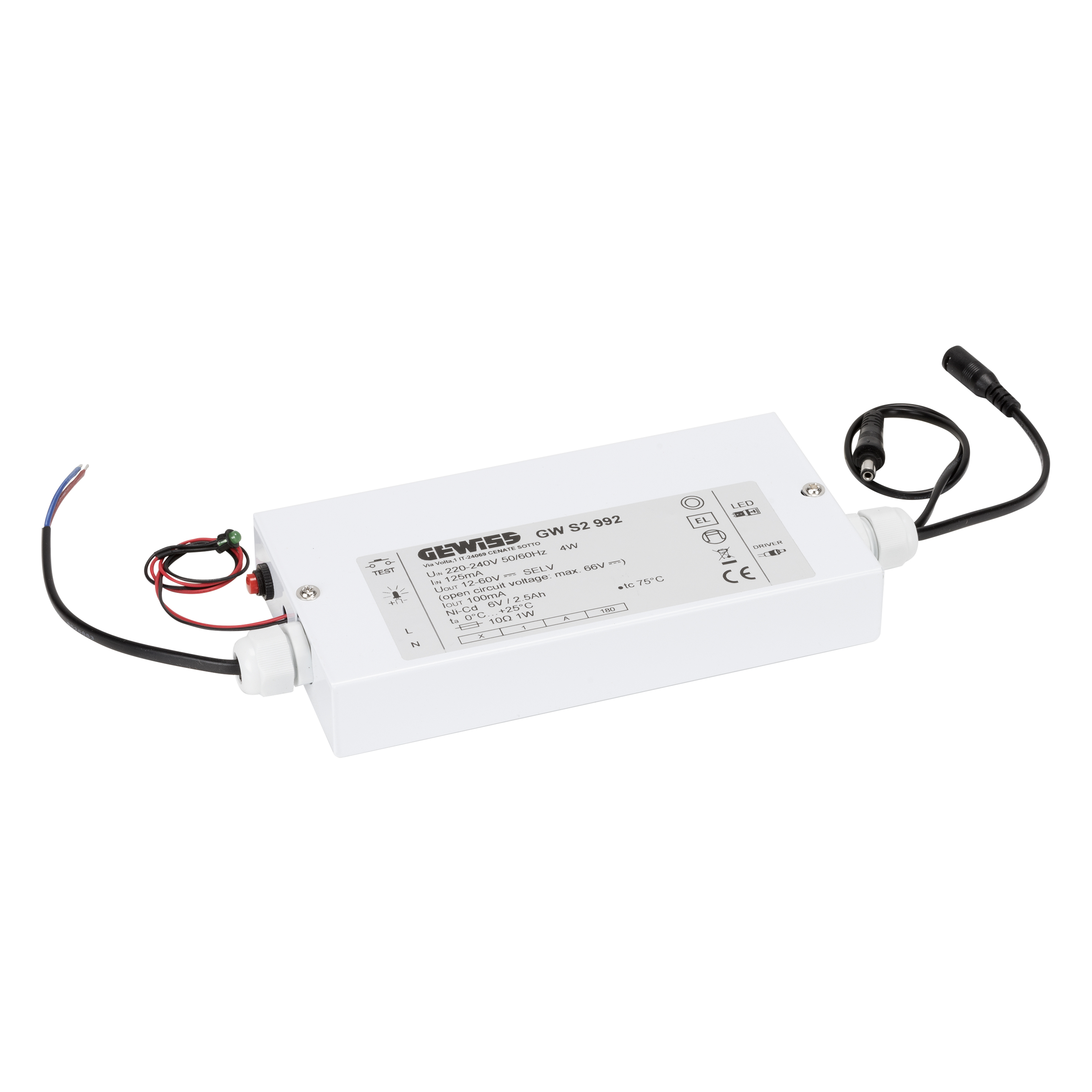

EMERGENCY KIT 3H
GWS2992
Emergency kit 3h (compatible with standard version only)
3 h
Cod Gewiss
Description
Series

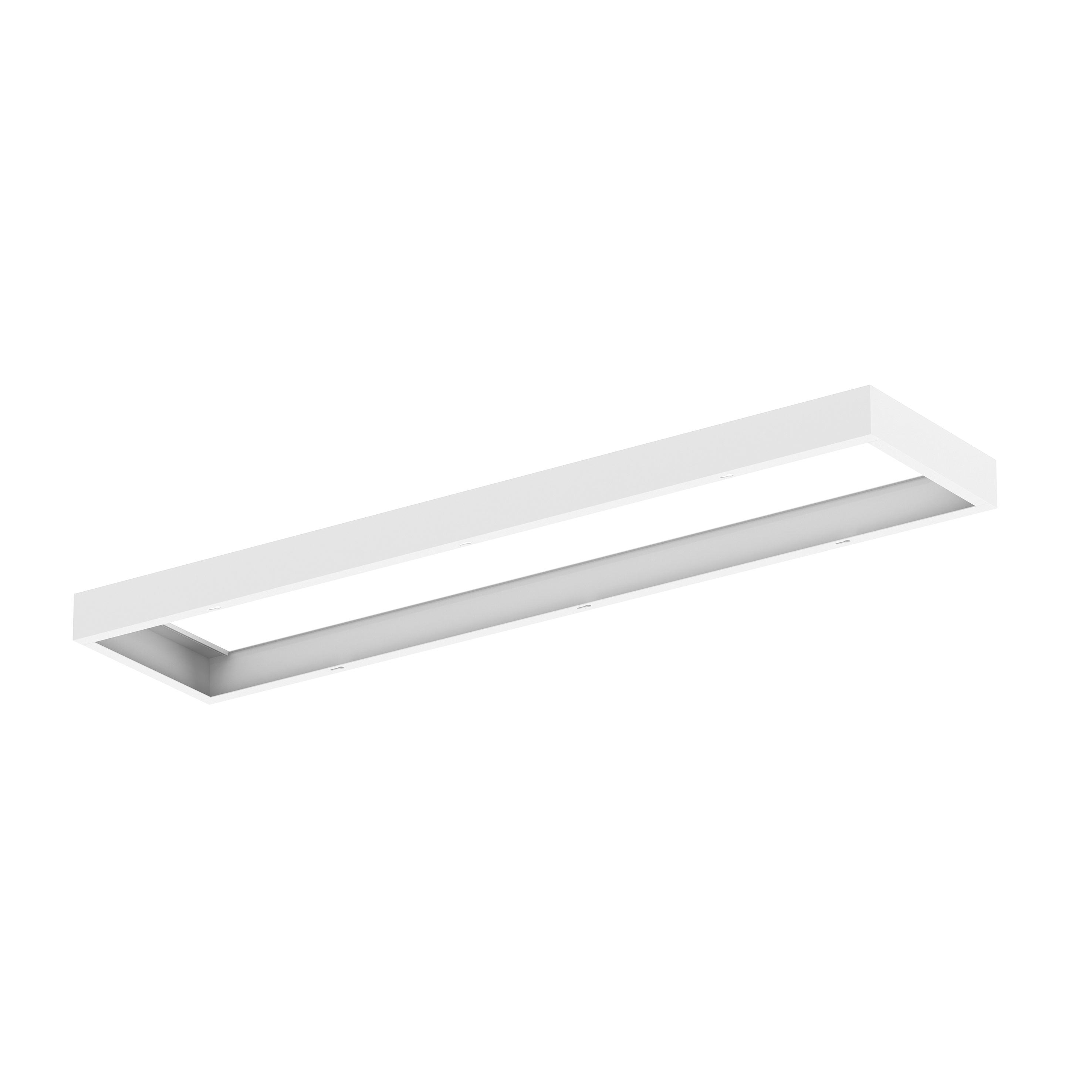

CEILING BOX KIT 600X600 MM - WHITE
GWF1911
Ceiling mounting box kit 600 x 600 mm
ELIA PL - NOT COMPATIBLE WITH ELIA PL IP65, ELIA PL BACKLIT, VISIO [16]
CEILING BOX KIT 620X620 MM - WHITE
GWF1912
Ceiling mounting box kit 620 x 620 mm
ELIA PL - NOT COMPATIBLE WITH ELIA PL IP65, ELIA PL BACKLIT, VISIO [16]
CEILING BOX KIT 300X1200 MM - WHITE
GWF1913
Ceiling mounting box kit 300 x 1200 mm
ELIA PL - NOT COMPATIBLE WITH ELIA PL IP65, ELIA PL BACKLIT, VISIO [16]
CEILING BOX KIT 600X600 MM - WHITE
GWF1930
Ceiling mounting box kit 600 x 600 mm
ELIA PL IP65, VISIO [16] - NOT COMPATIBLE WITH ELIA PL, ELIA PL BACKLIT
CEILING BOX KIT 620X620 MM - WHITE
GWF1931
Ceiling mounting box kit 620 x 620 mm
ELIA PL IP65, VISIO [16] - NOT COMPATIBLE WITH ELIA PL, ELIA PL BACKLIT
You saw 69 products on 69
