BFR range

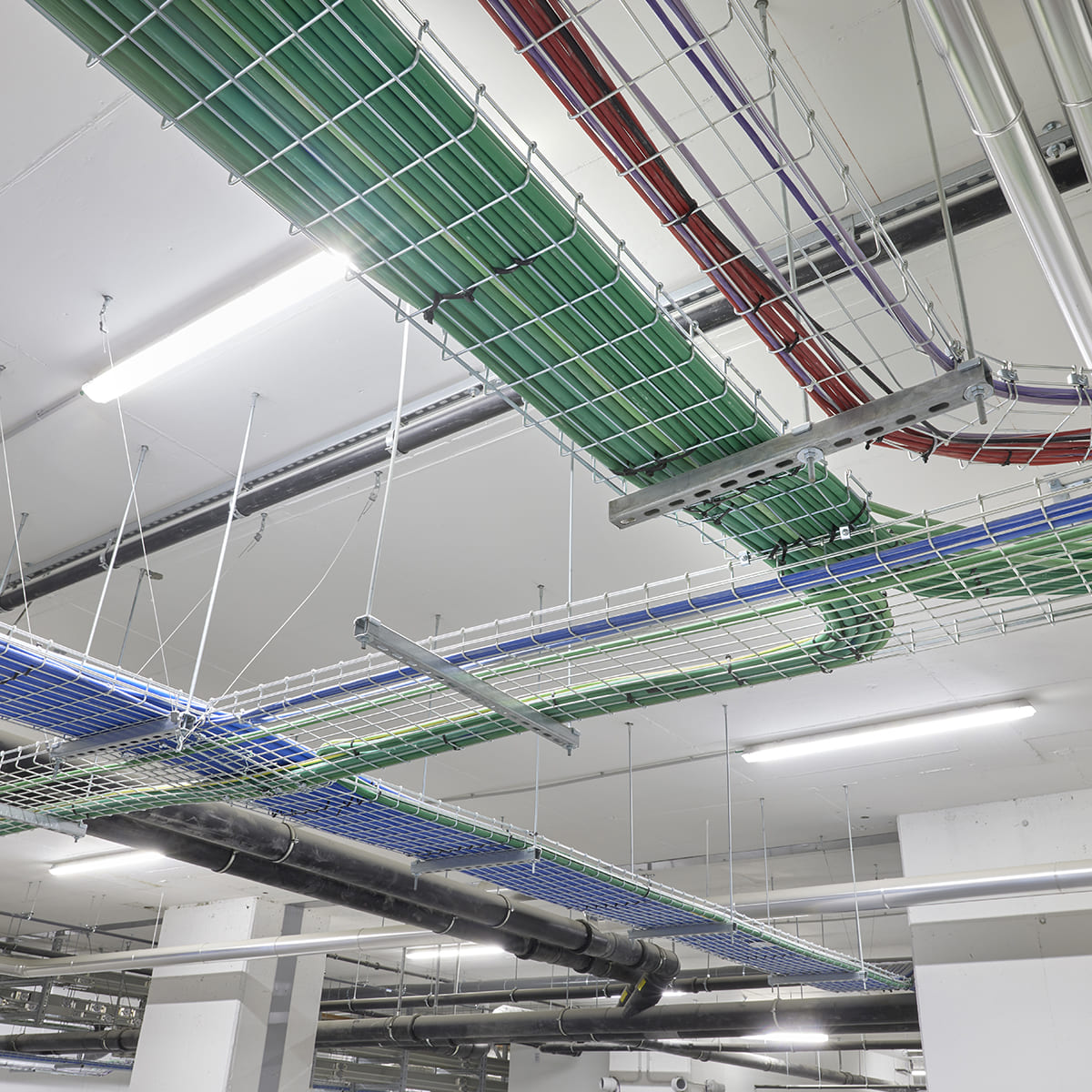

MAVIL trunking made from welded wire mesh

The BFR Series welded steel wire trunking is the ideal solution in terms of cost-effectiveness and installation flexibility, thanks to the exceptional simplicity with which they can be adapted to routing needs, without any need for special accessories or tools.

See all product
Benefits
Simple and functional
Simple and functional
The BFR wire trunking enables the exit of cables in all directions, without obstructions and the use of accessories and/or cable glands. It also allows excellent ventilation, heat dissipation and maximum cable cleanness.
Quick and easy installation
Quick and easy installation
Fast automatic coupling of two trunking sections by a special, easy-to-use accessory. Unique snap-fit cover. Screw-free supports for up to 30% shorter installation times.
Safety first
Safety first
Rounded edges for maximum protection of the cables and hands of the operator during installation (patented system).

The products of this series

686 products

Trunking and accessories

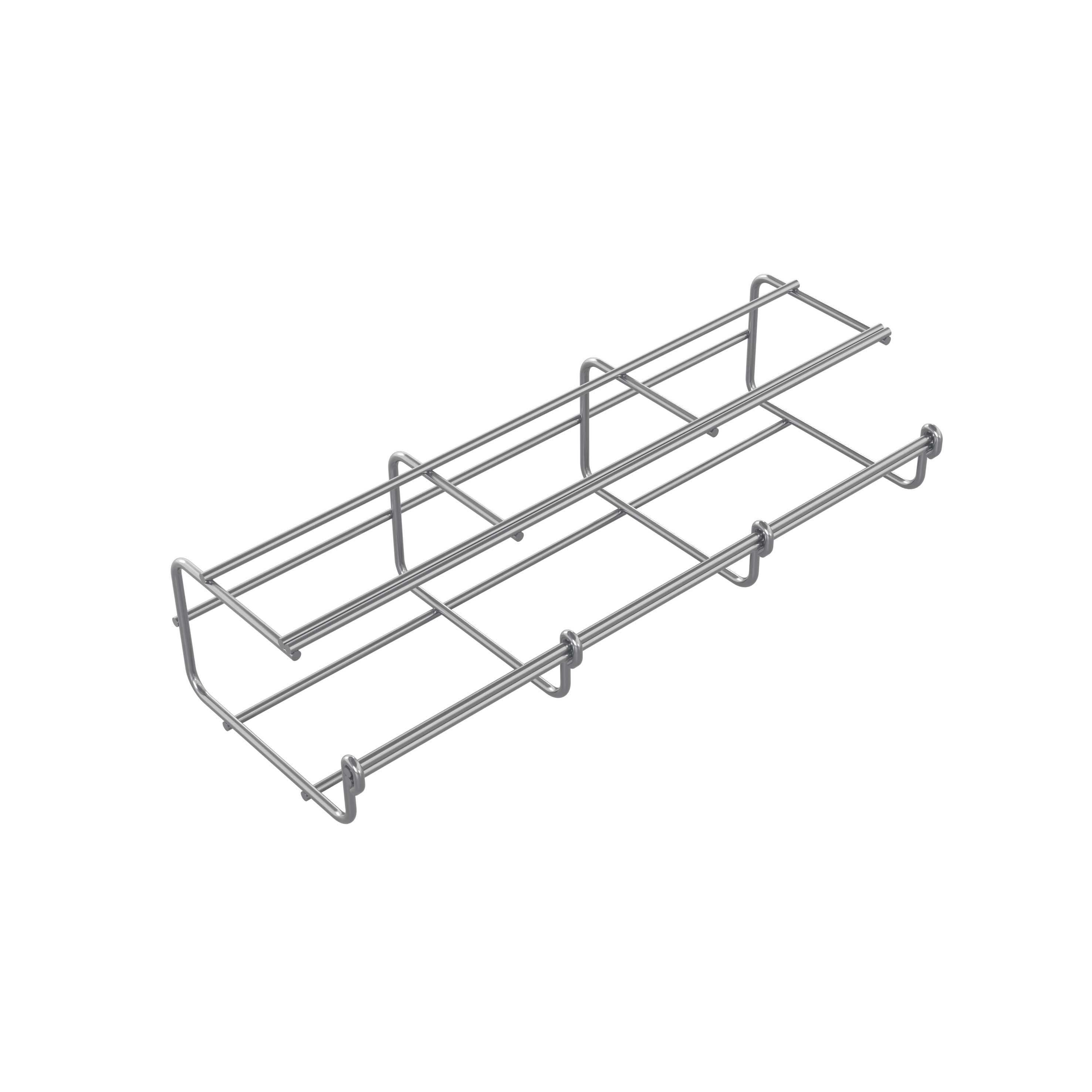

BFR 30

Category
Wire mesh trunking - 3 metres - Height 30

Change category

Wire mesh trunking - 3 metres - Height 30
BFR 30-60-110 automatic coupler
Wire mesh trunking with pre-mounted couplers - 3 metres - Height 60
Cod Gewiss
Finishing
Internal width (mm)
Kg/m
GALVANIZED WIRE MESH CABLE TRAY BFR30 - LENGTH 3 METERS - WIDTH 50MM - FINISHING: Z100
MV50520
Z 100
50
0.386
GALVANIZED WIRE MESH CABLE TRAY BFR30 - LENGTH 3 METERS - WIDTH 100MM - FINISHING: Z100
MV50521
Z 100
100
0.515
GALVANIZED WIRE MESH CABLE TRAY BFR30 - LENGTH 3 METERS - WIDTH 150MM - FINISHING: Z100
MV50522
Z 100
150
0.822
GALVANIZED WIRE MESH CABLE TRAY BFR30 - LENGTH 3 METERS - WIDTH 200MM - FINISHING: Z100
MV50523
Z 100
200
0.951
GALVANIZED WIRE MESH CABLE TRAY BFR30 - LENGTH 3 METERS - WIDTH 300MM - FINISHING: Z100
MV50525
Z 100
300
1.768
item
Cod Gewiss
Finishing
Kg/u
QUICK ATUOMATIC JOINT - BFR 30-60-110 - FINISHING: Z275
MV51110
Z275
0.34
QUICK ATUOMATIC JOINT - BFR 30-60-110 - FINISHING: HDG
MV51210
HDG
0.34
QUICK AUTOMATIC JOINT - BFR 30-60-110 - FINISHING: HP
MV51710
HP
0.34
Cod Gewiss
Finishing
Internal width (mm)
Kg/m
GALVANIZED WIRE MESH CABLE TRAY BFR30 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 50MM - FINISHING: Z100
MV50570
Z100
50
0.443
GALVANIZED WIRE MESH CABLE TRAY BFR30 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 100MM - FINISHING: Z100
MV50571
Z100
100
0.572
GALVANIZED WIRE MESH CABLE TRAY BFR30 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 150MM - FINISHING: Z100
MV50572
Z100
150
0.878
GALVANIZED WIRE MESH CABLE TRAY BFR30 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 200MM - FINISHING: Z100
MV50573
Z100
200
1.008
GALVANIZED WIRE MESH CABLE TRAY BFR30 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 300MM - FINISHING: Z100
MV50575
Z100
300
1.821
item

BFR 60

Category
Wire mesh trunking - 3 metres - Height 60

Change category

Wire mesh trunking - 3 metres - Height 60
BFR 30-60-110 automatic coupler
Wire mesh trunking with pre-mounted couplers - 3 metres - Height 60
Cod Gewiss
Finishing
Internal width (mm)
Kg/m
GALVANIZED WIRE MESH CABLE TRAY BFR60 - LENGTH 3 METERS - WIDTH 50MM - FINISHING: Z100
MV50530
Z 100
50
0.613999999999999
GALVANIZED WIRE MESH CABLE TRAY BFR60 - LENGTH 3 METERS - WIDTH 100MM - FINISHING: Z100
MV50531
Z 100
100
0.743999999999999
GALVANIZED WIRE MESH CABLE TRAY BFR60 - LENGTH 3 METERS - WIDTH 150MM - FINISHING: Z100
MV50532
Z 100
150
0.873
GALVANIZED WIRE MESH CABLE TRAY BFR60 - LENGTH 3 METERS - WIDTH 200MM - FINISHING: Z100
MV50533
Z 100
200
1.178
GALVANIZED WIRE MESH CABLE TRAY BFR60 - LENGTH 3 METERS - WIDTH 250MM - FINISHING: Z100
MV50534
Z 100
250
1.489
item
Cod Gewiss
Finishing
Kg/u
QUICK ATUOMATIC JOINT - BFR 30-60-110 - FINISHING: Z275
MV51110
Z275
0.34
QUICK ATUOMATIC JOINT - BFR 30-60-110 - FINISHING: HDG
MV51210
HDG
0.34
QUICK AUTOMATIC JOINT - BFR 30-60-110 - FINISHING: HP
MV51710
HP
0.34
Cod Gewiss
Finishing
Internal width (mm)
Kg/m
GALVANIZED WIRE MESH CABLE TRAY BFR60 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 50MM - FINISHING: Z100
MV50580
Z100
50
0.671
GALVANIZED WIRE MESH CABLE TRAY BFR60 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 100MM - FINISHING: Z100
MV50581
Z100
100
0.8
GALVANIZED WIRE MESH CABLE TRAY BFR60 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 150MM - FINISHING: Z100
MV50582
Z100
150
0.93
GALVANIZED WIRE MESH CABLE TRAY BFR60 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 200MM - FINISHING: Z100
MV50583
Z100
200
1.235
GALVANIZED WIRE MESH CABLE TRAY BFR60 - PRE-MOUNTED COUPLERS - LENGTH 3 METERS - WIDTH 250MM - FINISHING: Z100
MV50584
Z100
250
1.546
item

BFR 110

Category
Wire mesh trunking - 3 metres - Height 110

Change category

Wire mesh trunking - 3 metres - Height 110
BFR 30-60-110 automatic coupler
Cod Gewiss
Finishing
Internal width (mm)
Kg/m
GALVANIZED WIRE MESH CABLE TRAY BFR110 - LENGTH 3 METERS - WIDTH 150MM - FINISHING: Z100
MV50542
Z 100
150
1.488
GALVANIZED WIRE MESH CABLE TRAY BFR110 - LENGTH 3 METERS - WIDTH 200MM - FINISHING: Z100
MV50543
Z 100
200
1.809
GALVANIZED WIRE MESH CABLE TRAY BFR110 - LENGTH 3 METERS - WIDTH 300MM - FINISHING: Z100
MV50545
Z 100
300
2.865
GALVANIZED WIRE MESH CABLE TRAY BFR110 - LENGTH 3 METERS - WIDTH 400MM - FINISHING: Z100
MV50546
Z 100
400
3.686
GALVANIZED WIRE MESH CABLE TRAY BFR110 - LENGTH 3 METERS - WIDTH 500MM - FINISHING: Z100
MV50547
Z 100
500
4.13499999999999
item
Cod Gewiss
Finishing
Kg/u
QUICK ATUOMATIC JOINT - BFR 30-60-110 - FINISHING: Z275
MV51110
Z275
0.34
QUICK ATUOMATIC JOINT - BFR 30-60-110 - FINISHING: HDG
MV51210
HDG
0.34
QUICK AUTOMATIC JOINT - BFR 30-60-110 - FINISHING: HP
MV51710
HP
0.34

Earthing

Category
Earthing clamp

Change category

Earthing clamp
Earthing connector
Bolts
BFR clip
Cod Gewiss
For cables Ø (mm)
Weight (kg)
GRIFFE MISE A LA TERRE 4-30 LAITON
MV51949
from 4 to 8
0.0299999999999999
GRIFFE MISE A LA TERRE 10-50 LAITON
MV51948
from 10 to 50
0.05
Cod Gewiss
Type
Ø (mm)
Height (mm)
Nominal section (mm²)
Kg/u
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 16-25 MM²
MV41940
Terminal kit + 2 washers
17
20
16-25
0.479999999999999
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-70 MM²
MV41941
Terminal kit + 2 washers
21
26
25-70
0.7
EARTH CONNECTOR - 2 WASHERS - NOMINAL SECTION 25-95 MM²
MV41942
Terminal kit + 2 washers
24
30
25-95
0.94
EARTH CONNECTOR - NOMINAL SECTION 16-25 MM²
MV41943
Terminal only
17
20
16-25
0.382
EARTH CONNECTOR - NOMINAL SECTION 25-70 MM²
MV41944
Terminal only
21
26
25-70
0.605999999999999
item
Cod Gewiss
Finishing
Description
Dimension
Accessories supplied
Kg/u
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING EZ
MV66100
EZ
Bolt + nut
M6x10
Flanged nut
0.748
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING EZ
MV66101
EZ
Bolt + nut
M6x14
Flanged nut
0.82
BOLTS - BOLT M6 X 20 - FLANGED NUT - FINISHING EZ.
MV66403
EZ
Bolt + nut
M6x20
Flanged nut
0.936
BOLTS - BOLT M6 X 10 - FLANGED NUT - FINISHING GEOMET
MV66200
Geomet
Bolt + nut
M6x10
Flanged nut
0.82
BOLTS - BOLT M6 X 14 - FLANGED NUT - FINISHING GEOMET
MV66201
Geomet
Bolt + nut
M6x14
Flanged nut
0.748
item
Cod Gewiss
Nominal section (mm²)
Kg/u
BORNE BFR CLIP - SECTION NOMINAL 16-35mm²
MV51950
16 - 35
0.179999999999999

Coupler

Category
BFR 30-60-110 automatic coupler

Change category

BFR 30-60-110 automatic coupler
ECO BFR 30-60 automatic coupler
Fool proof coupler
Universal coupler
BFR 30 - 60 - 110 bolted coupler
Cod Gewiss
Finishing
Kg/u
QUICK ATUOMATIC JOINT - BFR 30-60-110 - FINISHING: Z275
MV51110
Z275
0.34
QUICK ATUOMATIC JOINT - BFR 30-60-110 - FINISHING: HDG
MV51210
HDG
0.34
QUICK AUTOMATIC JOINT - BFR 30-60-110 - FINISHING: HP
MV51710
HP
0.34
Cod Gewiss
Finishing
Cable path width
Kg/u
COMPACT QUICK AUTOMATIC JOINT - BFR 30-60 - FINISHING: Z275
MV51113
Z275
50/100/150/200
0.08
COMPACT QUICK AUTOMATIC JOINT - BFR 30-60- 110 FINISHING: Z275
MV51114
Z275
250/300
0.08
COMPACT QUICK AUTOMATIC JOINT - BFR 60-110 FINISHING: Z275
MV51115
Z275
400/500/600
0.08
COMPACT QUICK AUTOMATIC JOINT - BFR 30-60 FINISHING: HDG
MV51213
HDG
50/100/150/200
0.08
COMPACT QUICK AUTOMATIC JOINT - BFR 30-60- 110 FINISHING: HDG
MV51214
HDG
250/300
0.08
item
Cod Gewiss
Colour
BFR SPEED-LOCK COUPL EPOXY - RAL9010
MV51310W
White RAL 9010
BFR SPEED-LOCK COUPL EPOXY - RAL3020
MV51310R
Red RAL 3020
BFR SPEED-LOCK COUPL EPOXY - RAL1021
MV51310Y
Yellow RAL 1021
BFR SPEED-LOCK COUPL EPOXY - RAL5015
MV51310B
Blue RAL 5015
BFR SPEED-LOCK COUPL EPOXY - RAL9005M
MV51310N
Black RAL 9005
Cod Gewiss
Finishing
Description
Dimension
CLAMPING WASHER - FINISHING: BICHRO
MV51420
EZ
Clamping washer
-
COUNTER CLAMPING WASHER - FINISHING: EZ
MV51421
EZ
Counter clamping washer
-
BOLTS - BOLT M6 X 20 - FLANGED NUT - FINISHING EZ.
MV66403
EZ
Bolt + nut
M6x20
CLAMPING WASHER - FINISHING: DACRO
MV51220
Geomet
Clamping washer
-
COUNTER CLAMPING WASHER - FINISHING: DACRO
MV51221
Geomet
Counter clamping washer
-
item
Cod Gewiss
Finishing
Kg/u
STRAIGHT COUPLER WITH BOLTS BFR 60-110 - FINISHING: Z275
MV51123
Z275
0.096
STRAIGHT COUPLER WITH BOLTS BFR 60-110 - FINISHING: HDG
MV51223
HDG
0.096
STRAIGHT COUPLER WITH BOLTS BFR 60-110 - FINISHING: INOX 316L
MV51823
Stainless steel 316L
0.096

BFRG 50

Category
BFR G trunking with direct fastening - 3 metres - Height 50

Change category

BFR G trunking with direct fastening - 3 metres - Height 50
Cod Gewiss
Finishing
Width (mm)
Kg/m
TRUNKING WITH DIRECT FASTENING - BFRG 50 - WIDTH 50mm - FINISHING Z100
MV52500
Z100
50
0.52
TRUNKING WITH DIRECT FASTENING - BFRG 50 - WIDTH 50mm - FINISHING EZ
MV52400
EZ
50
0.52
TRUNKING WITH DIRECT FASTENING - BFRG 50 - WIDTH 50mm - FINISHING HDG
MV52200
HDG
50
0.52
TRUNKING WITH DIRECT FASTENING - BFRG 50 - WIDTH 50mm - FINISHING HP
MV52700
HP
50
0.52
TRUNKING WITH DIRECT FASTENING - BFRG 50 - WIDTH 50mm - FINISHING INOX304L
MV52600
Stainless steel 304L
50
0.52
item

BFRG 60

Category
BFR G trunking with direct fastening - 3 metres - Height 60

Change category

BFR G trunking with direct fastening - 3 metres - Height 60
Cod Gewiss
Finishing
Width (mm)
Kg/m
TRUNKING WITH DIRECT FASTENING - BFRG 60 - WIDTH 100mm - FINISHING Z100
MV52501
Z100
100
0.929
TRUNKING WITH DIRECT FASTENING - BFRG 60 - WIDTH 200mm - FINISHING Z100
MV52502
Z100
200
1.036
TRUNKING WITH DIRECT FASTENING - BFRG 60 - WIDTH 100mm - FINISHING EZ
MV52401
EZ
100
0.929
TRUNKING WITH DIRECT FASTENING - BFRG 60 - WIDTH 200mm - FINISHING EZ
MV52402
EZ
200
1.036
TRUNKING WITH DIRECT FASTENING - BFRG 60 - WIDTH 100mm - FINISHING HDG
MV52201
HDG
100
0.929
item

BFRG 110

Category
BFR G trunking with direct fastening - 3 metres - Height 110

Change category

BFR G trunking with direct fastening - 3 metres - Height 110
ECO BFR 30-60 automatic coupler
Cod Gewiss
Finishing
Width (mm)
Kg/m
TRUNKING WITH DIRECT FASTENING - BFRG 110 - WIDTH 150mm - FINISHING Z100
MV52503
Z100
150
1.764
TRUNKING WITH DIRECT FASTENING - BFRG 110 - WIDTH 150mm - FINISHING EZ
MV52403
EZ
150
1.764
TRUNKING WITH DIRECT FASTENING - BFRG 110 - WIDTH 150mm - FINISHING HDG
MV52203
HDG
150
1.764
TRUNKING WITH DIRECT FASTENING - BFRG 110 - WIDTH 150mm - FINISHING HP
MV52703
HP
150
1.764
TRUNKING WITH DIRECT FASTENING - BFRG 110 - WIDTH 150mm - FINISHING INOX 304L
MV52603
Stainless steel 304L
150
1.764
item
Cod Gewiss
Finishing
Cable path width
Kg/u
COMPACT QUICK AUTOMATIC JOINT - BFR 30-60 - FINISHING: Z275
MV51113
Z275
50/100/150/200
0.08
COMPACT QUICK AUTOMATIC JOINT - BFR 30-60- 110 FINISHING: Z275
MV51114
Z275
250/300
0.08
COMPACT QUICK AUTOMATIC JOINT - BFR 60-110 FINISHING: Z275
MV51115
Z275
400/500/600
0.08
COMPACT QUICK AUTOMATIC JOINT - BFR 30-60 FINISHING: HDG
MV51213
HDG
50/100/150/200
0.08
COMPACT QUICK AUTOMATIC JOINT - BFR 30-60- 110 FINISHING: HDG
MV51214
HDG
250/300
0.08
item

BFR cover

Category
Snap-fit cover - 3 metres

Change category

Snap-fit cover - 3 metres
Cod Gewiss
Finishing
Width (mm)
Kg/m
BFR COVER - LENGTH 3 METERS - WIDTH 50MM - FINISHING: Z275
MV50150
Z275
50
0.621
BFR COVER - LENGTH 3 METERS - WIDTH 100MM - FINISHING: Z275
MV50151
Z275
100
0.87
BFR COVER - LENGTH 3 METERS - WIDTH 150MM - FINISHING: Z275
MV50152
Z275
150
1.118
BFR COVER - LENGTH 3 METERS - WIDTH 200MM - FINISHING: Z275
MV50153
Z275
200
1.367
BFR COVER - LENGTH 3 METERS - WIDTH 250MM - FINISHING: Z275
MV50154
Z275
250
1.616
item

Cover accessory

Category
BFR cover clip

Change category

BFR cover clip
Cod Gewiss
Finishing
For BFR
BFR30-BRX35 COVER CLIP - FINISHING INOX 304L
MV41601
Stainless steel 304L
30
BFR60/110-BRN95 HL-BRX65/95 COVER CLIP - FINISHING INOX 304L
MV41603
Stainless steel 304L
60 - 110
BFR30-BRX35 COVER CLIP - FINISHING INOX 316L
MV41801
Stainless steel 316L
30
BFR60/110-BRX65/95 COVER CLIP - FINISHING INOX 316L
MV41803
Stainless steel 316L
60 - 110

BFR L-shape strip

Category
L-shape divider - 3 metres

Change category

L-shape divider - 3 metres
L-shape strip join element
Cod Gewiss
Finishing
For BFR
Kg/m
BFR30-BRX35 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65110X
Z275
30
0.484
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65111X
Z275
60
0.571
BFR110-BRN80/95HL-BRN80/95NP-BRX80/95 L-SHAPE DIVIDER - 3 METRES - FINISHING Z275
MV65113X
Z275
110
0.740999999999999
BFR30-BRX35 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
MV65210X
HDG
30
0.484
BFR60-BRN50 HL-BRN50 NP-BRX50 L-SHAPE DIVIDER - 3 METRES - FINISHING HDG
MV65211X
HDG
60
0.571
item
Cod Gewiss
Finishing
L-SHAPE STRIP JOIN ELEMENT - PVC
MV65719
PVC
You saw 384 products on 686
Show others

Applications

Retail
DIY stores
Show more
Industry
Warehouse logistics
Show more
Retail
Supermarkets
Show more
Industry
Mining
Show more
Industry
Heavy industry
Show more
Healthcare
Hospitals
Show more
Retail
Shopping centres
Show more
Residential
Residences
Show more
Retail
Shops
Show more
Transportation
Airports
Show more
services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Open a ticket Open a ticket
Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Write to us Write us
More info More info
Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us Write to us

Write to us

Do you need information on Gewiss products or services?

Write to us Write to us

Wishlist Management

Privacy Policy

The privacy policy has been updated. Please review and provide your consent again. Thank you

Close Close

You can enter the Gewiss world by consulting the sites available for each country, differentiated by language, services, and catalogue offerings

Choose your country

Albania
IT EN
Belgium
FR NL
Chile
ES
Czech Republic
CZ
France
FR
Germany
DE
Hungary
HU
Israel
IL
Italy
IT
Holland
NL
Poland
PL
Romania
RO
Spain
ES
Swiss
IT FR DE
Turkey
TR
UK
EN

If your country is not among those available, you can consult the website

You are entering the site:

International - EN

GEWISS World websites are available for each country, differentiated by language, services and catalogue offerings.

Continue on international site Continue on international site

Do you want to change country?

Choose another country Choose another country
