GW Connect range
Metal surface-mounting watertight junction boxes

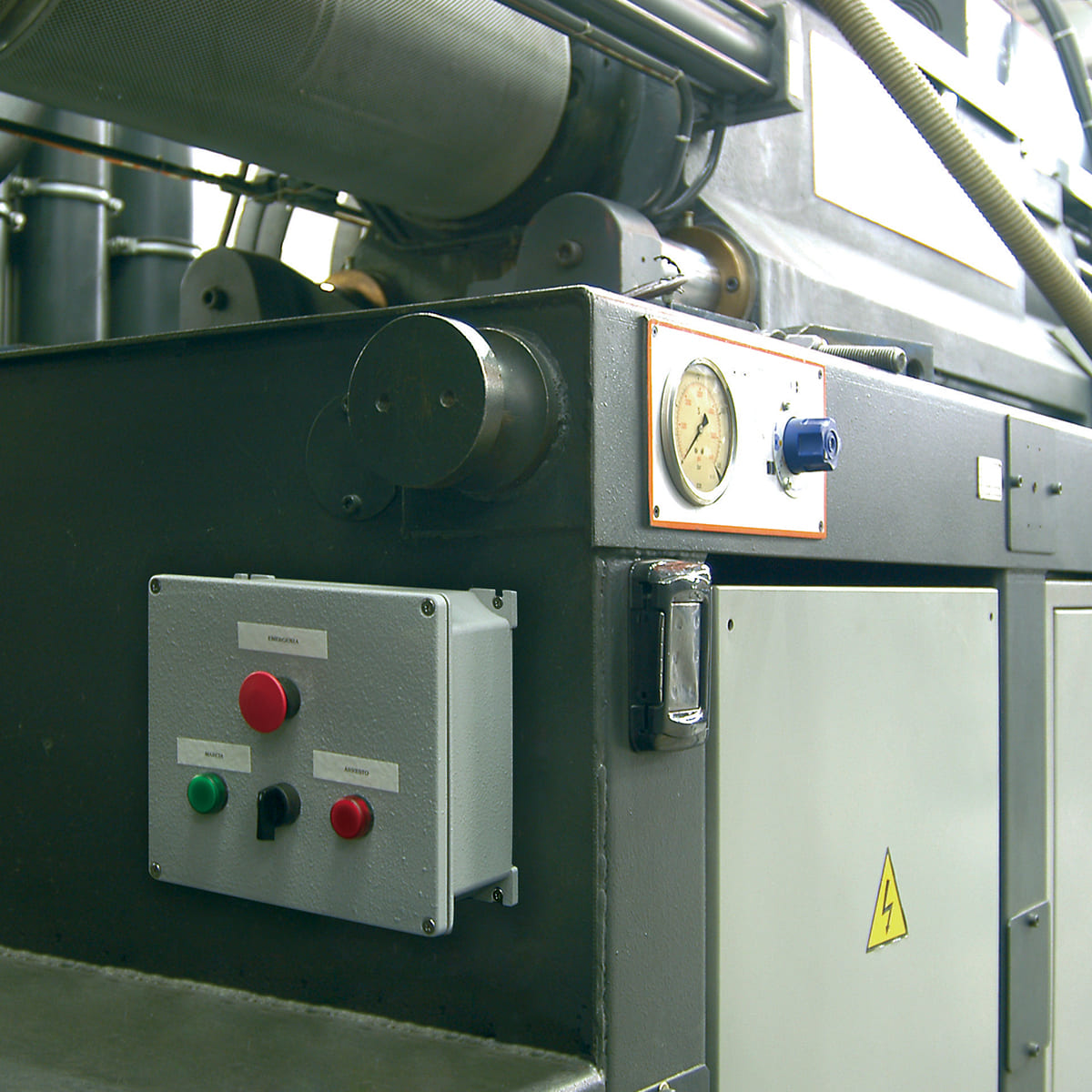

Made of die-cast aluminium. In addition to junction and connection, they are also used in automation applications. The offer includes painted and unpainted versions and ATEX versions for Zone 2 (G) and Zone 22 (D). The cover is equipped with stainless steel captive screws. The back plate of the box has a ground insert and is ready for the assembly of the DIN rail. Accessories include back-mounting plates in galvanised steel (available from the second dimension).

Benefits
Convenience and robustness
Convenience and robustness
The 7 sizes are designed for surface mounting, with both internal and external fixing. The cover has stainless steel captive screws, with thicknesses optimised for maximum mechanical strength and resistance to climate and environmental stresses.
ATEX versions
ATEX versions
The GW Connect Series boxes are available in coated and uncoated versions and also in an ATEX version, to integrate perfectly with other GEWISS solutions for potentially explosive environments, classified as 2(G) and 22(D) areas.
Professional range
Professional range
The IP66 rated boxes can be used as junction boxes, with options to mount bottom plates or DIN rails. The cover is equipped with stainless steel captive fixing screws and the bottom contains a earthing insert.

The products of this series

27 products

Wall-mounting boxes in die-cast aluminium - IP66

Painted boxes

Category
Metallised grey boxes

Change category

Metallised grey boxes
Cod Gewiss
Internal dim. LxHxD (mm)
IP degree
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED - METALLIC GREY - 91X91X54 - IP66
GW76261
91x91x54
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED - METALLIC GREY - 128X103X57 - IP66
GW76262
128x103x57
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED - METALLIC GREY - 155X130X58 - IP66
GW76263
155x130x58
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED - METALLIC GREY - 178X156X75 - IP66
GW76264
178x156x75
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED - METALLIC GREY - 239X202X85 - IP66
GW76265
239x202x85
IP66

Unpainted boxes

Category
Boxes

Change category

Boxes
Cod Gewiss
Internal dim. LxHxD (mm)
IP degree

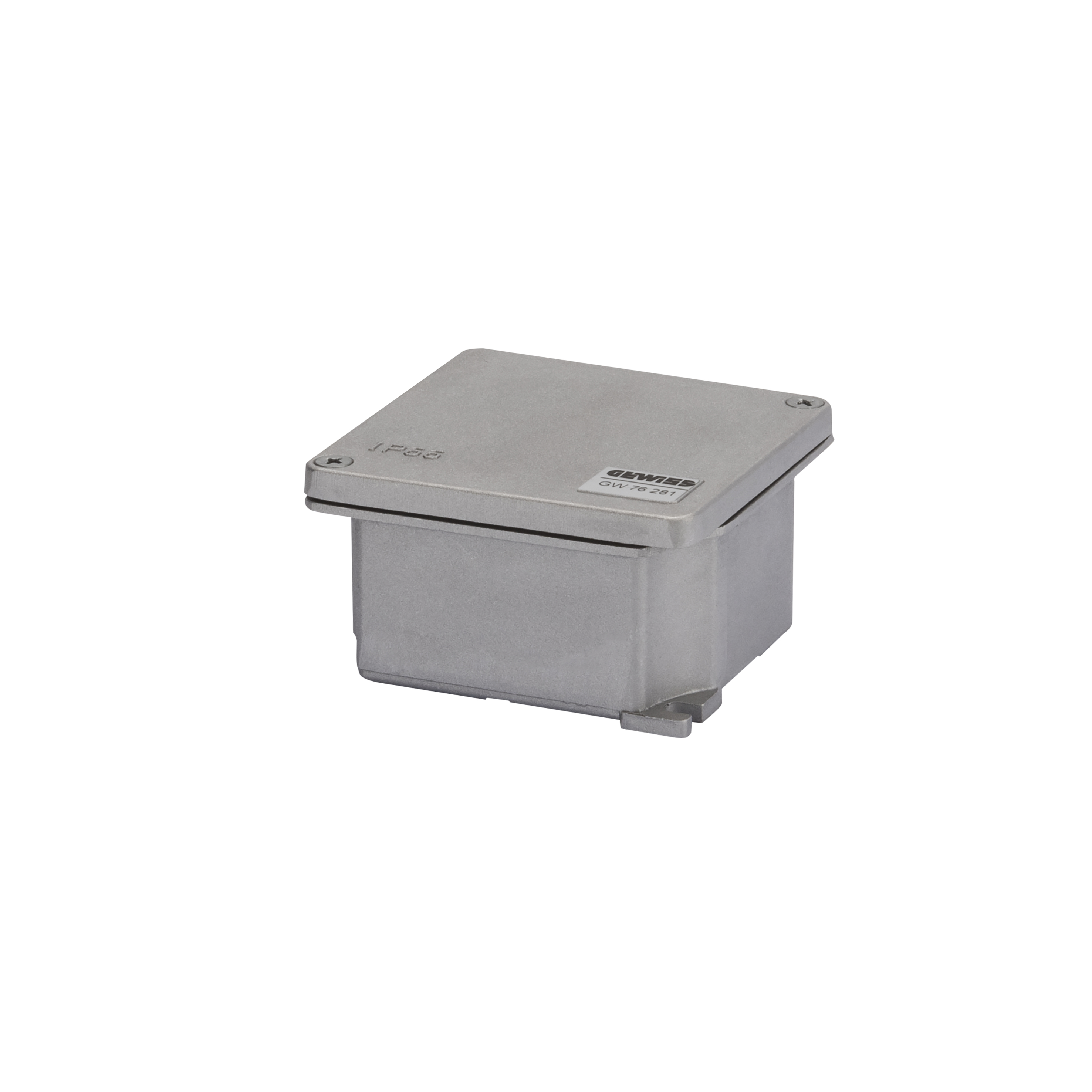

JUNCTION BOX IN DIE-CAST ALUMINIUM - UNPAINTED - 91X91X54 - IP55
GW76281
91x91x54
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - UNPAINTED - 128X103X57 - IP66
GW76282
128x103x57
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - UNPAINTED - 155X130X58 - IP66
GW76283
155x130x58
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - UNPAINTED - 178X156X75 - IP66
GW76284
178x156x75
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - UNPAINTED - 239X202X85 - IP66
GW76285
239x202x85
IP66

76 ATEX - painted boxes - zone 2 (G) zone 22 (D)

Category
Grey RAL 7037 boxes

Change category

Grey RAL 7037 boxes
Cod Gewiss
Internal dim. LxHxD (mm)
IP degree
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED GREY RAL 7037 - 91X91X54
GW76291
91x91x54
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED GREY RAL 7037 - 128X103X57
GW76292
128x103x57
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED GREY RAL 7037 - 155X130X58
GW76293
155x130x58
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED GREY RAL 7037 - 178X156X75
GW76294
178x156x75
IP66
JUNCTION BOX IN DIE-CAST ALUMINIUM - PAINTED GREY RAL 7037 - 239X202X85
GW76295
239x202x85
IP66

Complementary items

Category
Back-mounting plate in galvanised steel

Change category

Back-mounting plate in galvanised steel
Cod Gewiss
For boxes LxH (mm)
BACK-MOUNTING PLATE IN GALVANISED STEEL - FOR BOXES 128X103
GW76272
128x103
BACK-MOUNTING PLATE IN GALVANISED STEEL - FOR BOXES 155X130
GW76273
155x130
BACK-MOUNTING PLATE IN GALVANISED STEEL - FOR BOXES 165X130
GW76274
178x156
BACK-MOUNTING PLATE IN GALVANISED STEEL - FOR BOXES 239X202
GW76275
239x202
BACK-MOUNTING PLATE IN GALVANISED STEEL - FOR BOXES 294X244
GW76276
294x244
You saw 27 products on 27
