QDX 1600 H
Modular enclosures up to 1600A - IP55

The QDX 1600 H series of cabinets makes robustness its strong point, specifically in all those applications where both a high level of protection from external agents and a high breaking power from the short circuit are required.

See all product
Benefits
DIN rail: quick assembly and disassembly
DIN rail: quick assembly and disassembly
The screw-free snap-in system is simple and immediate thanks to the quick assembly and disassembly of the dual aluminium DIN rails.
Easier assembly and maintenance
Easier assembly and maintenance
The side panels and the rear panel can be easily removed in complete safety. The removable front and fully removable side and rear panels allow the operator to assemble the structure upright.
Busbar system in each position
Busbar system in each position
Fast, cost-effective and versatile, the universal aluminium busbar system allows the maximum customisation of GEWISS panels, thanks to the various positioning configurations.

The products of this series

213 products

Structures - Degree of protection with door IP55

Floor mounting distribution cabinets - Single board

Category
Bases and headboards

Change category

Bases and headboards
Uprights and functional frames
Reduced uprights and reduced functional frames
Pair of side panels
Pair of ventilated side panels
Rear panels
Cod Gewiss
Functional dim. LxD (mm)
External dim. LxD (mm)

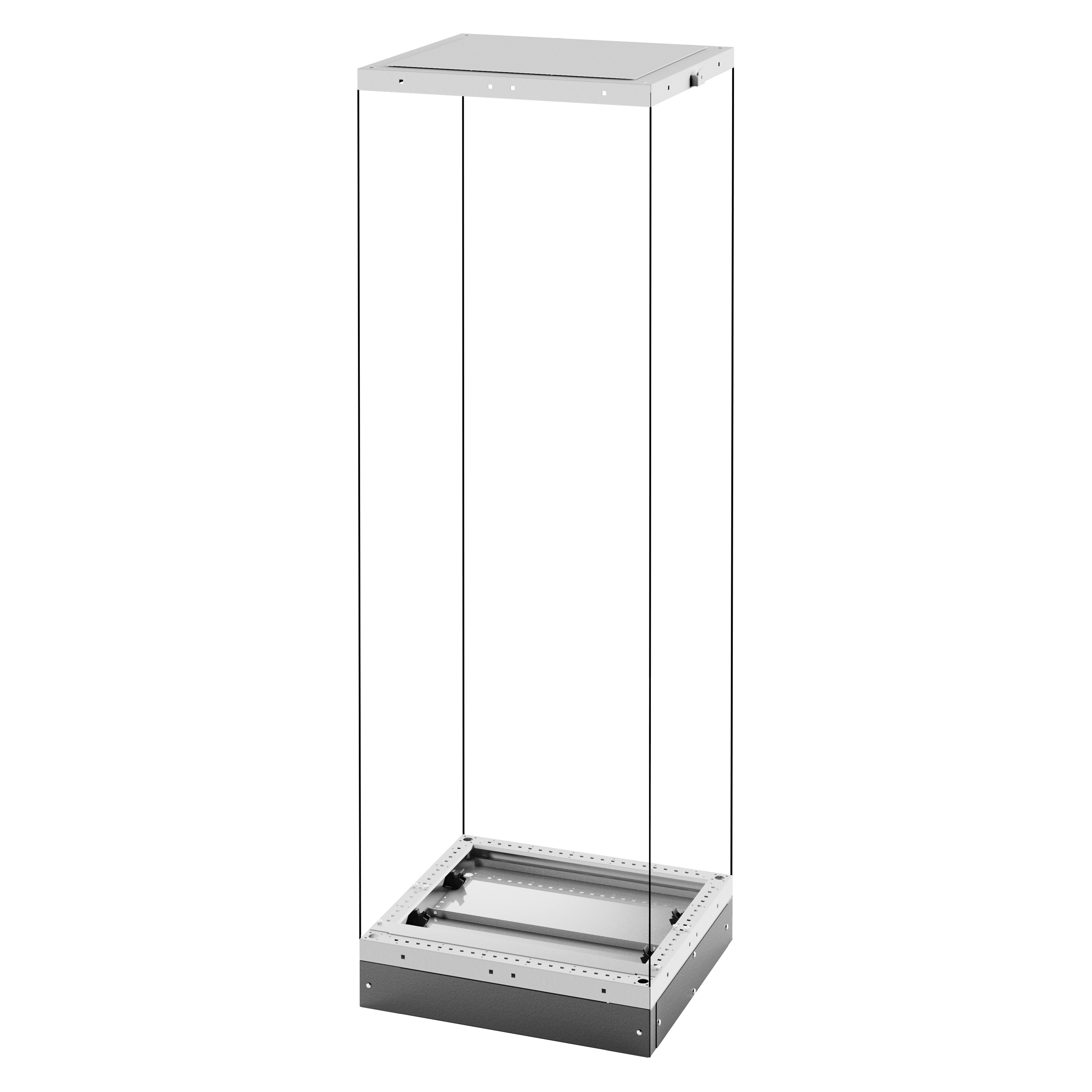

BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 600x600mm
GWD3661
600x600
650x625
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 600x800mm
GWD3662
600x800
650x800
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 850x600mm
GWD3669
850x600
850x625
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 850x800mm
GWD3670
850x800
850x800
Cod Gewiss
Functional dim. H (mm)
External dim H (mm)

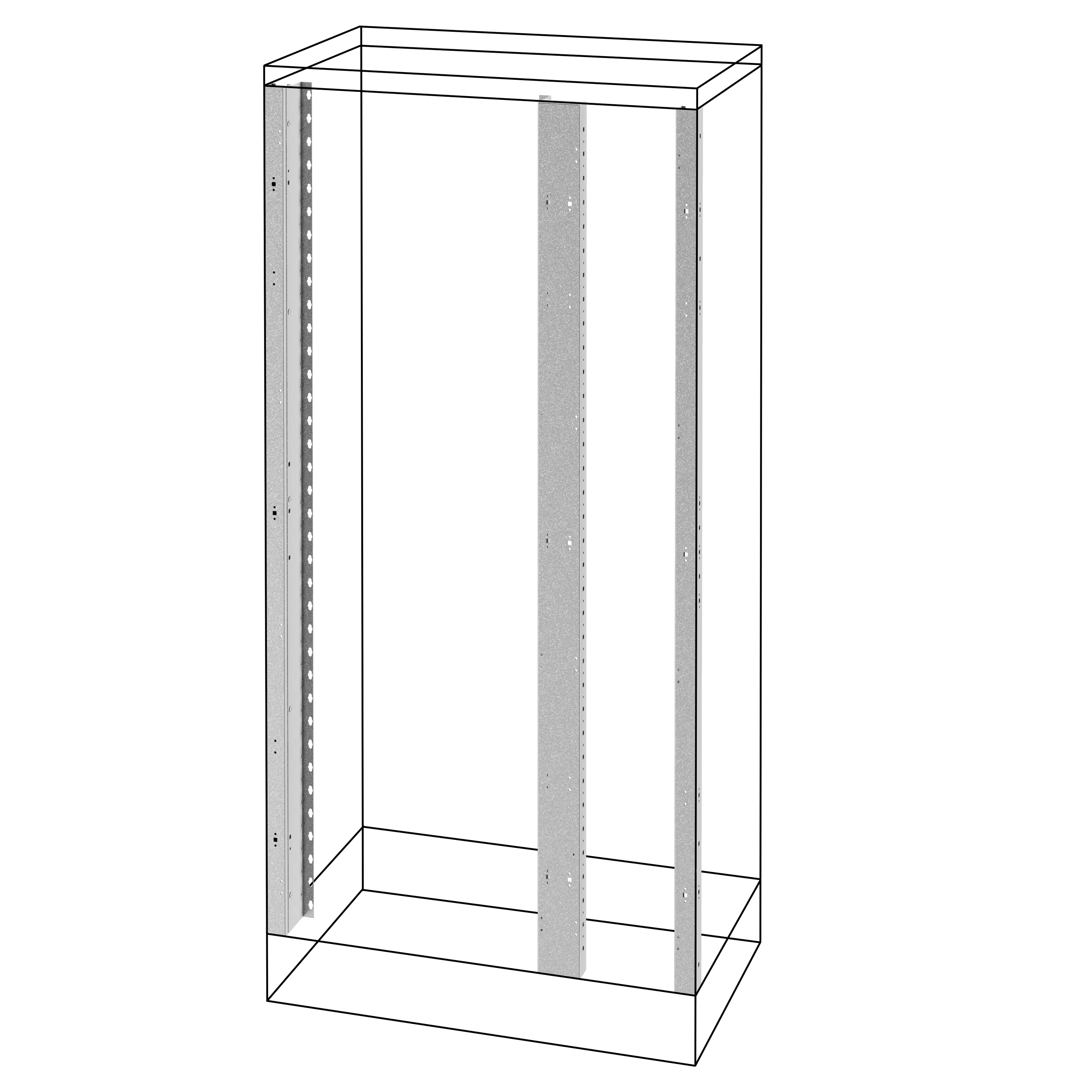

UPRIGHTS AND FUNCTIONAL FRAMES - FLOOR-MOUNTING DISTRIBUTION BOARDS - QDX 1600 H - 1800MM
GWD3168
1800
1900
UPRIGHTS AND FUNCTIONAL FRAMES - FLOOR-MOUNTING DISTRIBUTION BOARDS - QDX 1600 H - 2000MM
GWD3169
2000
2100
Cod Gewiss
Functional dim. HxD (mm)
External dim. HxD (mm)

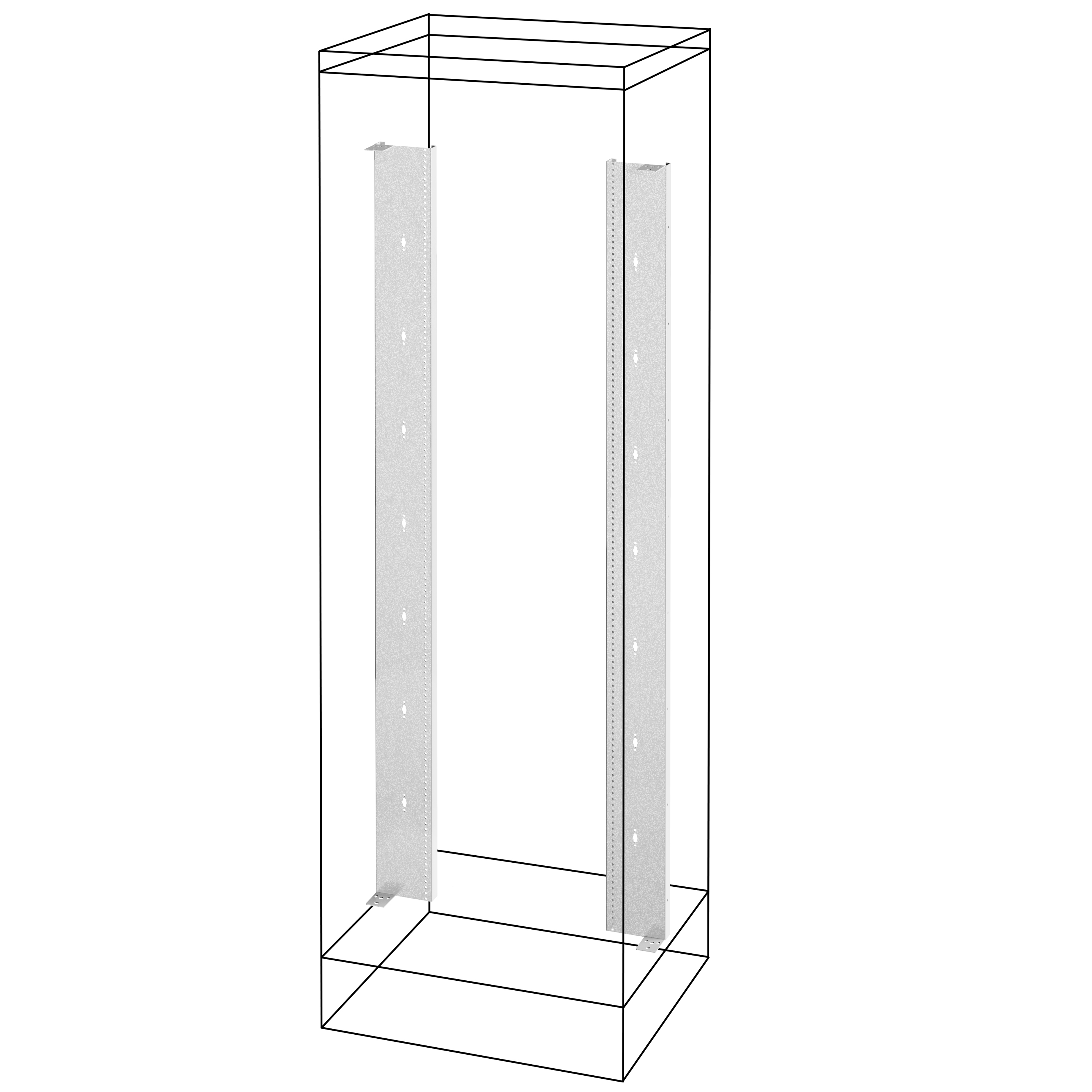

REDUCED UPRIGHTS AND FUNCTIONAL FRAMES - FLOOR-MOUNTING DISTRIBUTION BOARDS - QDX 1600 H - 1800X600MM
GWD3168R
1800x600
1900x625
REDUCED UPRIGHTS AND FUNCTIONAL FRAMES - FLOOR-MOUNTING DISTRIBUTION BOARDS - QDX 1600 H - 2000X600MM
GWD3169R6
2000x600
2100x625
Cod Gewiss
Functional dim. HxD (mm)

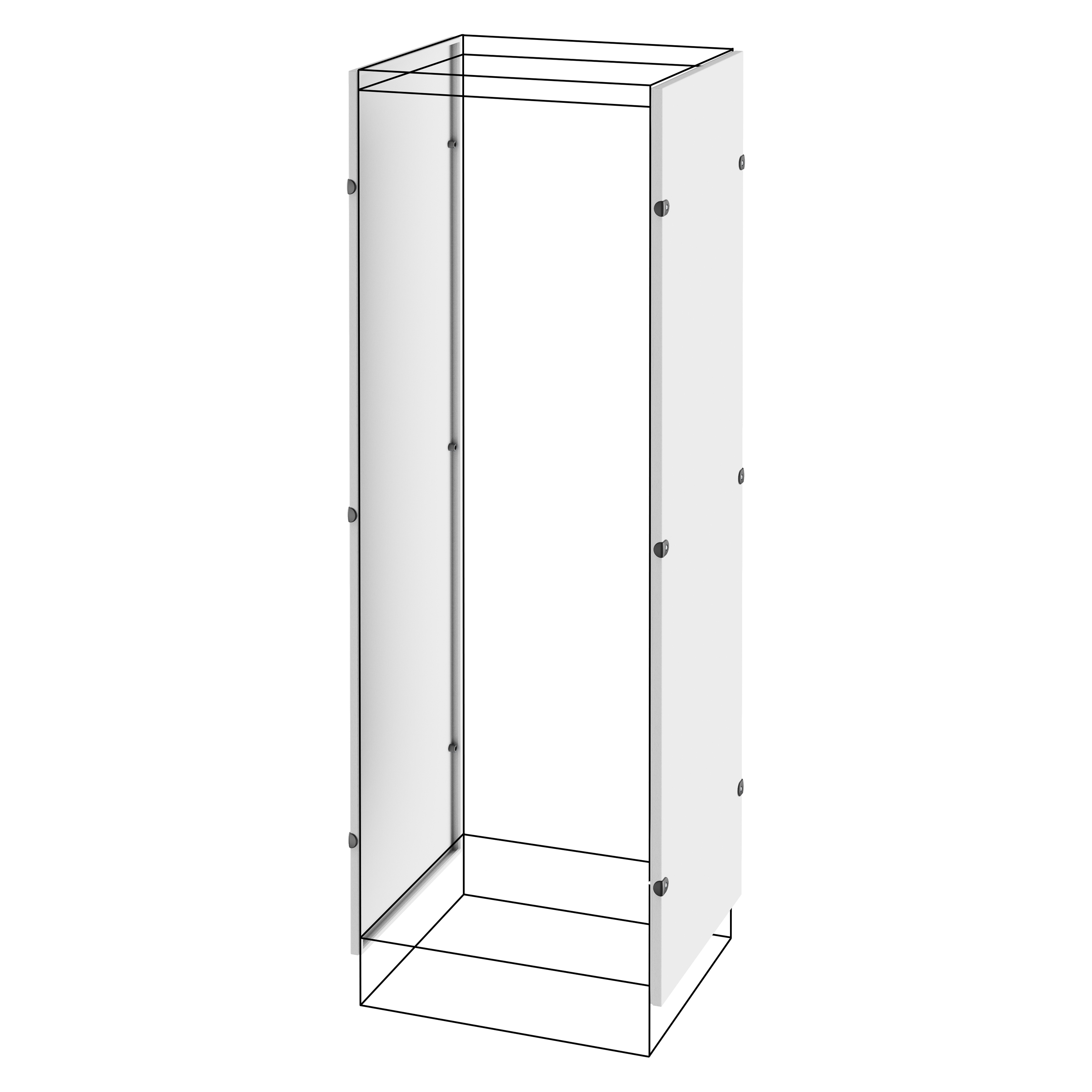

PAIR OF SIDE PANELS - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 1800x600mm
GWD3679
1800x600
PAIR OF SIDE PANELS - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 2000x600mm
GWD3682
2000x600
PAIR OF SIDE PANELS - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 2000x800mm
GWD3683
2000x800
Cod Gewiss
Functional dim. HxD (mm)
PAIR OF AERATED SIDE PANELS - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 1800x600mm
GWD3818
1800x600
PAIR OF AERATED SIDE PANELS - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 2000x600mm
GWD3819
2000x600
PAIR OF AERATED SIDE PANELS - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 1600 H - 2000x800mm
GWD3820
2000x800
Cod Gewiss
Functional dim. LxH (mm)
REAR PANEL - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 600x1800mm
GWD3685
600x1800
REAR PANEL - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 600x2000mm
GWD3686
600x2000
REAR PANEL - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 850x1800mm
GWD3691
850x1800
REAR PANEL - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 850x2000mm
GWD3692
850x2000

Floor-mounting distribution boards with side compartment

Category
Bases and headboards

Change category

Bases and headboards
Front uprights
Rear uprights and rear functional frames
Reduced uprights and reduced functional frames
Rear panels
Blind doors for side compartment
Cod Gewiss
Functional dim. LxD (mm)
External dim. LxD (mm)
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD WITH SIDE COMPARTMENT - QDX 1600 H - (600+300)x600mm
GWD3665
(600+300)x600
945x625
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD WITH SIDE COMPARTMENT - QDX 1600 H - (600+300)x800mm
GWD3666
(600+300)x800
945x800
Cod Gewiss
Functional dim. H (mm)
External dim H (mm)
FRONT UPRIGHTS - SIDE COMPARTMENT - QDX 1600 H - 1800MM
GWD3159
1800
1900
FRONT UPRIGHTS - SIDE COMPARTMENT - QDX 1600 H - 2000MM
GWD3162
2000
2100
Cod Gewiss
Functional dim. H (mm)
External dim H (mm)
REAR UPRIGHTS AND REAR FUNCTIONAL FRAMES - SIDE COMPARTMENT - QDX 1600 H - 1800MM
GWD3174
1800
1900
REAR UPRIGHTS AND REAR FUNCTIONAL FRAMES - SIDE COMPARTMENT - QDX 1600 H - 2000MM
GWD3177
2000
2100
Cod Gewiss
Functional dim. HxD (mm)
External dim. HxD (mm)
REDUCED UPRIGHTS AND FUNCTIONAL FRAMES - SIDE COMPARTMENT - QDX 1600 H - 1800X600MM
GWD3174R
1800x600
1900x625
REDUCED UPRIGHTS AND FUNCTIONAL FRAMES - SIDE COMPARTMENT - QDX 1600 H - 2000X600MM
GWD3177R6
2000x600
2100x625
Cod Gewiss
Functional dim. LxH (mm)
REAR PANEL - FLOOR-MOUNTING DISTRIBUTION BOARD WITH SIDE COMPARTMENT - QDX 630 H - QDX 1600 H - (600+300)x1800mm
GWD3688
(600+300)x1800
REAR PANEL - FLOOR-MOUNTING DISTRIBUTION BOARD WITH SIDE COMPARTMENT - QDX 630 H - QDX 1600 H - (600+300)x2000mm
GWD3689
(600+300)x2000
Cod Gewiss
Suitable for structures LxH (mm)
BLIND DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD WITH SIDE COMPARTMENT - QDX 630 H - QDX 1600 H - (600+300)x1800mm
GWD3813
(600+300)x1800
BLIND DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD WITH SIDE COMPARTMENT - QDX 630 H - QDX 1600 H - (600+300)x2000mm
GWD3814
(600+300)x2000

Doors

Category
Glass doors

Change category

Glass doors
Blind doors
Cod Gewiss
Suitable for structures LxH (mm)
GLASS DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 600x1800mm
GWD3697
600x1800
GLASS DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 600x2000mm
GWD3698
600x2000
GLASS DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 850x1800mm
GWD3801
850x1800
GLASS DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 850x2000mm
GWD3802
850x2000
Cod Gewiss
Suitable for structures LxH (mm)
BLIND DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 600x1800mm
GWD3804
600x1800
BLIND DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 600x2000mm
GWD3805
600x2000
BLIND DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 850x1800mm
GWD3807
850x1800
BLIND DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - QDX 630 H - QDX 1600 H - 850x2000mm
GWD3808
850x2000

External compartment

Category
Bases and headboards

Change category

Bases and headboards
Uprights and functional frames
Rear panels
Blind doors
Cod Gewiss
Functional dim. LxD (mm)
External dim. LxD (mm)
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - EXTERNAL COMPARTMENT - QDX 1600 H - 400x600mm
GWD3673
400x600
400x625
BASE AND HEADBOARD - FLOOR-MOUNTING DISTRIBUTION BOARD - EXTERNAL COMPARTMENT - QDX 1600 H - 400x800mm
GWD3674
400x800
400x850
Cod Gewiss
Functional dim. LxH (mm)
External dim. LxH (mm)
UPRIGHTS AND FUNCTIONAL FRAME - EXTERNAL COMPARTMENT - QDX 1600 H - 400X1800MM
GWD3165
400x1800
400x1900
UPRIGHTS AND FUNCTIONAL FRAME - EXTERNAL COMPARTMENT - QDX 1600 H - 400X2000MM
GWD3167
400x2000
400x2100
Cod Gewiss
Functional dim. LxH (mm)
REAR PANEL - FLOOR-MOUNTING DISTRIBUTION BOARD - EXTERNAL COMPARTMENT - QDX 630 H - QDX 1600 H - 400x1800mm
GWD3694
400x1800
REAR PANEL - FLOOR-MOUNTING DISTRIBUTION BOARD - EXTERNAL COMPARTMENT - QDX 630 H - QDX 1600 H - 400x2000mm
GWD3695
400x2000
Cod Gewiss
Suitable for structures LxH (mm)
BLIND DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - EXTERNAL COMPARTMENT - QDX 630 H - QDX 1600 H - 400x1800mm
GWD3810
400x1800
BLIND DOOR - FLOOR-MOUNTING DISTRIBUTION BOARD - EXTERNAL COMPARTMENT - QDX 630 H - QDX 1600 H - 400x2000mm
GWD3811
400x2000
You saw 46 products on 213
Show others
