CHORUSMART - Domestic range
Satin white modular devices

The CHORUSMART modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.
Colours and finishes: satin white, distinctive and elegant.
Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1 and 2 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.
Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.

See all product
Benefits
Aesthetic variability
Aesthetic variability
The wide range of options for customising the devices, in terms of colour and modularity, ensures a vast choice of solutions. Six colourways are
available: three with a satin finish and three with a glossy finish, for a perfect match between the device and the plate.
Connected
Connected
The range offers a wide selection of options for building control, from traditional axial or
rocker control units to soft-click push buttons, touch devices, voice commands, and the app for tablets and smartphones.
Innovative
Innovative
For the traditional domestic series, new products have been designed with advanced functions, both in the versions with axial and touch buttons, including centralisation, which can be achieved with the same button for both lights and roller shutters, and the silent operation of the button keys with microswitches (also touch activated).
Scalable
Scalable
ChoruSmart began as a traditional domestic series, but with the addition of a few Connected Smart Home or Home&Building Pro elements, it can become smart and suitable for both renovations and new buildings. The combination of colours, materials, finishes and shapes offers something for every taste and need.

The products of this series

340 products

Command

Command devices - screw terminals

Category
One-way switches 1P - 250V ac

Change category

One-way switches 1P - 250V ac
One-way switches 2P - 250V ac
One-way switch 2P - 250V ac - heavy duty loads
Two-way switches 1P - 250V ac
Intermediate switches 1P - 250V ac
Three-way switches 1P - 250V ac
Three-way switch 2P - 250V ac
Push-buttons 1P - 250V ac
Push-buttons 2P - 250V ac
Push-buttons 1P with illuminated name plate - 250V ac
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps

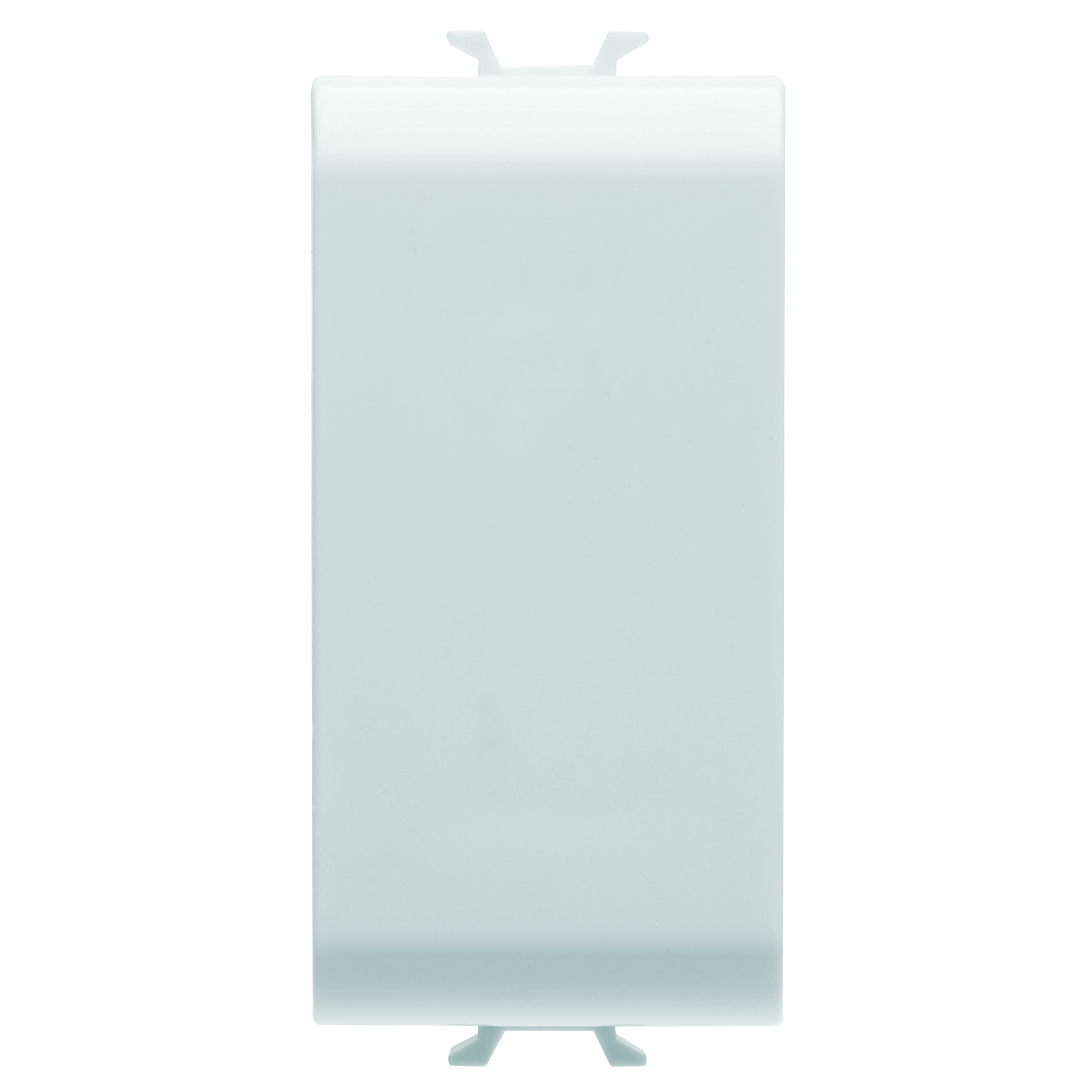

ONE-WAY SWITCH 1P 250V ac - 16AX - NEUTRAL BUTTON - 1 MODULE - SATIN WHITE - CHORUSMART
GW15001
1
1P - 16AX
Neutral
200 W

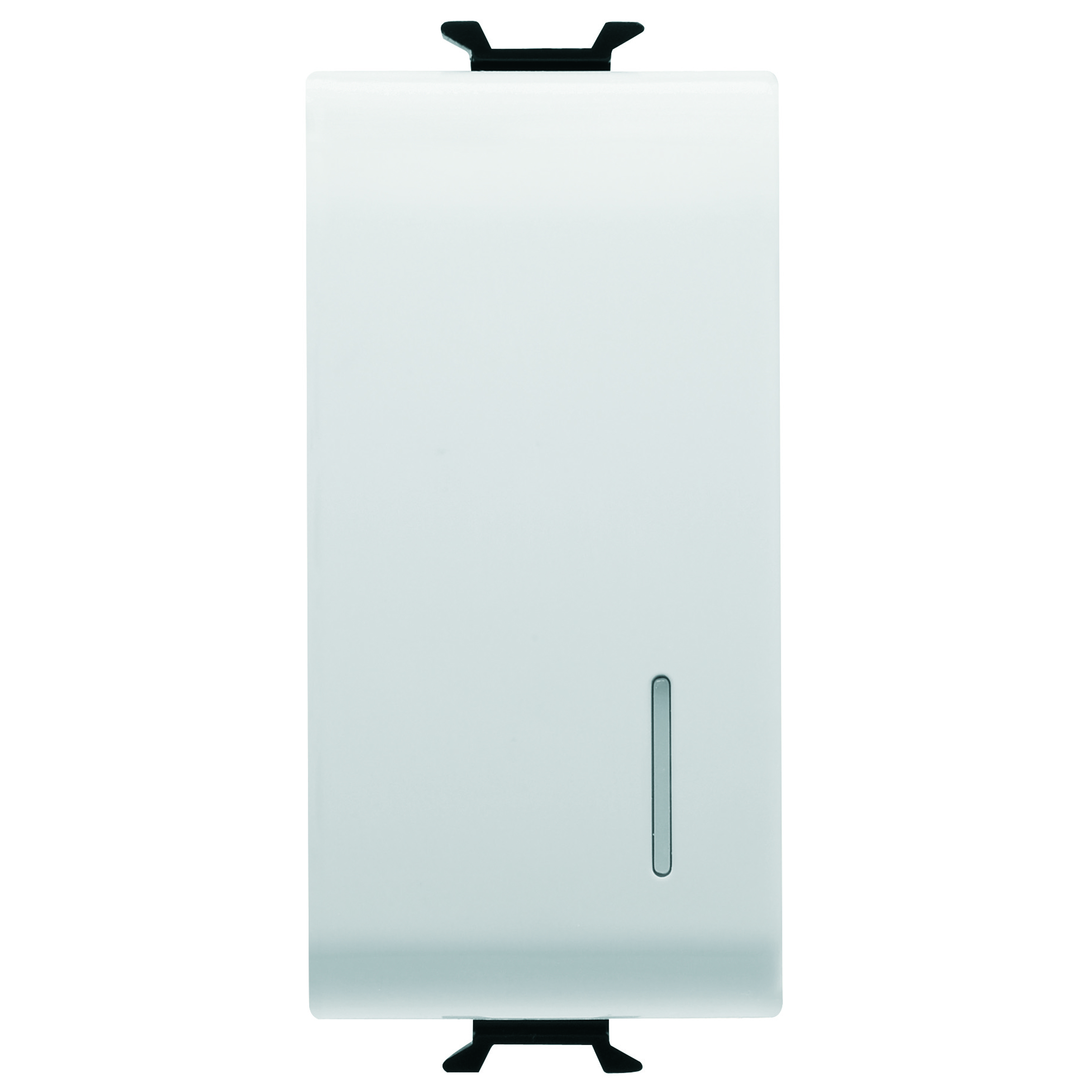

ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 1 MODULE - SATIN WHITE - CHORUSMART
GW15002
1
1P - 16AX illuminable
With diffuser
200 W

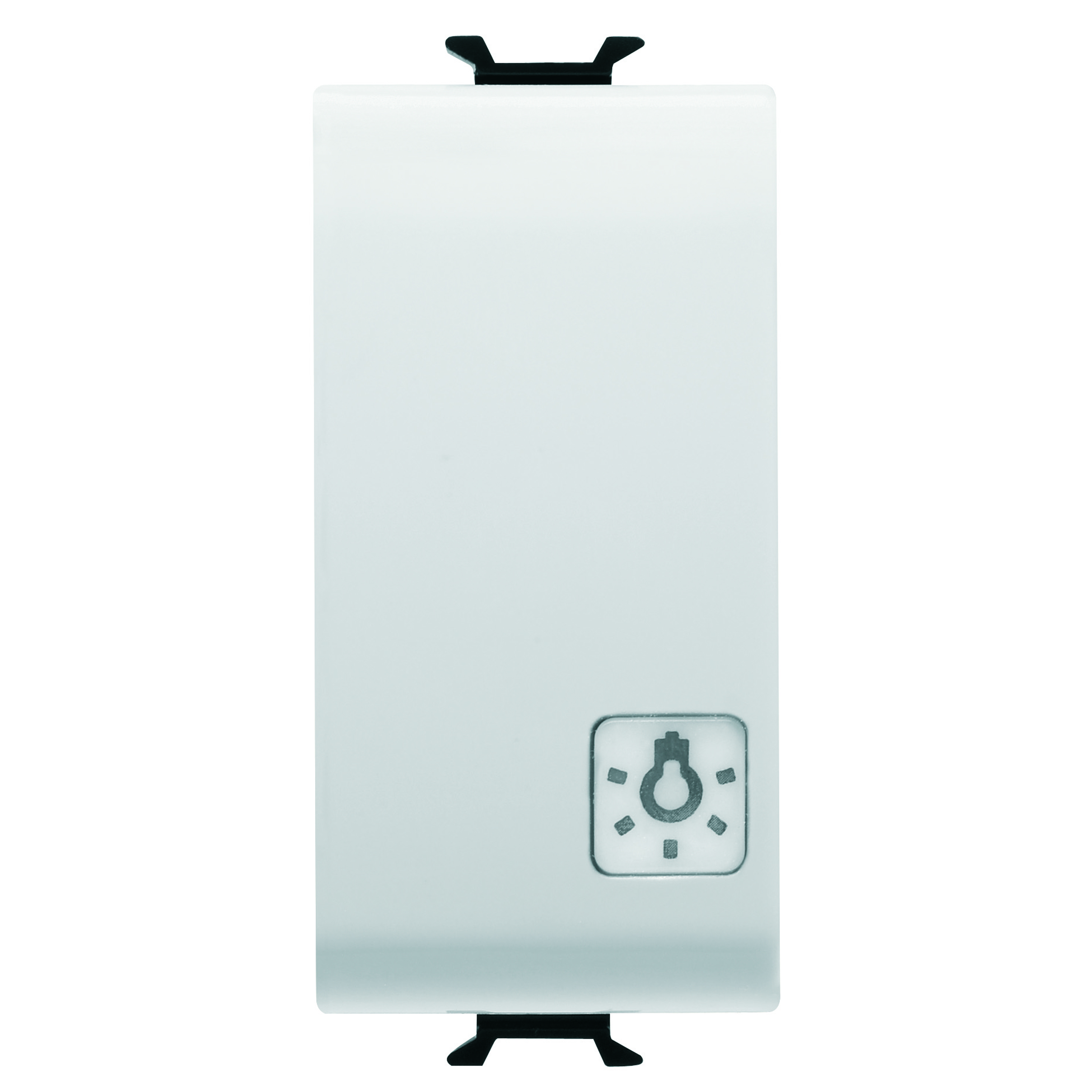

ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - SATIN WHITE - CHORUSMART
GW15003
1
1P - 16AX illuminable
With replaceable neutral lens
200 W
ONE-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL BUTTON - 1/2 MODULE - SATIN WHITE - CHORUSMART
GW15021
1/2
1P - 10AX
Neutral
100 W
ONE-WAY SWITCH 1P 250V ac - 10AX ILLUMINABLE - WITH DIFFUSER - 1/2 MODULE - SATIN WHITE - CHORUSMART
GW15022
1/2
1P - 10AX illuminable
With diffuser
100 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps

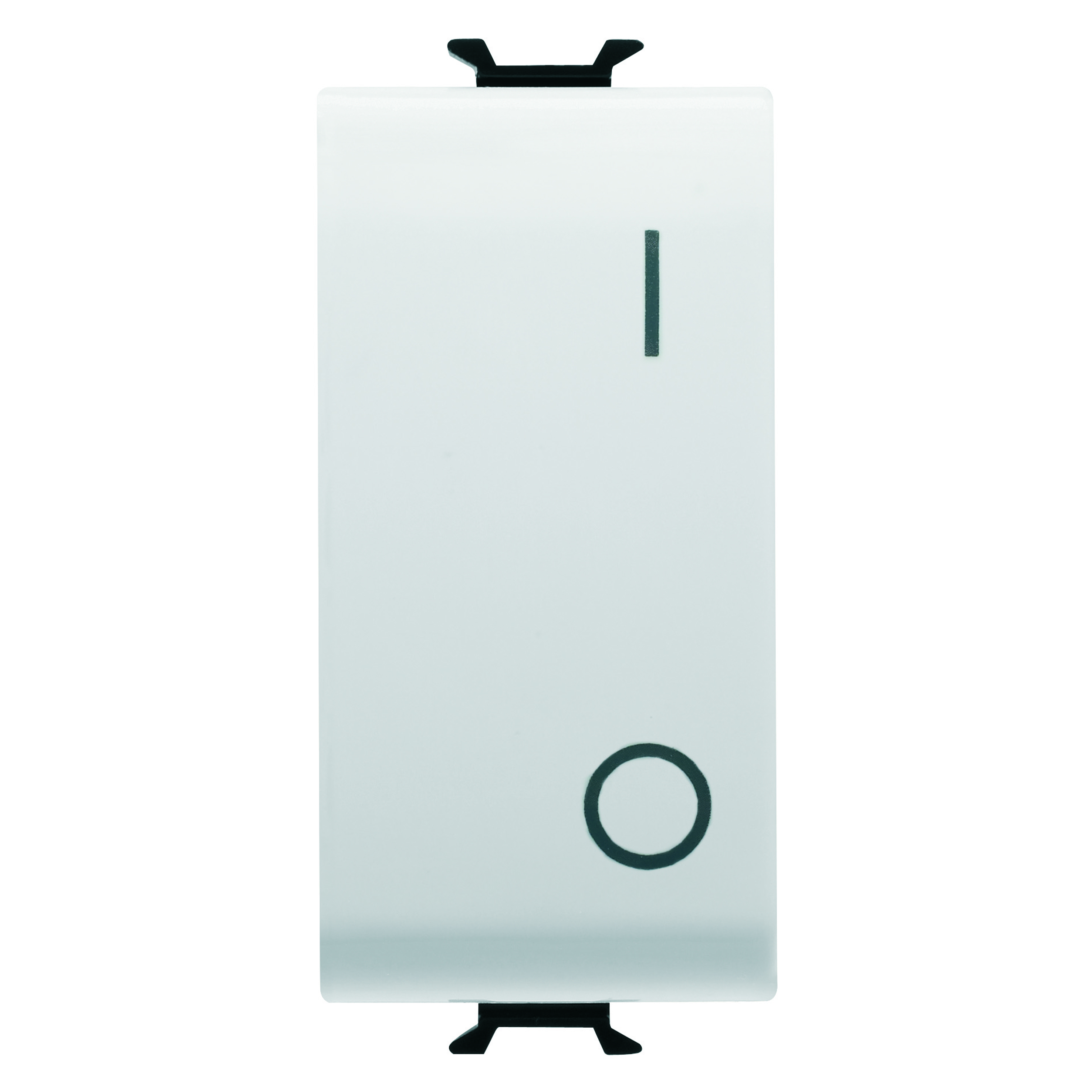

ONE-WAY SWITCH 2P 250V ac - 16AX - NEUTRAL BUTTON - SYMBOL 0/1 - 1 MODULE - SATIN WHITE - CHORUSMART
GW15004
1
2P - 16 AX
Neutral
0/1
200 W
ONE-WAY SWITCH 2P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - SATIN WHITE - CHORUSMART
GW15005
1
2P - 16AX illuminable
With replaceable neutral lens
-
200 W

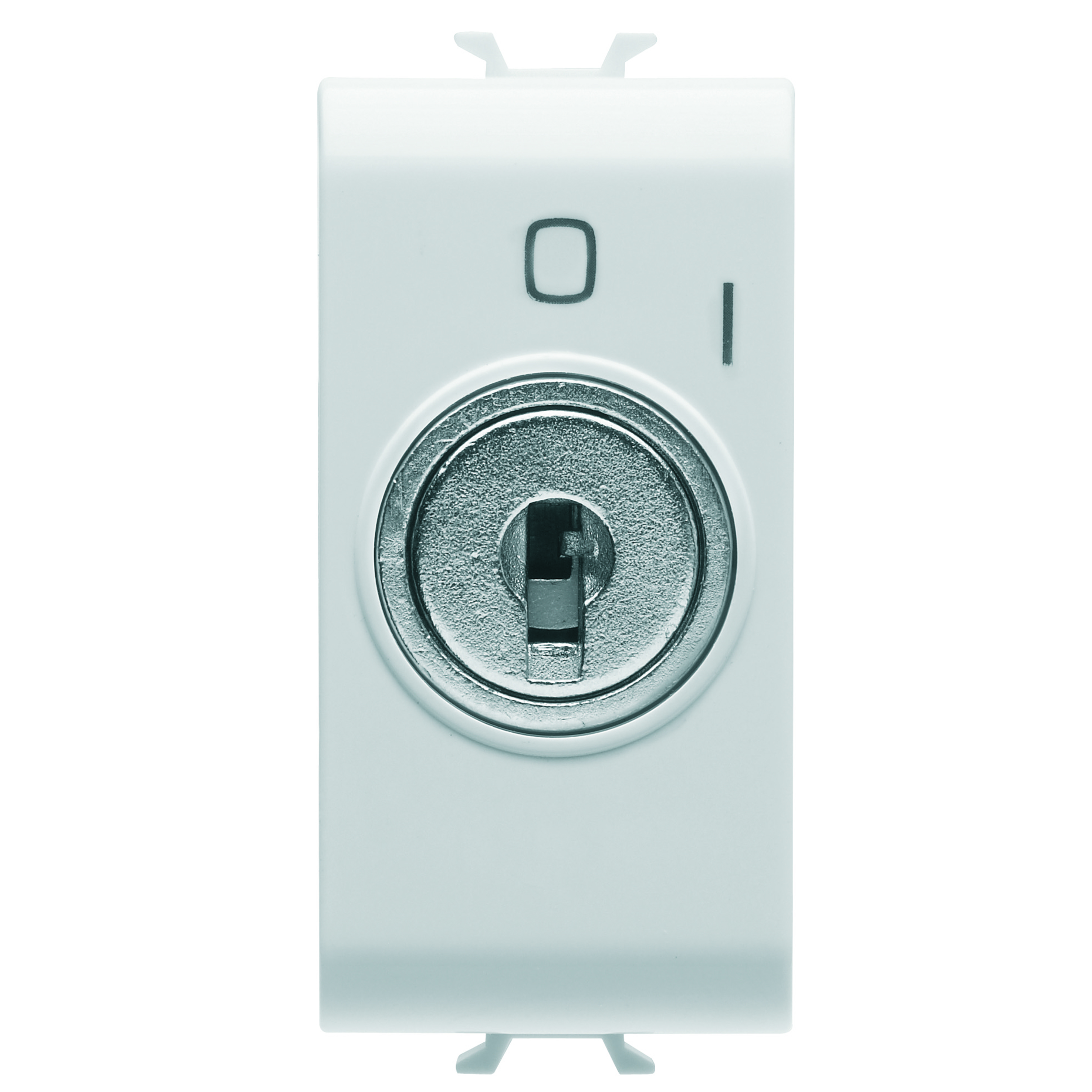

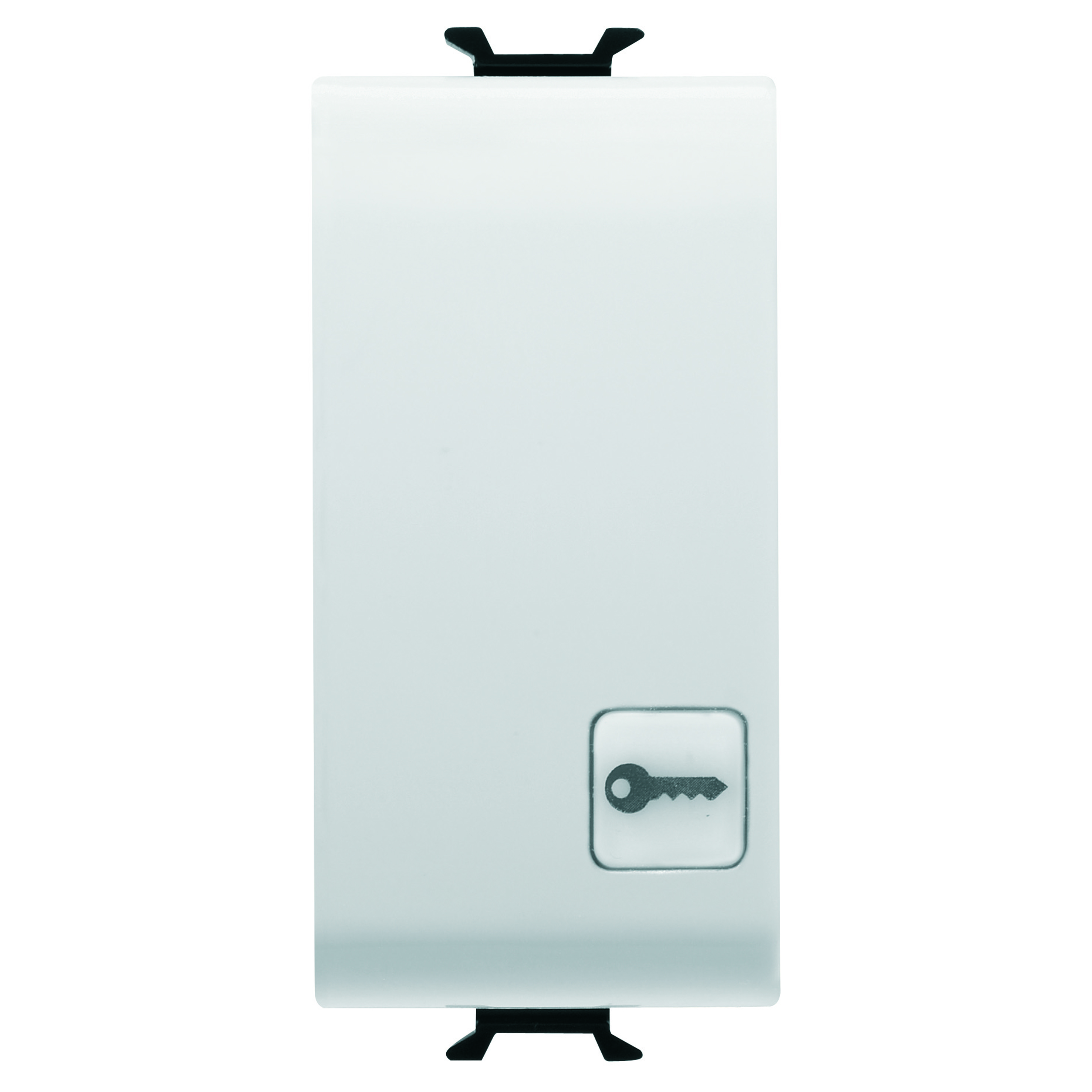

ONE-WAY SWITCH 2P 250V ac - 10AX - WITH KEY - SYMBOL 0/1 - 1 MODULE - SATIN WHITE - CHORUSMART
GW15006
1
2P - 10AX
With key
0/1
100 W

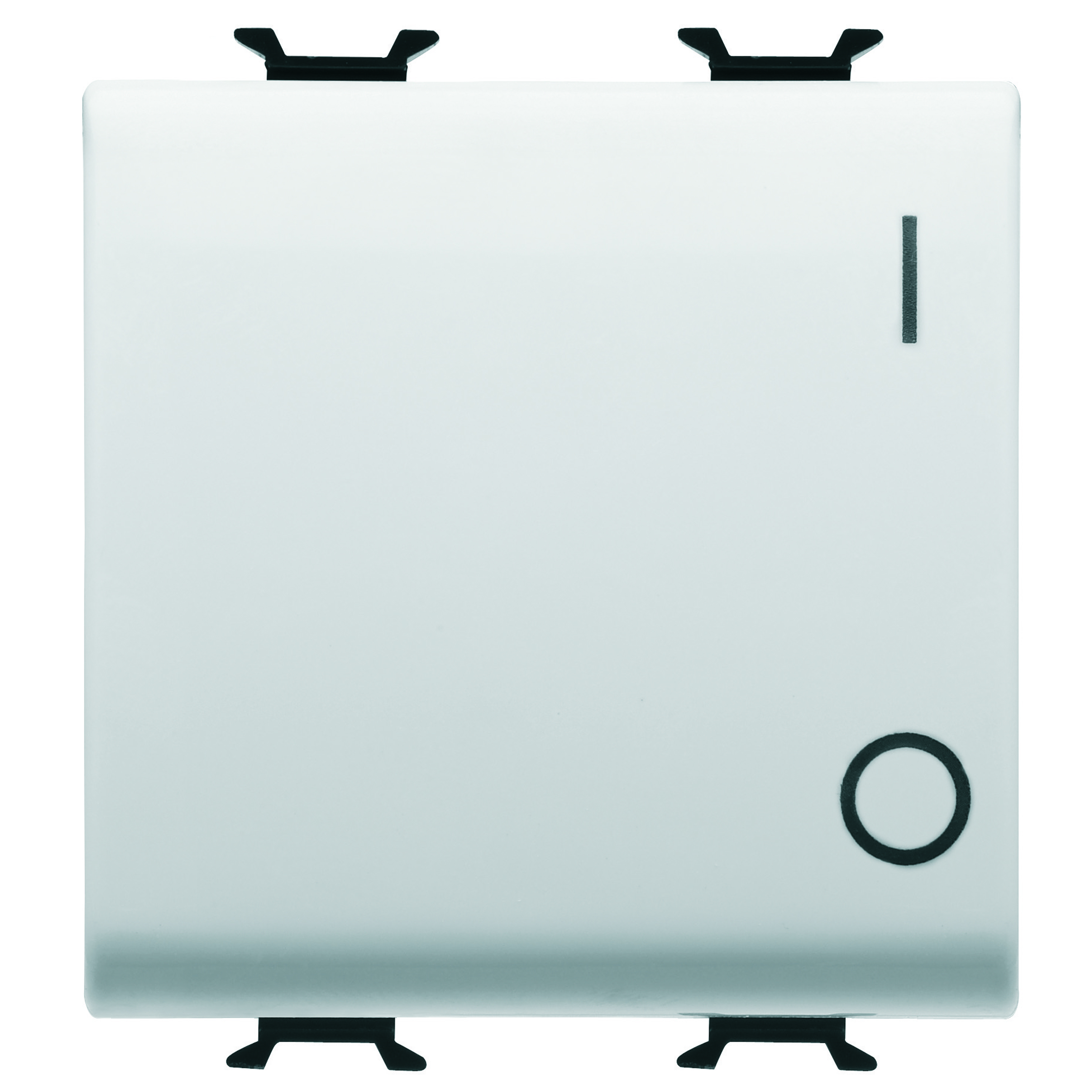

ONE-WAY SWITCH 2P 250V ac - 16AX - NEUTRAL BUTTON - SYMBOL 0/1 - 2 MODULES - SATIN WHITE - CHORUSMART
GW15034
2
2P - 16 AX
Neutral
0/1
200 W
ONE-WAY SWITCH 2P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - SATIN WHITE - CHORUSMART
GW15035
2
2P - 16AX illuminable
With replaceable neutral lens
-
200 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
ONE-WAY SWITCH 2P 250V ac HEAVY DUTY - 25AX - NEUTRAL BUTTON - SYMBOL 0/1 - 1 MODULE - SATIN WHITE - CHORUSMART
GW15007
1
2P - 25 AX
Neutral
0/1
250 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
TWO-WAY SWITCH 1P 250V ac - 16AX - NEUTRAL BUTTON - 1 MODULE - SATIN WHITE - CHORUSMART
GW15051
1
1P - 16AX
Neutral
200 W
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 1 MODULE - SATIN WHITE - CHORUSMART
GW15052
1
1P - 16AX illuminable
With diffuser
200 W
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - SATIN WHITE - CHORUSMART
GW15053
1
1P - 16AX illuminable
With replaceable neutral lens
200 W
TWO-WAY SWITCH 1P 250V ac - 10AX - WITH KEY - 1 MODULE - SATIN WHITE - CHORUSMART
GW15054
1
1P - 10AX
With key
100 W
TWO-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL BUTTON - 1/2 MODULE - SATIN WHITE - CHORUSMART
GW15061
1/2
1P - 10AX
Neutral
100 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
INTERMEDIATE SWITCH 1P 250V ac - 16AX - NEUTRAL BUTTON - 1 MODULE - SATIN WHITE - CHORUSMART
GW15091
1
1P - 16AX
Neutral
200 W
INTERMEDIATE SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 1 MODULE - SATIN WHITE - CHORUSMART
GW15092
1
1P - 16AX illuminable
With diffuser
200 W
INTERMEDIATE SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - SATIN WHITE - CHORUSMART
GW15093
1
1P - 16AX illuminable
With replaceable neutral lens
200 W
INTERMEDIATE SWITCH 1P 250V ac - 16AX - NEUTRAL BUTTON - 2 MODULES - SATIN WHITE - CHORUSMART
GW15101
2
1P - 16AX
Neutral
200 W
INTERMEDIATE SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - SATIN WHITE - CHORUSMART
GW15102
2
1P - 16AX illuminable
With diffuser
200 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
THREE-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL BUTTON - SYMBOL UP-DOWN - 1 MODULE - SATIN WHITE - CHORUSMART
GW15121
1
1P - 10AX
Neutral
UP - DOWN
100 W

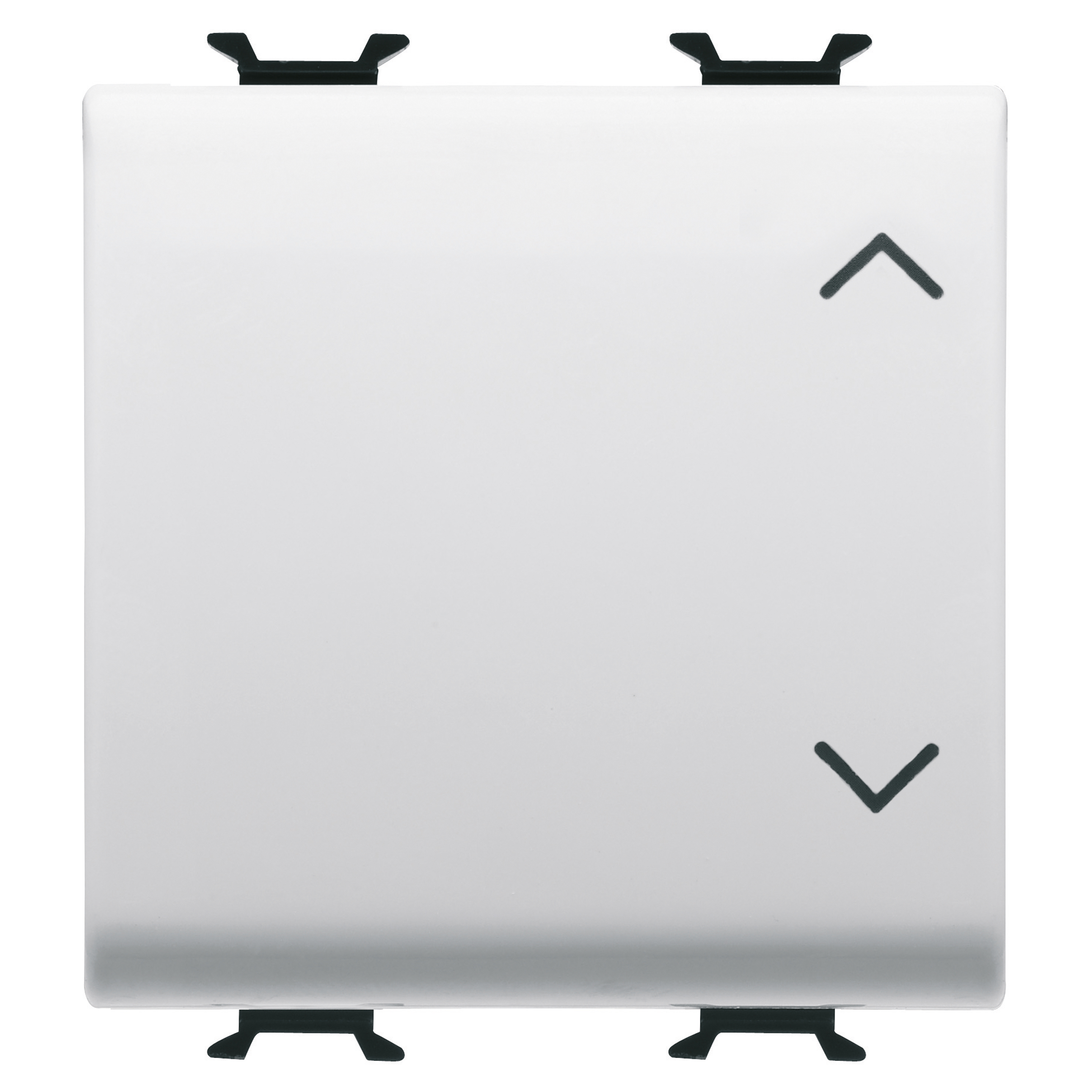

THREE-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL BUTTON - SYMBOL UP-DOWN - 2 MODULES - SATIN WHITE - CHORUSMART
GW15123
2
1P - 10AX
Neutral
UP - DOWN
100 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
THREE-WAY SWITCH 2P - 250V ac - 10AX - NEUTRAL BUTTON - SYMBOL UP-DOWN - 1 MODULE - SATIN WHITE - CHORUSMART
GW15122
1
2P - 10AX
Neutral
UP - DOWN
100 W
Cod Gewiss
No. modules
Description
Button key
Symbol
PUSH-BUTTON 1P 250V ac - NO 16A - NEUTRAL BUTTON - 1 MODULE - SATIN WHITE - CHORUSMART
GW15131
1
1P NO - 16A
Neutral
-
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - WITH DIFFUSER - 1 MODULE - SATIN WHITE - CHORUSMART
GW15132
1
1P NO - 16A illuminable
With diffuser
-
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - SATIN WHITE - CHORUSMART
GW15133
1
1P NO - 16A illuminable
With replaceable neutral lens
-

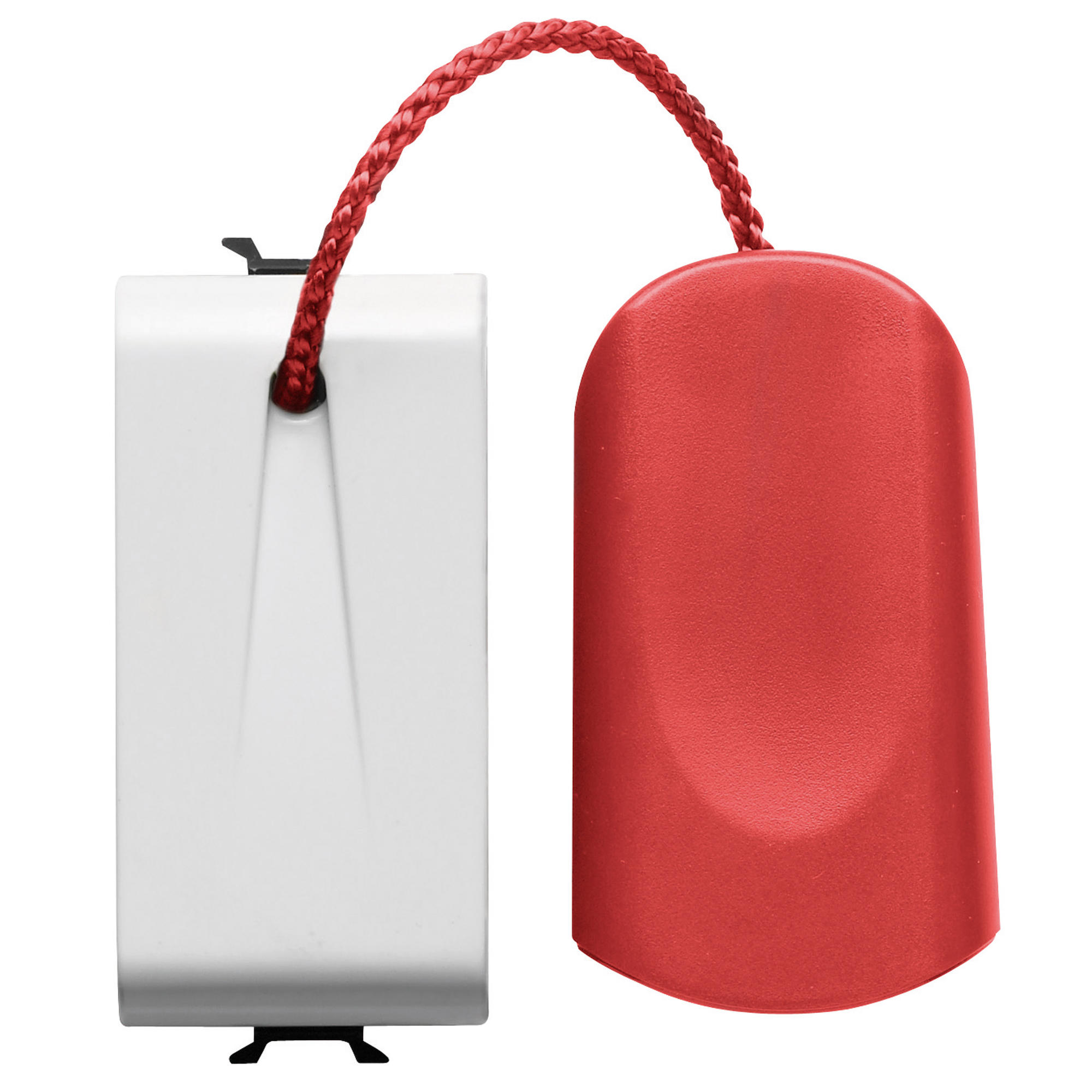

PUSH-BUTTON 1P 250V ac - NO 16A - PULL-CORD - 1 MODULE - SATIN WHITE - CHORUSMART
GW15136
1
1P NO - 16A
Pull-cord
-

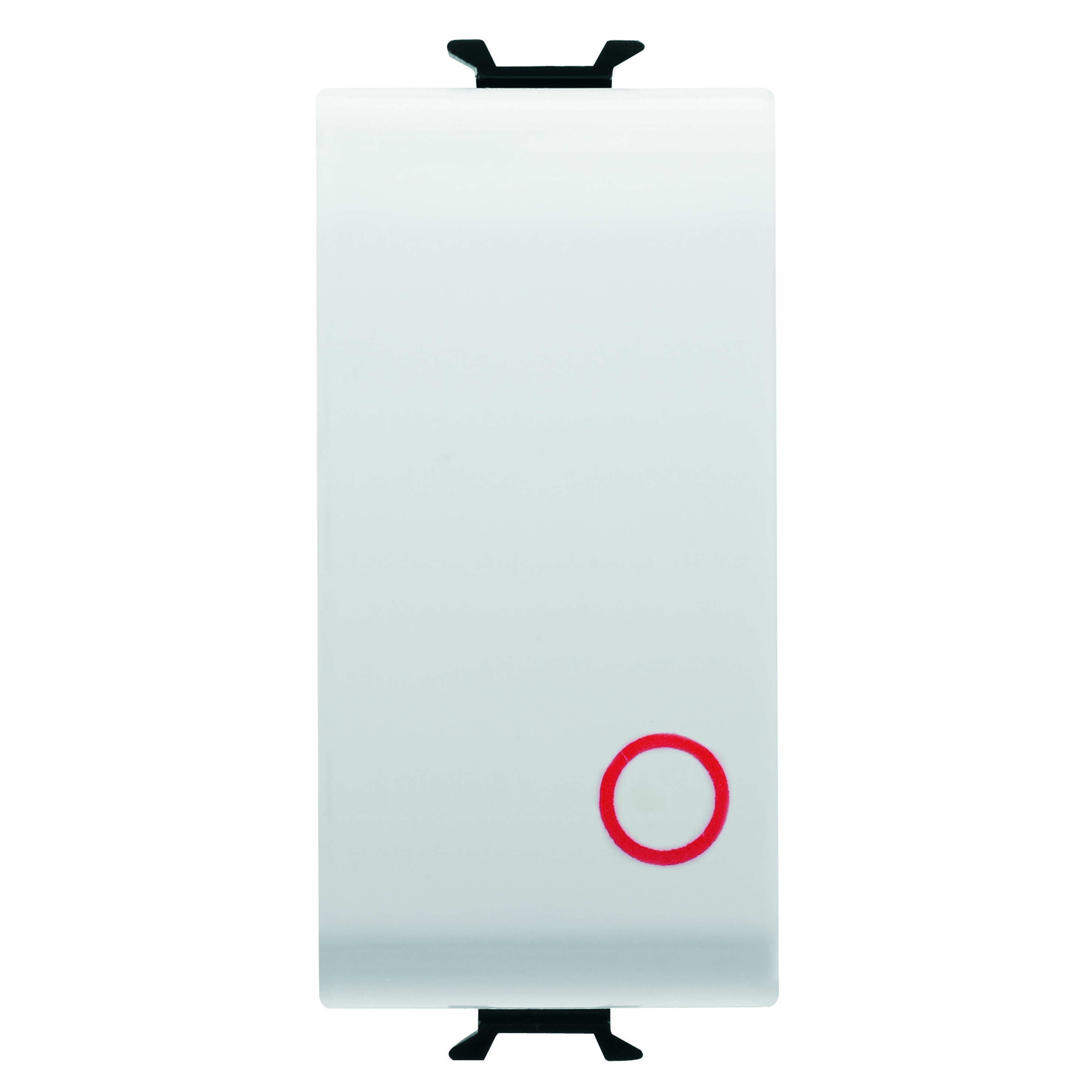

PUSH-BUTTON 1P 250V ac - NC 16A - NEUTRAL BUTTON - SYMBOL 0 RED - 1 MODULE - SATIN WHITE - CHORUSMART
GW15137
1
1P NC - 16A
Neutral
O red
Cod Gewiss
No. modules
Description
Button key
Symbol
PUSH-BUTTON 2P 250V ac - NO 16A - NEUTRAL BUTTON - SYMBOL 0 - 1 MODULE - SATIN WHITE - CHORUSMART
GW15134
1
2P NO - 16A
Neutral
O
PUSH-BUTTON 2P 250V ac - NO 16A ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - SATIN WHITE - CHORUSMART
GW15135
1
2P NO - 10A illuminable
With replaceable neutral lens
-
PUSH-BUTTON 2P 250V ac - NO 10A - WITH KEY - 1 MODULE - SATIN WHITE - CHORUSMART
GW15145
1
2P NO - 10A
With key
-
Cod Gewiss
No. modules
Description
Lamp voltage
Lamp
Lamp power
PUSH-BUTTON WITH ILLUMINATED NAME PLATE 250V ac - NO 10A - 2 MODULES - SATIN WHITE - CHORUSMART
GW15191
2
1P NO - 10A
12-24V ac/dc
Cartridge lamp S6x36 mm (not included)
2 W

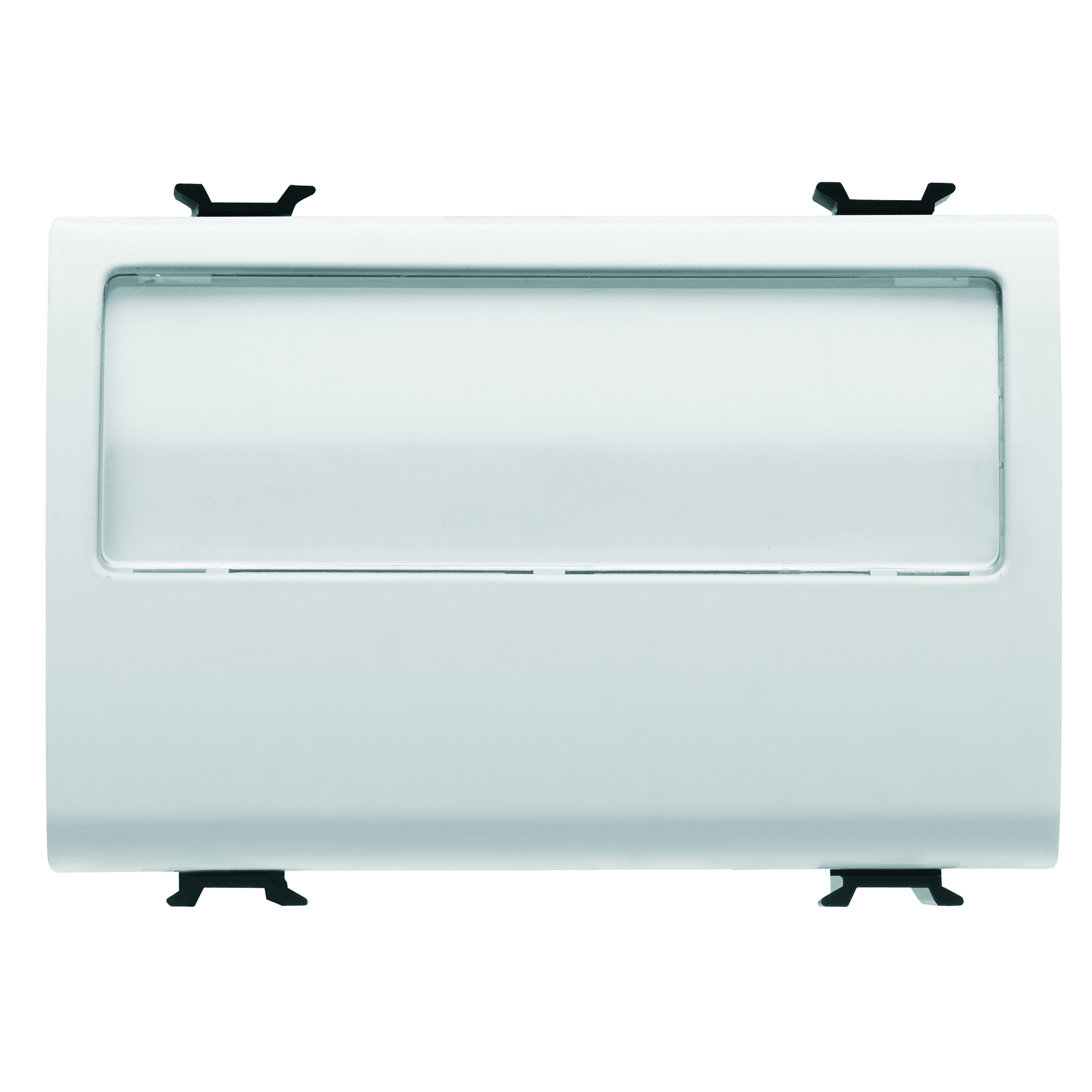

PUSH-BUTTON WITH ILLUMINATED NAME PLATE 250V ac - NO 10A - 3 MODULES - SATIN WHITE - CHORUSMART
GW15192
3
1P NO - 10A
12-24V ac/dc
Cartridge lamp S6x36 mm
2 W

Command devices - quick wiring terminals

Category
One-way switches 1P - 250V ac

Change category

One-way switches 1P - 250V ac
One-way switches 2P - 250V ac
Two-way switches 1P - 250V ac
Intermediate switches 1P - 250V ac
Push-buttons 1P - 250V ac
Combined command devices - 250V ac
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
ONE-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX - NEUTRAL BUTTON - 2 MODULES - SATIN WHITE - CHORUSMART
GW15031F
2
1P - 16AX
Neutral
200 W
ONE-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - SATIN WHITE - CHORUSMART
GW15032F
2
1P - 16AX illuminable
With diffuser
200 W
ONE-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - SATIN WHITE - CHORUSMART
GW15033F
2
1P - 16AX illuminable
With replaceable neutral lens
200 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
ONE-WAY SWITCH 2P 250V ac - QUICK WIRING TERMINALS - 16AX - NEUTRAL BUTTON - SYMBOL 0/1 - 2 MODULES - SATIN WHITE - CHORUSMART
GW15034F
2
2P - 16 AX
Neutral
0/1
200 W
ONE-WAY SWITCH 2P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - SATIN WHITE - CHORUSMART
GW15035F
2
2P - 16AX illuminable
With replaceable neutral lens
-
200 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
TWO-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX - NEUTRAL BUTTON - 2 MODULES - SATIN WHITE - CHORUSMART
GW15071F
2
1P - 16AX
Neutral
200 W
TWO-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - SATIN WHITE - CHORUSMART
GW15072F
2
1P - 16AX illuminable
With diffuser
200 W
TWO-WAY SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - SATIN WHITE - CHORUSMART
GW15073F
2
1P - 16AX illuminable
With replaceable neutral lens
200 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
INTERMEDIATE SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX - NEUTRAL BUTTON - 2 MODULES - SATIN WHITE - CHORUSMART
GW15101F
2
1P - 16AX
Neutral
200 W
INTERMEDIATE SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - SATIN WHITE - CHORUSMART
GW15102F
2
1P - 16AX illuminable
With diffuser
200 W
INTERMEDIATE SWITCH 1P 250V ac - QUICK WIRING TERMINALS - 16AX ILLUMINABLE WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - SATIN WHITE - CHORUSMART
GW15103F
2
1P - 16AX illuminable
With replaceable neutral lens
200 W
Cod Gewiss
No. modules
Description
Button key
PUSH-BUTTON 1P 250V ac - QUICK WIRING TERMINALS - NO 16A - NEUTRAL BUTTON - 2 MODULES - SATIN WHITE - CHORUSMART
GW15171F
2
1P NO - 16A
Neutral
PUSH-BUTTON 1P 250V ac - QUICK WIRING TERMINALS - NO 16A ILLUMINABLE - WITH DIFFUSER - 2 MODULES - SATIN WHITE - CHORUSMART
GW15172F
2
1P NO - 16A illuminable
With diffuser
PUSH-BUTTON 1P 250V ac - QUICK WIRING TERMINALS - NO 16A ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 2 MODULES - SATIN WHITE - CHORUSMART
GW15173F
2
1P NO - 16A illuminable
With replaceable neutral lens
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps
TWIN TWO-WAY SWITCH 250V ac - QUICK WIRING TERMINALS - 1P 16AX - NEUTRAL BUTTON - 2 MODULES - SATIN WHITE - CHORUSMART
GW15078F
2
Twin two-way switch 1P - 16 AX
Neutral
-
200 W
TWO-WAY SWITCH + PUSH BUTTON - 250V ac - QUICK WIRING TERMINALS - 1P 16AX / 1P NO 16A - NEUTRAL BUTTON - 2 MODULES - SATIN WHITE - CHORUSMART
GW15159F
2
Two-way switch 1P - 16 AX / Push-button 1P NO - 16A
Neutral
-
200 W
TWIN PUSH-BUTTON 250V ac - QUICK WIRING TERMINALS - 1P NO 16A - SYMBOL UP-DOWN-STOP - 2 MODULES - SATIN WHITE - CHORUSMART
GW15160F
2
Twin push-button 1P NO - 16 A
Neutral
-
-

Command devices - axial - screw terminals

Category
Axial switch module - EVO

Change category

Axial switch module - EVO
Axial dimmer module - EVO
Axial roller shutter module - EVO

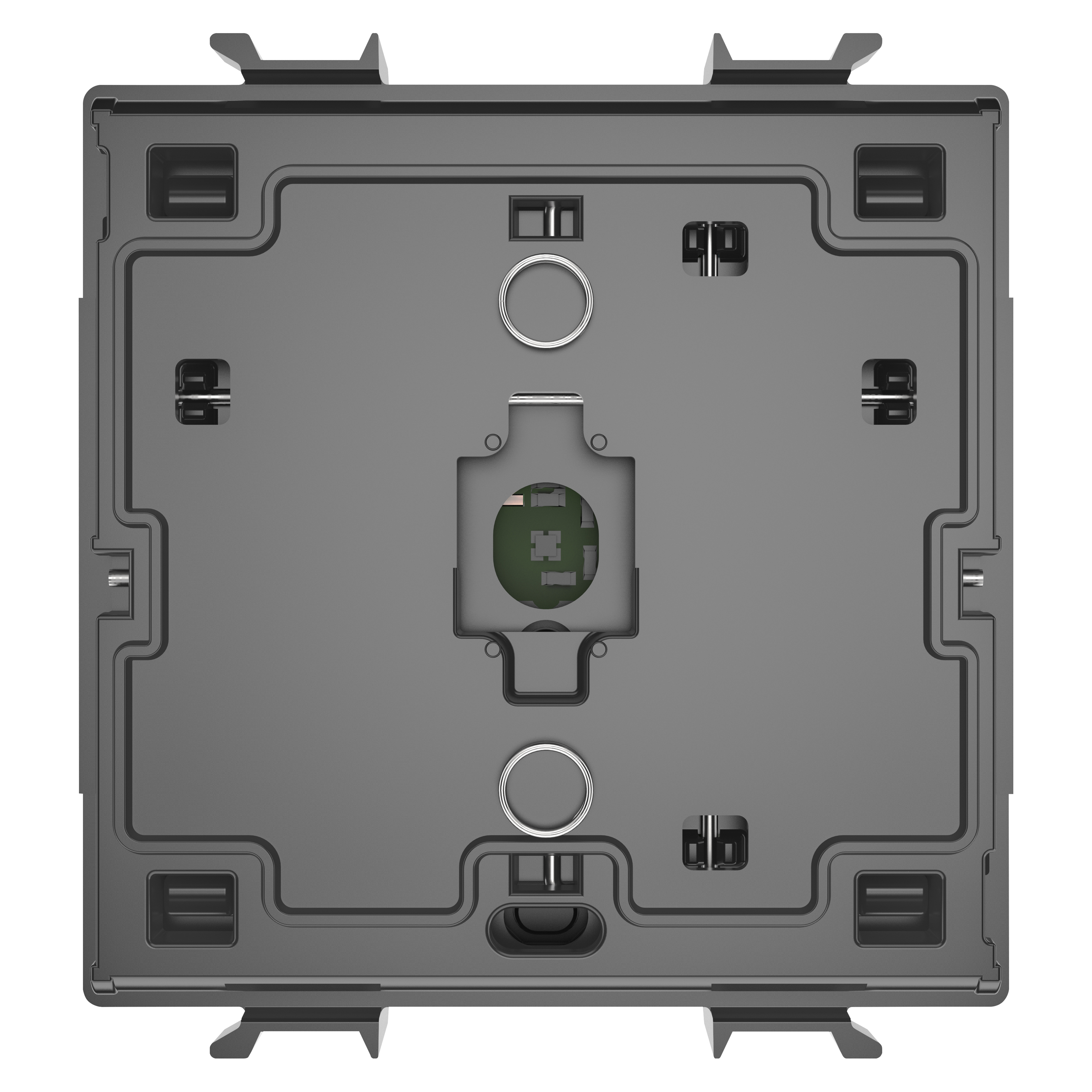

Auxiliary touch 1-channel control modules

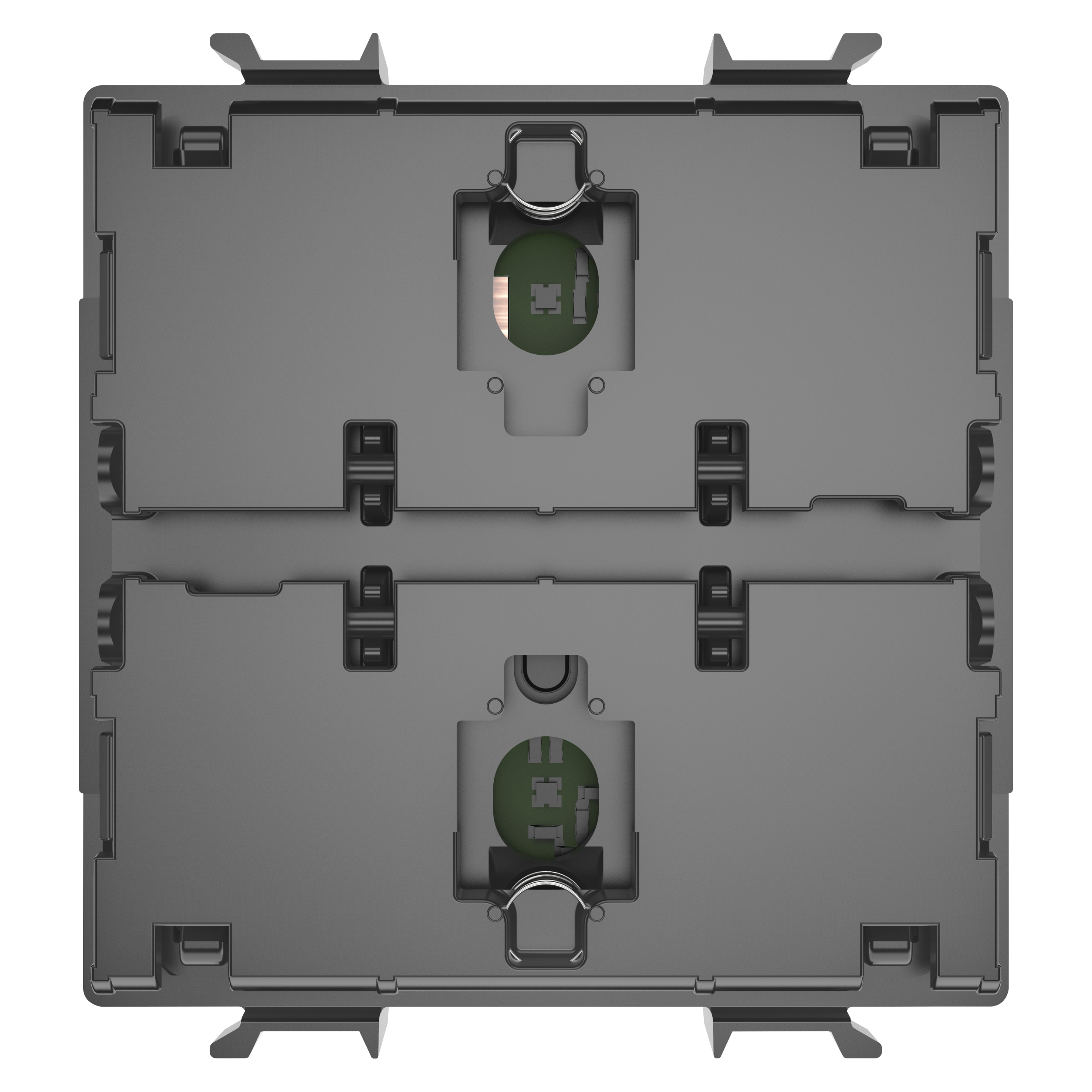

Auxiliary touch 2-channel control modules

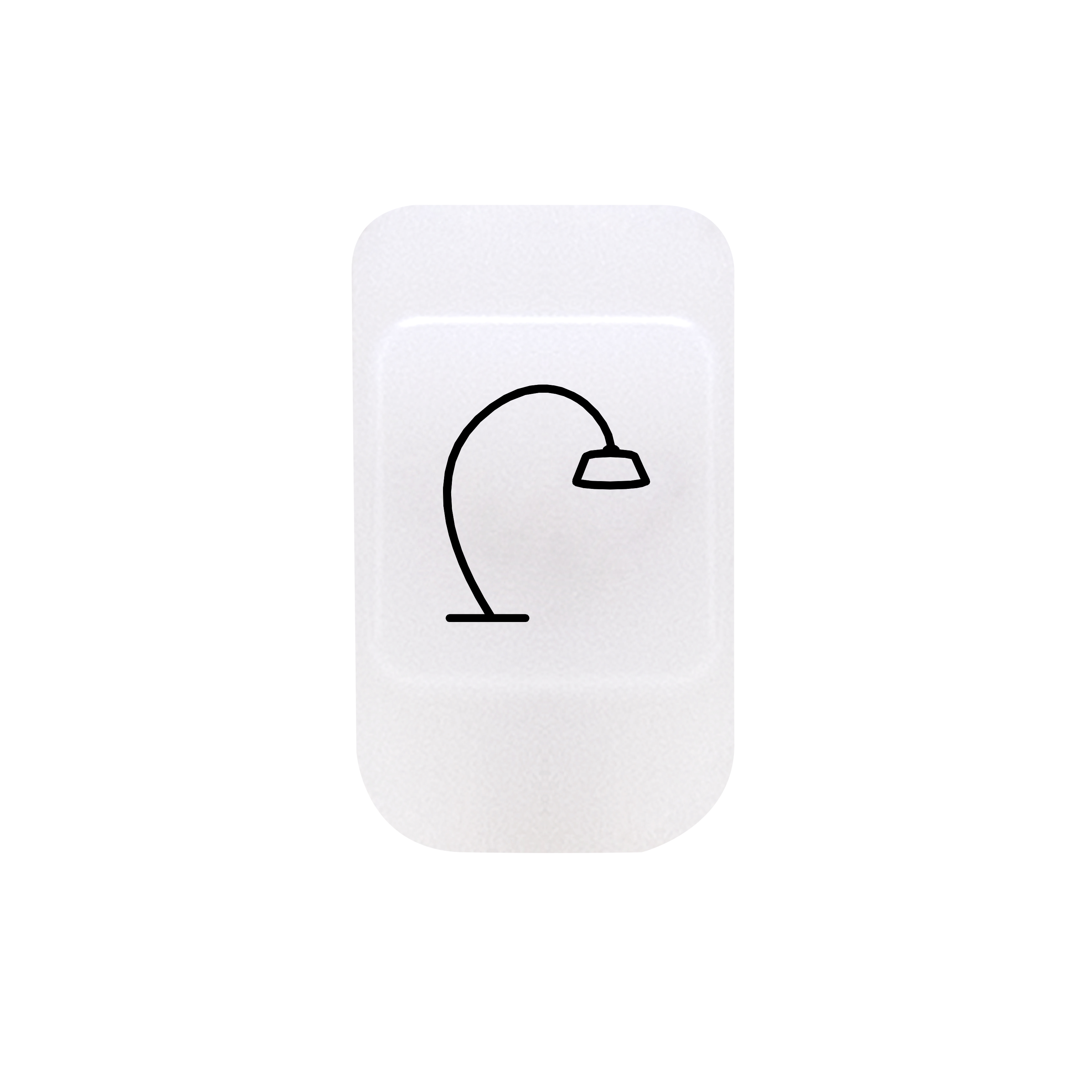

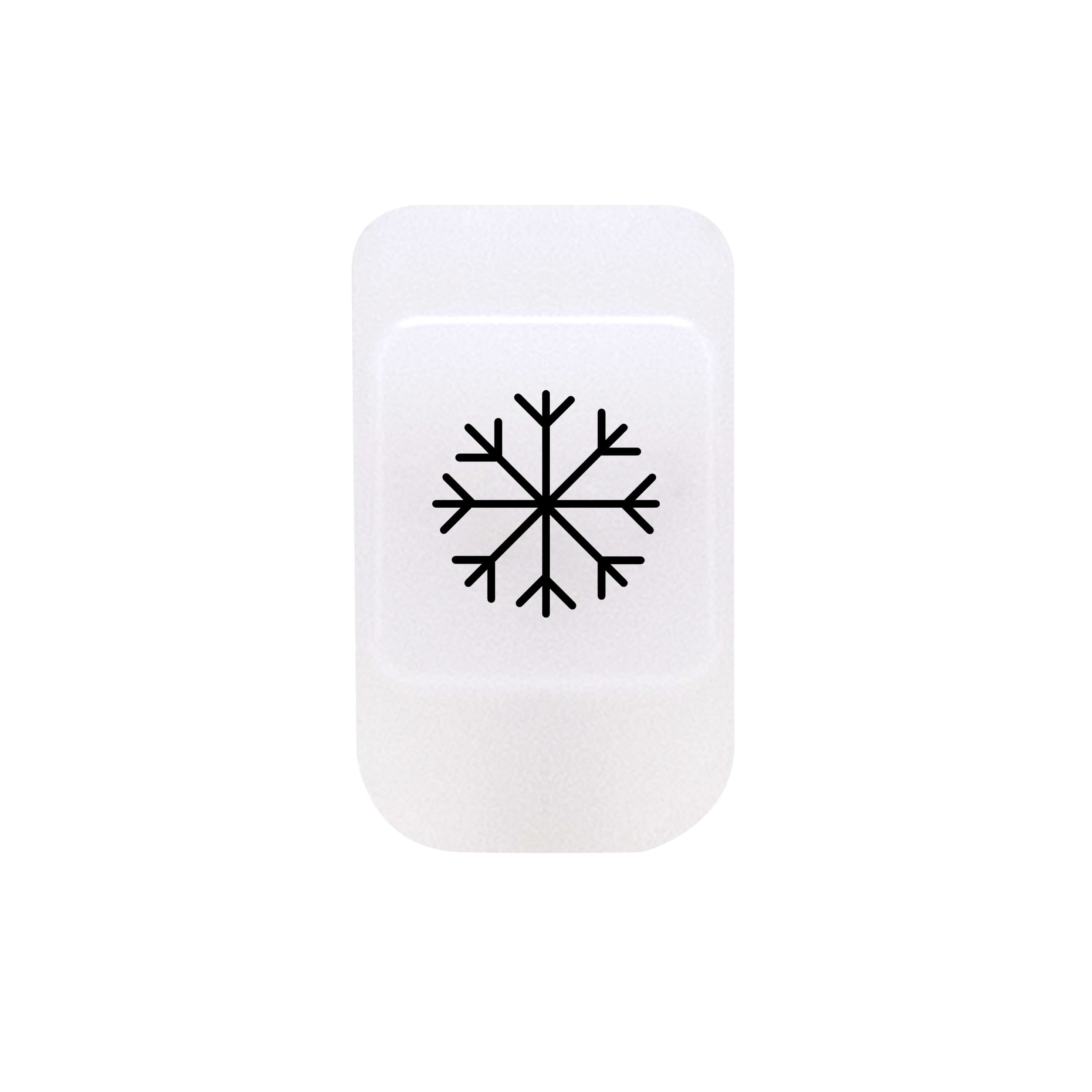

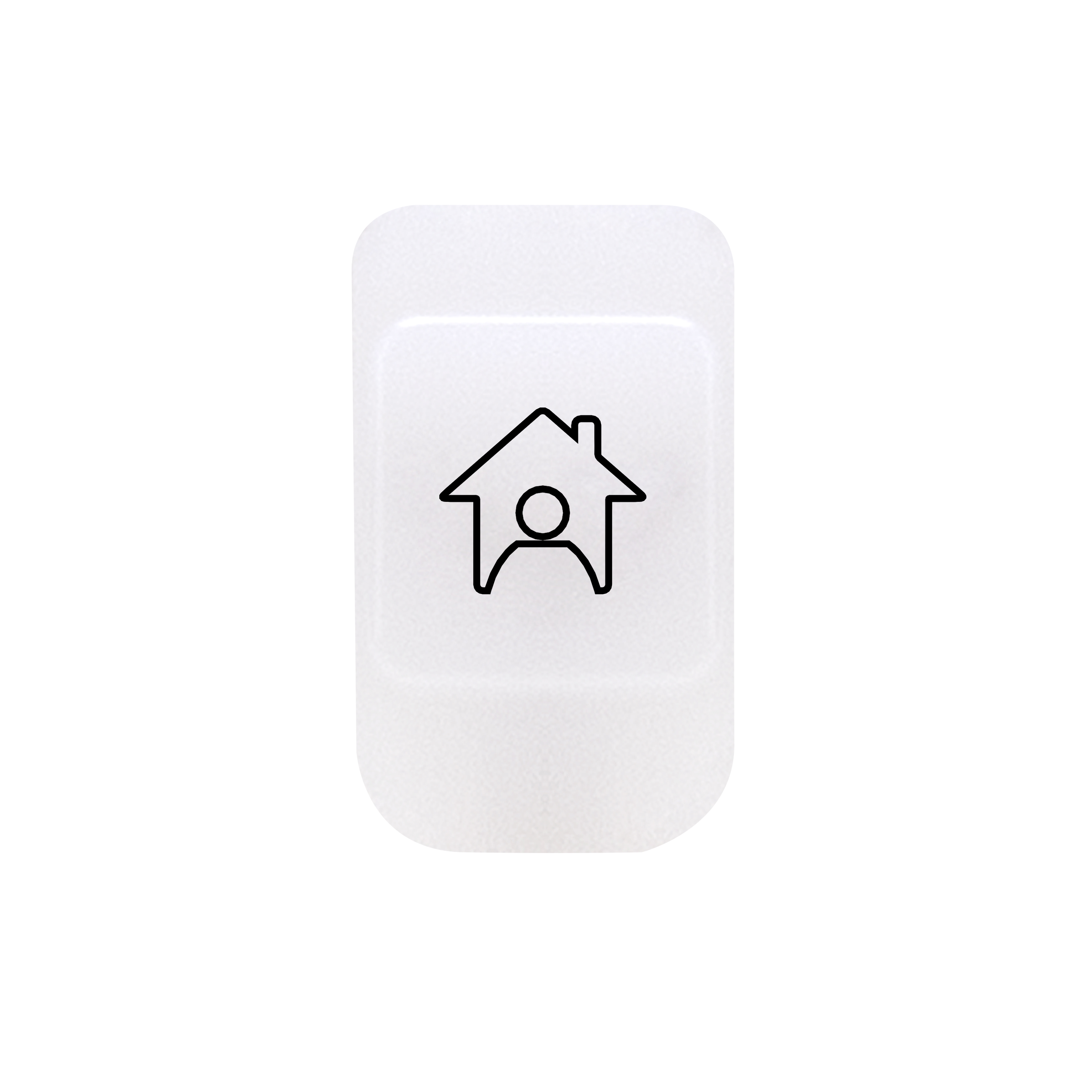

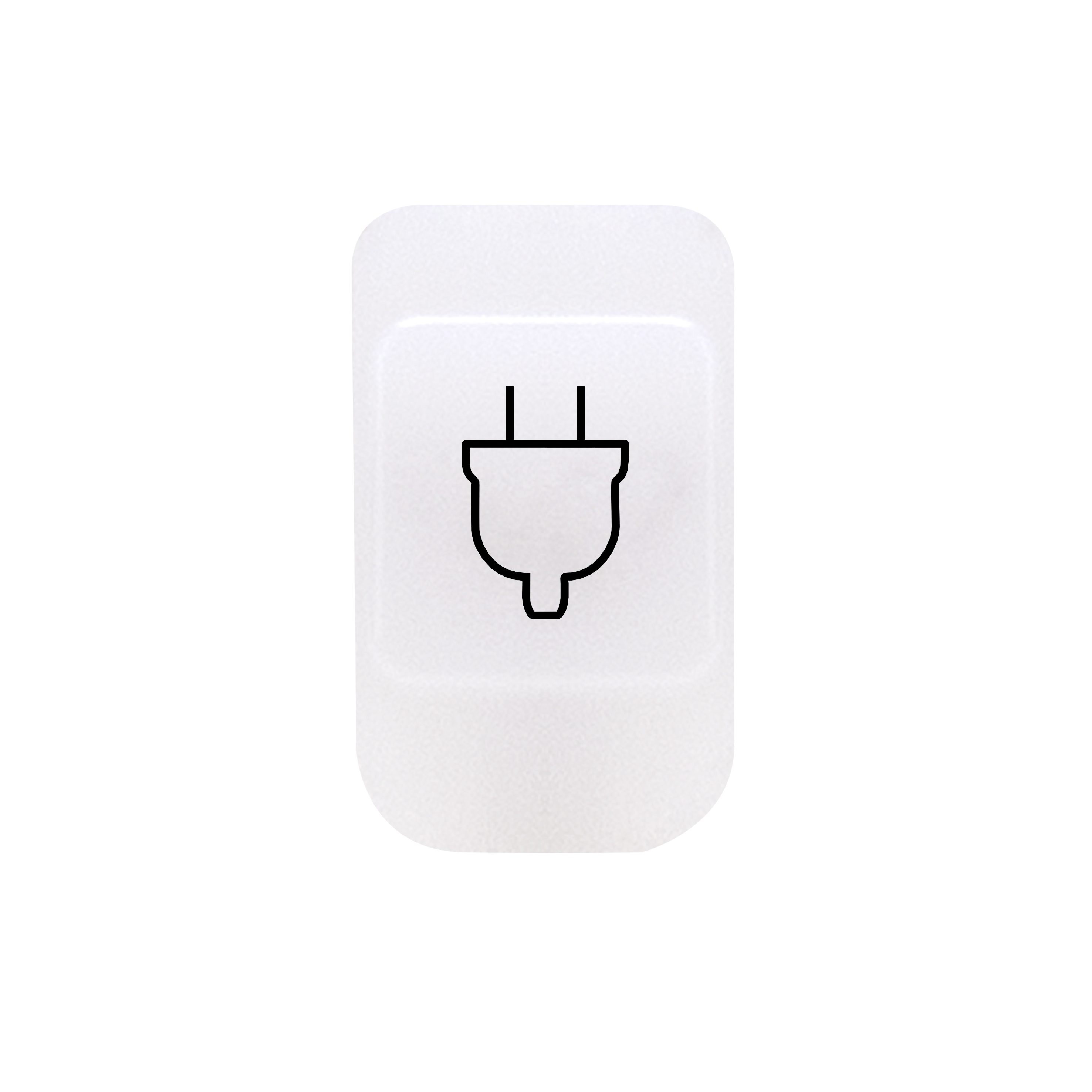

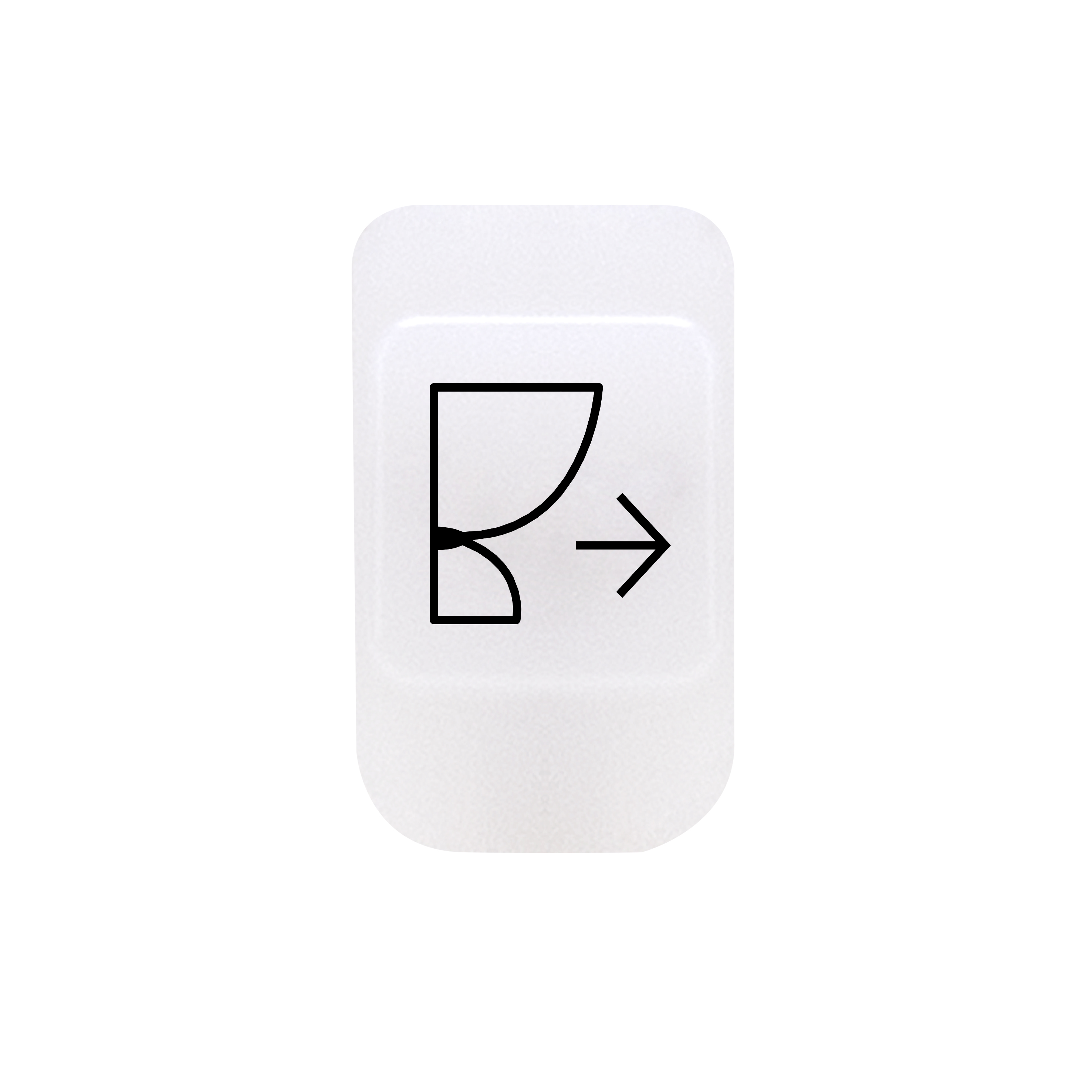

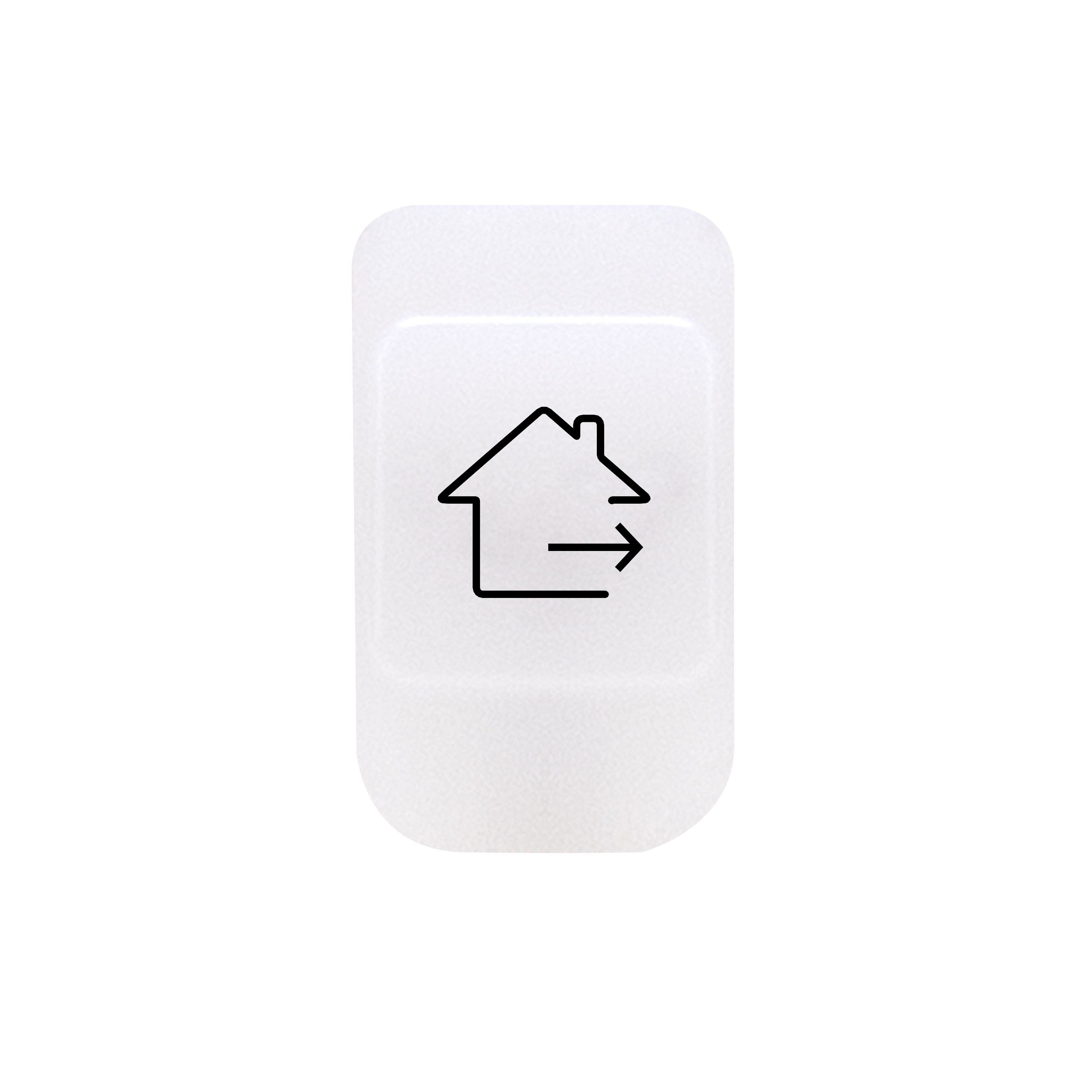

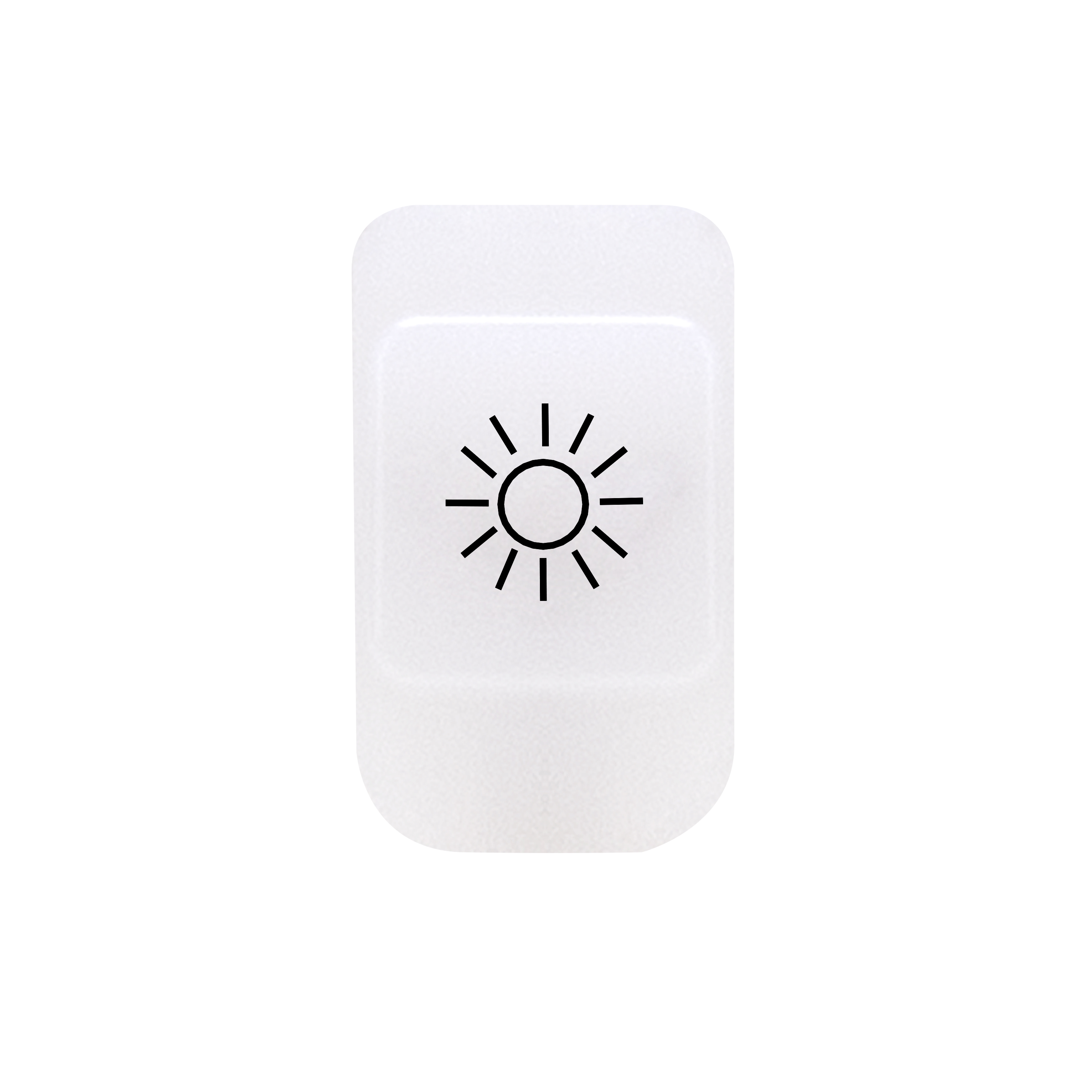

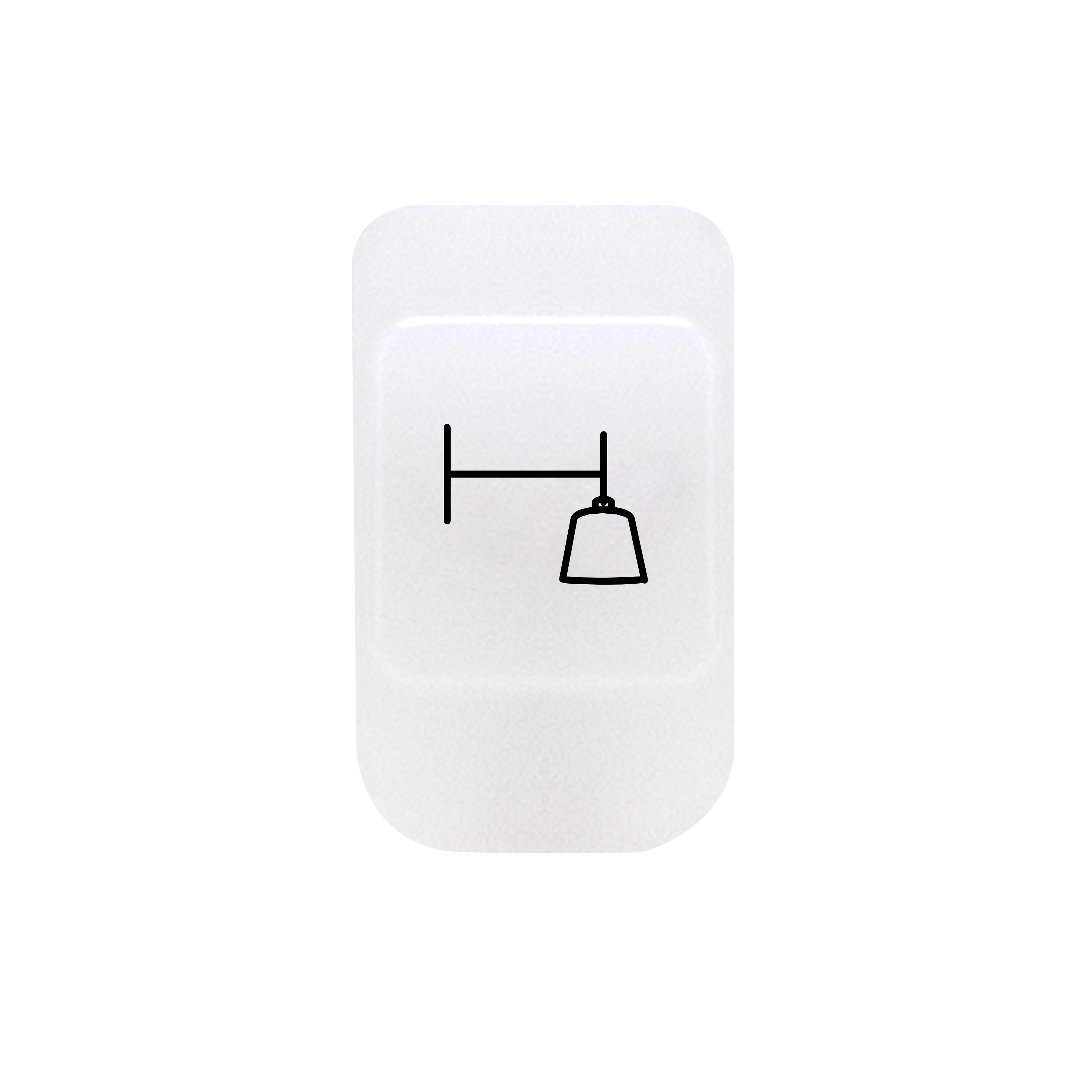

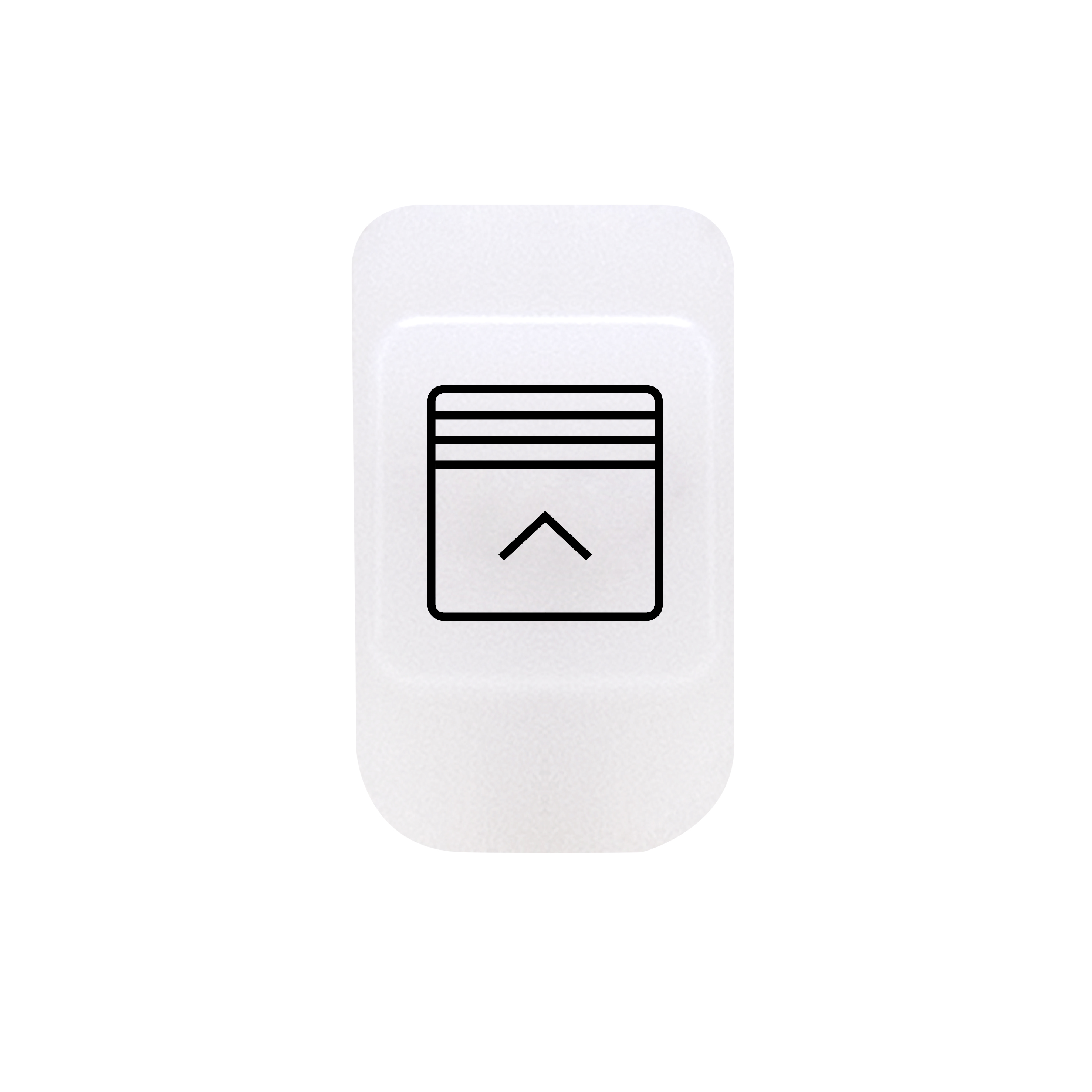

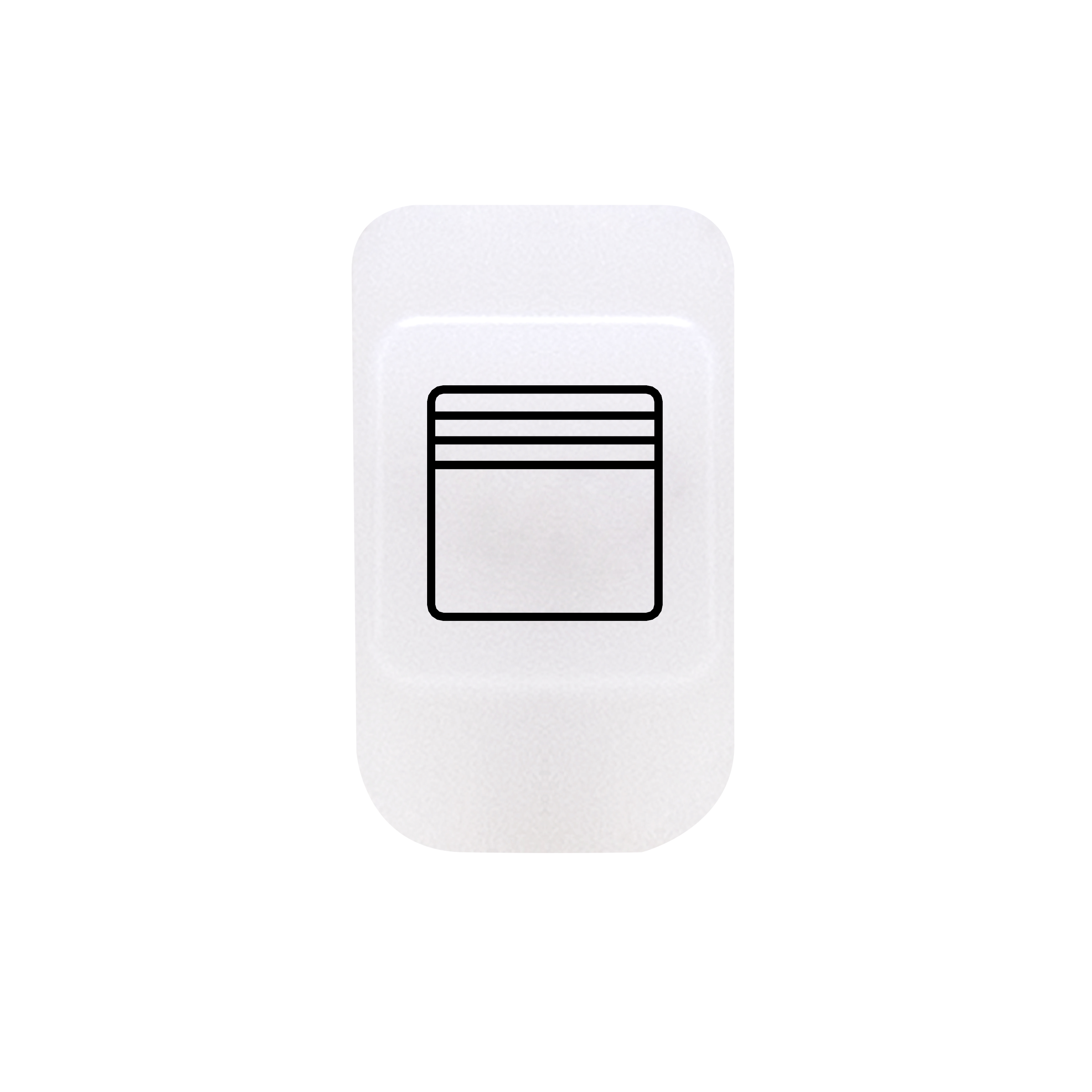

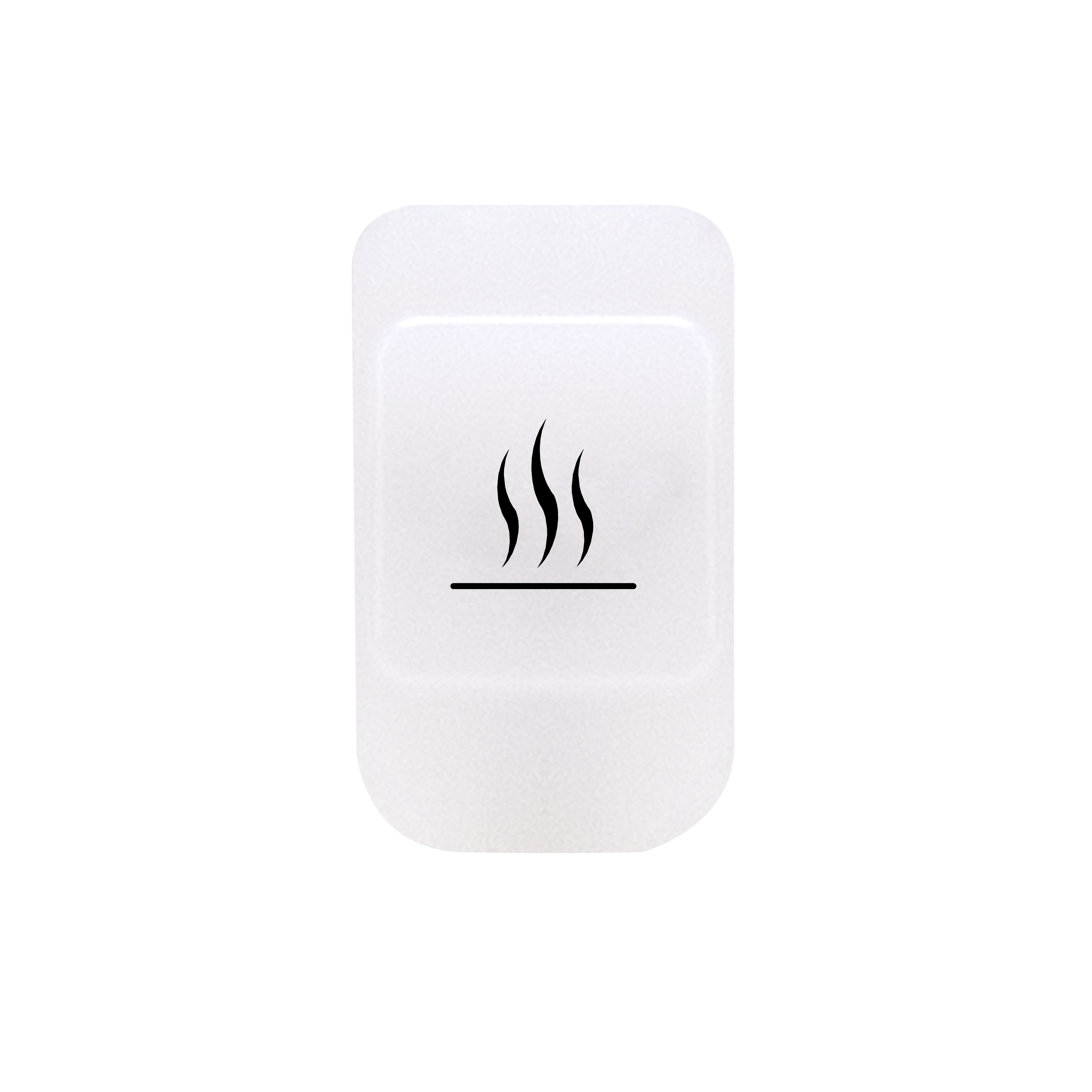

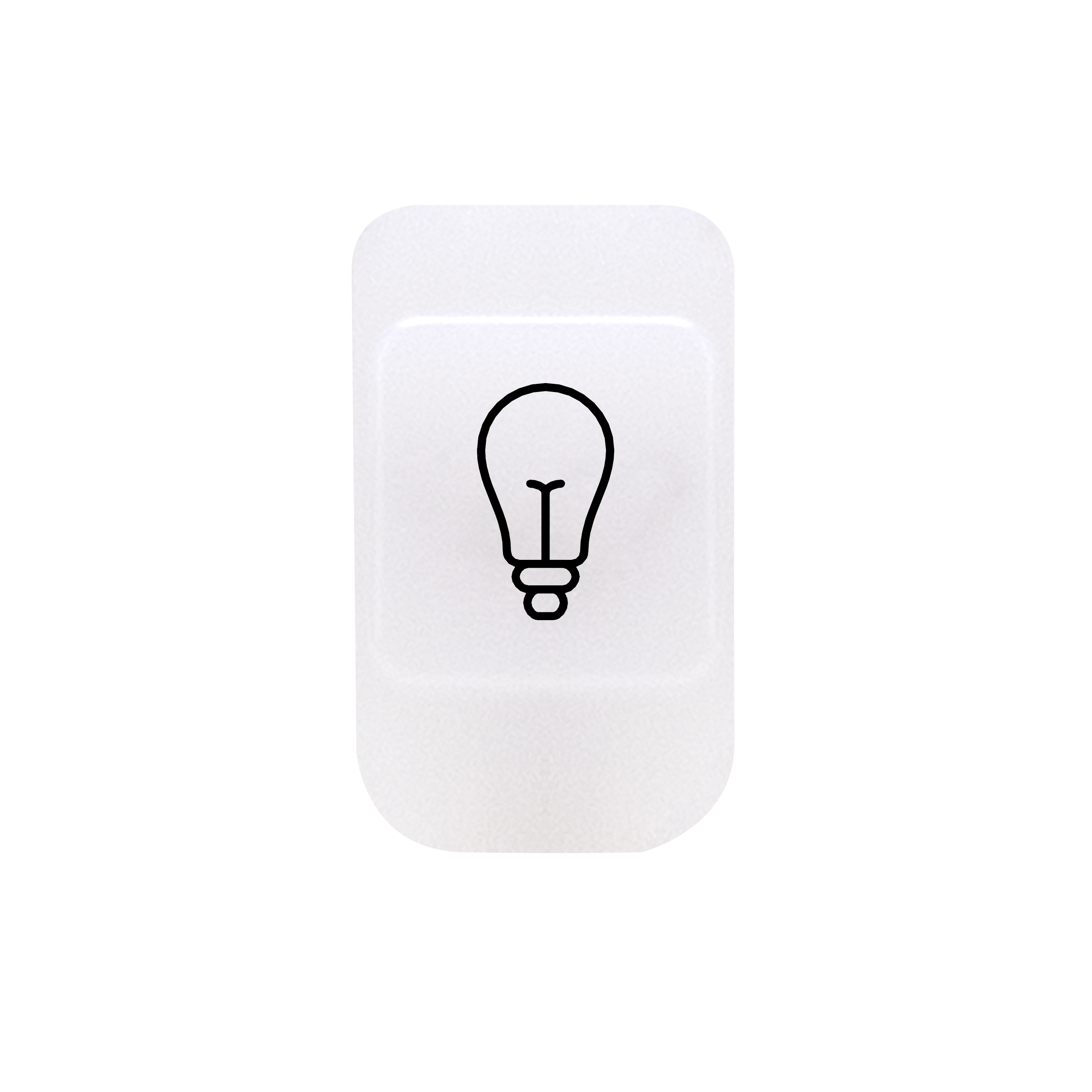

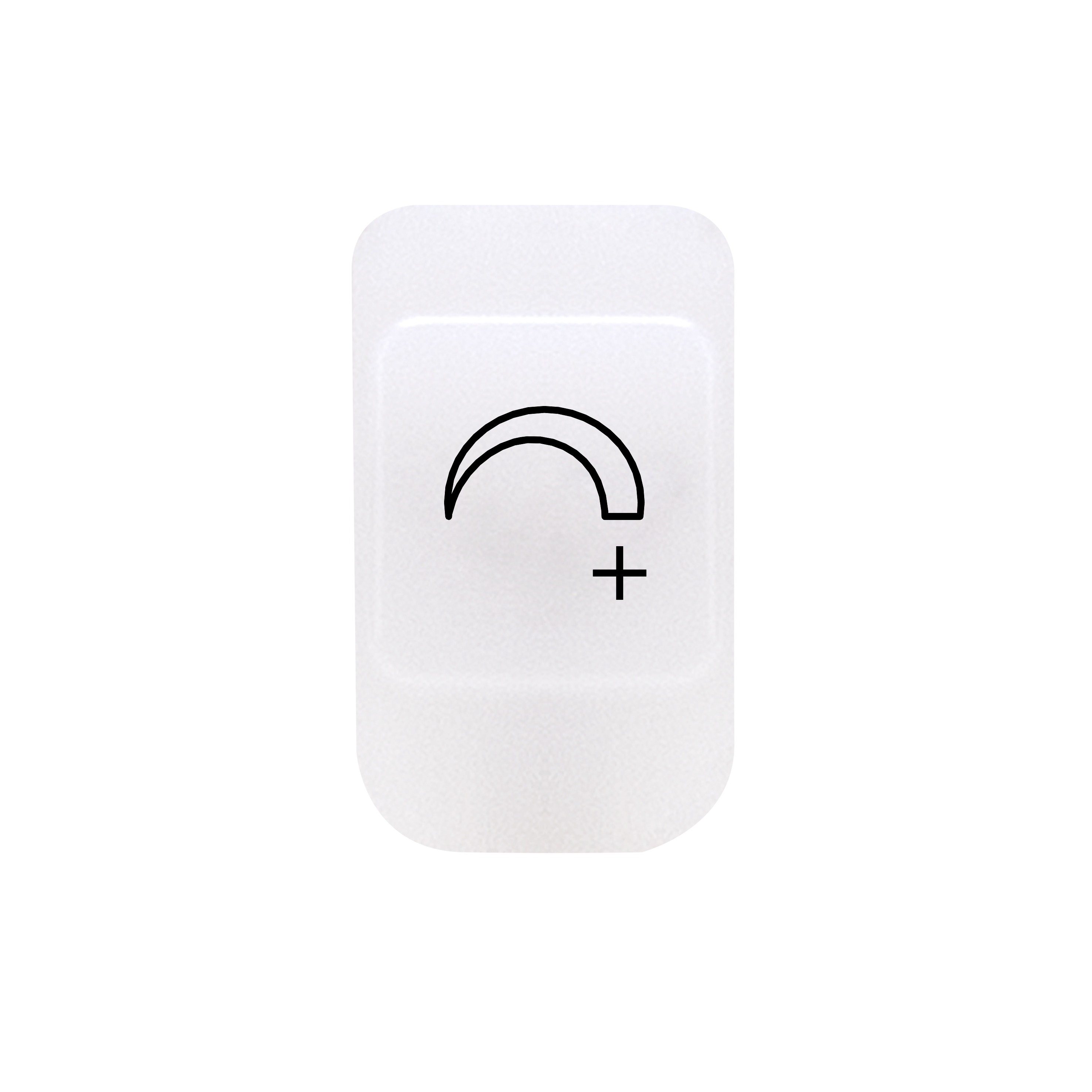

Interchangeable keys and diffusers for axial devices
Cod Gewiss
Supply voltage
Output contacts
No. modules
AXIAL ONE-WAY SWITCH MODULE EVO - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10671
100 ÷ 240 V ac - 50/60 Hz
1 NO 5A (AC1) 240 V ac
1
AXIAL ONE-WAY SWITCH MODULE EVO - 100-240 V ac - 50/60 Hz - 2 MODULES - CHORUSMART
GW10672
100 ÷ 240 V ac - 50/60 Hz
1 NO 5A (AC1) 240 V ac
2
Cod Gewiss
Supply voltage
Halogen load
Inductive load
LED load
No. modules
AXIAL DIMMER MODULE EVO - 100-240 V ac  - 50/60 Hz - 4-150W 240 Vac - 1 MODULE - CHORUSMART
GW10673
100 ÷ 240 V ac - 50/60 Hz
4 ÷ 150 W
4 - 150 VA
4 ÷ 150 W
1
AXIAL DIMMER MODULE EVO - 100-240 V ac - 50/60 Hz - 4-150W 240 Vac - 2 MODULES - CHORUSMART
GW10674
100 ÷ 240 V ac - 50/60 Hz
4 ÷ 150 W
4 - 150 VA
4 ÷ 150 W
2
Cod Gewiss
Supply voltage
Max current supplied
No. modules
AXIAL ROLLER SHUTTER/VENETIAN MODULE EVO - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10675
100 ÷ 240 V ac - 50/60 Hz
2,3 A 240 V ac (according to IEC 60669-2-1)
1
AXIAL ROLLER SHUTTER/VENETIAN MODULE EVO - 100-240 V ac - 50/60 Hz - 2 MODULE - CHORUSMART
GW10676
100 ÷ 240 V ac - 50/60 Hz
2,3 A 240 V ac (according to IEC 60669-2-1)
2
Cod Gewiss
Supply voltage
Output contacts
No. modules
AUXILIARY AXIAL 1 COMMAND MODULE - 100-240 V ac 50/60 Hz - 1 MODULE - CHORUSMART
GW10677
100 ÷ 240 V ac - 50/60 Hz
1A (AC1)
1
AUXILIARY AXIAL 1 COMMAND MODULE - 100-240 V ac 50/60 Hz - 2 MODULES - CHORUSMART
GW10678
100 ÷ 240 V ac - 50/60 Hz
1A (AC1)
2
Cod Gewiss
Supply voltage
Output contacts
No. modules
AUXILIARY AXIAL 2 COMMANDS MODULE - 100-240 V ac 50/60 Hz - 1 MODULE - CHORUSMART
GW10679
100 ÷ 240 V ac - 50/60 Hz
n. 2 x 1A (AC1)
1
AUXILIARY AXIAL 2 COMMANDS MODULE - 100-240 V ac 50/60 Hz - 2 MODULES - CHORUSMART
GW10680
100 ÷ 240 V ac - 50/60 Hz
n. 2 x 1A (AC1)
2
Cod Gewiss
Colour
Button key
No. modules
REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - TO BE COMPLETED WITH LENS - 1 MODULE - SATIN WHITE - CHORUSMART
GW15551S
Satin white
To be completed with lens
1
REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - TO BE COMPLETED WITH LENS - 2 MODULES - SATIN WHITE - CHORUSMART
GW15552S
Satin white
To be completed with lens
2

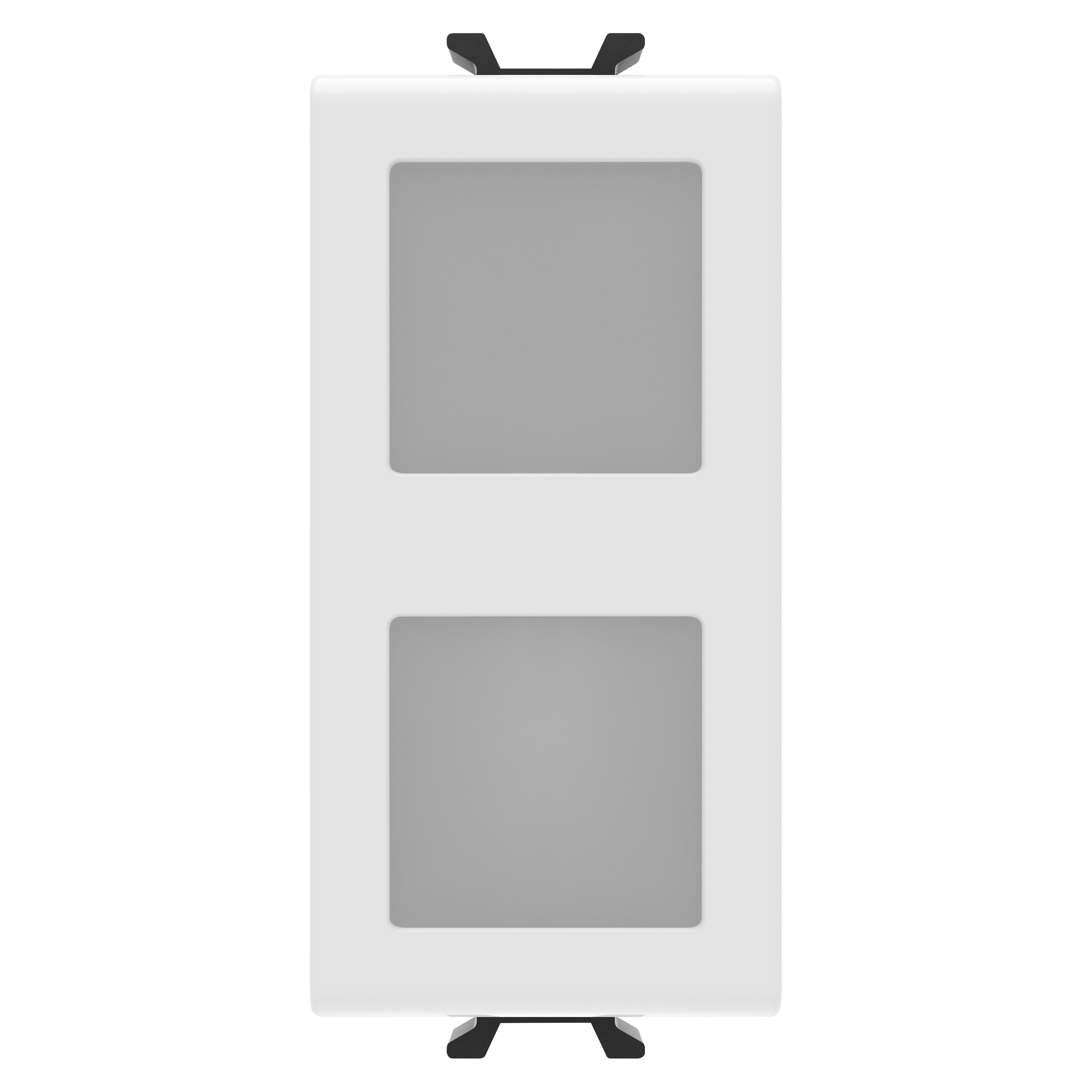

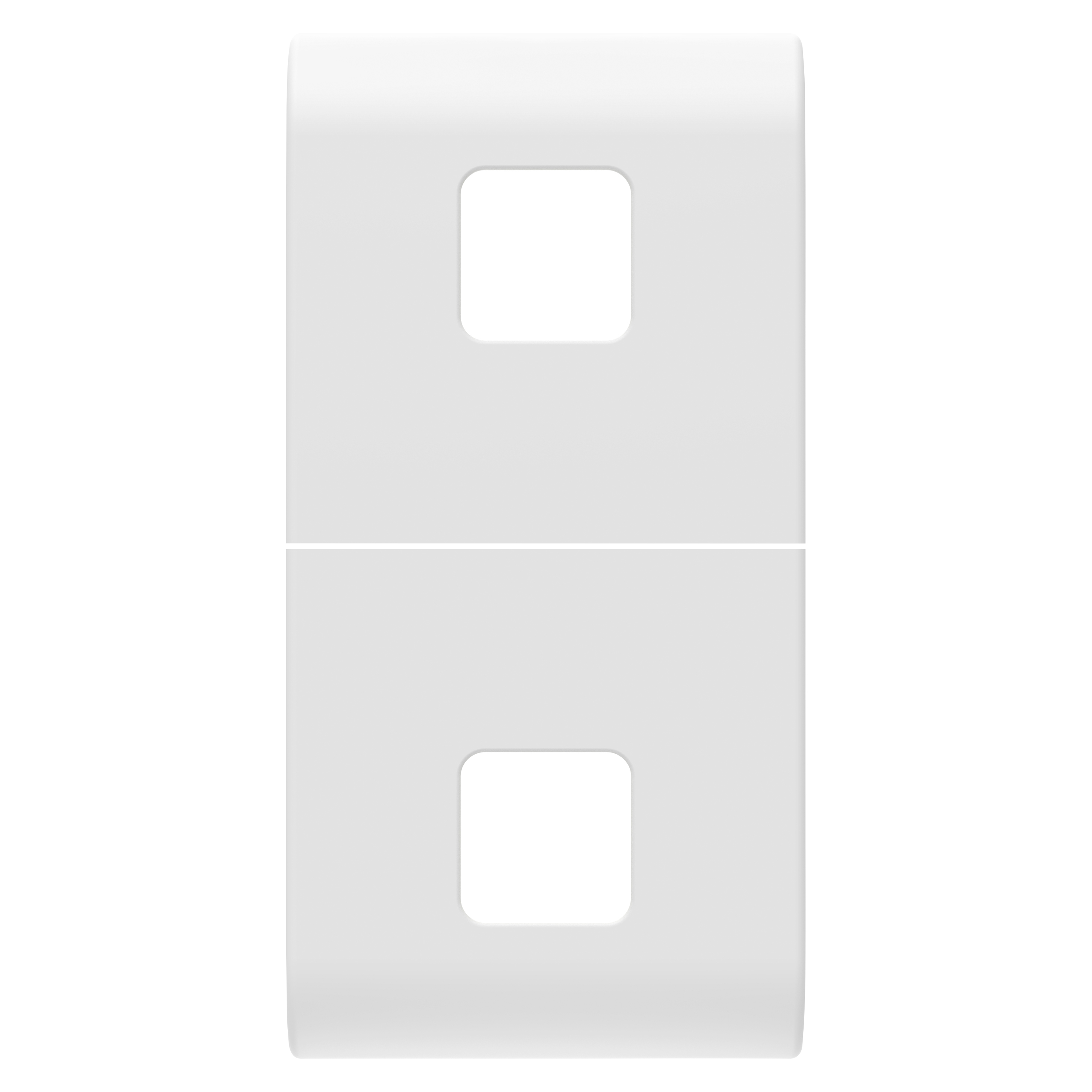

REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - TO BE COMPLETED WITH 2 LENS - 1 MODULE - SATIN WHITE - CHORUSMART
GW15553S
Satin white
To be completed with 2 lenses
1
REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - TO BE COMPLETED WITH 2 LENS - 2 MODULES - SATIN WHITE - CHORUSMART
GW15554S
Satin white
To be completed with 2 lenses
2
REPLACEABLE BUTTON KEY FOR AXIAL COMMANDS - WITH DIFFUSER - 1 MODULE - SATIN WHITE - CHORUSMART
GW15555S
Satin white
With 1 diffuser
1

Lenses with illuminated symbol

Category
Symbols for illuminable switches and push-buttons

Change category

Symbols for illuminable switches and push-buttons
Lenses with illuminating symbols for axial button keys
Cod Gewiss
Suitable for
Symbol
SYMBOL FOR ILLUMINABLE COMMAND DEVICES - TRANSPARENT - CHORUSMART
GW10501
General services
Neutral

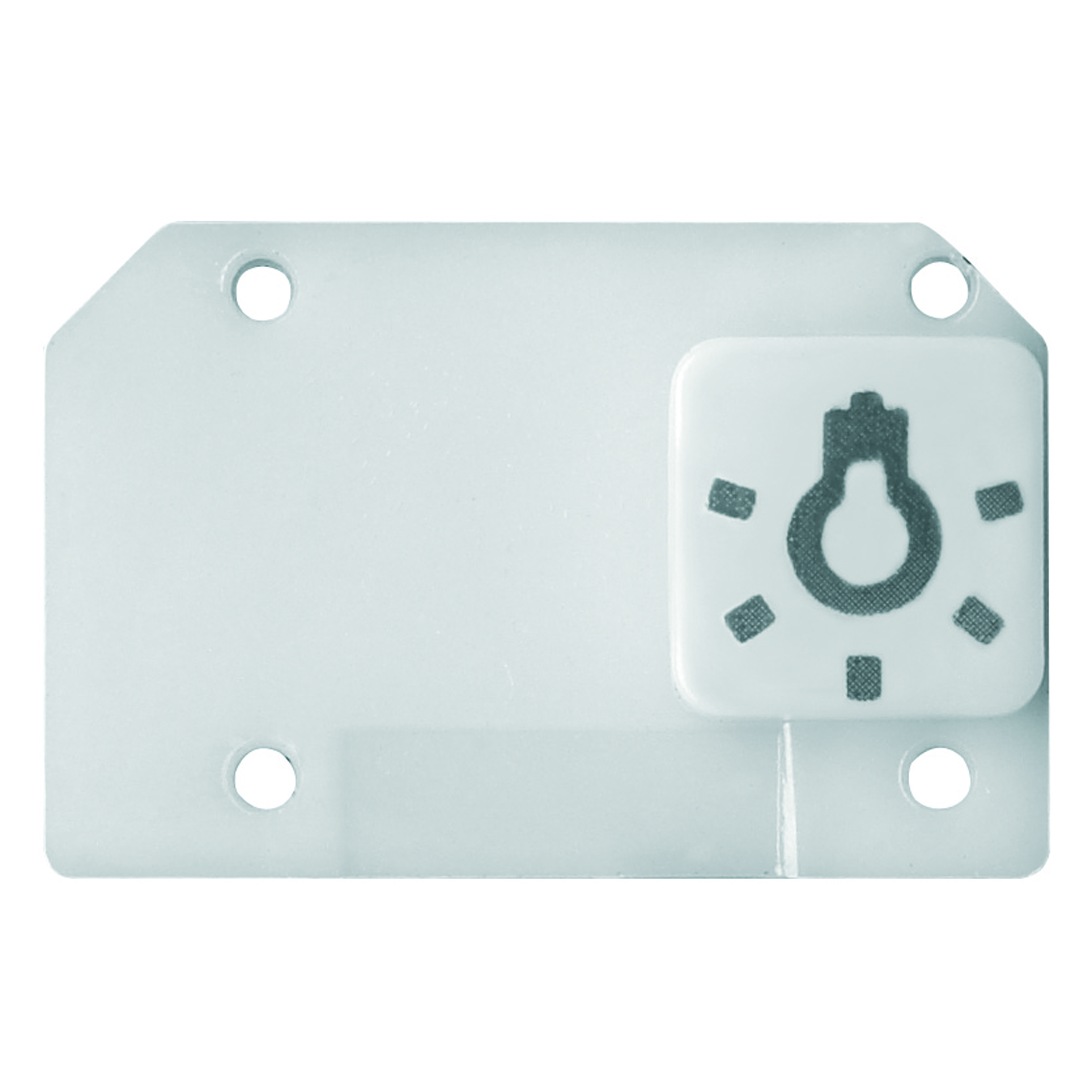

SYMBOL FOR ILLUMINABLE COMMAND DEVICES - LIGHT - CHORUSMART
GW10502
General services
Light

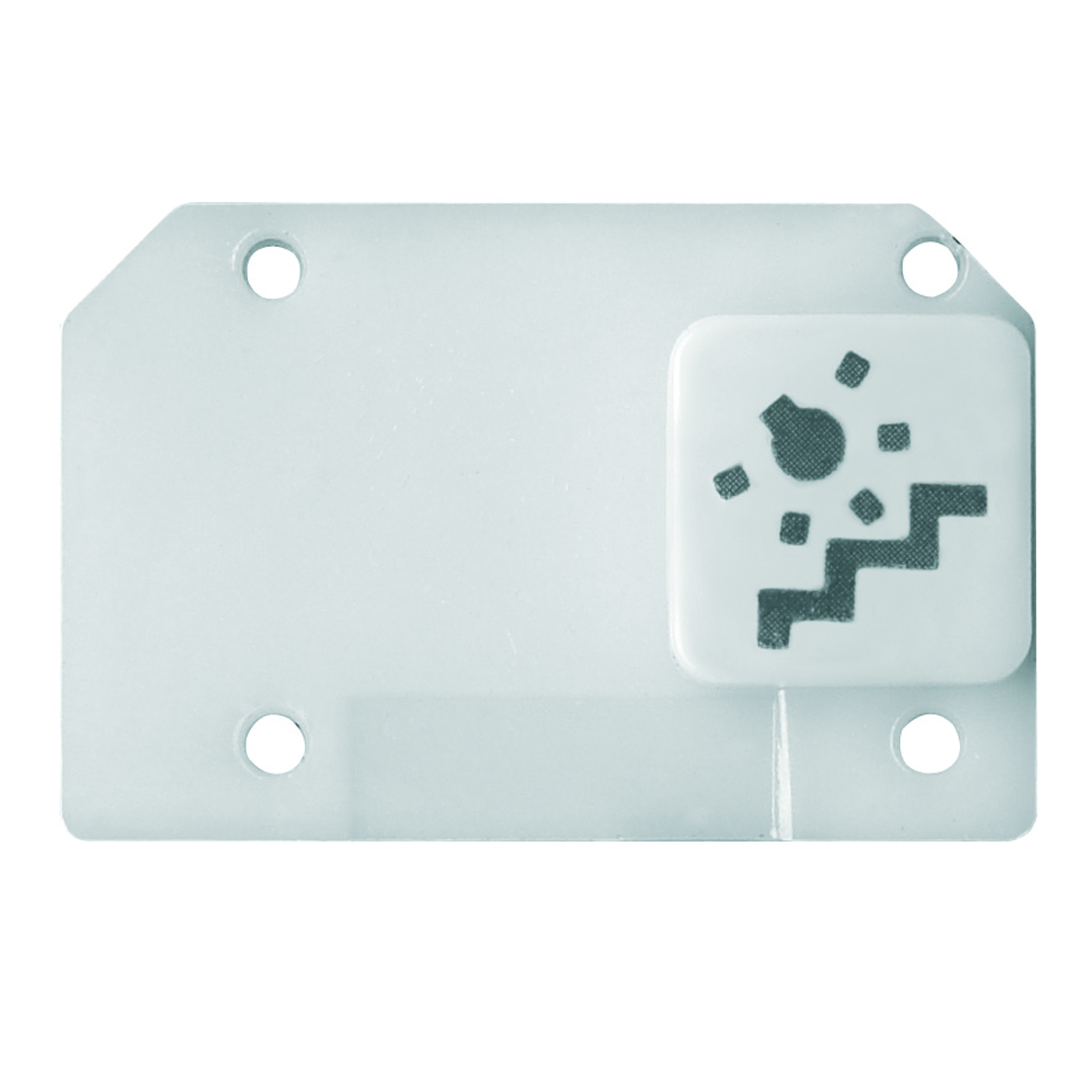

SYMBOL FOR ILLUMINABLE COMMAND DEVICES - STAIR LIGHT - CHORUSMART
GW10503
General services
Stair light

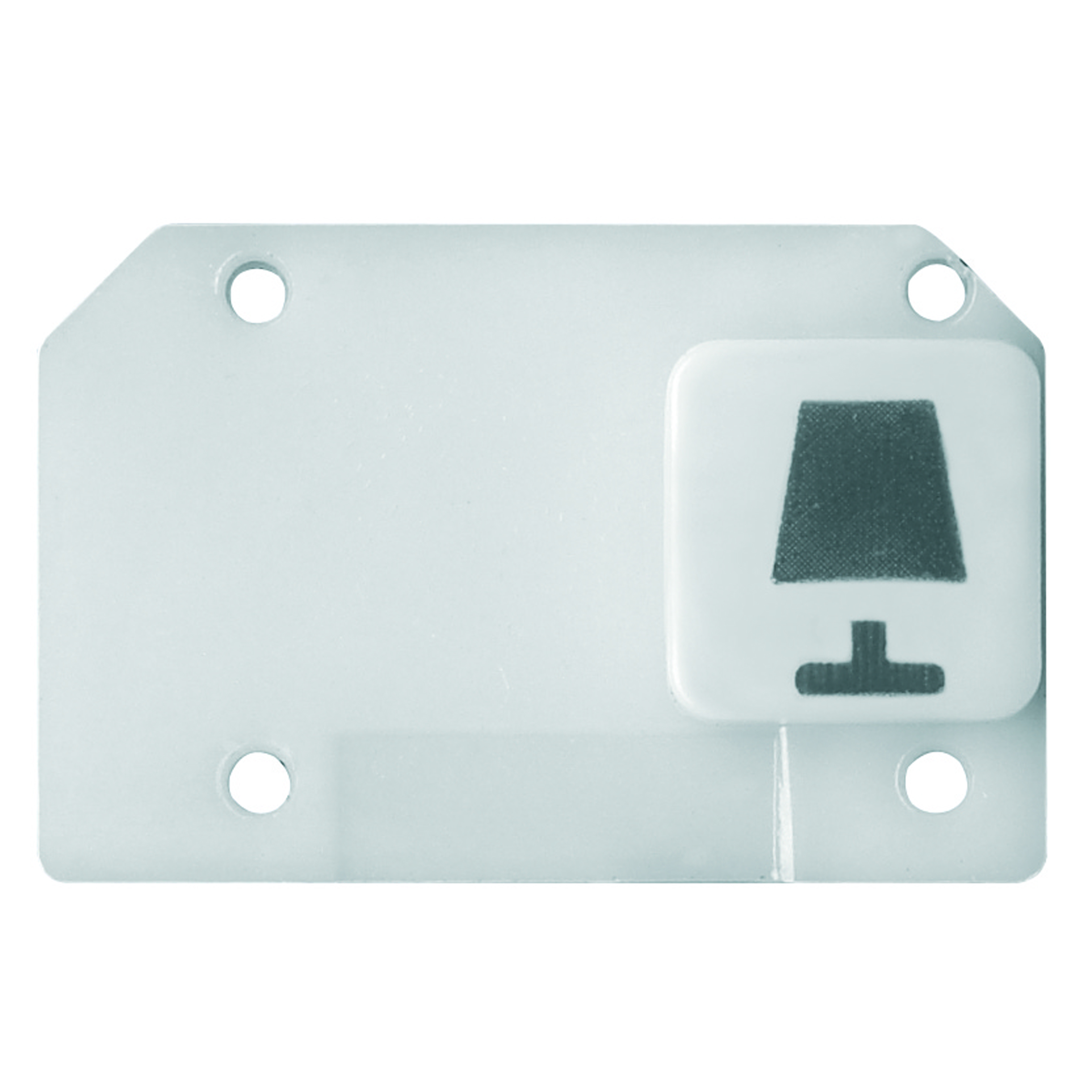

SYMBOL FOR ILLUMINABLE COMMAND DEVICES - TABLE LIGHT - CHORUSMART
GW10504
General services
Table light
SYMBOL FOR ILLUMINABLE COMMAND DEVICES - BELL - CHORUSMART
GW10505
General services
Bell
Cod Gewiss
Symbol

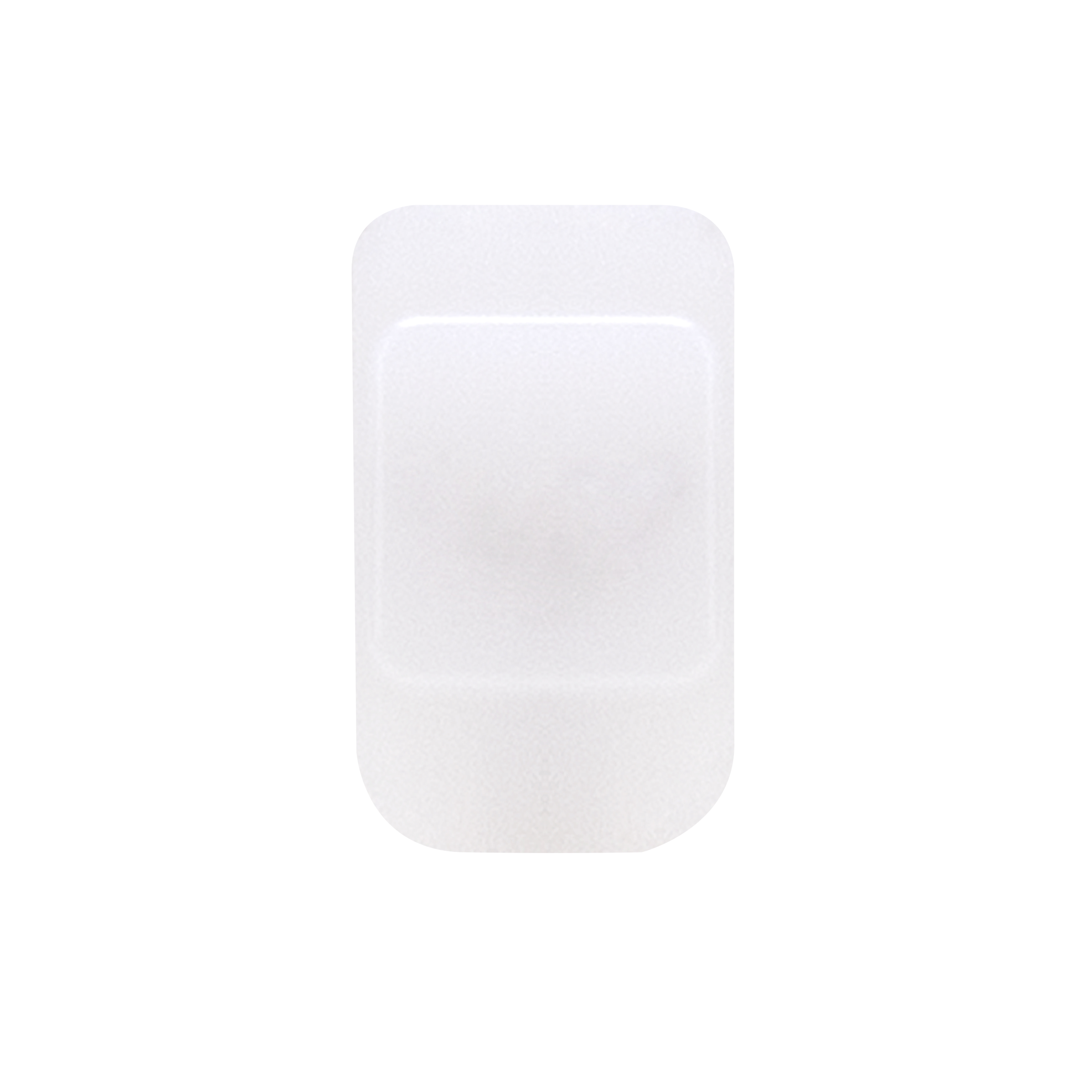

LENS WITH ILLUMINABLE SYMBOL - TRANSPARENT
GW10501A
Neutral
LENS WITH ILLUMINABLE SYMBOL - LIGHT
GW10502A
Light
LENS WITH ILLUMINABLE SYMBOL - STAIR LIGHT
GW10503A
Stair light

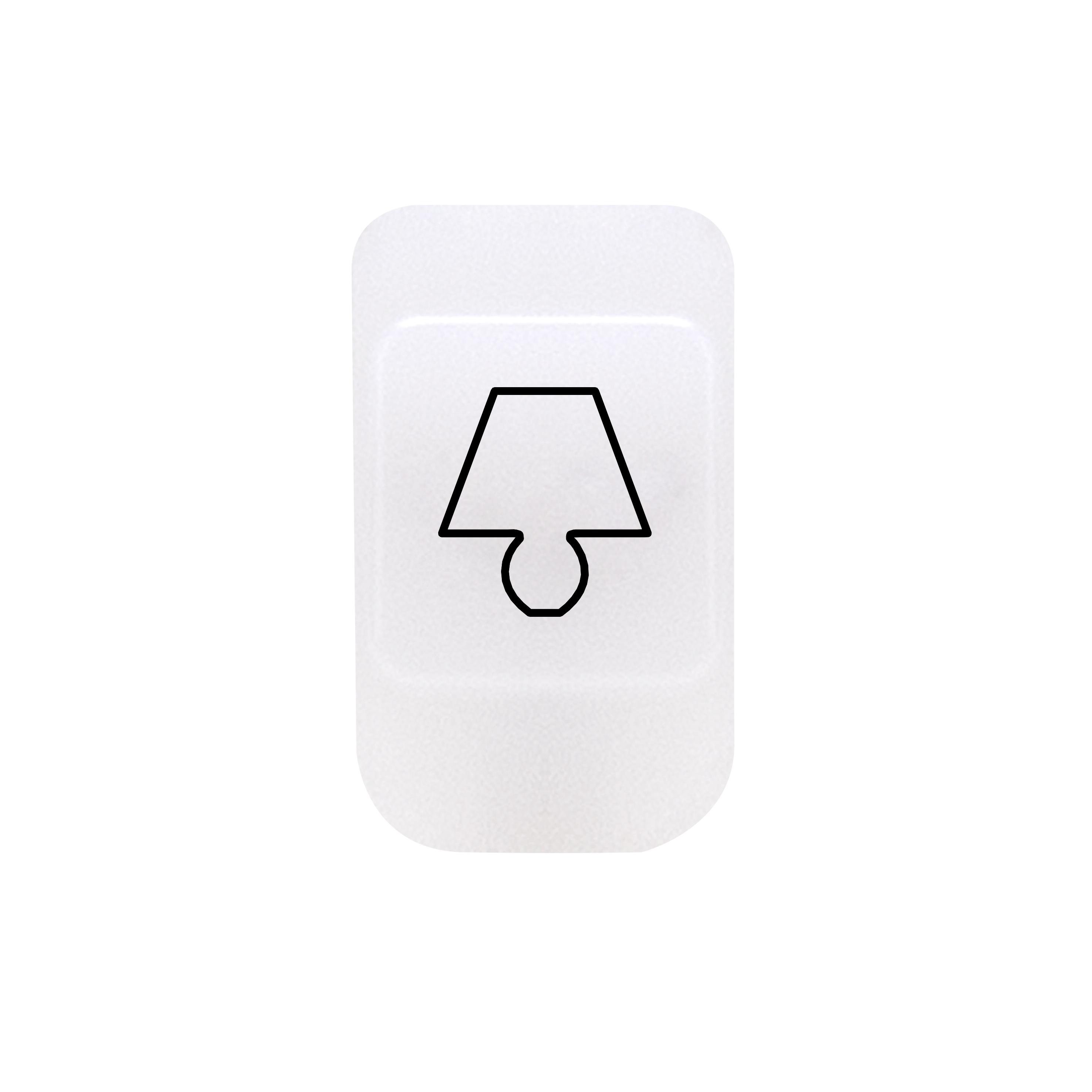

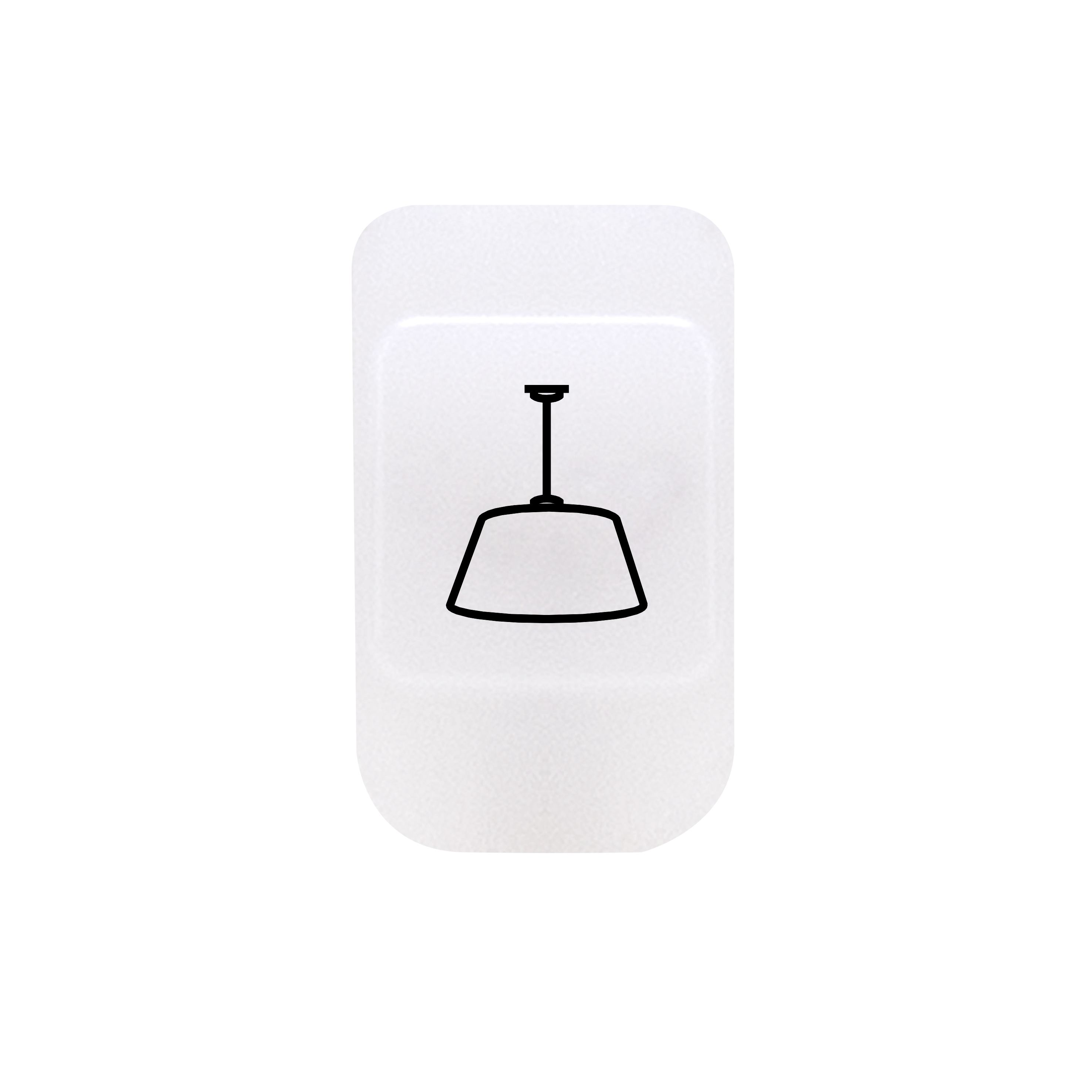

LENS WITH ILLUMINABLE SYMBOL - TABLE LIGHT
GW10504A
Table light

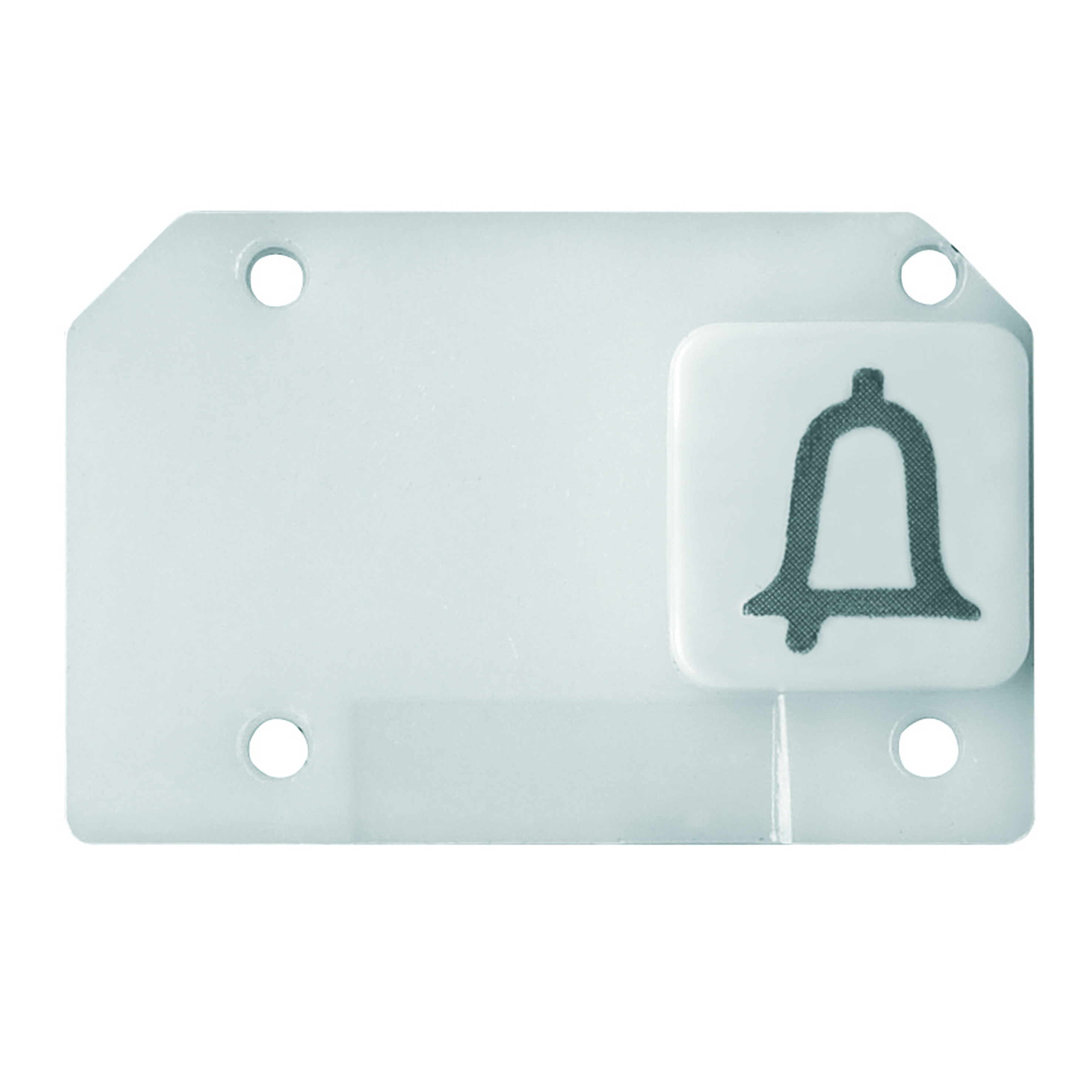

LENS WITH ILLUMINABLE SYMBOL - BELL
GW10505A
Bell

Interchangeable button keys and diffusers

Category
Interchangeable button keys and diffusers

Change category

Interchangeable button keys and diffusers
Cod Gewiss
Description
Symbol
INTERCHANGEABLE BUTTON KEY - 22X22mm - GENERAL - SATIN WHITE - CHORUSMART
GW15541
Keys 22x22 mm
General

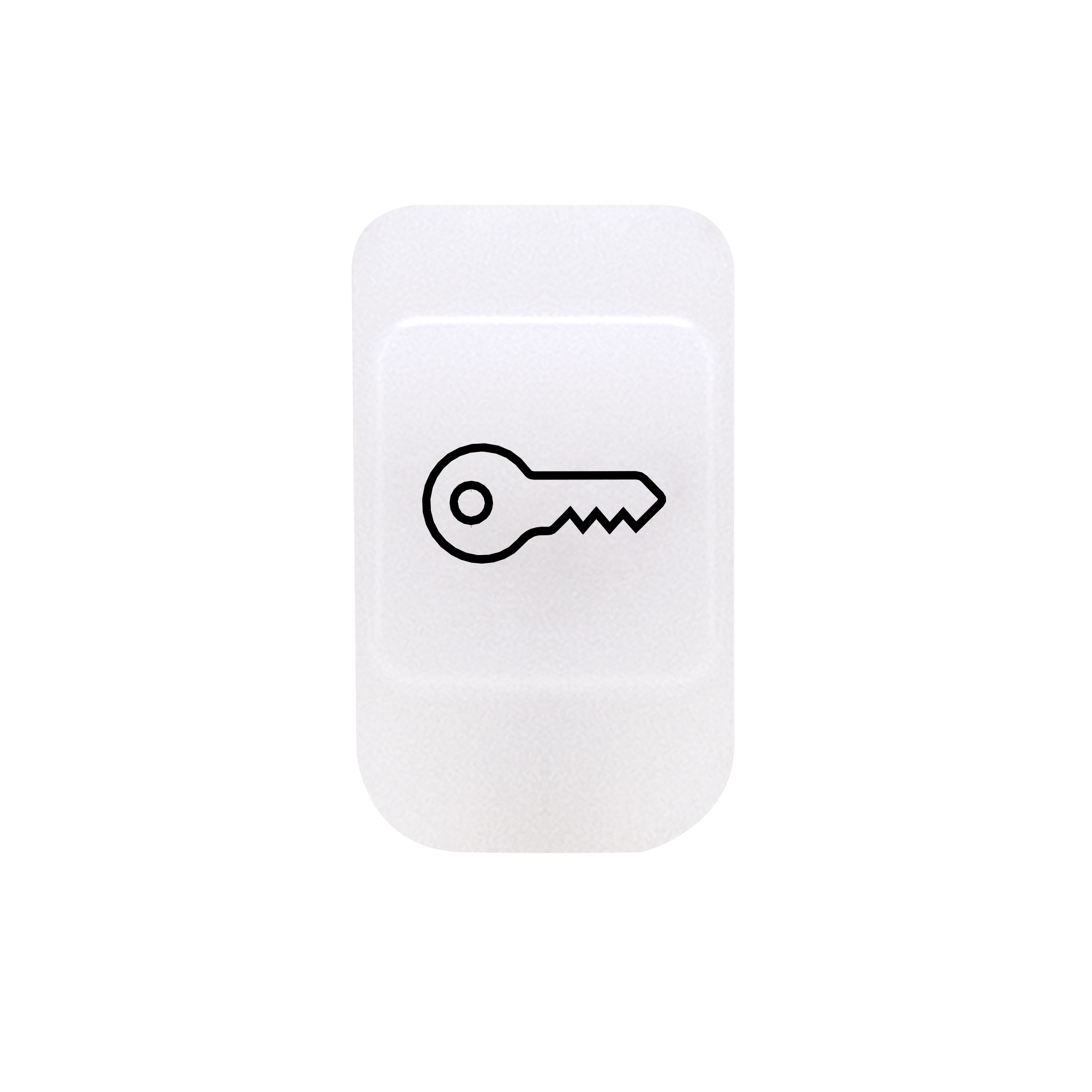

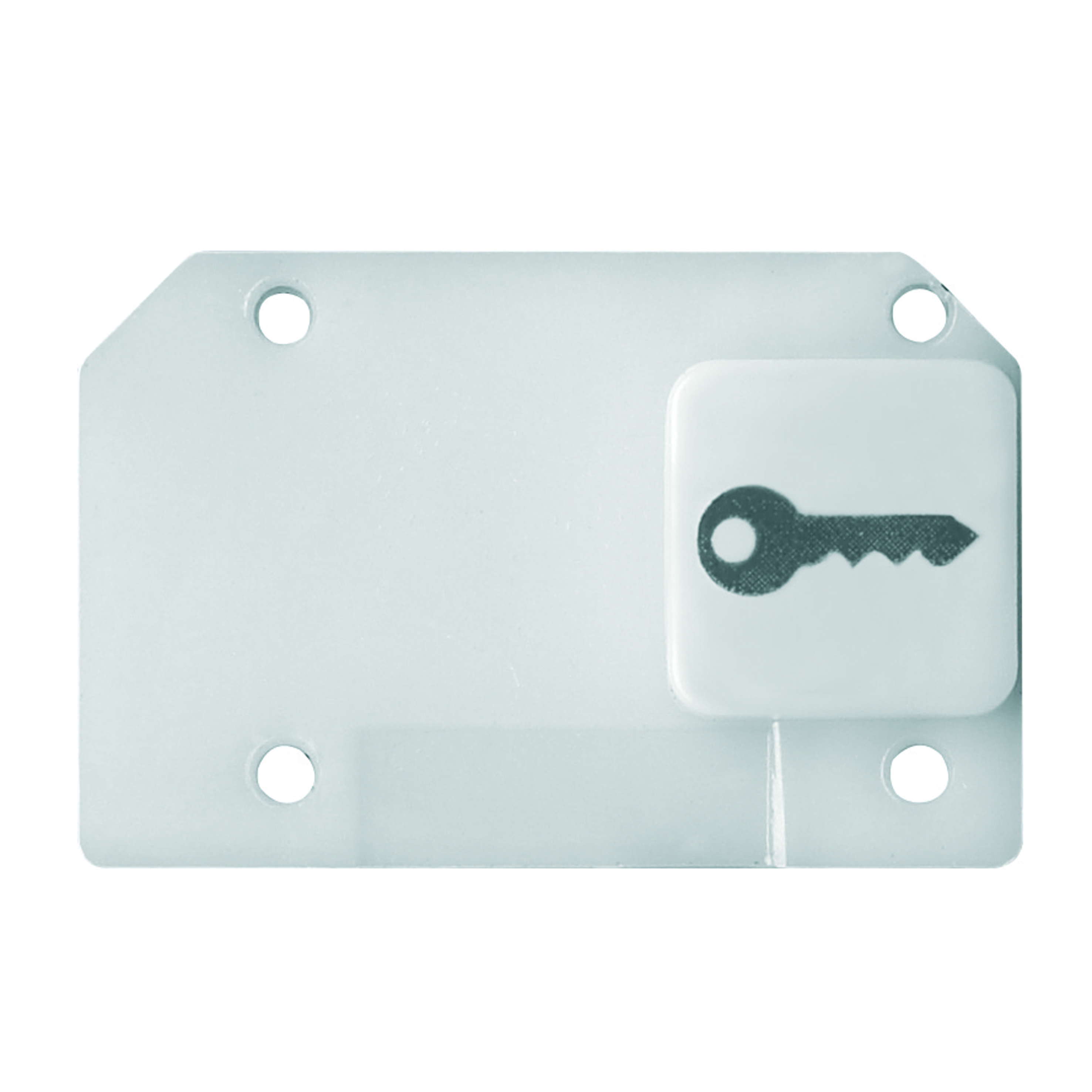

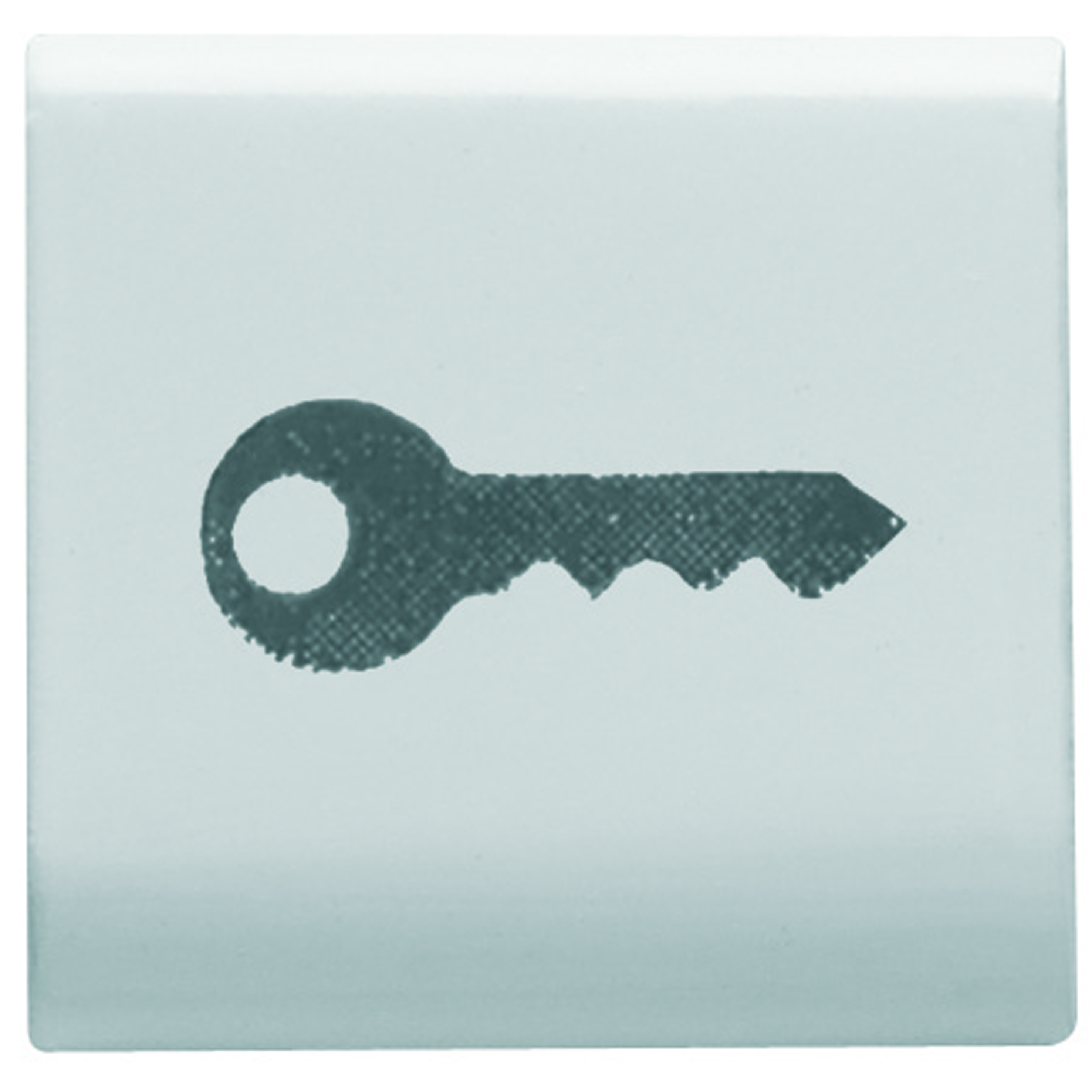

INTERCHANGEABLE BUTTON KEY - 22X22mm - KEY - SATIN WHITE - CHORUSMART
GW15543
Keys 22x22 mm
Key
INTERCHANGEABLE BUTTON KEY - 22X22mm - BELL - SATIN WHITE - CHORUSMART
GW15544
Keys 22x22 mm
Bell

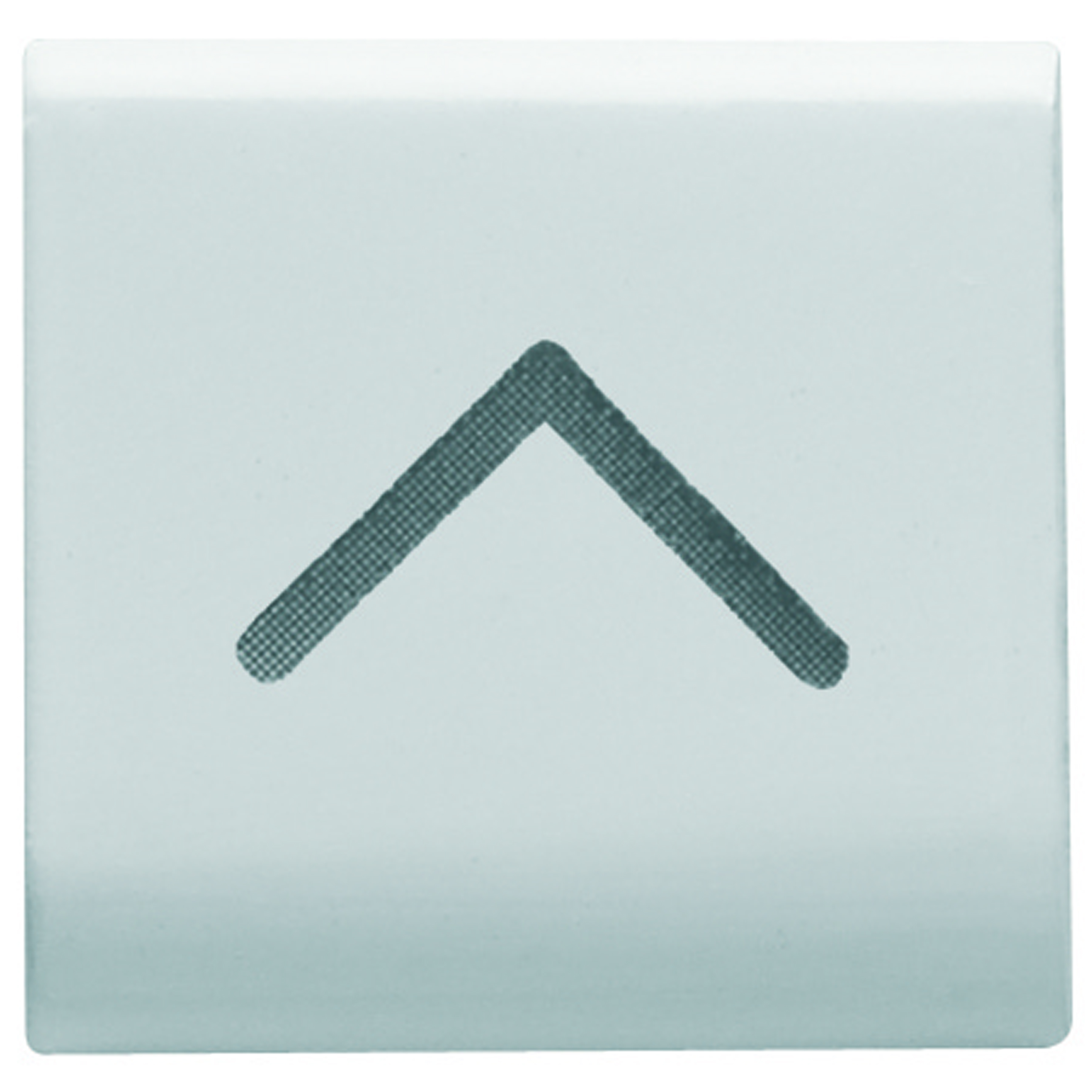

INTERCHANGEABLE BUTTON KEY - 22X22mm - VERTICAL ARROW - SATIN WHITE - CHORUSMART
GW15545
Keys 22x22 mm
Vertical arrow
INTERCHANGEABLE BUTTON KEY - 22X22mm - HORIZONTAL ARROW - SATIN WHITE - CHORUSMART
GW15546
Keys 22x22 mm
Horizontal arrow

Soft-click electronic push-buttons

Category
Universal

Change category

Universal
Backlit
Back-lights for BUS inputs
Double
Cod Gewiss
Type of contact
Button key
Type of use
No. modules
ELECTRONIC SOFT-CLICK PUSH-BUTTON - NEUTRAL BUTTON - FOR RELAY/DIMMER/BUS CONT.INTERF. - 1P NO/NC 4A POT.-FREE - 1 MODULE - SATIN WHITE - CHORUSMART
GW15915
1NO/NC 4A (AC1) 230 V ac - Potential-free
Neutral
Relay, dimmer, bus contacts interfaces
1
Cod Gewiss
Supply voltage
Type of contact
Button key
Type of use
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH DIFFUSER - FOR RELAY AND DIMMER - 1P NO 4A - 230V ac 50/60Hz - 1 MODULE - SATIN WHITE - CHORUSMART
GW15912
230 V ac - 50/60 Hz
1NO 4A (AC1) 230 V ac
With diffuser
Relay, dimmer
Cod Gewiss
No. modules
Type of contact
Button key
Type of use
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH DIFFUSER - FOR BUS CONTACTS INTERFACES - 1P NO POTENTIAL-FREE - 1 MODULE - SATIN WHITE - CHORUSMART
GW15913
1
1NO - Potential-free
With diffuser
Bus contacts interfaces
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH REPL.NEUTRAL LENS - FOR BUS CONTACTS INTERF.- 1P NO POT.-FREE - 1 MODULE - SATIN WHITE - CHORUSMART
GW15916
1
1NO - Potential-free
With replaceable neutral lens
Bus contacts interfaces
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH DIFFUSER - FOR BUS CONTACTS INTERF. - 1P NO POTENTIAL-FREE - 2 MODULES - SATIN WHITE - CHORUSMART
GW15917
2
1NO - Potential-free
With diffuser
Bus contacts interfaces
ELECTRONIC SOFT-CLICK PUSH-BUTTON - BACKLIT - WITH REPL.NEUTRAL LENS - FOR BUS CONTACTS INTERF.- 1P NO POT.- FREE - 2M - SATIN WHITE - CHORUSMART
GW15918
2
1NO - Potential-free
With replaceable neutral lens
Bus contacts interfaces
Cod Gewiss
Type of contact
Button key
Symbol
No. modules
ELECTRONIC SOFT-CLICK PUSH-BUTTON - DOUBLE - FOR BUS CONTACTS INTERFACES - 1P 2NO/NC POTENTIAL-FREE - 1 MODULE - SATIN WHITE - CHORUSMART
GW15914
Dual, potential-free and with interlock
Neutral
UP - DOWN
1

Touch command modules

Category
Touch one-way switch module

Change category

Touch one-way switch module
Touch dimmer module
Touch roller shutter module
Auxiliary touch 1-channel control module
Auxiliary touch 2-channel control module
Cod Gewiss
Supply voltage
Output contacts
No. modules
TOUCH ONE WAY SWITCH MODULE - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10922
100 ÷ 240 V ac - 50/60 Hz
1 NO 5A (AC1) 240 V ac
1
Cod Gewiss
Supply voltage
Halogen load
Inductive load
LED load
No. modules
TOUCH DIMMER MODULE - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10923
100 ÷ 240 V ac - 50/60 Hz
4 ÷ 150 W
4 - 150 VA
4 ÷ 150 W
1
Cod Gewiss
Supply voltage
Maximum output power
No. modules
TOUCH ROLLER/SHUTTER MODULE - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10921
100 ÷ 240 V ac - 50/60 Hz
2,3 A 240 V ac (according to IEC 60669-2-1)
1
Cod Gewiss
Supply voltage
Output contacts
No. modules
TOUCH COMMAND DUPLICATOR MODULE FOR ONE WAY TOUCH SWITCH - 100-240 V ac - 50/60 Hz - 1 MODULE - CHORUSMART
GW10924
100 ÷ 240 V ac - 50/60 Hz
-
1
Cod Gewiss
Supply voltage
Output contacts
No. modules
TOUCH COMMAND DUPLICATOR MODULE FOR TOUCH DIMMER/ROLLER-SHUTTER - 100-240 V ac - 50/60 Hz - I MODULE - CHORUSMART
GW10925
100 ÷ 240 V ac - 50/60 Hz
-
1

ICE TOUCH plates

Category
White

Change category

White
Cod Gewiss
Description
For support codes
ICE TOUCH PLATE - IN GLASS - INTERCHANGEABLE SYMBOLS - WHITE - CHORUSMART
GW16955CB
6 touch areas
GW16803, GW16803N

Blanking modules and cable outlet

Category
Blanking modules

Change category

Blanking modules
Cable outlet
Cod Gewiss
Description
No. modules

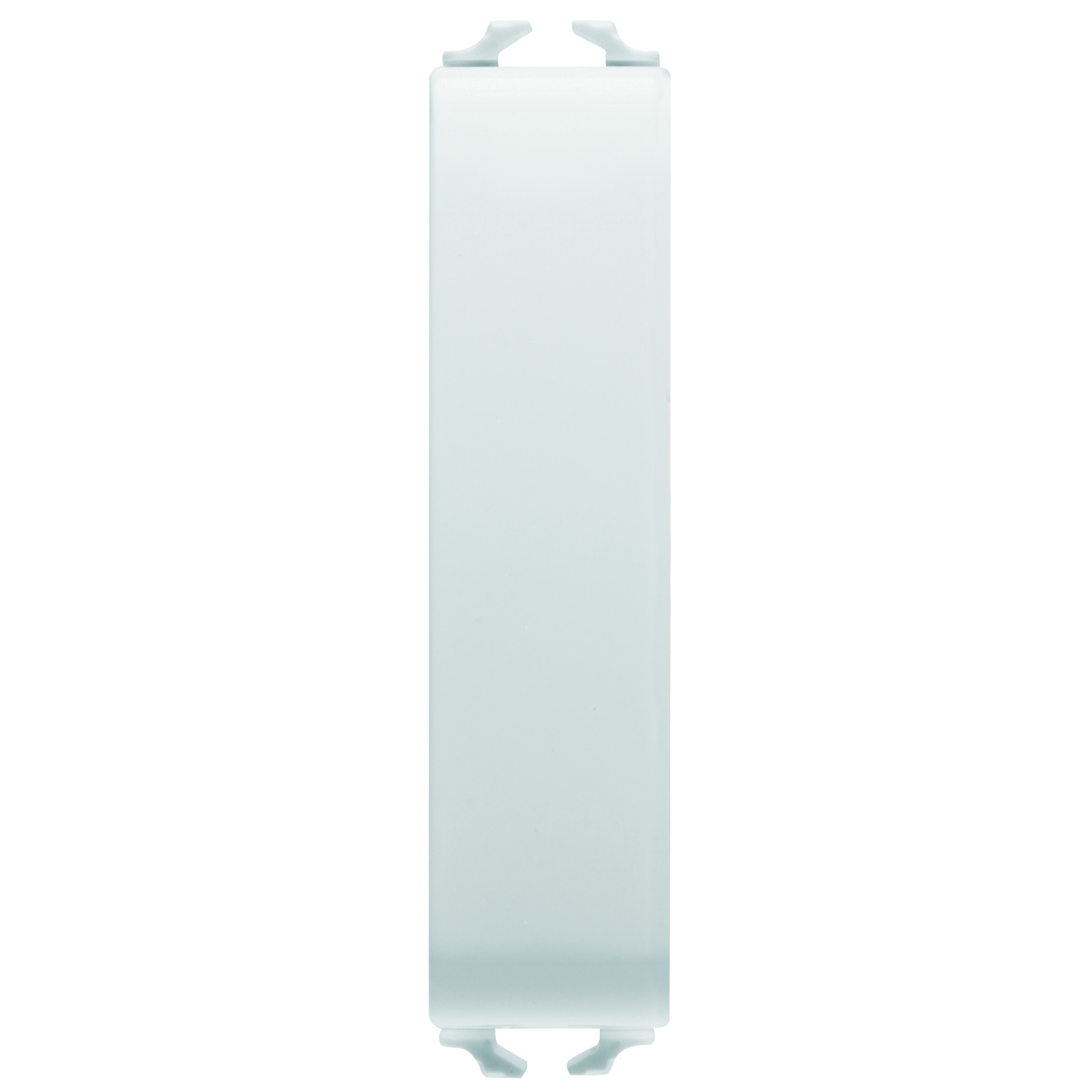

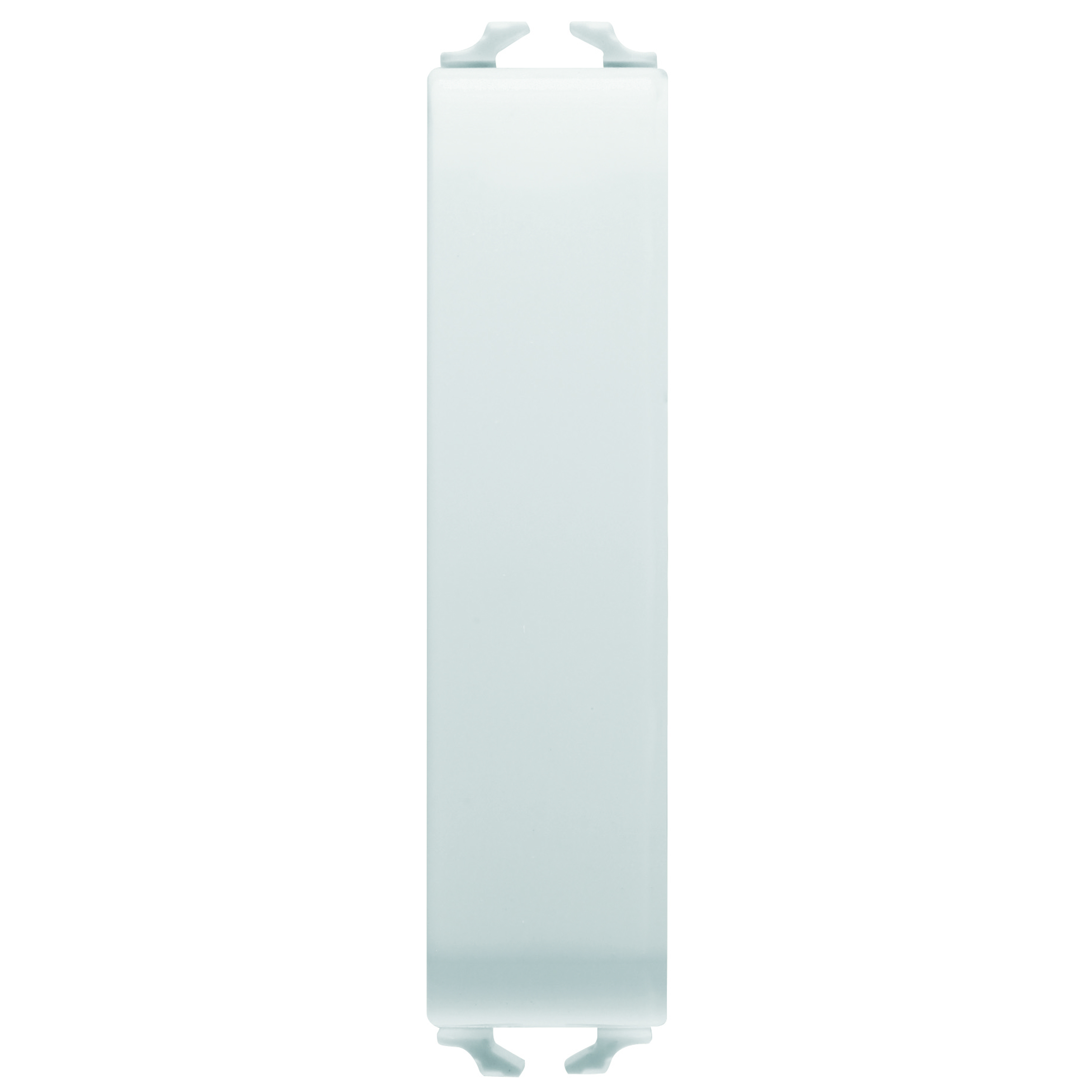

BLANKING MODULE - 1 MODULE - SATIN WHITE - CHORUSMART
GW15195
1 module
1
BLANKING MODULE - 1/2 MODULE - SATIN WHITE - CHORUSMART
GW15197
1/2 module
1/2

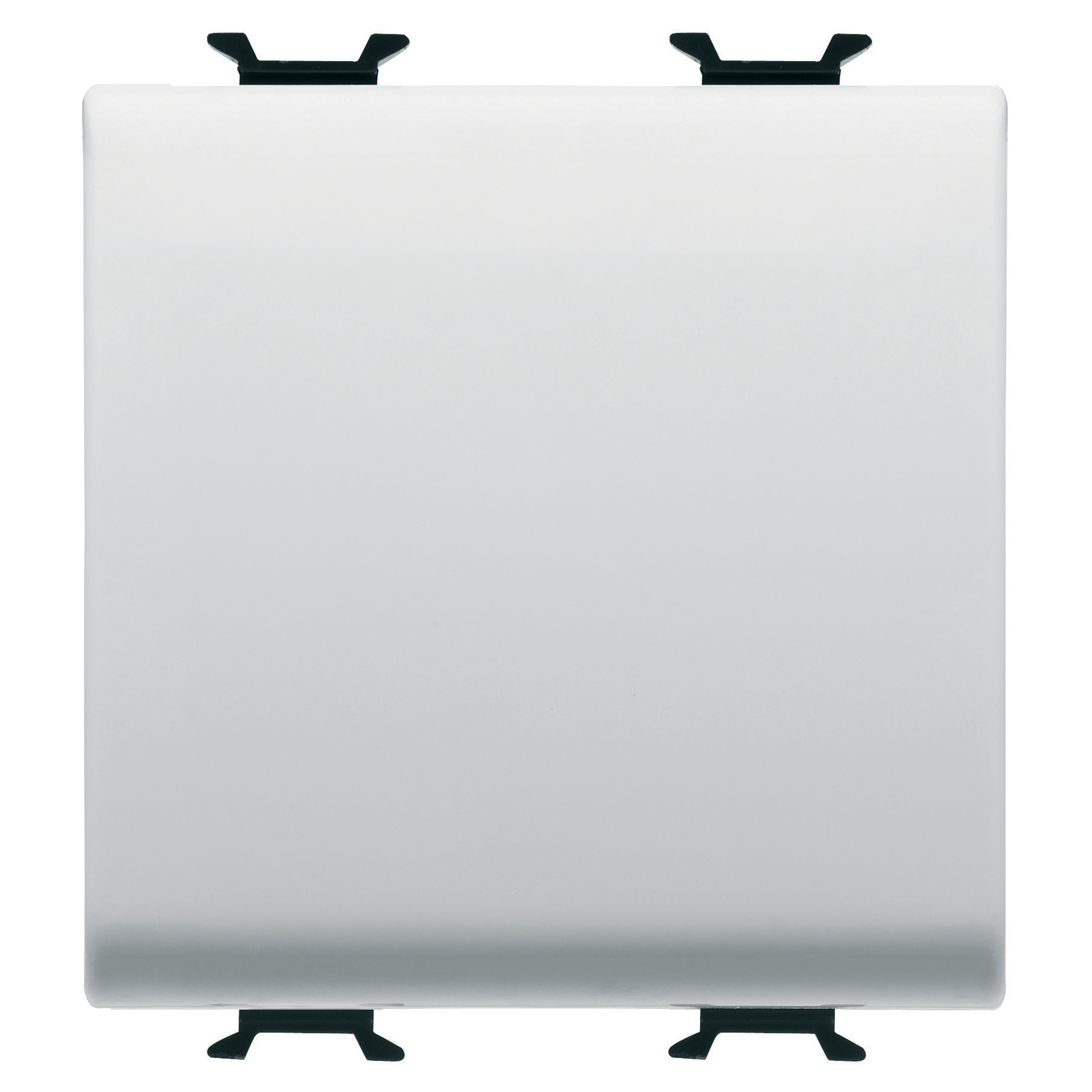

BLANKING MODULE - 2 MODULES - SATIN WHITE - CHORUSMART
GW15198
2 modules
2
BLANKING MODULE - 3 MODULES - SATIN WHITE - CHORUSMART
GW15199
3 modules
3
Cod Gewiss
Description
No. modules

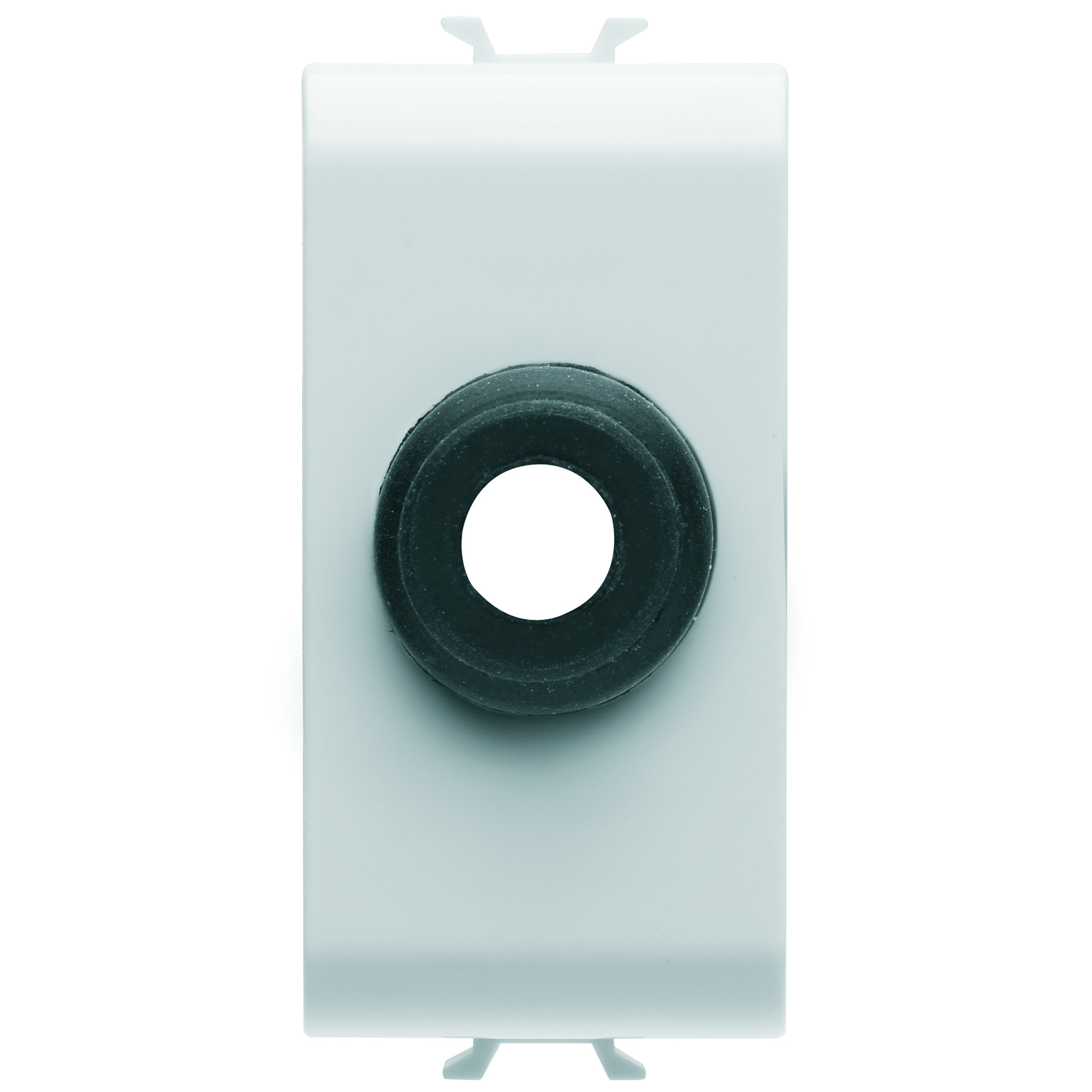

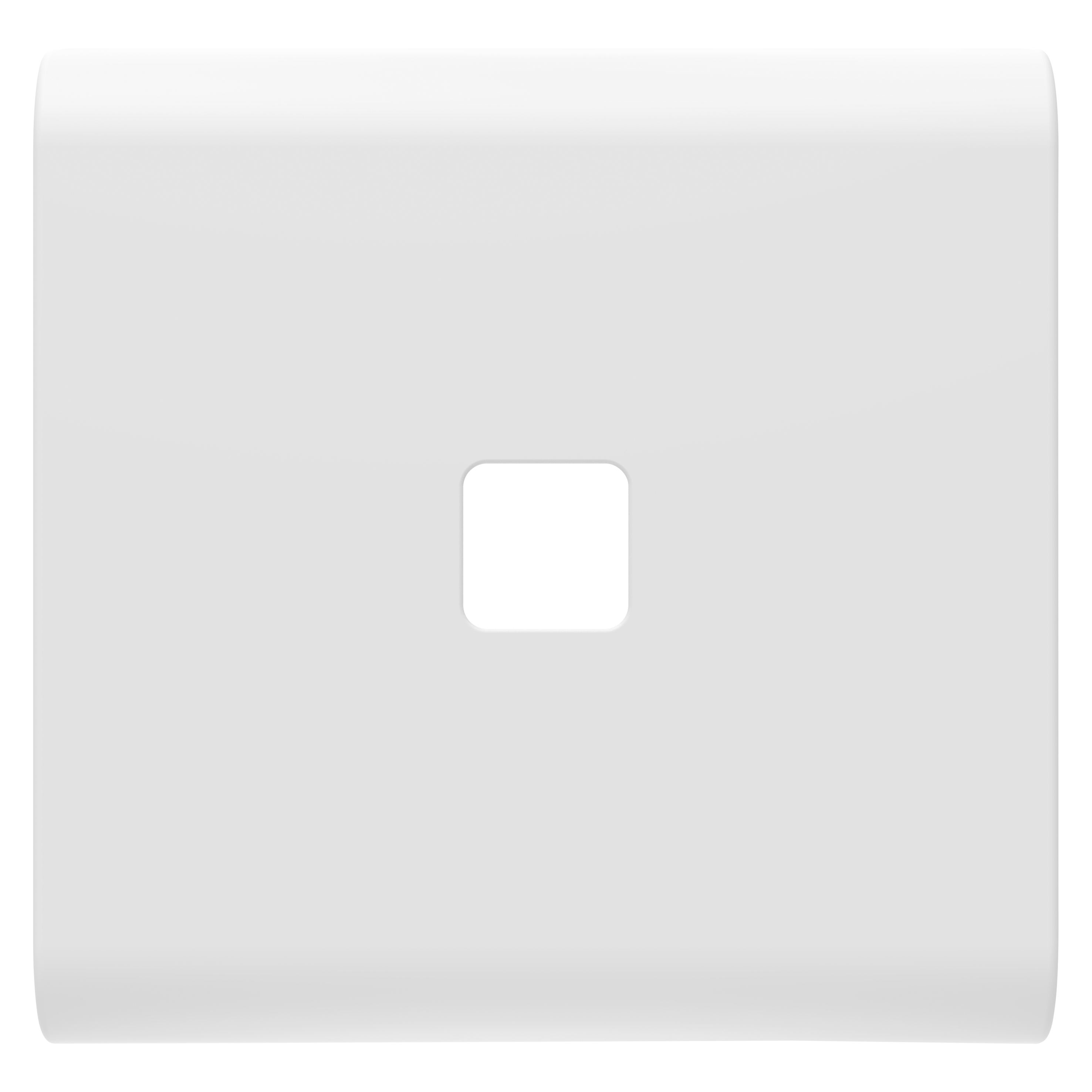

CABLE OUTLET - 2 MODULES - SATIN WHITE - CHORUSMART
GW15194
2 modules
2
CABLE OUTLET - 1 MODULE - SATIN WHITE - CHORUSMART
GW15196
1 module
1

Movement detectors

Category
Movement detector

Change category

Movement detector
Ceiling-mounted presence detector
Cod Gewiss
Supply voltage
Output contacts

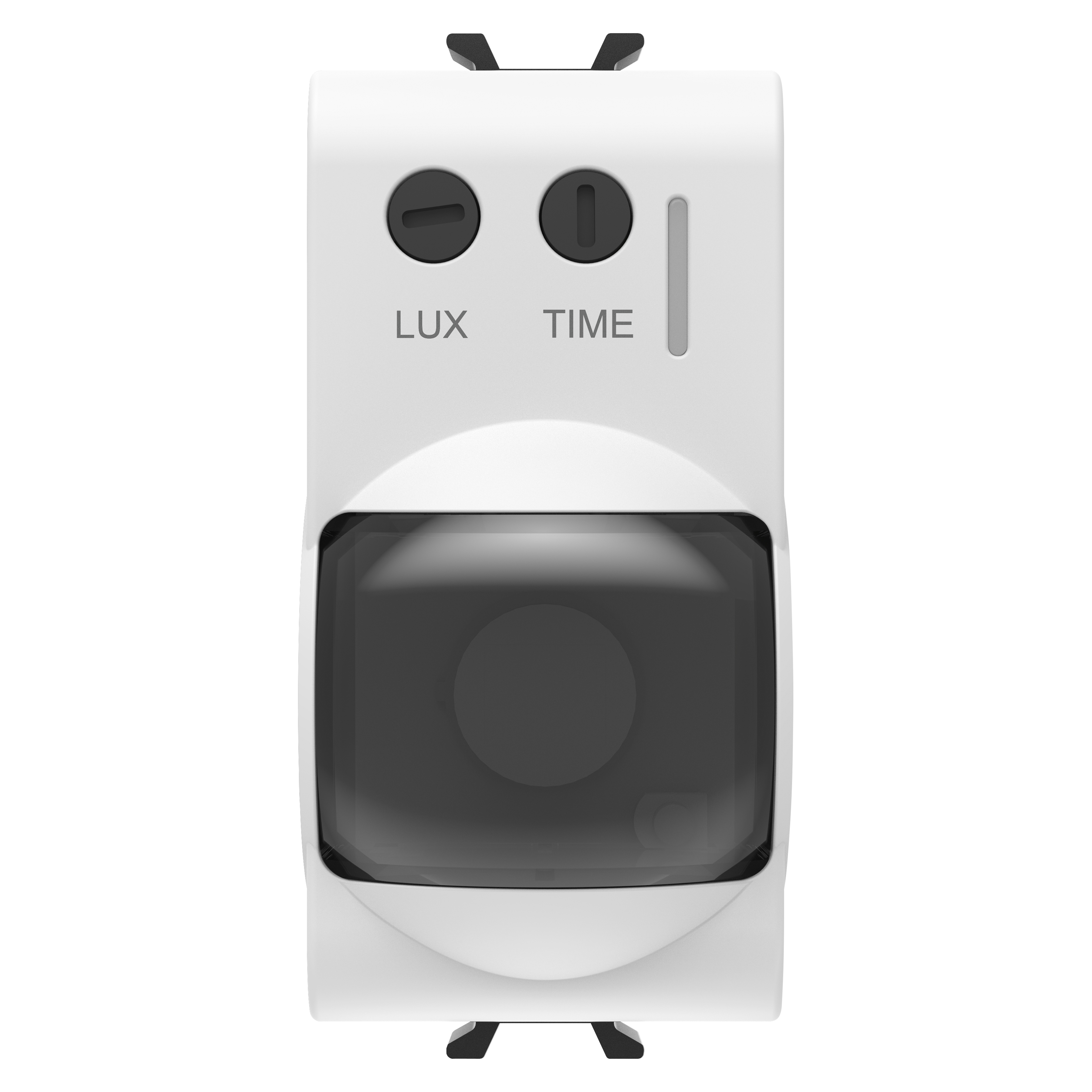

INFRARED MOVEMENT DETECTOR - 230 V ac 50/60 Hz - SATIN WHITE - 1 MODULE - CHORUSMART
GW15594
230V ac - 50/60 Hz
1NO 3 A (AC1) 230 V ac
Cod Gewiss
Supply voltage
Installation height (m)
Light sensor
Dimensions HxØ (mm)

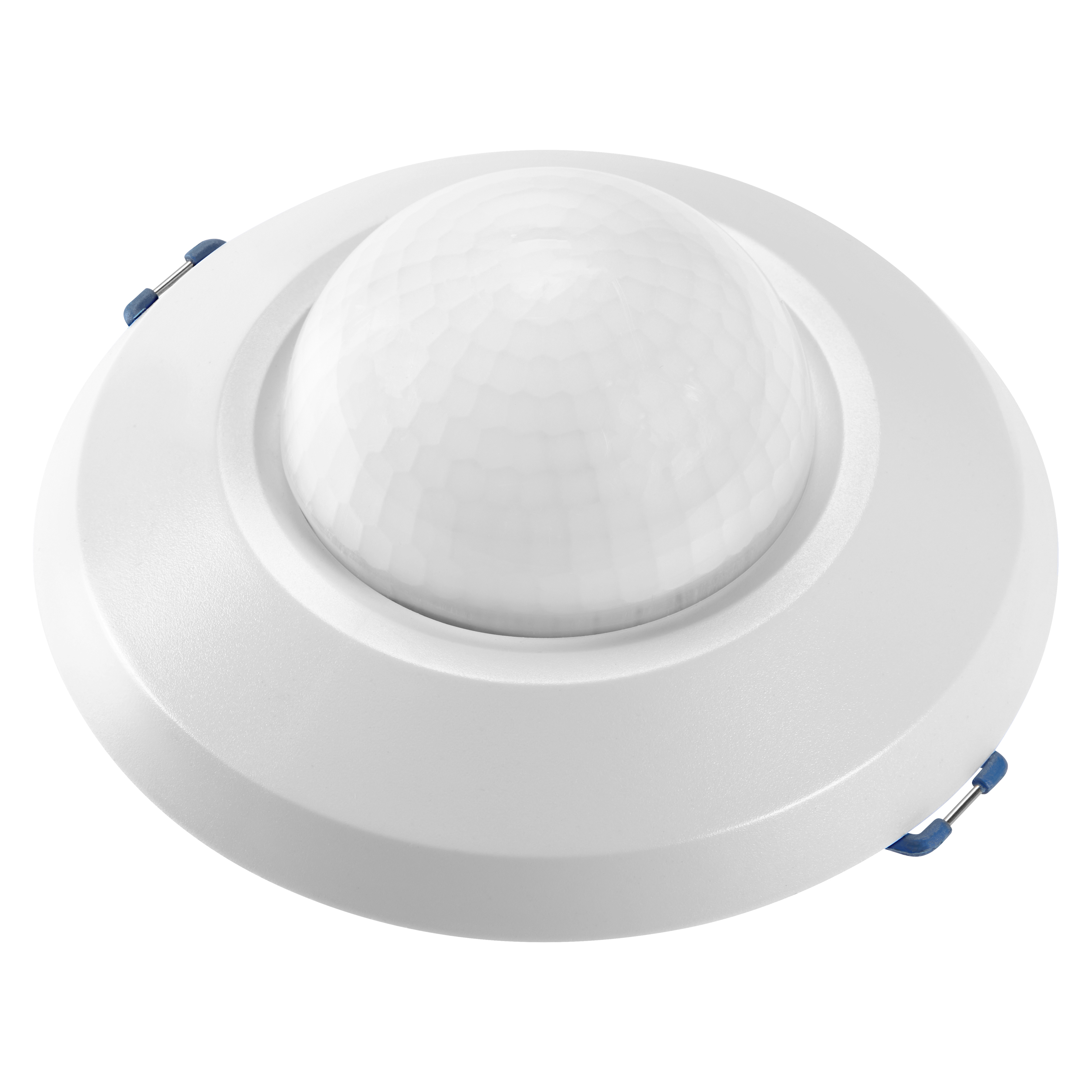

CEILING PRESENCE DETECTOR - IP20 FLUSH MOUNTING APPLICATION OR IP44 WITH SURFACE DEDICATE BOX - 360° - CHORUSMART
GW10595
220/240 V ac - 50/60 Hz
From 2,2 to 6
< 3 ÷ 2000 Lux
44x111,5

Relay

Category
Relay - 230V ac 50/60Hz

Change category

Relay - 230V ac 50/60Hz
Call relay - 12V ac/dc
Cod Gewiss
No. modules
Type
No. of poles
Output contacts
Coil
LATCHING RELAY 230V ac 50/60Hz - 1P 10AX 250V ac - 1 MODULE - SATIN WHITE - CHORUSMART
GW15721
1
Latching relay
1P
10 AX 250V ac
230V ac - 50/60 Hz
MOMENTARY RELAY 230V ac 50/60Hz - 1P 1NO/NC 10A(AC1)/2A(AC15)250Vac - 1 MODULE - SATIN WHITE - CHORUSMART
GW15724
1
Monostable relay
1P
1NO/NC 10A(AC1)/2A(AC15)250V ac
230V ac - 50/60 Hz
Cod Gewiss
Supply voltage
No. of poles
Output contacts
No. modules
CALL RELAY 12V ac/dc - 1P 1NO/NC 12V - 1 MODULE - SATIN WHITE - CHORUSMART
GW15726
12V ac/dc
1P
1NO/NC 12 V (max. 1A)
1
You saw 193 products on 340
Show others

Applications

Hospitality
Museums and Libraries
Show more
Hospitality
Hotels & Restaurants
Show more
Residential
Residences
Show more
Retail
Shops
Show more
Offices
Private Buildings
Show more
Hospitality
Theatres
Show more
Residential
Villas
Show more
Residential
Apartments
Show more
services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Write to us Write us
More info More info
Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us

Do you need information on Gewiss products or services?

Write to us Write to us

Wishlist Management

Privacy Policy

The privacy policy has been updated. Please review and provide your consent again. Thank you

Close Close

You can enter the Gewiss world by consulting the sites available for each country, differentiated by language, services, and catalogue offerings

Choose your country

Albania
IT EN
Belgium
FR NL
Chile
ES
Czech Republic
CZ
France
FR
Germany
DE
Hungary
HU
Israel
IL
Italy
IT
Holland
NL
Poland
PL
Romania
RO
Spain
ES
Swiss
IT FR DE
Turkey
TR
UK
EN

If your country is not among those available, you can consult the website

You are entering the site:

International - EN

GEWISS World websites are available for each country, differentiated by language, services and catalogue offerings.

Continue on international site Continue on international site

Do you want to change country?

Choose another country Choose another country
