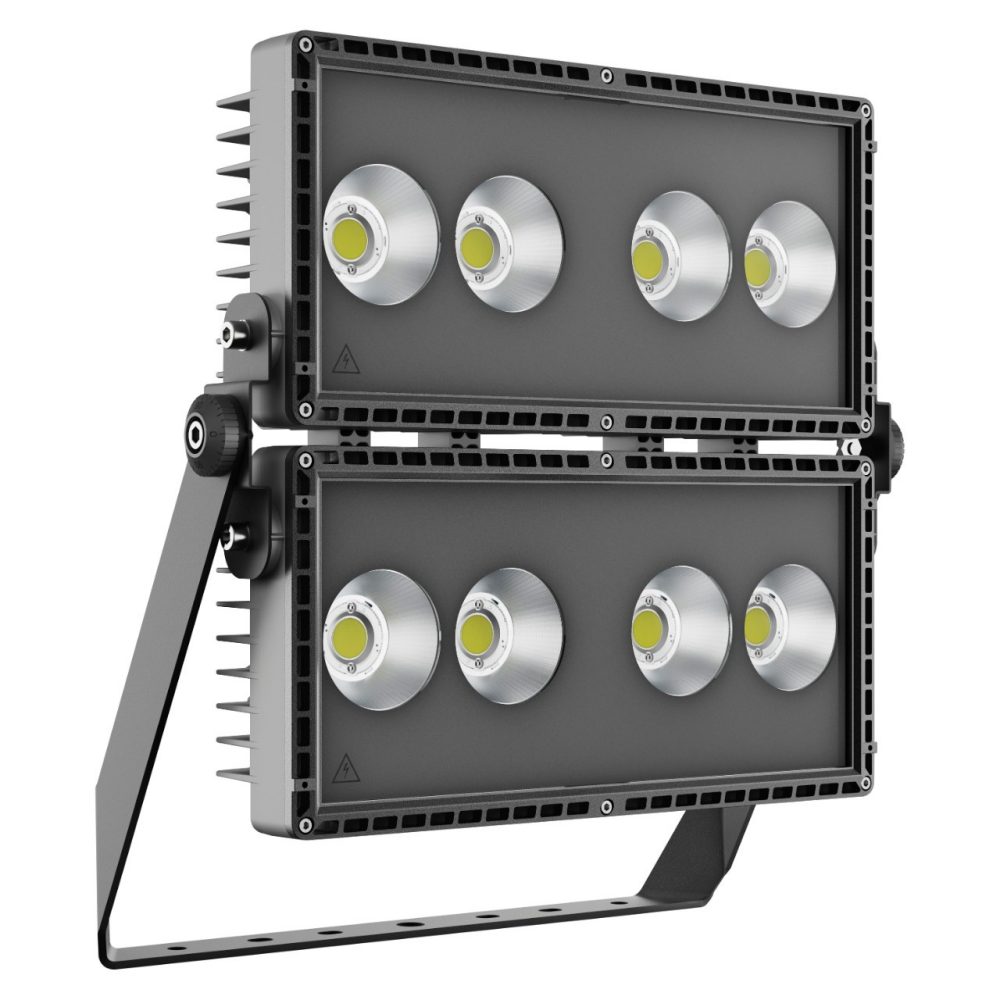

SMART [PRO] e - 4 MODULES - SYMMETRICAL NARROW - 3000K (CRI 80) - IP66 - CLASS I

Code: GWP2434AI830

Range: Smart [PRO]e
Medium and high power LED floodlights devices

Smart [PRO]e is the range of LED floodlights designed to meet the lighting needs of small to medium-sized sports facilities and areas. The high performance, optical precision, excellent flexibility and wide modularity of the range make Smart [PRO]e suitable for all applications, both indoor and outdoor.

0,222 m2

IP66

IK08

Technical Info

Information
Download
Certificates
GENERAL INFORMATION -
OPTIC AND ILLUMINATING FEATURES -
Context Floodlighting and small- to medium-size sports facilities
Optic SN - Symmetrical Narrow
Luminaire LED floodlight luminaire with high lumen power
Unified Glare Rating G*6 - ULOR = 0%
Application Indoor / Outdoor
Lumen output (lm) 84000
Unique digital code (Datamatrix) Currently not present
Efficacy
(lm/W)
140
Colour Graphite grey
Colour temperature 3000 K
Type of light source LED
Colour Rendering Index CRI>80
System power 600 W
Standard Deviation Colour Matching SDCM = 3
LED Lifetime L90B10 (Tq+25°C) = 100000h; L80B10 (Tq+25°C) > 150000h
Photobiological Risk Class RG1
Weight (kg) 15
Standard EN60598-1; EN60598-2-5; IEC62778; EN13201
Warranty 5 years
ELETRICAL AND LIGHTING FEATURES -
Stocking temperature -
Supply voltage See external supply unit
Operating temperature -30 +50 °C
Rated frequency (Hz) See external supply unit
MATERIALS -
Driver Included
Body Die-cast aluminium -
Driver failure rate See external supply unit
Shield type Flat tempered glass 4mm
Overvoltage protection See external supply unit
Optic Metallised PC-HT Reflector
Control System See external supply unit
Gasket Anti-aging silicone
INSTALLATION AND MAINTENANCE -
Locking Hook -
Mounting and installation High-mast lighting - Wall mounting - Ground mouting
External screw Stainless steel
Tilt Rotation on bracket with integrated goniometer
Colour Polyester powder coated with epoxy base coat
Wiring Watertight connector between floodlight and power supply - to be ordered separately
STANDARDS AND APPROVALS -
Fixing Bracket
Classification -
Light souce replaceability By professional
Device with reduced surface temperature -
Controlgear replaceability -
DIN 18032-3 certification Yes
Driver Box External
IPEA -
Maximum surface exposed to the wind 0,222 m2
Insulation class I
- -
IP degree IP66
- -
Mechanical resistance IK08
- -
- -
Ware Number 94054210
