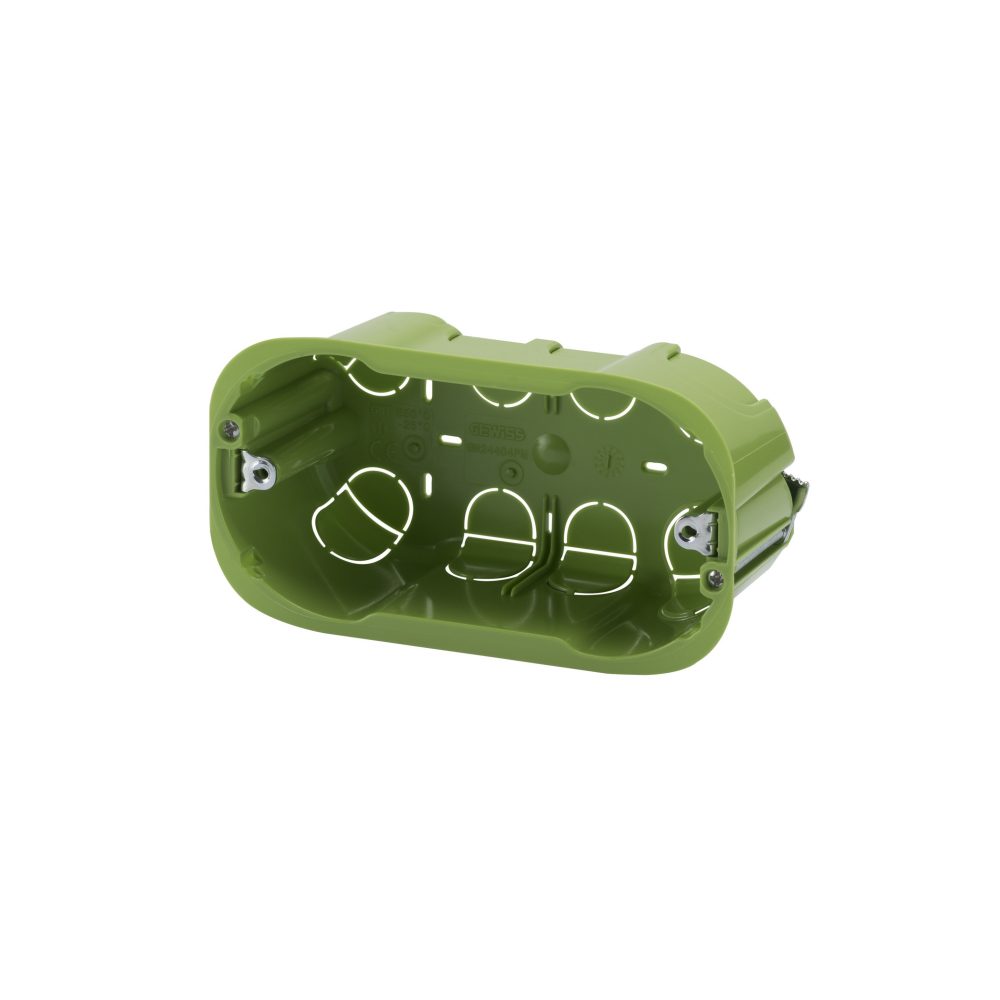

Range: Green Wall range Flush-mounting system for plasterboard walls
The most complete system of containers for lightweight and plasterboard walls; GEWISS patented solutions. Made with halogen-free technopolymer and GWT 850°C. The range include: enclosures and distribution boards up to 72 M; 48 PT DIN GREENWALL range junction boxes with integrated DIN rail on the back plate, compliant with CEI 23-49, ideal for the pre-arrangement and installation of domotic devices; boxes for wiring devices and boxes for interlocked switched socket-outlets.
850 °C
70 °C
Technical Info
Information
Download
Software
Video
Certificates
No. gangs4
IP degreeIP40
TypeFor plasterboard walls
Glow Wire Test850 °C
CategoryFor domestic range
Thermo-pressure with ball70 °C
Accordance with StandardsEN 60670-1 (CEI 23-48)
Outer dim. LxHxD (mm)133x73x50
MaterialGW PLAST Technopolymer
Fixing supports axles distance108.5 mm
Halogen FreeYes, according to EN 60754-2
Cable entries2 x Ø 16 + 6 x Ø 20 + 2 x Ø 25/32 cut-outs
CHARACTERISTICS: high resistance to mechanical stress and crushing. Removal of the knockouts without the use of tools. GW24403PM, GW24404PM, GW24406PM with unlosable metal grips and inserts with adjustable depth for fixing. GW24237PM with tabs for direct fixing on panels or a metal structure. It is recommended to use a Ø 68 mm hollow mill for the correct installation of the rectangular boxes. NOTES: Casing type H in accordance with EN60670-1, and type Ha in accordance with IEC60670-1. GWT 850°C, according to EN 60695-2-11, relative to the green flush-mounting box.
