90 AM Range-Modular accessories

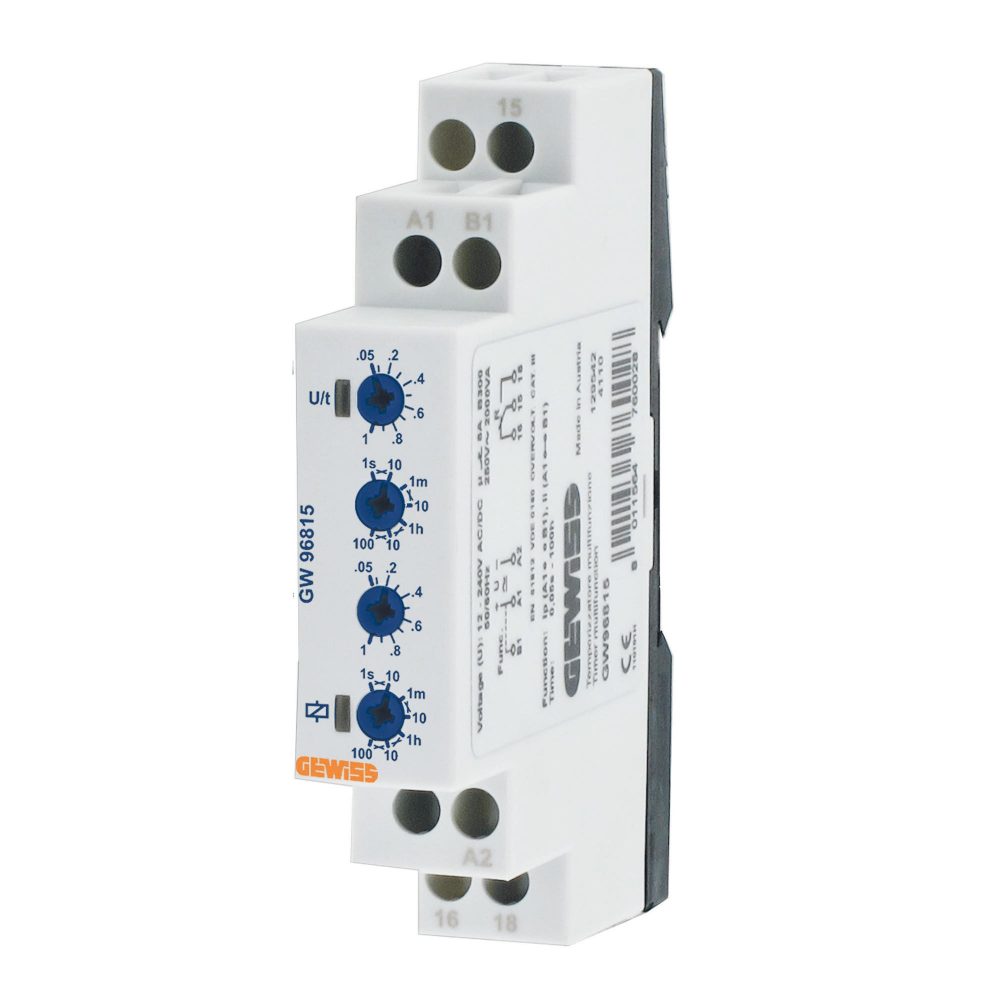

ASYMMETRICAL CYCLE TIMER - 12…240V ac/dc - 1 MODULE

ASYMMETRICAL CYCLE TIMER - 12…240V ac/dc - 1 MODULE

Code: GW96815

Range: 90 AM Range
Modular accessories

The 90 AM range, in addition to auxiliaries common for the all circuit breakers, comprises many modular accessories for the protection, command, programming, measurement and signalling in electrical systems.

Technical Info

Information

Download

Software

Certificates

Rated coil voltage (V) 12....240 ac/dc

Regulation field 0.05 s - 100 h

Type of contacts 1 Changeover

Contact rating - In 8 A

No. of modules EN 50022 1

Ware Number 91070000

Technical characteristics

User guide

Disposal

Go to download area Go to download area

CADpro

Advanced design of electrical systems

PBT-Q

Low voltage systems and boards

PROJEX

Low voltage system design

PRICE

Estimation of electrical systems

ENERGYpro

Boards for building sites, campings-piers and distribution

CENTRAL

Quotation and Thermal test of modular enclosures

Go to software area Go to software area

CE marking

EQUIPMENT AND NOTES

APPLICATIONS: allows to activate and deactivate the power supply to a load, for a time set with different ON and OFF times.
NOTE: cannot be used with illuminated push-buttons.
