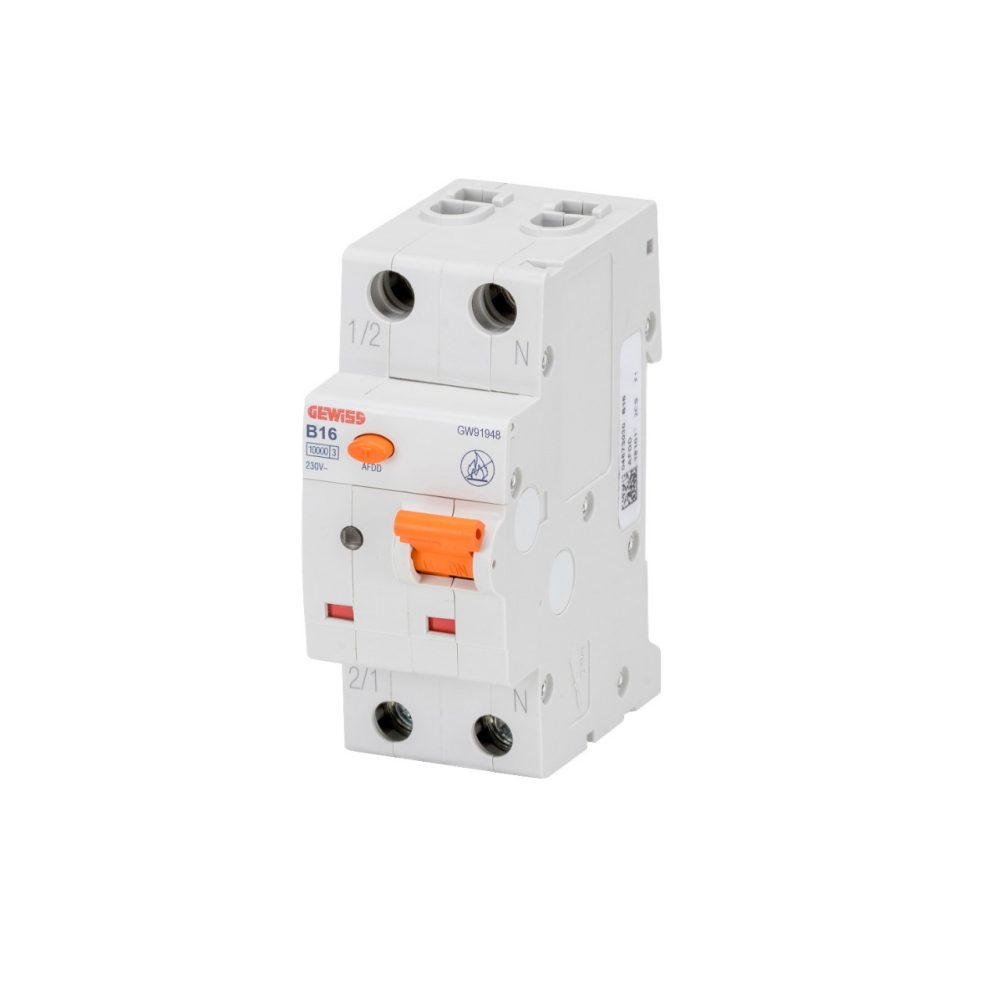

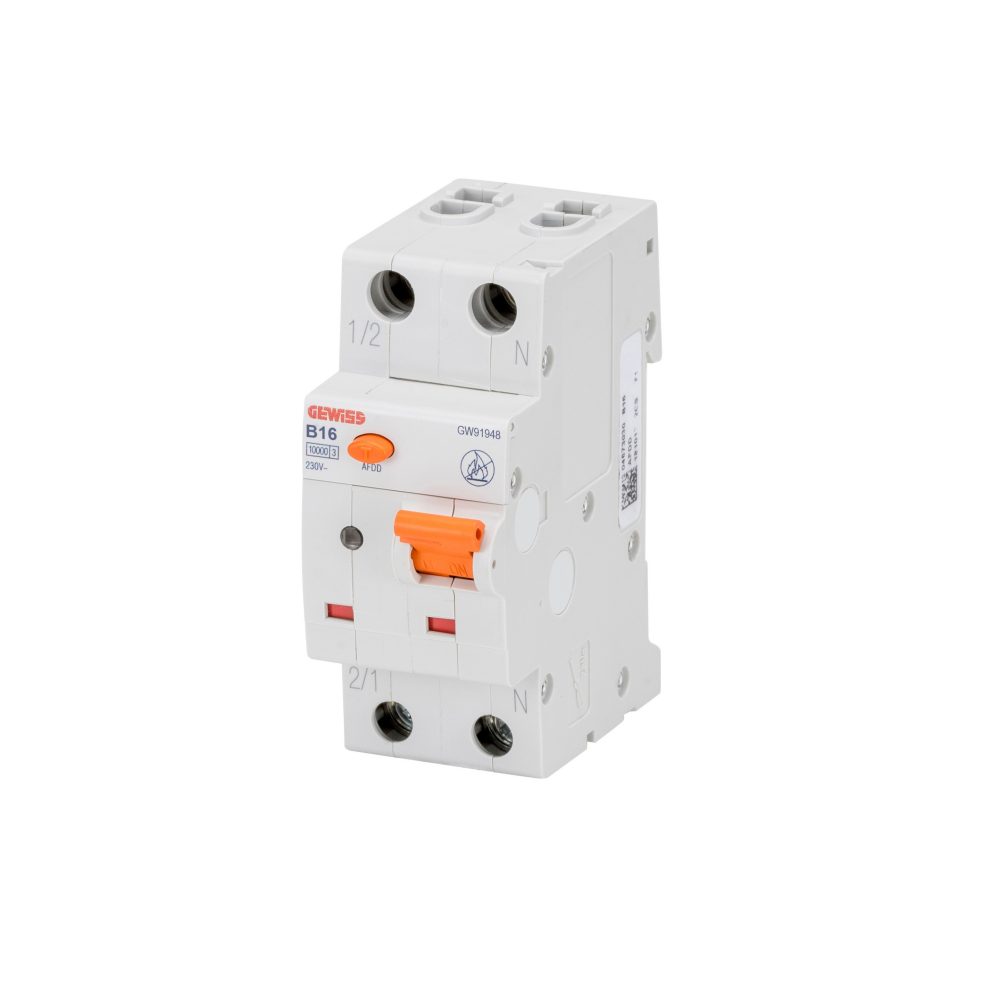

MINIATURE CIRCUIT BREAKER AFDD 1P+N C10 6KA 2M
Code:
GW91926
Range: 90 MCB Range
Modular circuit breakers for circuit protection
Modular circuit breakers for circuit protection
The 90 MCB range meets any requirement for protection against overcurrent and shortcircuit, for all domestic, commercial and industrial applications. The range comprises MTC, compact miniature circuit breakers (from 2 to 32 A, curves B and C up to 10 kA) MT traditional miniature circuit breakers (from 1 to 63 A, curves B, C and D up to 25 kA) MTHP High-Power Miniature circuit breakers (from 20 to 125 A, curves C and D up to 25 kA).
Technical Info
Information
Download
Software
Certificates
Description
AFFD MINIATURE CIRCUIT BREAKER
Code
AFDD
No. of poles
1P+N
No. modules
2
Rated current
10 A
Curve
C
Rated voltage
230V
Standard
IEC EN 62606; IEC EN 60898-1
Rated frequency (f)
50/60 Hz
Breaking capacity EN 60898 230V (Icn)
6000 A
Breaking capacity IEC/EN 60947-2 (Ics)
6 kA
Breaking capacity IEC/EN 60947-2 230/240V (Icu)
7,5 kA
Rated impulse withstand voltage (Uimp)
4 kV
Insulation voltage (Ui)
500 V
Overvoltage protection threshold
275 V ac
Minimum operating voltage
170 V ac
Can be accessorized
No
Electrical endurance
10.000
Mechanical endurance
20.000
Section rigid cable
25 mm²
Section flexible cable
25 mm²
Rated tightening torque
2,8 Nm
Operating temperature
-25 ÷ 55°C (With temperatures greater than 30°C, derating of In rated current is expected)
Stocking temperature
-40°C ÷ +70°C
Ware Number
85362010
Display the certificate
EQUIPMENT AND NOTES
APPLICATIONS: arc fault protection, short circuit and overload protection.
CHARACTERISTICS: LED for monitoring the operating status of the AFDD.
Test button to check the correct functioning of the AFDD device.
Contact position signalling window to identify contact status (red: closed; green: open).
CHARACTERISTICS: LED for monitoring the operating status of the AFDD.
Test button to check the correct functioning of the AFDD device.
Contact position signalling window to identify contact status (red: closed; green: open).
