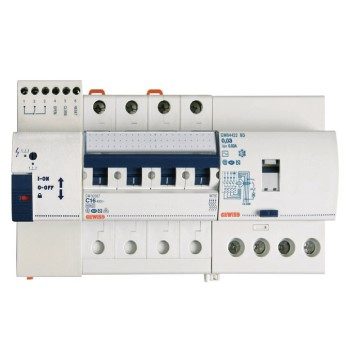

RESTART CM - TO BE COUPLED WITH MDC/MT+BD/MTC/MT - 230 V ac - 2 MODULES EN 50022
Code:
GW90896
Range: 90 ReStart Range
Automatic reclosing devices
In the event the switch trips, the ReStart devices, after checking the system status, restore the power supply thereby ensuring maximum continuity of service in complete safety.
Available for both residual current circuit breakers and residual current circuit breakers with overcurrent protection, the range is characterized by the Autotest functions, with periodic and automatic control of the residual current protection without interrupting the power supply and PRO with extended control of the system.
Available for both residual current circuit breakers and residual current circuit breakers with overcurrent protection, the range is characterized by the Autotest functions, with periodic and automatic control of the residual current protection without interrupting the power supply and PRO with extended control of the system.
Technical Info
Information
Download
Software
Certificates
Description
Remote reclosing device
Suitable for
RCBO's MDC/MT+BD or MCB's MTC/MT
Rated voltage
230 V
Rated current
max 63A (MT) max 32A (MDC-MTC)
Rated frequency (Hz)
50Hz
Distribution system
TT-TN-IT
No. of modules EN 50022
2
Insulation voltage (Ui)
500 V
Rated impulse
withstand voltage (Uimp) 4 kV
withstand voltage (Uimp) 4 kV
Overvoltage category
III
Dielectric strength test voltage between pole and earth
2500 Vac for 1 minute
Type of residual current protection
AC-A-A[IR]-A[S]-F
Rated residual operating current
30 - 300 - 500 - 1000 mA
Operating temperature
-25 +60 °C
Stocking temperature
-40 +70 °C
Type of contacts
1 Changeover
Voltage operating
230 Vac/30 Vdc
Current operating
1,5mA ac - 0,8mA dc
Use category
AC12
Operating modes
CO
Terminal section
≤ 2,5 mm²
Rated tightening torque
0,4 Nm
Settable insulation threshold
No
Ware Number
85362010
EQUIPMENT AND NOTES
CHARACTERISTICS: the device is equipped with 1 integrated auxiliary position contact or tripped relay.
NOTE: the reclosing device must be supplied at 230 V ac phase-neutral.
NOTE: the reclosing device must be supplied at 230 V ac phase-neutral.
