NEW

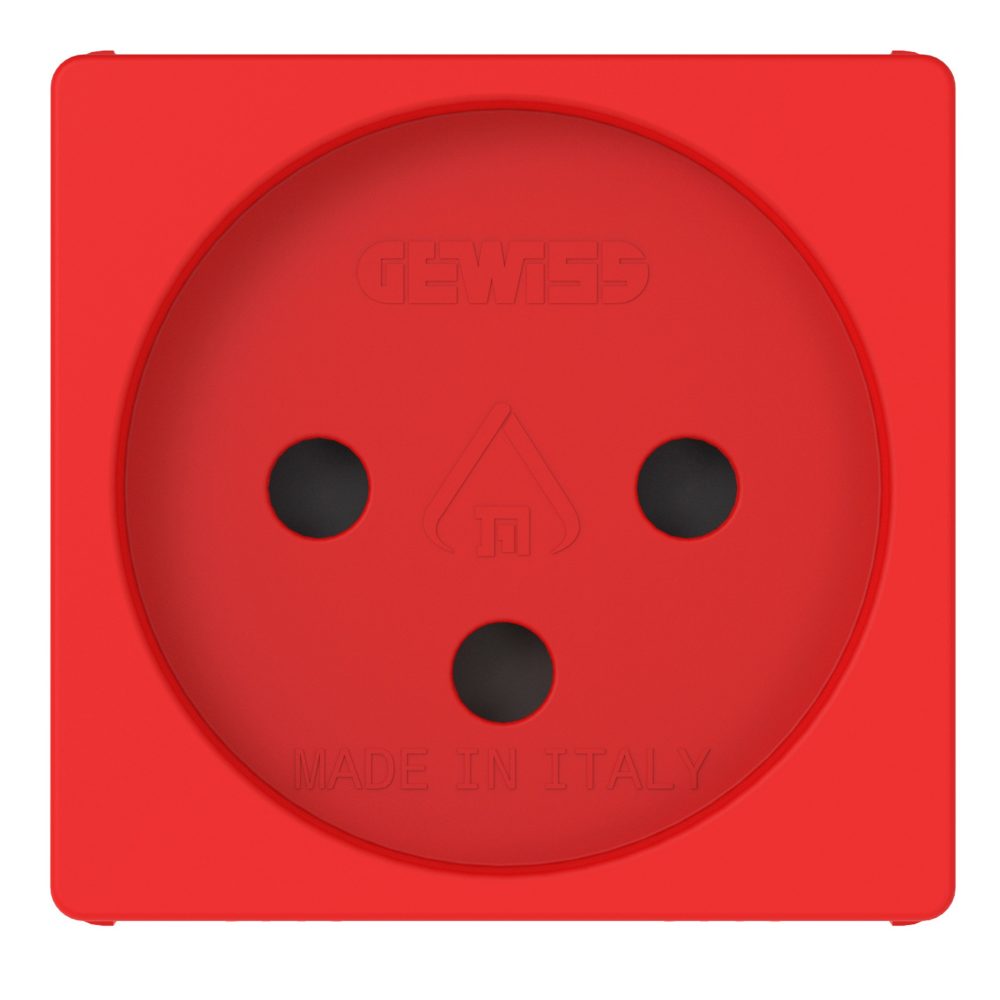

ISRAELI STANDARD SOCKET-OUTLET FOR DEDICATED LINES 250V AC - 2P+E 16A - 2 MODULES - RED - SYSTEM PURA
Code:
GWC20298
Range: System Pura
Satin white modular devices
Satin white modular devices
The System Pura range combines modularity, design and sustanaibility to offer versatile and complete solutions. Satin white: with a understated and sophisticated finish, which combines the purity of white with an elegant satin effect. System Pura meets every aesthetic and functional requirement. It includes devices for control, protection, connection and comfort, ideal for residential settings and special applications.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Power
Description
2P+E - 16 A
Colour
Red
Voltage
250 V ac
Standard
Israeli
Characteristics
With safety shields
For plug pins
Round Ø 4 / 4.4 mm
Wiring terminals
With screw
Standard
SI 32 part 1.1
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Insulation resistance
> 5 MOhm
Prolonged operation switch (no.of position changes)
10.000 at In 250 V ac cosφ=0.8
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity stranded cables (mm²)
min. 0.75 - max. 2x4
Terminal tightening capacity solid cables (mm²)
min. 0.5 - max. 2x2.5
No. modules
2
Material
Technopolymer
Halogen Free
Halogen-free in compliance with EN IEC 63355
Electrocod
0131
Ware Number
85366990
CE marking
Download
EQUIPMENT AND NOTES
CHARACTERISTICS: with safety shields. Pre-arranged for housing miniature lamps, not included.
