NEW

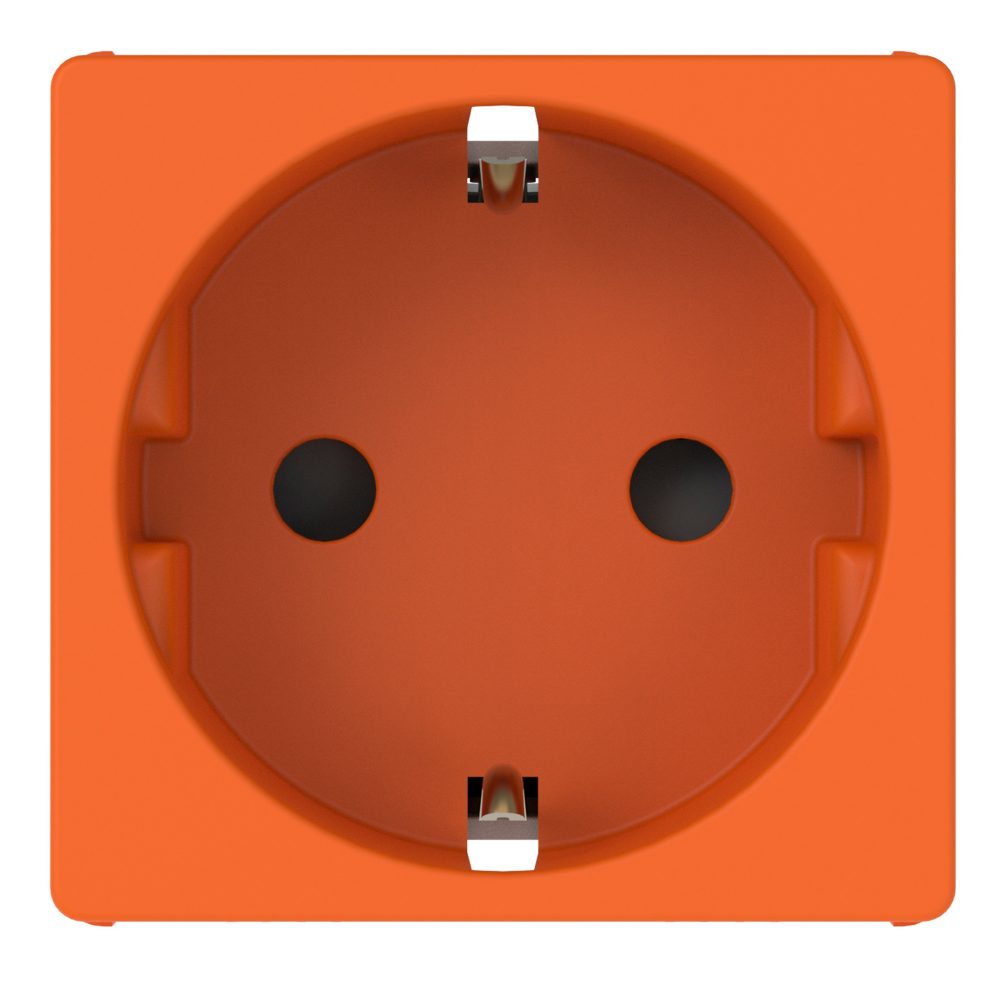

GERMAN STANDARD SOCKET-OUTLET 250V AC - FOR DEDICATED LINES - 2P+E 16A - 2 MODULES - ORANGE - SYSTEM PURA
Code:
GWC20288
Range: System Pura
Satin white modular devices
Satin white modular devices
The System Pura range combines modularity, design and sustanaibility to offer versatile and complete solutions. Satin white: with a understated and sophisticated finish, which combines the purity of white with an elegant satin effect. System Pura meets every aesthetic and functional requirement. It includes devices for control, protection, connection and comfort, ideal for residential settings and special applications.
125 °C
850 °C
Technical Info
Information
Download
Software
Certificates
Category
Socket-Outlet
Description
2P+E - 16 A
Colour
Orange
Voltage
250 V ac
Standard
German
Characteristics
With safety shields
For plug pins
Ø 4.8 mm
Wiring terminals
With screw
Type
-
Standard
DIN VDE 0620-1, UNE 20315-1-1, UNE 20315-1-2
Resistance at test voltage
2000 V at 50 Hz for 1 minute
Insulation resistance
> 5 MOhm
Prolonged operation switch (no.of position changes)
10.000 at In 250 V ac cosφ=0.8
Thermo-pressure with ball
125 °C
Glow Wire Test
850 °C
Terminal grip on cable traction
> 50 N
Terminal tightening capacity stranded cables (mm²)
min. 0.75 - max. 2x4
Terminal tightening capacity solid cables (mm²)
min. 0.5 - max. 2x2.5
No. modules
2
Material
Technopolymer
Halogen Free
Halogen-free in compliance with EN IEC 63355
Electrocod
0131
Ware Number
85366990
CE marking
Download
Display the certificate
EQUIPMENT AND NOTES
CHARACTERISTICS: with safety shields.
