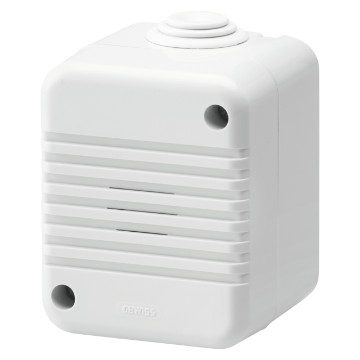

BUZZER FOR SIGNALLING - 230V - IP40 - GREY RAL 7035

Code: GW26427

Range: 27 COMBI Range
Wall-mounting enclosures and modular components

A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.

IP40

650 °C

70 °C

Technical Info

Information

Download

Software

Certificates

Colour Grey RAL 7035

No. knockout holes Ø23 1 on sides / 1 on the bottom

N. holes Ø 23 with cable gland 1

Type of knockout holes Removable with tool

IP degree IP40

Insulation class II

Lid screws Corrosion-resistant steel

Torque screws tightening 0.8 NM

Outer dim. LxHxD (mm) 64x80x59

Rated voltage 230 V ac

Sound intensity 70 dB (at 1 m)

Frequency impulses of sound 1 Hz

Glow Wire Test 650 °C

Thermo-pressure with ball 70 °C

Standard EN 62080

Installation temperature -25 +60 °C

Electrocod 0132

Ware Number 85318040

Product Data Sheet

Technical characteristics

Go to download area Go to download area

CAP

PRICE

Estimation of electrical systems

37-08

Declaration of Conformity of the electrical system

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

CADpro

Advanced design of electrical systems

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Go to software area Go to software area

CE marking

REACH information

EQUIPMENT AND NOTES

CHARACTERISTICS: knockout holes removable with tool. Enclosures are customized for fixing the earth terminal GW26407. GW26417 consumption 60mA.
ACCESSORIES SUPPLIED: quick entry cable gland for cables with Ø from 4 to 14 mm and conduits Ø 16 and 20 mm.
