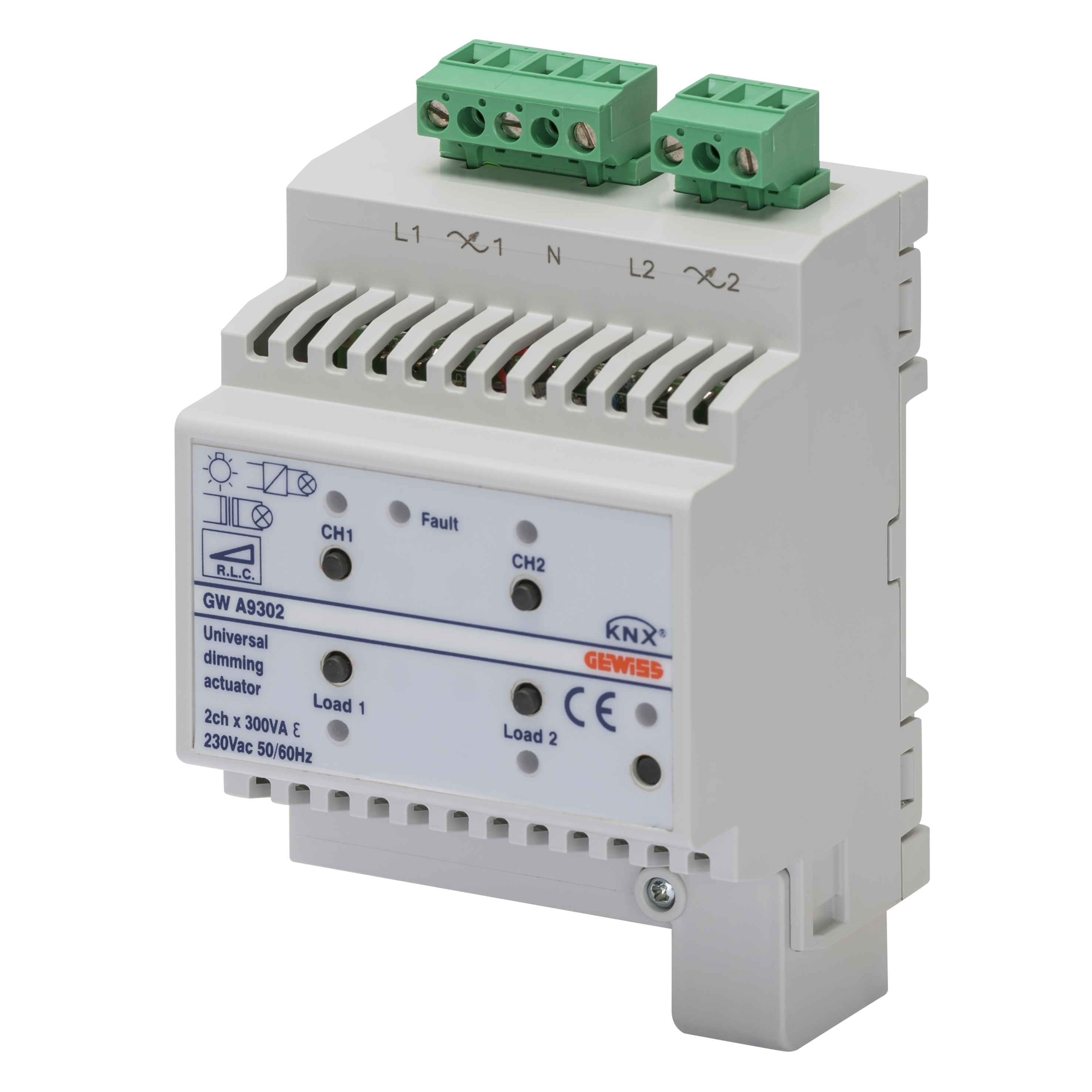

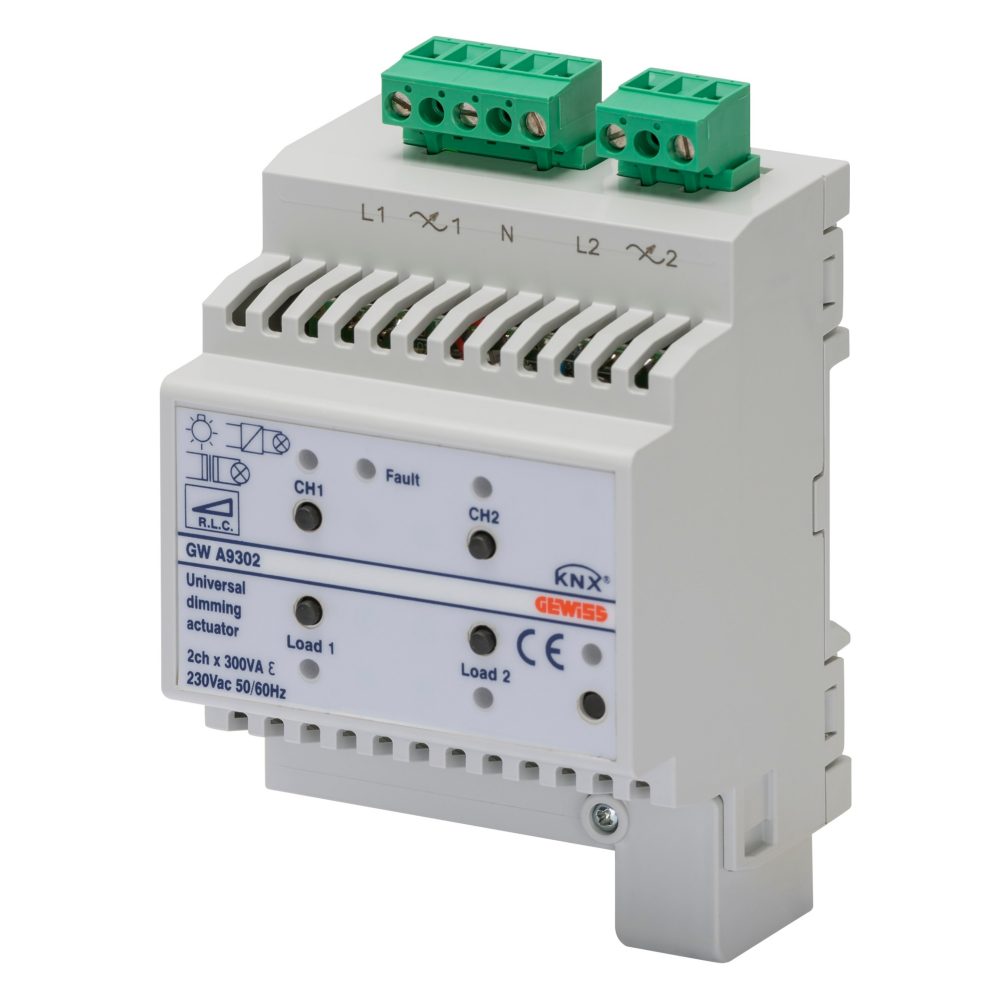

UNIVERSAL DIMMER ACTUATOR - 2 CHANNEL - 300VA PER CHANNEL - KNX - IP20 - 4 MODULES - DIN RAIL MOUNTING
Code:
GWA9302
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.
Technical Info
Information
Download
Software
Certificates
Supply voltage
230V ac - 50/60 Hz
No. output channels
2
Power max.
300VA per channel
No. DIN modules
4
Ware Number
85365080
EQUIPMENT AND NOTES
CHARACTERISTICS: for the adjustment and switching of incandescent and halogen lamps 230Vac, low voltage halogen lamps with electronic and winding transformers, LED lamps 230Vac with dimmer function, and CFL lamps with dimmer function. Manual selection of the type of load (Leading Edge or Trailing Edge piloting), soft-start function for lamp protection, front LEDs for signalling the status of the outputs. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, relative and absolute light intensity adjustment, scene management, timed commands, priority commands, logic functions.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
Products available while stock lasts.
APPLICATIONS: execution of ON-OFF commands, relative and absolute light intensity adjustment, scene management, timed commands, priority commands, logic functions.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
Products available while stock lasts.
