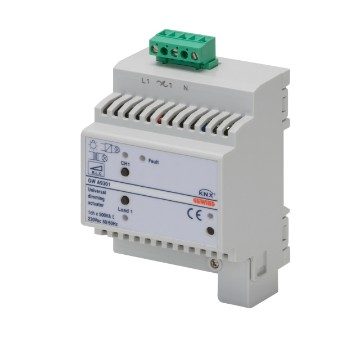

UNIVERSAL DIMMER ACTUATOR - 1 CHANNEL - 500VA - KNX - IP20 - 4 MODULES - DIN RAIL MOUNTING

Code: GWA9301

Range: Home&Building Pro
Home & Building PRO system

Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.

Technical Info

Information
Download
Software
Certificates
Supply voltage 230V ac - 50/60 Hz
No. output channels 1
Power max. 500 VA
No. DIN modules 4
Ware Number 85365080

ETS3 Data Base

User guide (HU)

ETS4 Data Base

User guide (RO-AR-TR)

User guide (IT-EN-FR)

Technical manual (EN)

Technical manual (IT)

User guide (DE-ES-PT)

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

SMART GATEWAY

APP for managing the KNX home automation system

Show more

PBT-Q

Low voltage systems and boards

Show more

CADpro

Advanced design of electrical systems

Show more

KNX

Database with GEWISS products for ETS software

Show more

PRICE

Estimation of electrical systems

Show more

Display the certificate

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: for the adjustment and switching of incandescent and halogen lamps 230Vac, low voltage halogen lamps with electronic and winding transformers, LED lamps 230Vac with dimmer function, and CFL lamps with dimmer function. Manual selection of the type of load (Leading Edge or Trailing Edge piloting), soft-start function for lamp protection, front LEDs for signalling the status of the outputs. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, relative and absolute light intensity adjustment, scene management, timed commands, priority commands, logic functions.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
