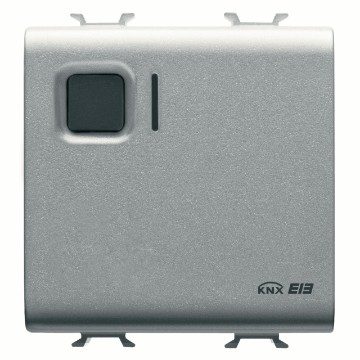

SWITCH ACTUATOR - 1 CHANNEL - 16A - KNX - 2 MODULES - TITANIUM - CHORUSMART
Code:
GW14796
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.
Technical Info
Information
Download
Software
Certificates
Colour
Glossy Titanium
Output contacts
1NO/NC 16A(AC1) 230 Vac
No. modules
2
Ware Number
85364190
EQUIPMENT AND NOTES
CHARACTERISTICS: 1-channel switch actuator for activating loads via a potential-free output contact (NO/NC).
Equipped with a front push-button for local command, a indicator LED for output contact closure and night-time backlit LED. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions.
For discharge lamps and compensated fluorescent lamps, use a support relay.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
Equipped with a front push-button for local command, a indicator LED for output contact closure and night-time backlit LED. To be configured with ETS software.
APPLICATIONS: execution of ON-OFF commands, timed commands with pre-alarm at switch-off, priority commands, scene management commands, lockout commands, safety functions, logic functions.
For discharge lamps and compensated fluorescent lamps, use a support relay.
NOTES: equipped with coupling terminal for connection to BUS (with protection lid).
