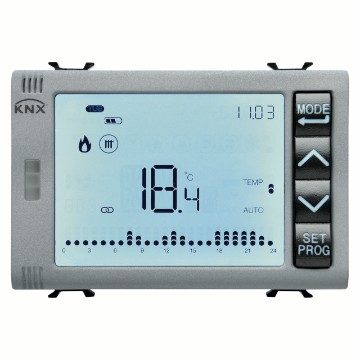

TIMED THERMOSTAT/PROGRAMMER WITH HUMIDITY MANAGEMENT - KNX - 3 MODULES - TITANIUM - CHORUSMART

Code: GW14794H
Range: Home&Building Pro
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.

Technical Info

Information
Download
Software
Certificates
Colour Glossy Titanium
Output contacts 1NO / NC 5A(AC1) 250V ac
Humidity sensor Not included
No. modules 3
Ware Number 90321020

ETS4 Data Base

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - ES

Technical manual (IT)

Programming manual (IT)

Programming manual (EN)

Programming manual (FR)

Programming manual (ES)

Programming manual (DE)

Technical manual (EN)

Energy Label

User guide (IT-EN)

User guide (FR-DE)

User guide (ES-PT)

User guide (AR-TR)

User guide (RO-HU)

HOME

Configuration of the home electrical system

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

PRICE

Estimation of electrical systems

Show more

CADpro

Advanced design of electrical systems

Show more

Conformity declaration

KNX temporanea

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: flush-mounting timed thermostat with humidity management, that can be programmed on a weekly basis to control heating/cooling and humidification/dehumidification systems on the BUS. 3-level temperature profile (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (max. 3 speeds). Includes: 1 output for commanding the area solenoid valve (or as a generic output for executing ON/OFF commands, timed commands, priority commands or scene management); 1 input for the potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. With 10 hour profiles that can be freely used (programmer function) plus another two reserved for the timed thermostat, with 15-minute resolution. Equipped with an extractable front and LCD display with customisable RGB backlighting. To be configured with ETS software.
APPLICATIONS: can be combined with KNX flush-mounting thermostats for local temperature adjustment: In this case, the timed thermostat acts as a master, sending the temperature profile to the BUS.
NOTES: equipped with coupling terminal for connection to BUS. The device requires a back-up power supply from 2 AA alkaline batteries (not included), housed in the extractable front, to guarantee the updating of the calendar (day, time) in the event of a BUS voltage failure. The device does not have a built-in humidity sensor, so the relative humidity value must be obtained from an external KNX sensor (es: GW1x762H).
