SMART [4]
Special Versions

Smart [4] is the range of lighting fixtures developed and produced in Italy with latest generation LEDs and new optics solutions (reflector optics and PMMA lenses), that warranties excellent lighting performance and always more energy efficiency. A wide and flexible range, available in three sizes (1 module, 2 modules and 4 modules), luminous fluxes up to 36,400 lm and different colour temperature options (4000K, 5700K). The new design (grey RAL 7035) adapts perfectly to medium and large contexts, with Stand Alone application, thanks to the special accessories that allow a wide flexibility during installation also.

See all product
Benefits
Flexibility
Flexibility
With high-efficiency (HE), high-emission (HLO), HACCP, HT, ATEX and integrated Emergency versions, Smart [4] can meet any lighting need in any context.
Connectivity
Connectivity
The Smart [4] range is designed for dialogue with IoT systems to monitor consumption, power, programming and carry out efficiency testing, for an increasingly SMART system.
Efficiency
Efficiency
Smart [4] offers even more efficiency, thanks to its light flow up to 36,400lm and efficiency up to 150lm/W, for a system that pays for itself.
Modularity
Modularity
Smart [4] is available in three sizes and in a Stand Alone version or with through wiring for quick and easy installation and use in line or in series.

The products of this series

143 products

SMART[4] - Special versions - Luminaires for industry

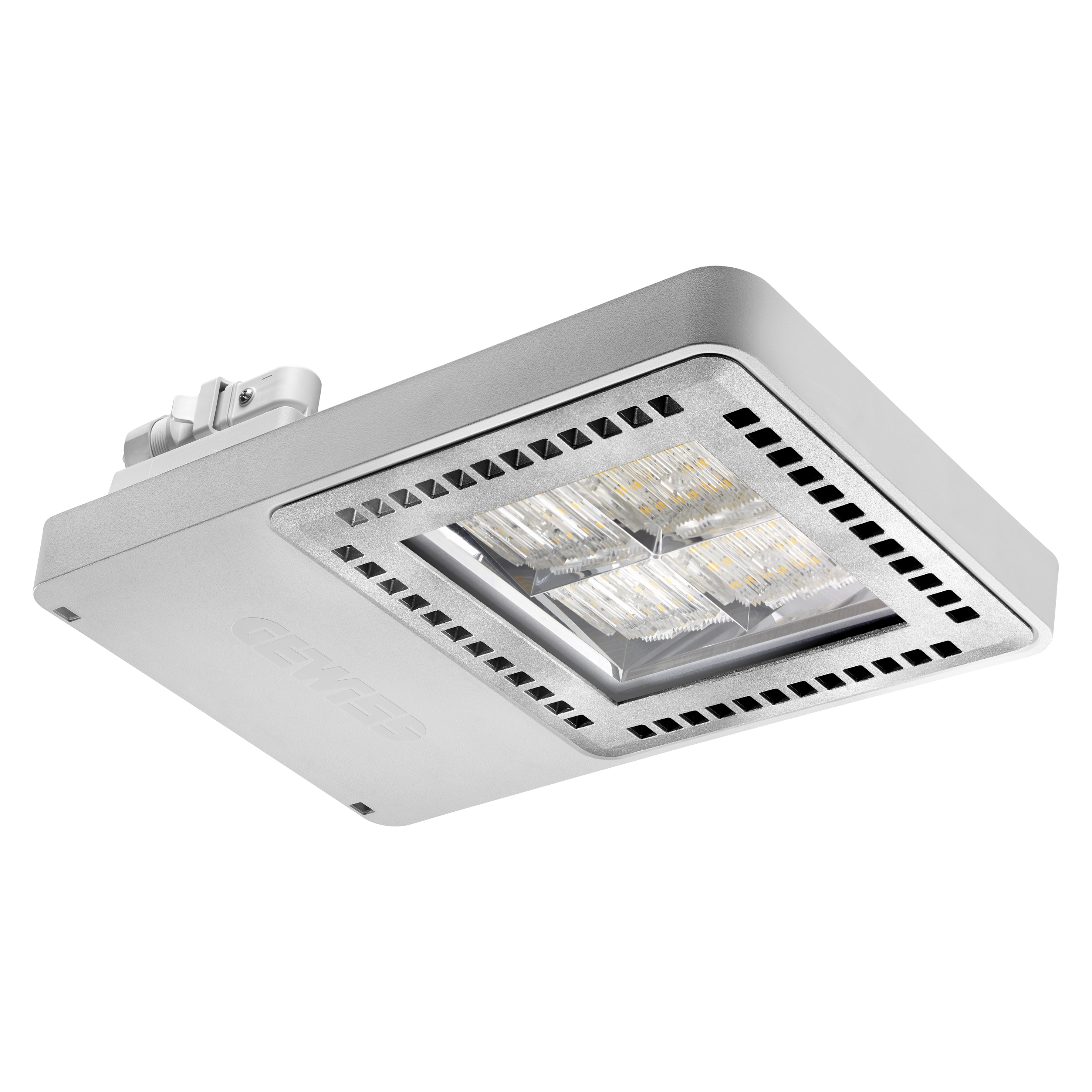

SMART[4] 1M ATEX

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - ATEX - 1 MODULE - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP66 - CLASS I
GWS4120FH840
ON / OFF
60°
4000 K
CRI>80
9900
64 W
3.5
SMART[4] - ATEX - 1 MODULE - STAND ALONE - ON / OFF - 60° OPTIC - 5700 K - IP66 - CLASS I
GWS4120FH857
ON / OFF
60°
5700 K
CRI>80
9900
64 W
3.5
SMART[4] - ATEX - 1 MODULE - STAND ALONE - ON / OFF - 90° OPTIC - 4000 K - IP66 - CLASS I
GWS4120FP840
ON / OFF
90°
4000 K
CRI>80
9900
64 W
3.5
SMART[4] - ATEX - 1 MODULE - STAND ALONE - ON / OFF - 90° OPTIC - 5700 K - IP66 - CLASS I
GWS4120FP857
ON / OFF
90°
5700 K
CRI>80
9900
64 W
3.5
SMART[4] - ATEX - 1 MODULE - STAND ALONE - ON / OFF - ARRAY OPTIC - 4000 K - IP66 - CLASS I
GWS4120FA840
ON / OFF
Array
4000 K
CRI>80
9900
64 W
3.5

SMART[4] 2M ATEX

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - ATEX - 2 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP66 - CLASS I
GWS4220FH840
ON / OFF
60°
4000 K
CRI>80
19800
127 W
7
SMART[4] - ATEX - 2 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 5700 K - IP66 - CLASS I
GWS4220FH857
ON / OFF
60°
5700 K
CRI>80
19800
127 W
6
SMART[4] - ATEX - 2 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 4000 K - IP66 - CLASS I
GWS4220FP840
ON / OFF
90°
4000 K
CRI>80
19800
127 W
6
SMART[4] - ATEX - 2 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 5700 K - IP66 - CLASS I
GWS4220FP857
ON / OFF
90°
5700 K
CRI>80
19800
127 W
6
SMART[4] - ATEX - 2 MODULES - STAND ALONE - ON / OFF - ARRAY OPTIC - 4000 K - IP66 - CLASS I
GWS4220FA840
ON / OFF
Array
4000 K
CRI>80
19800
127 W
6.5

SMART[4] 1M HACCP

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - HACCP - 1 MODULE - STAND ALONE - ON / OFF - 30° OPTIC - 4000 K - IP65 - CLASS I
GWS4120HF840
ON / OFF
30°
4000 K
CRI>80
9800
64 W
3.5
SMART[4] - HACCP - 1 MODULE - STAND ALONE - ON / OFF - 30° OPTIC - 5700 K - IP65 - CLASS I
GWS4120HF857
ON / OFF
30°
5700 K
CRI>80
9800
64 W
3.5
SMART[4] - HACCP - 1 MODULE - STAND ALONE - 1 X DALI DT6 - 30° OPTIC - 4000 K - IP65 - CLASS I
GWS4121HF840
DALI
30°
4000 K
CRI>80
9800
64 W
3.5
SMART[4] - HACCP - 1 MODULE - STAND ALONE - 1 X DALI DT6 - 30° OPTIC - 5700 K - IP65 - CLASS I
GWS4121HF857
DALI
30°
5700 K
CRI>80
9800
64 W
3.5
SMART[4] - HACCP - 1 MODULE - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP65 - CLASS I
GWS4120HH840
ON / OFF
60°
4000 K
CRI>80
9900
64 W
3.5

SMART[4] 2M HACCP

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - HACCP - 2 MODULES - STAND ALONE - ON / OFF - 30° OPTIC - 4000 K - IP65 - CLASS I
GWS4220HF840
ON / OFF
30°
4000 K
CRI>80
19600
125 W
6.5
SMART[4] - HACCP - 2 MODULES - STAND ALONE - ON / OFF - 30° OPTIC - 5700 K - IP65 - CLASS I
GWS4220HF857
ON / OFF
30°
5700 K
CRI>80
19600
125 W
6.5
SMART[4] - HACCP - 2 MODULES - STAND ALONE - 1 X DALI DT6 - 30° OPTIC - 4000 K - IP65 - CLASS I
GWS4221HF840
DALI
30°
4000 K
CRI>80
19600
125 W
6.5
SMART[4] - HACCP - 2 MODULES - STAND ALONE - 1 X DALI DT6 - 30° OPTIC - 5700 K - IP65 - CLASS I
GWS4221HF857
DALI
30°
5700 K
CRI>80
19600
125 W
6.5
SMART[4] - HACCP - 2 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP65 - CLASS I
GWS4220HH840
ON / OFF
60°
4000 K
CRI>80
19800
125 W
6.5

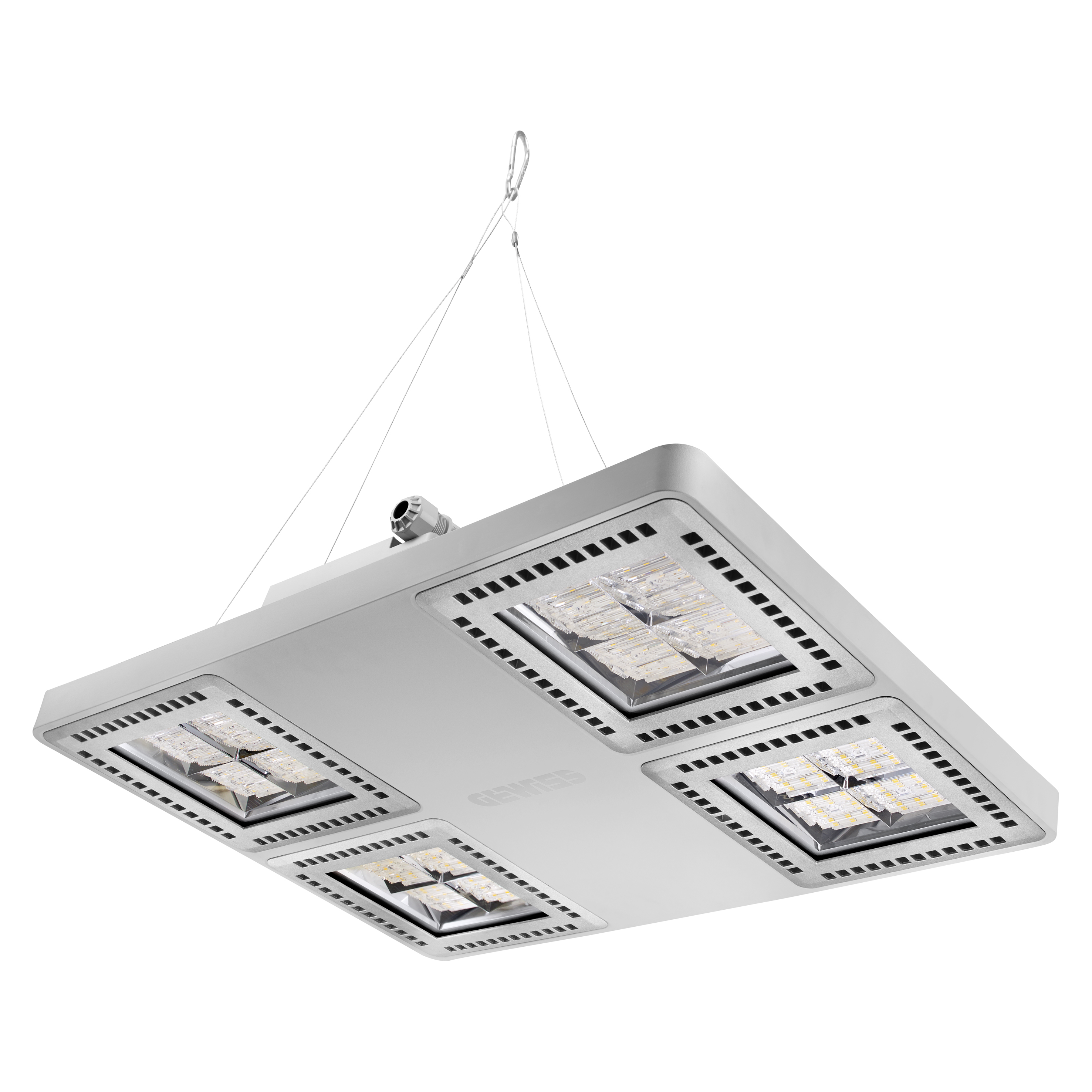

SMART[4] 4M HACCP

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - HACCP - 4 MODULES - STAND ALONE - ON / OFF - 30° OPTIC - 4000 K - IP65 - CLASS I
GWS4420HF840
ON / OFF
30°
4000 K
CRI>80
39200
253 W
13.5
SMART[4] - HACCP - 4 MODULES - STAND ALONE - ON / OFF - 30° OPTIC - 5700 K - IP65 - CLASS I
GWS4420HF857
ON / OFF
30°
5700 K
CRI>80
39200
253 W
13.5
SMART[4] - HACCP - 4 MODULES - STAND ALONE - 1 X DALI DT6 - 30° OPTIC - 4000 K - IP65 - CLASS I
GWS4421HF840
DALI
30°
4000 K
CRI>80
39200
253 W
13.5
SMART[4] - HACCP - 4 MODULES - STAND ALONE - 1 X DALI DT6 - 30° OPTIC - 5700 K - IP65 - CLASS I
GWS4421HF857
DALI
30°
5700 K
CRI>80
39200
253 W
13.5
SMART[4] - HACCP - 4 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP65 - CLASS I
GWS4420HH840
ON / OFF
60°
4000 K
CRI>80
39600
253 W
13.5

SMART[4] 1M HT

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - HT - 1 MODULE - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP66 - CLASS I
GWS4120CH840
ON / OFF
60°
4000 K
CRI>80
7700
48 W
3.5
SMART[4] - HT - 1 MODULE - STAND ALONE - ON / OFF - 60° OPTIC - 5700 K - IP66 - CLASS I
GWS4120CH857
ON / OFF
60°
5700 K
CRI>80
7700
48 W
3.5
SMART[4] - HT - 1 MODULE - STAND ALONE - ON / OFF - 90° OPTIC - 4000 K - IP66 - CLASS I
GWS4120CP840
ON / OFF
90°
4000 K
CRI>80
7700
48 W
3.5
SMART[4] - HT - 1 MODULE - STAND ALONE - ON / OFF - 90° OPTIC - 5700 K - IP66 - CLASS I
GWS4120CP857
ON / OFF
90°
5700 K
CRI>80
7700
48 W
3.5
SMART[4] - HT - 1 MODULE - STAND ALONE - ON / OFF - ARRAY OPTIC - 4000 K - IP66 - CLASS I
GWS4120CA840
ON / OFF
Array
4000 K
CRI>80
7700
48 W
3.5

SMART[4] 2M HT

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - HT - 2 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP66 - CLASS I
GWS4220CH840
ON / OFF
60°
4000 K
CRI>80
15400
95 W
6.5
SMART[4] - HT - 2 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 5700 K - IP66 - CLASS I
GWS4220CH857
ON / OFF
60°
5700 K
CRI>80
15400
95 W
6.5
SMART[4] - HT - 2 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 4000 K - IP66 - CLASS I
GWS4220CP840
ON / OFF
90°
4000 K
CRI>80
15400
95 W
6.5
SMART[4] - HT - 2 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 5700 K - IP66 - CLASS I
GWS4220CP857
ON / OFF
90°
5700 K
CRI>80
15400
95 W
6.5
SMART[4] - HT - 2 MODULES - STAND ALONE - ON / OFF - ARRAY OPTIC - 4000 K - IP66 - CLASS I
GWS4220CA840
ON / OFF
Array
4000 K
CRI>80
15400
95 W
6.5

SMART[4] 4M HT

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - HT - 4 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP66 - CLASS I
GWS4420CH840
ON / OFF
60°
4000 K
CRI>80
30800
189 W
13.5
SMART[4] - HT - 4 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 5700 K - IP66 - CLASS I
GWS4420CH857
ON / OFF
60°
5700 K
CRI>80
30800
189 W
13.5
SMART[4] - HT - 4 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 4000 K - IP66 - CLASS I
GWS4420CP840
ON / OFF
90°
4000 K
CRI>80
30800
189 W
13.5
SMART[4] - HT - 4 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 5700 K - IP66 - CLASS I
GWS4420CP857
ON / OFF
90°
5700 K
CRI>80
30800
189 W
13.5
SMART[4] - HT - 4 MODULES - STAND ALONE - ON / OFF - ARRAY OPTIC - 4000 K - IP66 - CLASS I
GWS4420CA840
ON / OFF
Array
4000 K
CRI>80
30800
189 W
13.5

SMART[4] 1M UL

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - UL -1 MODULE - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP66 - CLASS I
GWS4120GH840
ON / OFF
60°
4000 K
CRI>80
9900
65 W
3.5
SMART[4] - UL -1 MODULE - STAND ALONE - ON / OFF - 60° OPTIC - 5700 K - IP66 - CLASS I
GWS4120GH857
ON / OFF
60°
5700 K
CRI>80
9900
65 W
3.5
SMART[4] - UL -1 MODULE - STAND ALONE - ON / OFF - 90° OPTIC - 4000 K - IP66 - CLASS I
GWS4120GP840
ON / OFF
90°
4000 K
CRI>80
9900
65 W
3.5
SMART[4] - UL -1 MODULE - STAND ALONE - ON / OFF - 90° OPTIC - 5700 K - IP66 - CLASS I
GWS4120GP857
ON / OFF
90°
5700 K
CRI>80
9900
65 W
3.5
SMART[4] - UL -1 MODULE - STAND ALONE - ON / OFF - ARRAY OPTIC - 4000 K - IP66 - CLASS I
GWS4120GA840
ON / OFF
Array
4000 K
CRI>80
9900
65 W
3.5

SMART[4] 2M UL

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - UL -2 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP66 - CLASS I
GWS4220GH840
ON / OFF
60°
4000 K
CRI>80
19800
129 W
6.5
SMART[4] - UL -2 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 5700 K - IP66 - CLASS I
GWS4220GH857
ON / OFF
60°
5700 K
CRI>80
19800
129 W
6.5
SMART[4] - UL -2 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 4000 K - IP66 - CLASS I
GWS4220GP840
ON / OFF
90°
4000 K
CRI>80
19800
129 W
6.5
SMART[4] - UL -2 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 5700 K - IP66 - CLASS I
GWS4220GP857
ON / OFF
90°
5700 K
CRI>80
19800
129 W
6.5
SMART[4] - UL -2 MODULES - STAND ALONE - ON / OFF - ARRAY OPTIC - 4000 K - IP66 - CLASS I
GWS4220GA840
ON / OFF
Array
4000 K
CRI>80
19800
129 W
6.5

SMART[4] 4M UL

Category
Stand Alone

Change category

Stand Alone
Cod Gewiss
Control System
Optic
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[4] - UL -4 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 4000 K - IP66 - CLASS I
GWS4420GH840
ON / OFF
60°
4000 K
CRI>80
39600
256 W
13.5
SMART[4] - UL -4 MODULES - STAND ALONE - ON / OFF - 60° OPTIC - 5700 K - IP66 - CLASS I
GWS4420GH857
ON / OFF
60°
5700 K
CRI>80
39600
256 W
13.5
SMART[4] - UL -4 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 4000 K - IP66 - CLASS I
GWS4420GP840
ON / OFF
90°
4000 K
CRI>80
39600
256 W
13.5
SMART[4] - UL -4 MODULES - STAND ALONE - ON / OFF - 90° OPTIC - 5700 K - IP66 - CLASS I
GWS4420GP857
ON / OFF
90°
5700 K
CRI>80
39600
256 W
13.5
SMART[4] - UL -4 MODULES - STAND ALONE - ON / OFF - ARRAY OPTIC - 4000 K - IP66 - CLASS I
GWS4420GA840
ON / OFF
Array
4000 K
CRI>80
39600
256 W
13.5

Complementary items for SMART[4] 1M

Category
Complements for installation

Change category

Complements for installation
Cod Gewiss
Description

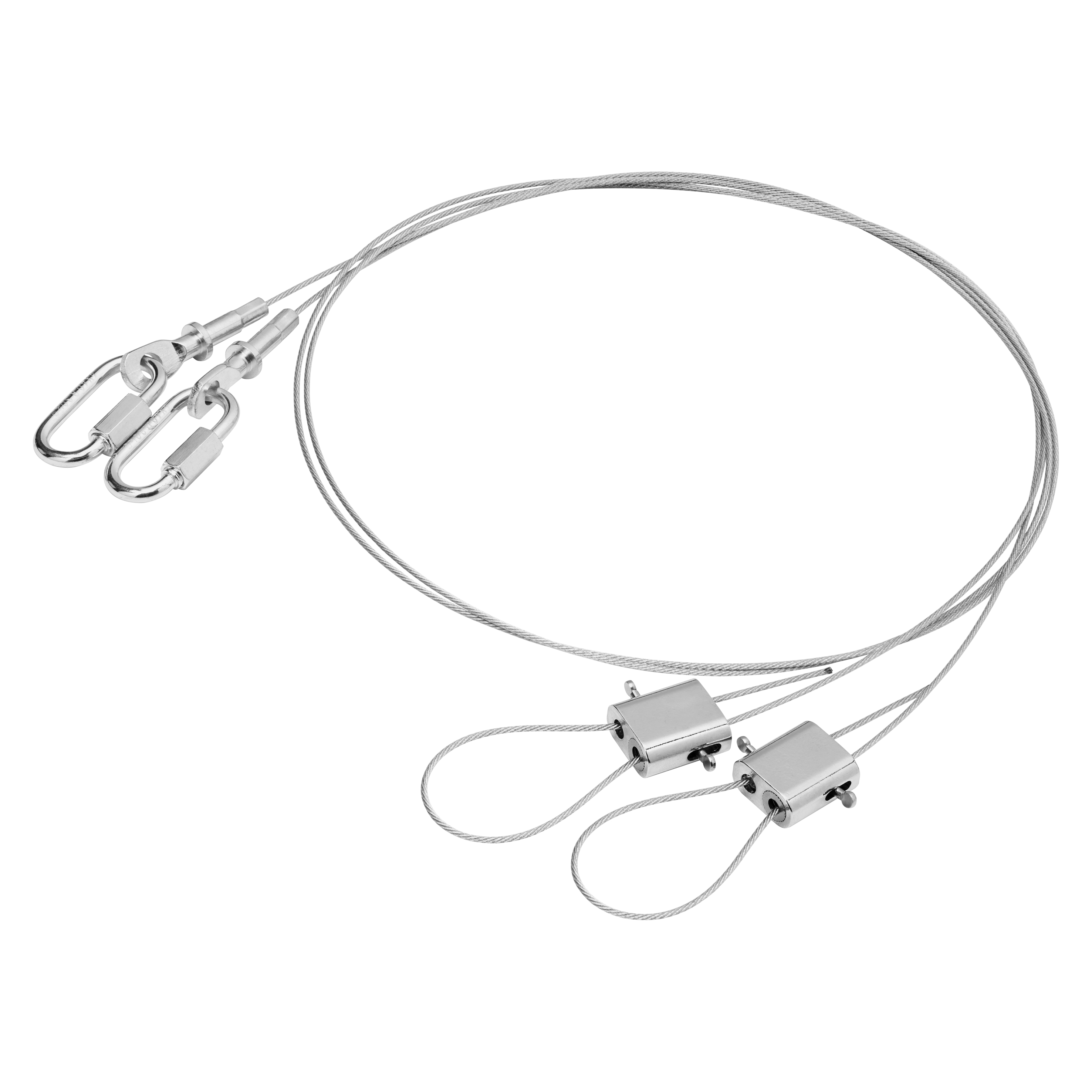

SMART [4] - ADJUSTABLE SUSPENSION KIT
GWL1901
Kit of adjustable suspension ropes with safety clamp

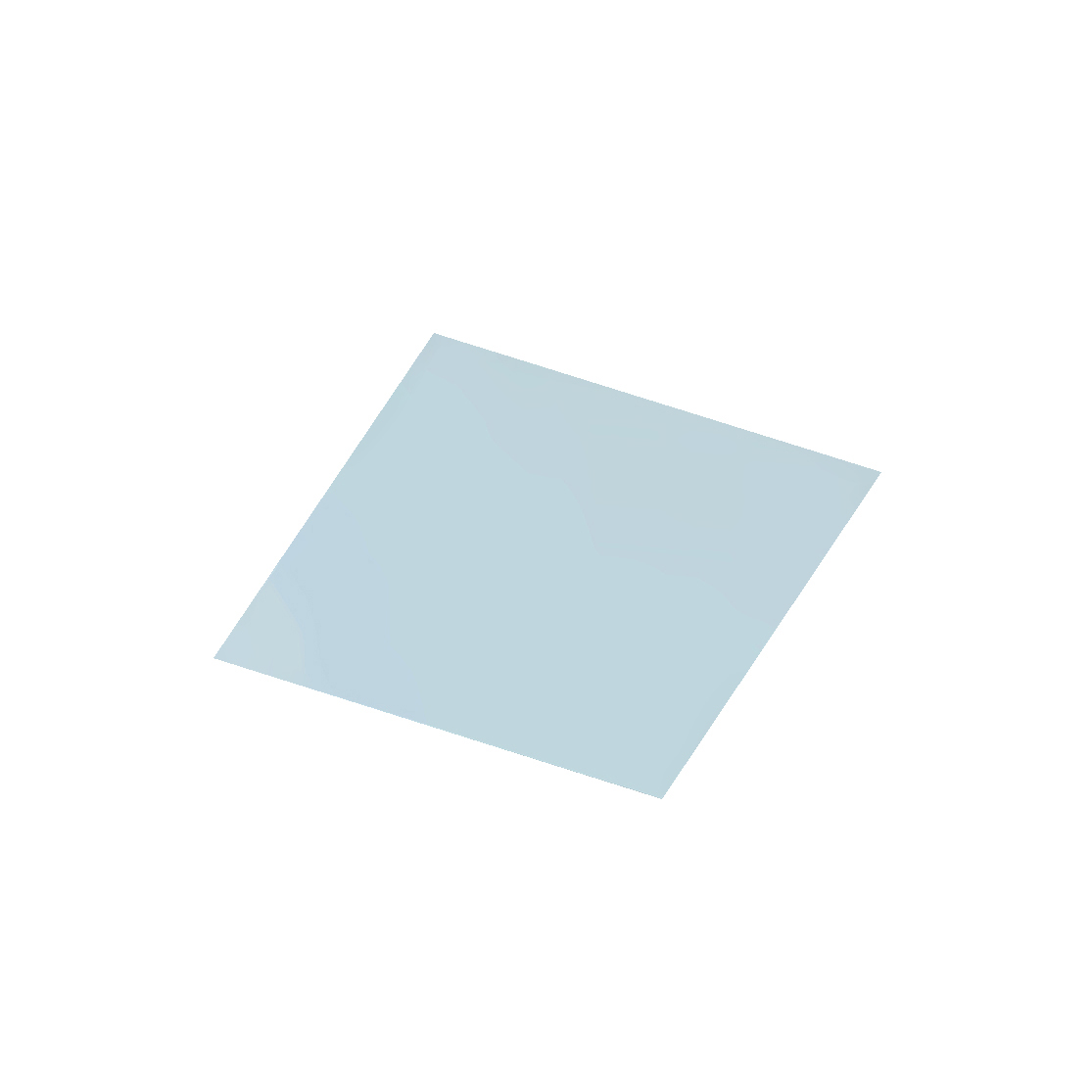

SMART [4] - REPLACEMENT GLASS FOR 1M/2M/4M VERSIONS
GWL1907
Smart [4] clear glass

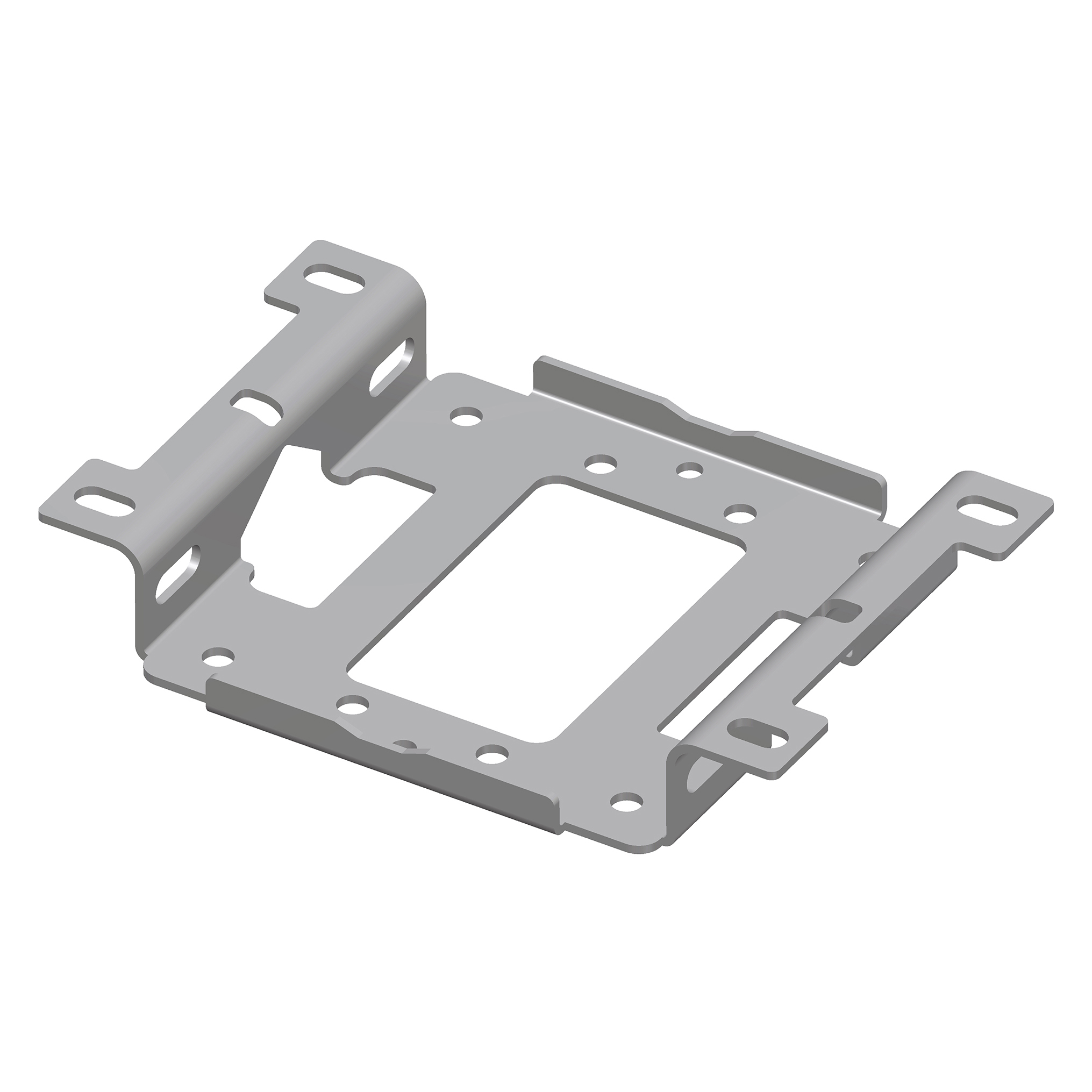

SMART [4] - POLE FIXING KIT FOR 1M VERSION
GWL1926
Fastening plate to pipe 1M

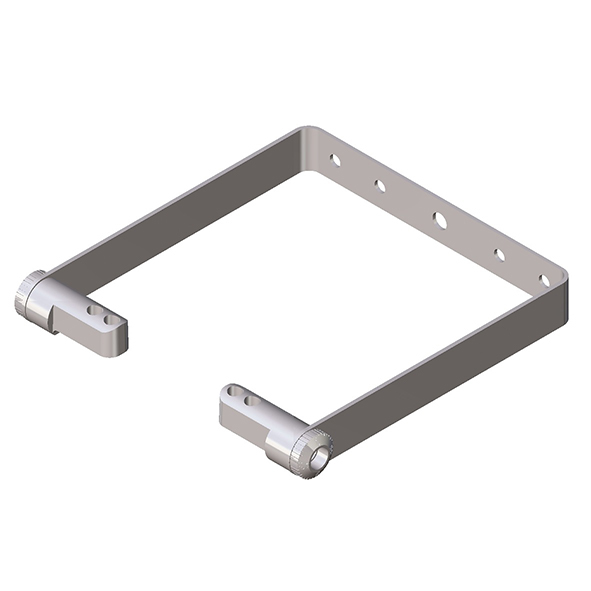

SMART [4] - FLOODLIGHT BRACKET FOR 1M VERSION
GWL1943
Floodlight bracket kit 1M

Complementary items for SMART[4] 2M

Category
Complements for installation

Change category

Complements for installation
Cod Gewiss
Description
SMART [4] - ADJUSTABLE SUSPENSION KIT
GWL1901
Kit of adjustable suspension ropes with safety clamp
SMART [4] - REPLACEMENT GLASS FOR 1M/2M/4M VERSIONS
GWL1907
Smart [4] clear glass

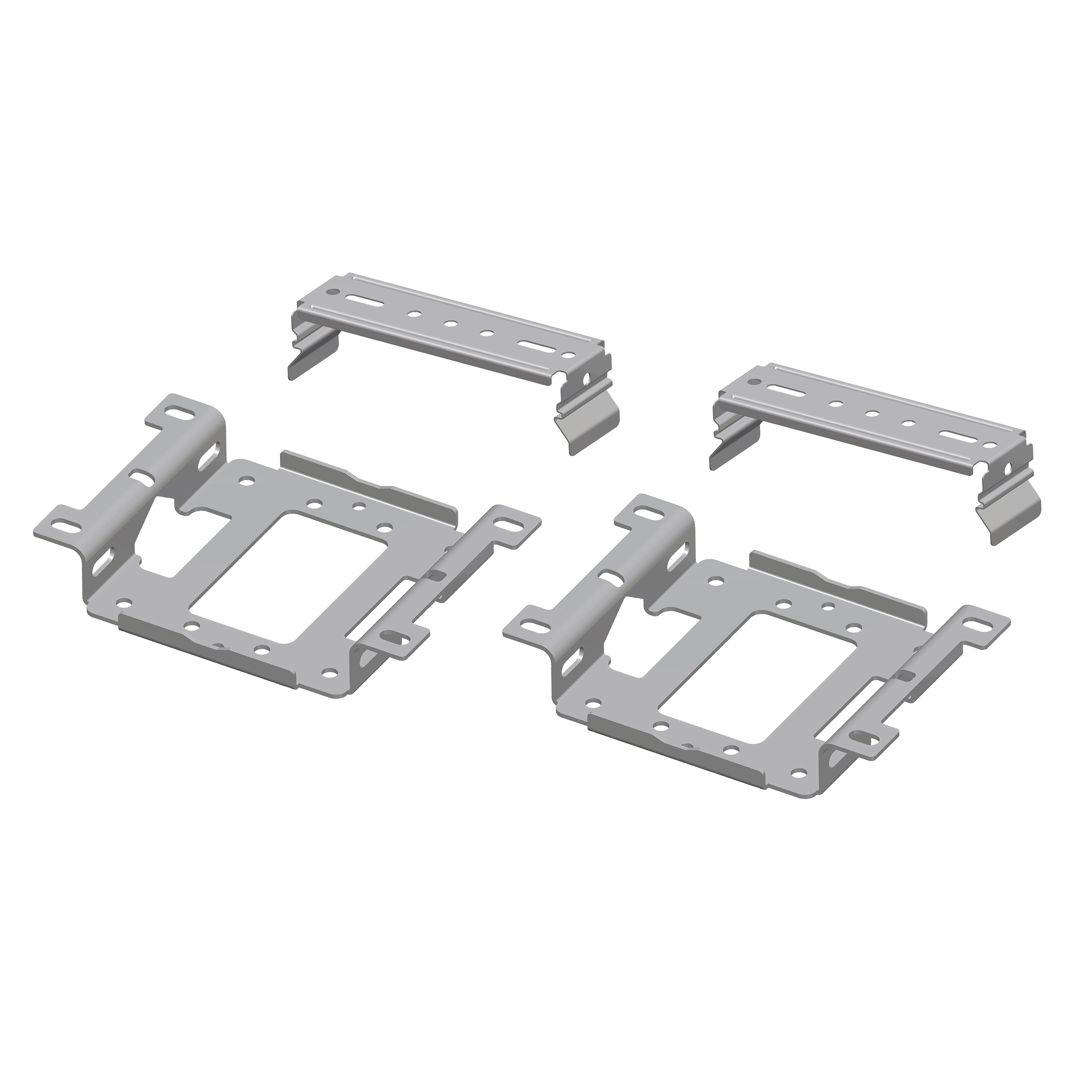

SMART [4] - CEILING-MOUNTING KIT FOR 2M VERSION
GWL1927
Wall/ceiling-mounting kit 2M
SMART [4] - POLE FIXING KIT FOR 2M VERSION
GWL1930
Fastening plate to pipe 2M

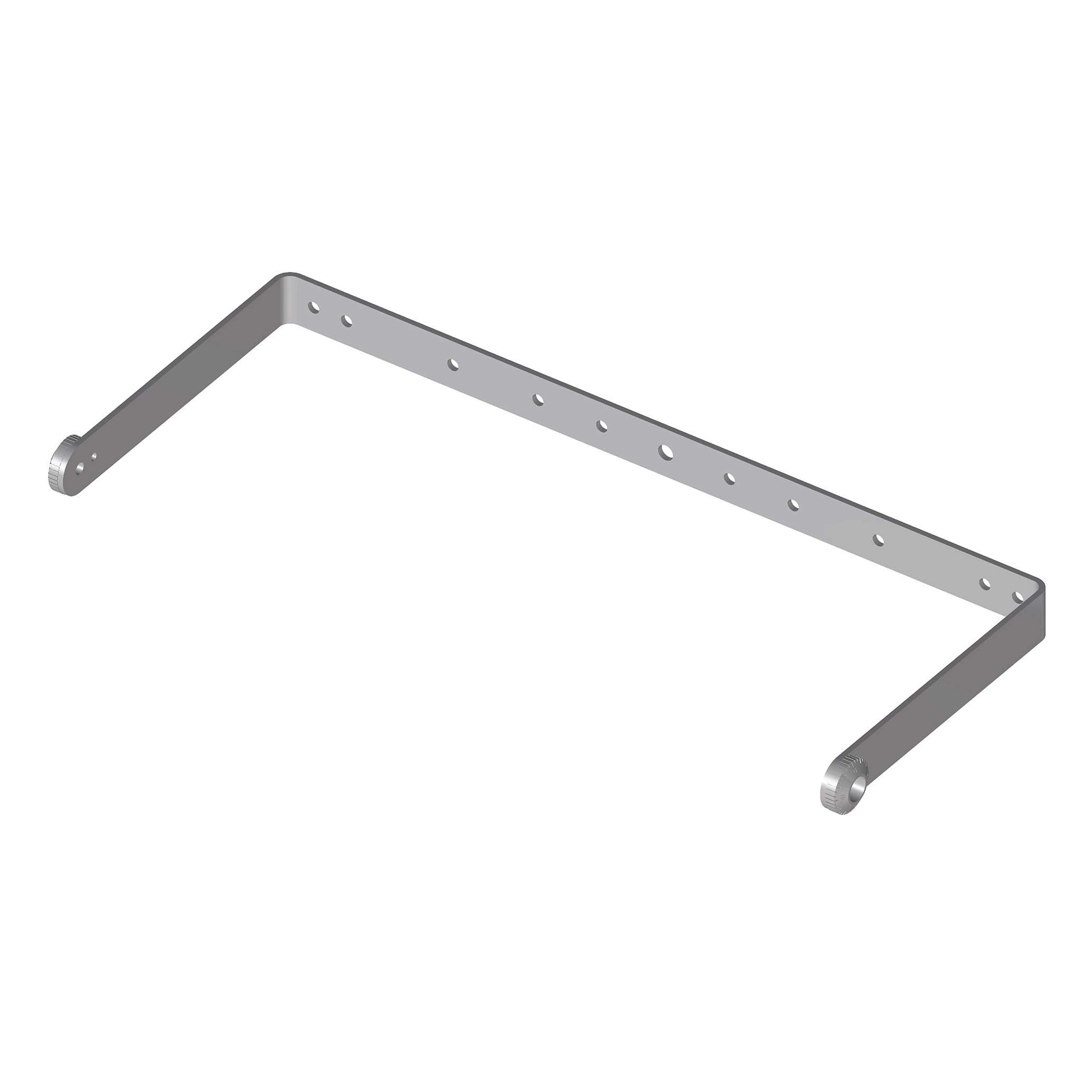

SMART [4] - FLOODLIGHT BRACKET FOR 2M VERSION
GWL1944
Floodlight bracket kit 2M

Complementary items for SMART[4] 4M

Category
Complements for installation

Change category

Complements for installation
Cod Gewiss
Description
SMART [4] - ADJUSTABLE SUSPENSION KIT
GWL1901
Kit of adjustable suspension ropes with safety clamp
SMART [4] - REPLACEMENT GLASS FOR 1M/2M/4M VERSIONS
GWL1907
Smart [4] clear glass

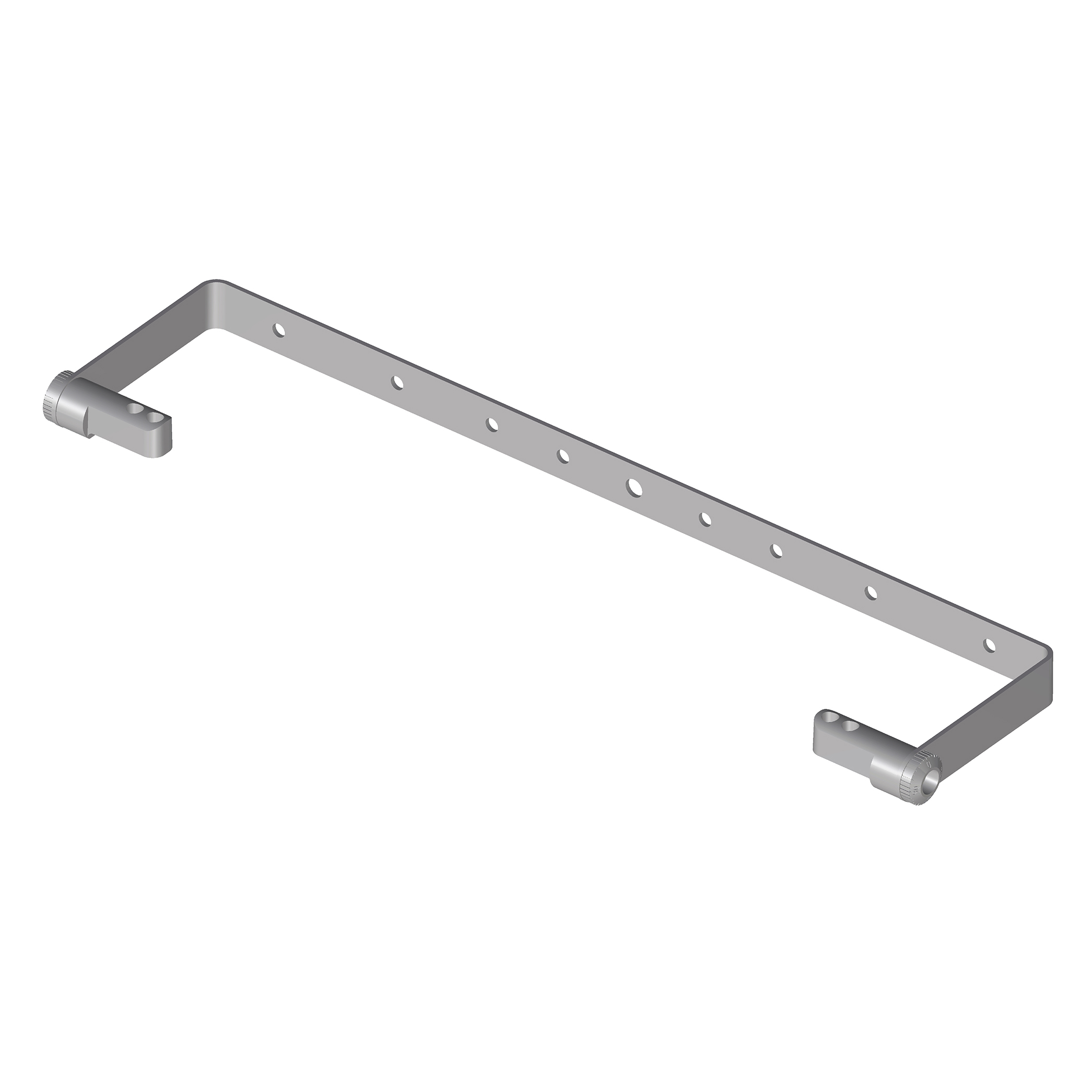

SMART [4] - FLOODLIGHT BRACKET FOR 4M VERSION
GWL1945
Floodlight bracket kit 4M
SMART [4] - CEILING-MOUNTING KIT FOR 4M VERSION
GWL1948
Wall/ceiling-mounting kit 4M
You saw 143 products on 143

Applications

services

Do you need technical assistance?

Contact us to get the answers to your questions: plant, regulatory or product questions.

Find Gewiss

Are you looking for an installer or a sales point?

Find your trusted dealer or installer.

Write to us Write us
More info More info
Services

With GEWISS it’s easier to design

GEWISS presents the software suites dedicated to professionals in the electrotechnical sector, designed to provide valuable support for design activities.

Write to us

Do you need information on Gewiss products or services?

Write to us Write to us

Wishlist Management

Privacy Policy

The privacy policy has been updated. Please review and provide your consent again. Thank you

Close Close

You can enter the Gewiss world by consulting the sites available for each country, differentiated by language, services, and catalogue offerings

Choose your country

Albania
IT EN
Belgium
FR NL
Chile
ES
Czech Republic
CZ
France
FR
Germany
DE
Hungary
HU
Israel
IL
Italy
IT
Holland
NL
Poland
PL
Romania
RO
Spain
ES
Swiss
IT FR DE
Turkey
TR
UK
EN

If your country is not among those available, you can consult the website

You are entering the site:

International - EN

GEWISS World websites are available for each country, differentiated by language, services and catalogue offerings.

Continue on international site Continue on international site

Do you want to change country?

Choose another country Choose another country
