SMART [3]

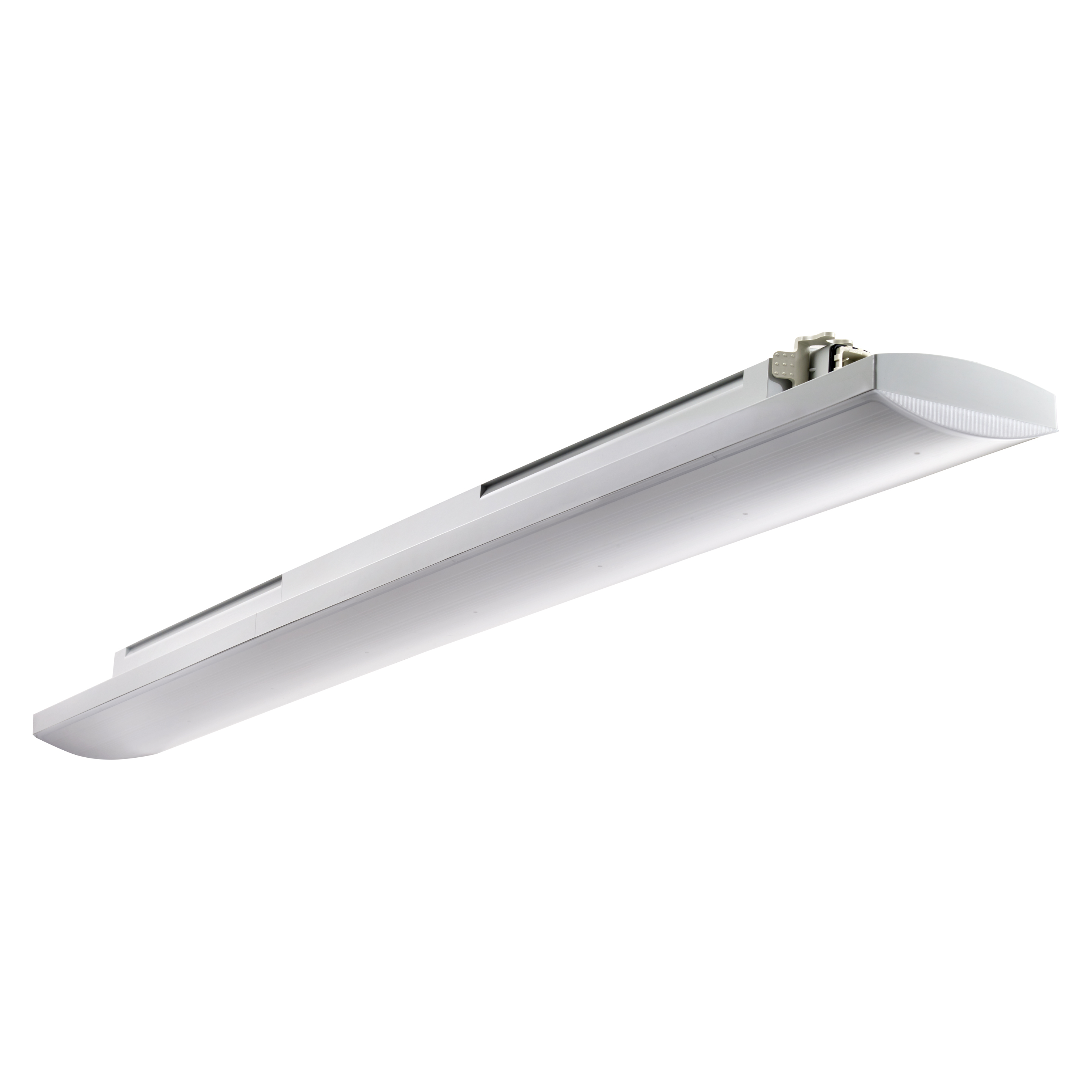

LED watertight luminaires

Smart [3] is the new range of LED watertight luminaires that completes the Smart selection. Ideal even in installation contexts of limited height (less than 4 metres), they are entirely designed, developed and produced in Italy. They are distinguished by an elegant design that highlights the particular features of the new LED technology, their extremely reduced energy consumption, their high impact resistance and their quick, easy installation.

See all product
Benefits
Modularity
Modularity
Smart [3] is available in three sizes and in a Stand Alone version or with through wiring for quick and easy installation and modular use in line or in series.
Connectivity
Connectivity
Smart [3] is designed to communicate with IoT systems that allow you to monitor consumption, power, programming, and carry out efficiency testing, for an increasingly SMART system.
Flexibility
Flexibility
Thanks to the different wattages and high-efficiency versions, the range is able to meet any lighting requirement and application.

The products of this series

102 products

SMART [3]

SMART[3] - 800

Category
Opal diffuser

Change category

Opal diffuser
Transparent diffuser
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118P
ON / OFF
Stand alone
4000 K
CRI>80
1600
15 W
1.5
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218P
ON / OFF
Stand alone
4000 K
CRI>80
3200
27 W
1.5
SMART[3] - OPAL SHIELD - STAND ALONE - 800MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218P30K
ON / OFF
Stand alone
3000 K
CRI>80
3000
27 W
1.5
SMART[3] - OPAL DIFFUSER - STAND ALONE - 800MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218P57K
ON / OFF
Stand alone
5700 K
CRI>80
3200
27 W
1.5
SMART[3] - OPAL DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118PL
ON / OFF
Through wiring
4000 K
CRI>80
1600
15 W
1.5
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118T
ON / OFF
Stand alone
4000 K
CRI>80
1700
15 W
1.5
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218T
ON / OFF
Stand alone
4000 K
CRI>80
3400
27 W
1.5
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 800MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218T30K
ON / OFF
Stand alone
3000 K
CRI>80
3200
27 W
1.5
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 800MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3218T57K
ON / OFF
Stand alone
5700 K
CRI>80
3400
27 W
1.5
SMART[3] - TRANSPARENT SHIELD - QUICK WIRING CONNECTION - STAND ALONE - 800MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3118TL
ON / OFF
Through wiring
4000 K
CRI>80
1700
15 W
1.5

SMART[3] - 1200

Category
Opal diffuser

Change category

Opal diffuser
Transparent diffuser
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136P
ON / OFF
Stand alone
4000 K
CRI>80
2500
20 W
2
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236P
ON / OFF
Stand alone
4000 K
CRI>80
5000
40 W
2
SMART[3] - OPAL SHIELD - STAND ALONE - 1200MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236P30K
ON / OFF
Stand alone
3000 K
CRI>80
4800
40 W
2
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1200MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236P57K
ON / OFF
Stand alone
5700 K
CRI>80
5000
40 W
2
SMART[3] - OPAL DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136PL
ON / OFF
Through wiring
4000 K
CRI>80
2500
20 W
2
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136T
ON / OFF
Stand alone
4000 K
CRI>80
2600
20 W
2
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236T
ON / OFF
Stand alone
4000 K
CRI>80
5200
40 W
2
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 1200MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236T30K
ON / OFF
Stand alone
3000 K
CRI>80
4900
40 W
2
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1200MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3236T57K
ON / OFF
Stand alone
5700 K
CRI>80
5200
40 W
2
SMART[3] - TRANSPARENT DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 1200MM - 4000K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3136TL
ON / OFF
Through wiring
4000 K
CRI>80
2600
20 W
2

SMART[3] - 1600

Category
Opal diffuser

Change category

Opal diffuser
Transparent diffuser
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158P
ON / OFF
Stand alone
4000 K
CRI>80
3250
26 W
2.5
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258P
ON / OFF
Stand alone
4000 K
CRI>80
6400
50 W
2.5
SMART[3] - OPAL SHIELD - STAND ALONE - 1600MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258P30K
ON / OFF
Stand alone
3000 K
CRI>80
6100
50 W
2.5
SMART[3] - OPAL DIFFUSER - STAND ALONE - 1600MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258P57K
ON / OFF
Stand alone
5700 K
CRI>80
6400
50 W
2.5
SMART[3] - OPAL DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158PL
ON / OFF
Through wiring
4000 K
CRI>80
3250
26 W
2.5
Cod Gewiss
Control System
Wiring
Colour temperature
Colour Rendering Index
Lumen output (lm)
System power
Weight (kg)
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158T
ON / OFF
Stand alone
4000 K
CRI>80
3400
26 W
2.5
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258T
ON / OFF
Stand alone
4000 K
CRI>80
6700
50 W
2.5
SMART[3] - TRANSPARENT SHIELD - STAND ALONE - 1600MM - 3000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258T30K
ON / OFF
Stand alone
3000 K
CRI>80
6400
50 W
2.5
SMART[3] - TRANSPARENT DIFFUSER - STAND ALONE - 1600MM - 5700 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3258T57K
ON / OFF
Stand alone
5700 K
CRI>80
6700
50 W
2.5
SMART[3] - TRANSPARENT DIFFUSER - QUICK WIRING CONNECTION - STAND ALONE - 1600MM - 4000 K (CRI 80) - 220/240V 50/60HZ - IP66/IP69 - CLASS II
GWS3158TL
ON / OFF
Through wiring
4000 K
CRI>80
3400
26 W
2.5

Complementary items

Category
Complements for installation

Change category

Complements for installation
Emergency kit
Cod Gewiss
Description

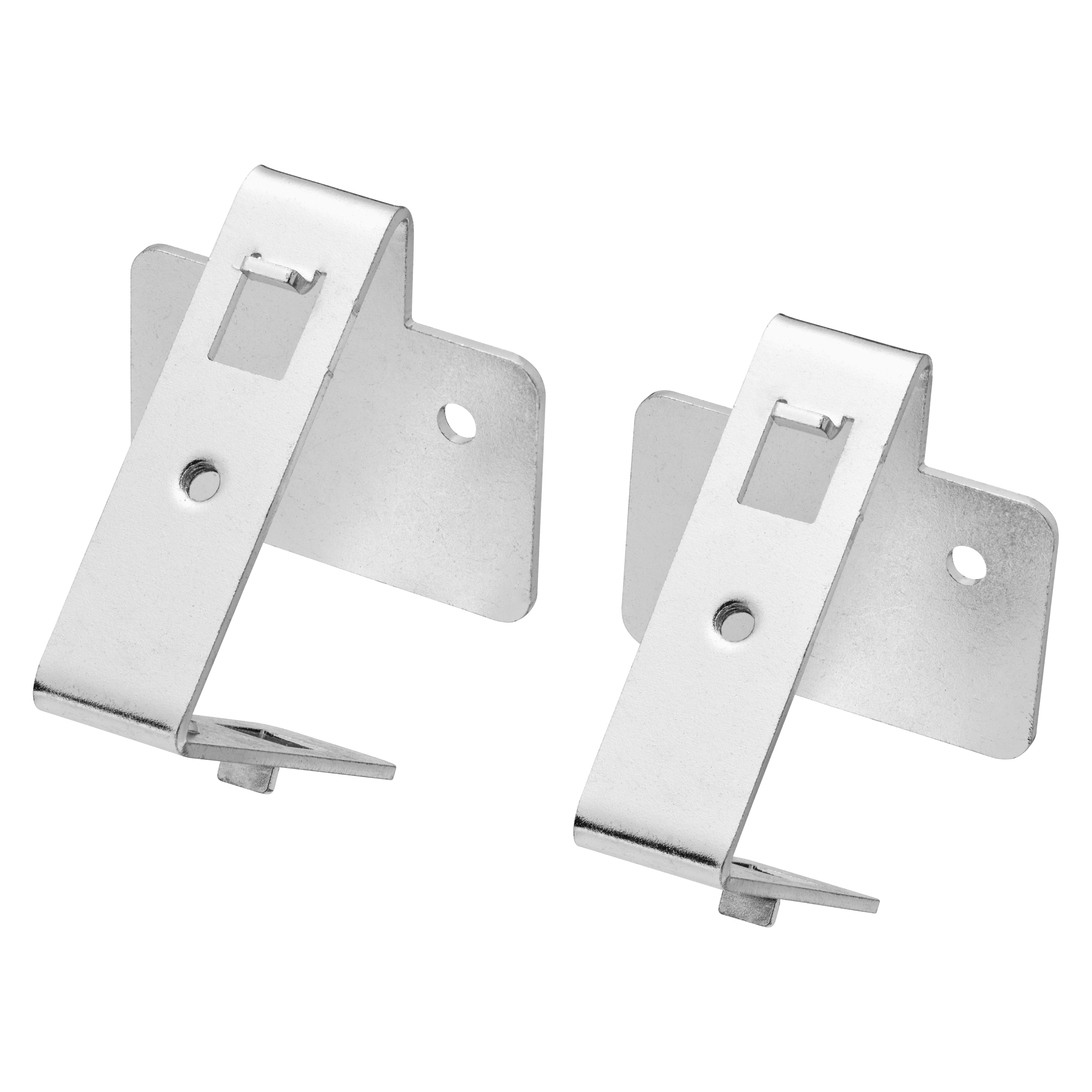

SMART [3] - WALL-MOUNTING BRACKET 30°/45°
GWS3191
Pair of brackets for fixing to the wall at 30° or 45°
SMART [3] - MALE CONNECTOR 4 POLES 10A
GWS3194
4P 10 A male connector
SMART [3] - RIGID PIPE ADAPTOR
GWS3193
Flexible connector for 20 mm pipe
SMART [3] - CONTINUOUS LINE CONNECTION KIT
GWS3197
Continuous line connection kit
SMART [3] - RINA BRACKET KIT
GWS3296
RINA collars kit for Smart [3]
Cod Gewiss
Description
Autonomy

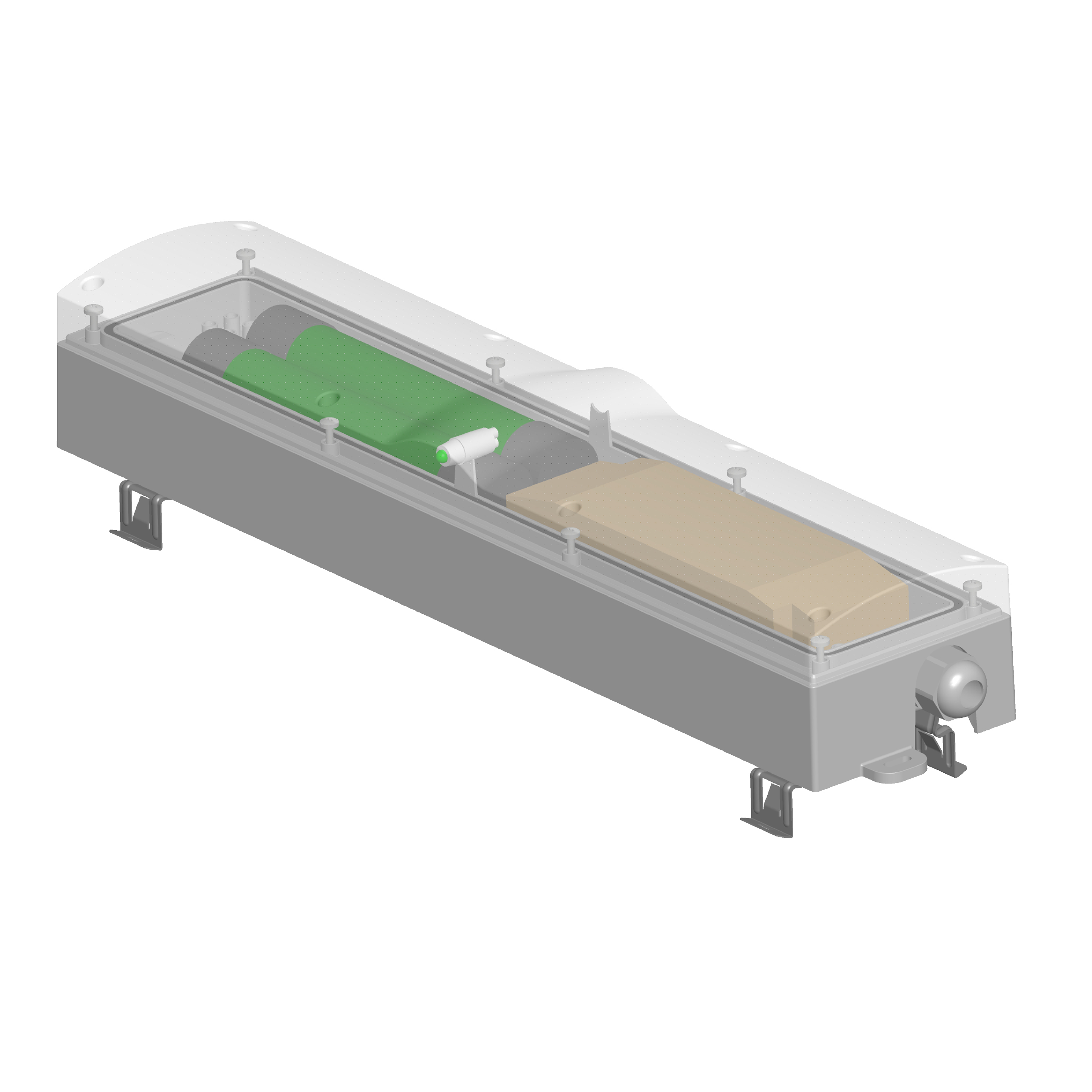

SMART [3] - EMERGENCY KIT 3H FOR THROUGH WIRING VERSION
GWS3198
Smart [3] emergency kit - through wiring
3 h
