ESALITE HB-Industrial devices

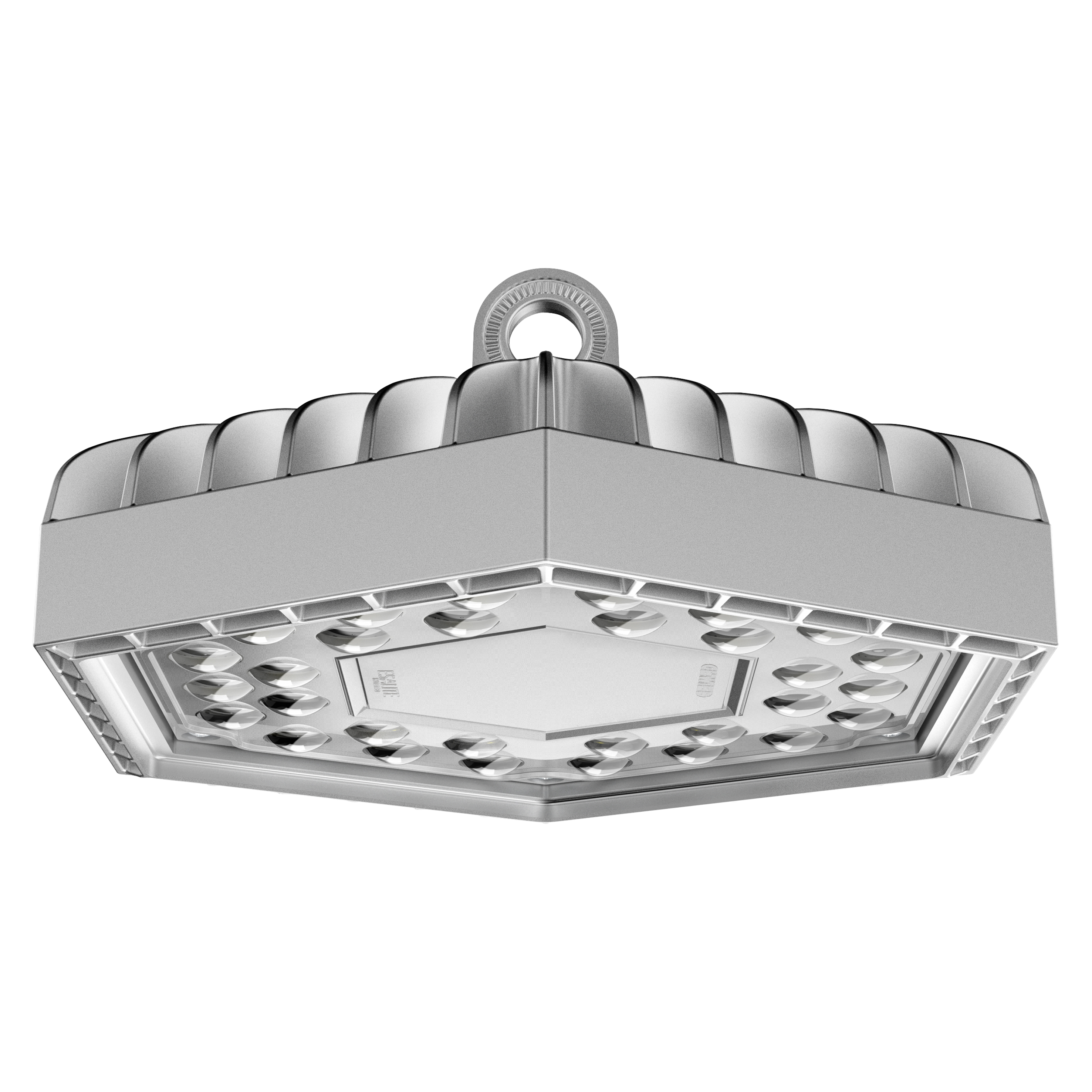

ESALITE HB
Industrial devices

ESALITE - a new product in the technical LED range of industrial lighting. Long-lasting reliability and top performance are the fundamental features of this high bay, designed for both outdoor and indoor contexts. In addition, streamlined geometry and a multitude of uses make it ideal as either a floodlight or a pole-mounted light. Excellent performance combined with many high quality features make ESALITE the perfect blend of technology and design, even for the most extreme applications.

See all product
Benefits
Reliable
Integrated hook
Versatile
Reliable
Reliable
The die-cast aluminium structure ensures optimal conditions for performance thanks to thermal sizing. Proper heat dissipation is guaranteed by a special high-performance heat sink.
Integrated hook
Integrated hook
To ensure maximum strength, ESALITE has been designed with a mounting ring integrated into the die-casting. This ensures exceptional fast installation even in extreme environments, where handling and installation speed are of top priority.
Versatile
Versatile
The ESALITE range consists of seven different luminous flux outputs, four optics and three LED colour temperatures. The three installation modes and two colourways also ensure the best product integration in any context.

The products of this series

Navigate by catalogue
All filters
151 products
Grid
List

ESALITE HB - 6K

ESALITE HB - 6K - Suspended version with lens

Category
LED version - RAL 9006 grey - IP65- Class I - DALI driver

Change category

Change category

LED version - RAL 9006 grey - IP65- Class I - DALI driver
Cod Gewiss
Versions
Optic
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Weight (kg)
ESALITE HB - 6K - 30° OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
GWS6012GD30K
3000K warm light
Narrow 30°
3000 K (CRI>80)
52 W
6700
5800
2.8
ESALITE HB - 6K - 60° OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
GWS6013GD30K
3000K warm light
Medium 60°
3000 K (CRI>80)
52 W
6700
5900
2.8
ESALITE HB - 6K - 90° OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
GWS6014GD30K
3000K warm light
Wide 90°
3000 K (CRI>80)
52 W
6700
6300
2.8
ESALITE HB - 6K - ELLIPTICAL OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
GWS6015GD30K
3000K warm light
Elliptical
3000 K (CRI>80)
52 W
6700
5900
2.8
ESALITE HB - 6K - 30° OPTIC - DALI - 4000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
GWS6012GD
4000K natural light
Narrow 30°
4000 K (CRI>80)
52 W
7200
6200
2.8
See all
ESALITE HB - 6K - 30° OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
GWS6012GD30K
ESALITE HB - 6K - 30° OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
Show
ESALITE HB - 6K - 60° OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
GWS6013GD30K
ESALITE HB - 6K - 60° OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
Show
ESALITE HB - 6K - 90° OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
GWS6014GD30K
ESALITE HB - 6K - 90° OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
Show
ESALITE HB - 6K - ELLIPTICAL OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
GWS6015GD30K
ESALITE HB - 6K - ELLIPTICAL OPTIC - DALI - 3000 K (CRI 80) - IP65 - CLASS I - RAL 9006 GREY
Show
See all

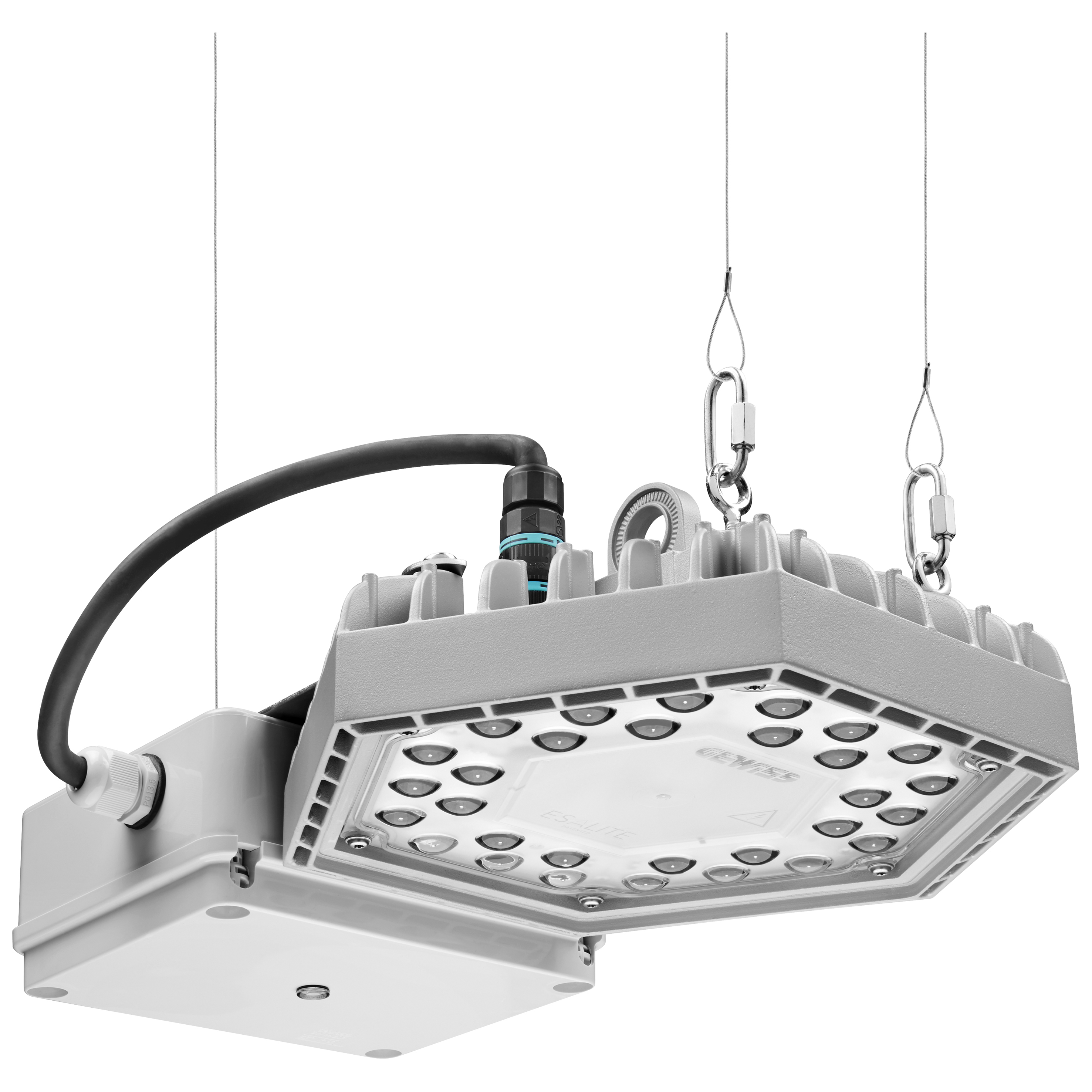

ESALITE HB - 6K - Suspended version with glass

Category
LED version - RAL 9006 grey - IP66 - Class I - DALI driver

Change category

Change category

LED version - RAL 9006 grey - IP66 - Class I - DALI driver
Cod Gewiss
Versions
Optic
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Weight (kg)
ESALITE HB - 6K - 30° OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
GWS6312GD30K
3000K warm light
Narrow 30°
3000 K (CRI>80)
52 W
6700
5300
3.3
ESALITE HB - 6K - 60° OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
GWS6313GD30K
3000K warm light
Medium 60°
3000 K (CRI>80)
52 W
6700
5400
3.3
ESALITE HB - 6K - 90° OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
GWS6314GD30K
3000K warm light
Wide 90°
3000 K (CRI>80)
52 W
6700
5800
3.3
ESALITE HB - 6K - ELLIPTICAL OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
GWS6315GD30K
3000K warm light
Elliptical
3000 K (CRI>80)
52 W
6700
5400
3.3
ESALITE HB - 6K - 30° OPTIC - DALI - 4000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
GWS6312GD
4000K natural light
Narrow 30°
4000 K (CRI>80)
52 W
7200
5700
3.3
See all
ESALITE HB - 6K - 30° OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
GWS6312GD30K
ESALITE HB - 6K - 30° OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
Show
ESALITE HB - 6K - 60° OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
GWS6313GD30K
ESALITE HB - 6K - 60° OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
Show
ESALITE HB - 6K - 90° OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
GWS6314GD30K
ESALITE HB - 6K - 90° OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
Show
ESALITE HB - 6K - ELLIPTICAL OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
GWS6315GD30K
ESALITE HB - 6K - ELLIPTICAL OPTIC - DALI - 3000 K (CRI 80) - IP66 - CLASS I - RAL 9006 GREY
Show
See all

ESALITE HB - 6K - Emergency version with glass

Category
LED version - RAL 9006 grey - IP55 - Class I - DALI driver

Change category

Change category

LED version - RAL 9006 grey - IP55 - Class I - DALI driver
Cod Gewiss
Versions
Optic
Colour temperature
System power
Lumen output (lm)
Luminous flux in emerg. [lm]
Weight (kg)
ESALITE HB 6K 90° 4000K EMERGENCY 3H CRI80
GWS6911
4000K natural light
Wide 90°
4000 K (CRI>80)
60 W
6700
650
4.5
ESALITE HB 6K 90° 4000K EMERGENCY 3H CRI80
GWS6911
ESALITE HB 6K 90° 4000K EMERGENCY 3H CRI80
Show
You saw 25 products on 151
Show others
