STREET [O3] range
Street lighting LED system

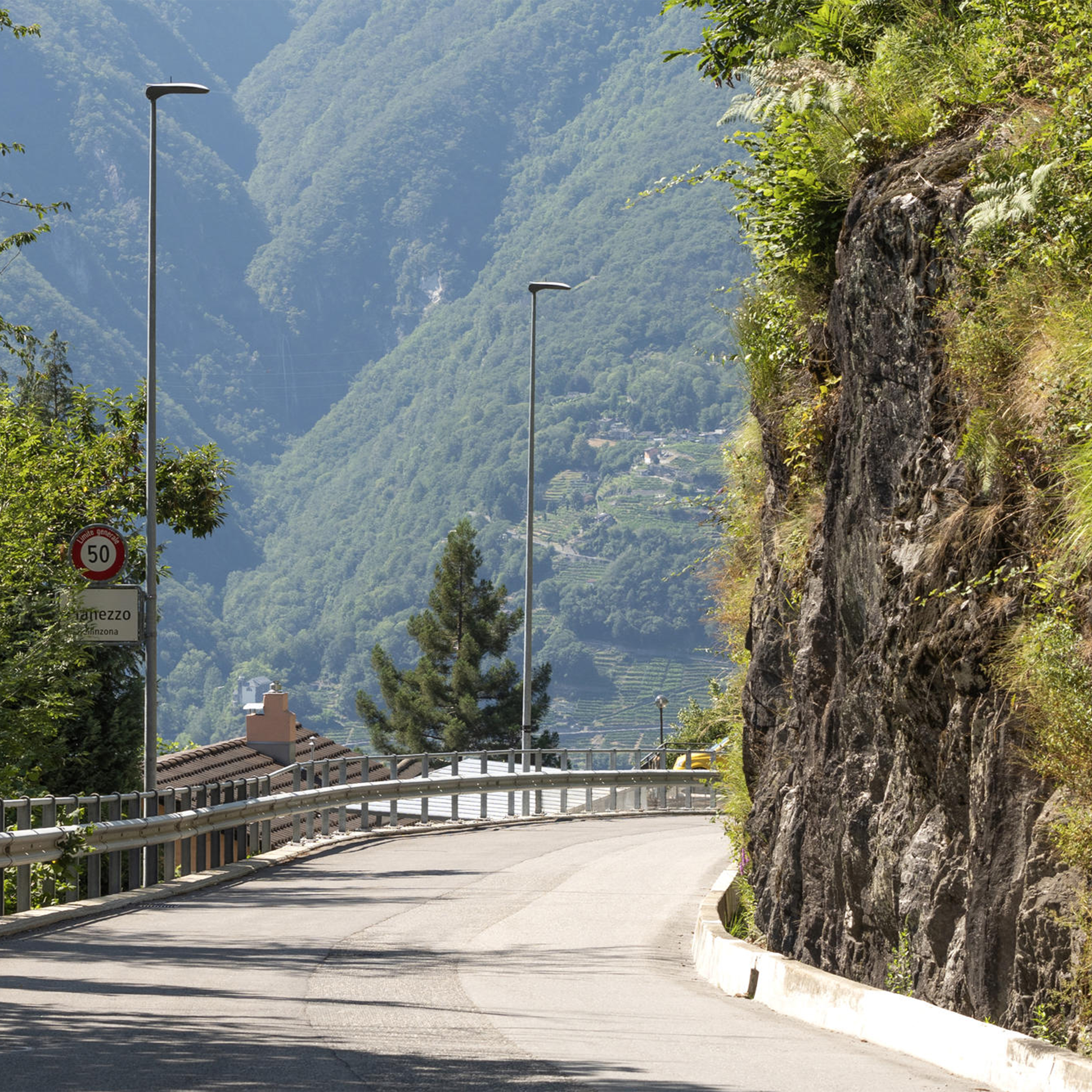

Street [O3] is a street lighting line for lighting public and private roads, large outdoor areas and car parks. The modular LED elements and variety of optics produce different levels of lighting to meet every design need. The [O3] Optical Output Optimize technology offers great versatility and guarantees high performance results from the device.
Benefits
Due to the complete separation between the electrical/electronic parts and the device shell, Street [O3] is protected against major induced overloads up to 12KV in common mode, in accordance with IEC EN 61000-4-5 (Certified by a third-party body).
The Street [O3] range uses refractive optics coupled to the source to achieve better throughput and optimal light flow distribution. The GEWISS optics were designed using 3D modelling to define the angles with maximum precision.
All products in the Street [O3] range are covered by a 5-year comprehensive warranty.
The products of this series
23 products
STREET [O3] - Class II
LED - Optic ST1
Category
Street lighting in aluminium - LED modules 700 mA with PMMA lenses
Change category
Street lighting in aluminium - LED modules 700 mA with PMMA lenses
Street lighting in aluminium - LED modules 550 mA with PMMA lenses
Cod Gewiss
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)
GW87410
220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
1 (1x16 LED)
4000 K (CRI>70)
37 W
4140
3470
Graphite/Aluminium
8.5
GW87411
220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
2 (2x16 LED)
4000 K (CRI>70)
68 W
8050
6760
Graphite/Aluminium
9.1
GW87412
220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
3 (3x16 LED)
4000 K (CRI>70)
99 W
11740
9860
Graphite/Aluminium
9.6
GW87413
220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
4 (4x16 LED)
4000 K (CRI>70)
131 W
15370
12900
Graphite/Aluminium
10.3

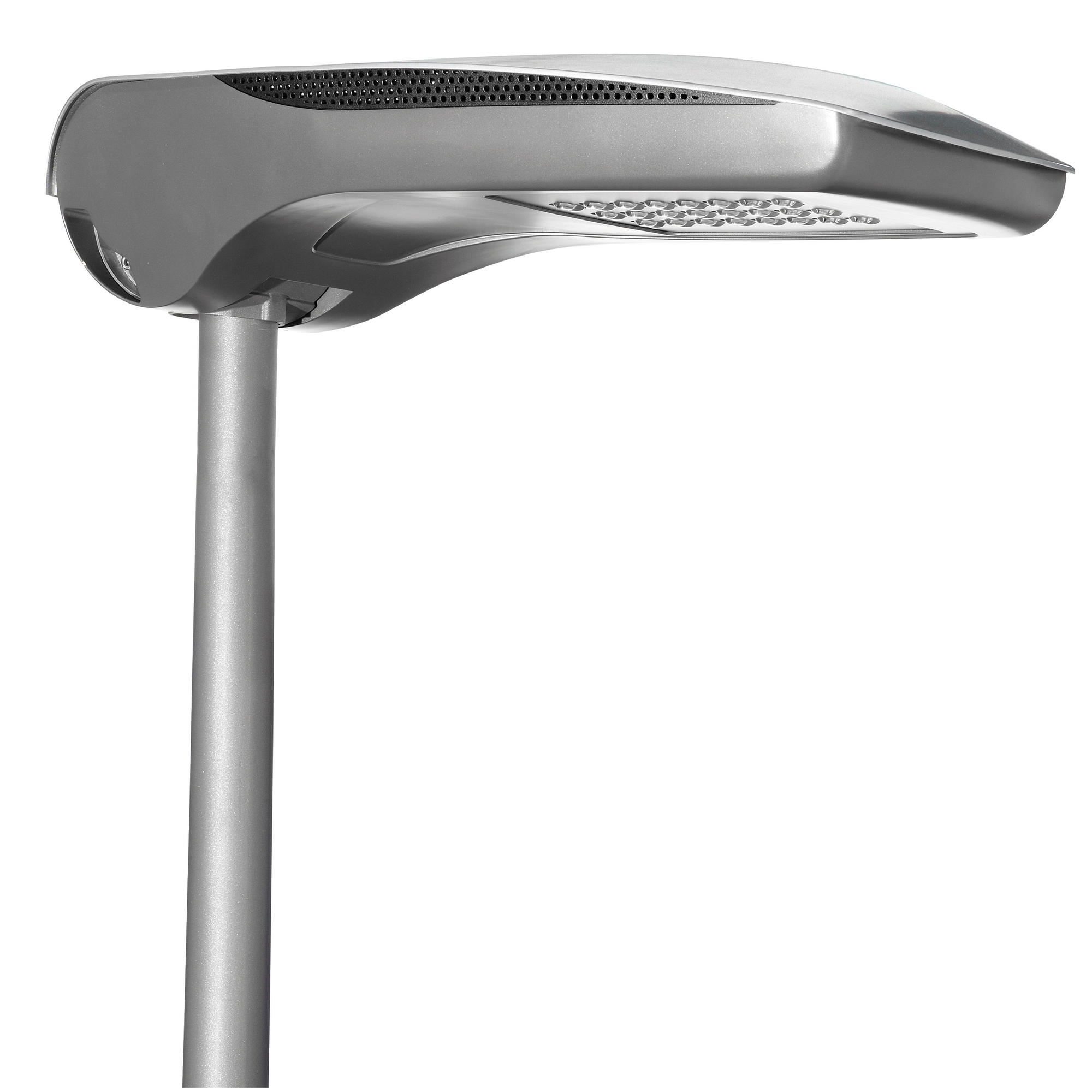

![STREET [O3] - 1x16 LED - ST1 - STAND ALONE AND/OR DIMMABLE 1/10 V - 4000 K (CRI 70) - 700mA - 220/240 V-50/60Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM](/content/dam/gwdam/product/GW/10/01/88/54/GW10018854.jpg.transform/287x287/fa8bb806caf44b0a79c621591167164315fcd458/img.jpeg "STREET [O3] - 1x16 LED - ST1 - STAND ALONE AND/OR DIMMABLE 1/10 V - 4000 K (CRI 70) - 700mA - 220/240 V-50/60Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM")
GW87410
STREET [O3] - 1x16 LED - ST1 - STAND ALONE AND/OR DIMMABLE 1/10 V - 4000 K (CRI 70) - 700mA - 220/240 V-50/60Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM
GW87411
STREET [O3] - 2x16 LED - ST1 - STAND ALONE AND/OR DIMMABLE 1/10 V - 4000 K (CRI 70) - 700mA - 220/240 V-50/60Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM
GW87412
STREET [O3] - 3x16 LED - ST1 - STAND ALONE AND/OR DIMMABLE 1/10 V - 4000 K (CRI 70) - 700mA - 220/240 V-50/60Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM
GW87413
STREET [O3] - 4x16 LED - ST1 - STAND ALONE AND/OR DIMMABLE 1/10 V - 4000 K (CRI 70) - 700mA - 220/240 V-50/60Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM
Cod Gewiss
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)
GW87530
220/240 V - 50/60 Hz - Bi-power with self-learning
1 (1x16 LED)
4000 K (CRI>70)
31 W
3610
3030
Graphite/Aluminium
8.5
GW87531
220/240 V - 50/60 Hz - Bi-power with self-learning
2 (2x16 LED)
4000 K (CRI>70)
54 W
7020
5890
Graphite/Aluminium
9.1
GW87532
220/240 V - 50/60 Hz - Bi-power with self-learning
3 (3x16 LED)
4000 K (CRI>70)
81 W
10230
8590
Graphite/Aluminium
9.7
GW87533
220/240 V - 50/60 Hz - Bi-power with self-learning
4 (4x16 LED)
4000 K (CRI>70)
105 W
13400
11240
Graphite/Aluminium
10.3
GW87530
STREET [O3] - 1x16 LED - ST1 - BI-POWER WITH SELF-LEARNING - 4000 K (CRI 70) - 550 mA - 220/240 V-50/60 Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM
GW87531
STREET [O3] - 2x16 LED - ST1 - BI-POWER WITH SELF-LEARNING - 4000 K (CRI 70) - 550 mA - 220/240 V-50/60 Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM
GW87532
STREET [O3] - 3x16 LED - ST1 - BI-POWER WITH SELF-LEARNING - 4000 K (CRI 70) - 550 mA - 220/240 V-50/60 Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM
GW87533
STREET [O3] - 4x16 LED - ST1 - BI-POWER WITH SELF-LEARNING - 4000 K (CRI 70) - 550 mA - 220/240 V-50/60 Hz - IP66 - CLASS II - GRAPHITE/ALUMINIUM
LED - Cycle and pedestrian optic
Category
Street lighting in aluminium - LED modules 700 mA with PMMA lenses
Change category
Street lighting in aluminium - LED modules 700 mA with PMMA lenses
Cod Gewiss
Voltage
Number of modules
Colour temperature
System power
Nominal flux (lm)
Lumen output (lm)
Colour
Weight (kg)
GWS7110
220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
1 (1x16 LED)
4000 K (CRI>70)
37 W
4140
3260
Graphite/Aluminium
8.5
GWS7111
220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V
2 (2x16 LED)
4000 K (CRI>70)
68 W
8050
6330
Graphite/Aluminium
9.1
GWS7110
STREET [O3] - 1x16 LED - CYC/PED OPTIC - STAND ALONE/DIMMABLE 1/10 V - 4000 K (CRI 70) - 700 mA - 220/240 V-50/60 Hz - IP66 - CLASS II - GRAPHITE/ALU
GWS7111
STREET [O3] - 2x16 LED - CYC/PED OPTIC - STAND ALONE/DIMMABLE 1/10 V - 4000 K (CRI 70) - 700 mA - 220/240 V-50/60 Hz - IP66 - CLASS II - GRAPHITE/ALU
GWS7112
STREET [O3] - 3x16 LED - CYC/PED OPTIC - STAND ALONE/DIMMABLE 1/10 V - 4000 K (CRI 70) - 700 mA - 220/240 V-50/60 Hz - IP66 - CLASS II - GRAPHITE/ALU
You saw 13
products
on 23
Show others
