CHORUSMART - Domestic range
Glossy ivory modular devices

The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements. Colours and finishes: glossy ivory, bright and versatile. Unlimited functions in reduced spaces: the ChoruSmart range consists of button keys with ½, 1, 2 and 3 modules to optimise space as needed. Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support.

See all product
Benefits
Variable
Variable
The wide range of options for customising the devices, in terms of colour and modularity, ensures a vast choice of solutions.

The products of this series

67 products

Command

Command devices - screw terminals

Category
One-way switches 1P - 250V ac

Change category

One-way switches 1P - 250V ac
One-way switches 2P - 250V ac
Two-way switches 1P - 250V ac
Intermediate switches 1P - 250V ac
Three-way switches 1P - 250V ac
Push-buttons 1P - 250V ac
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps

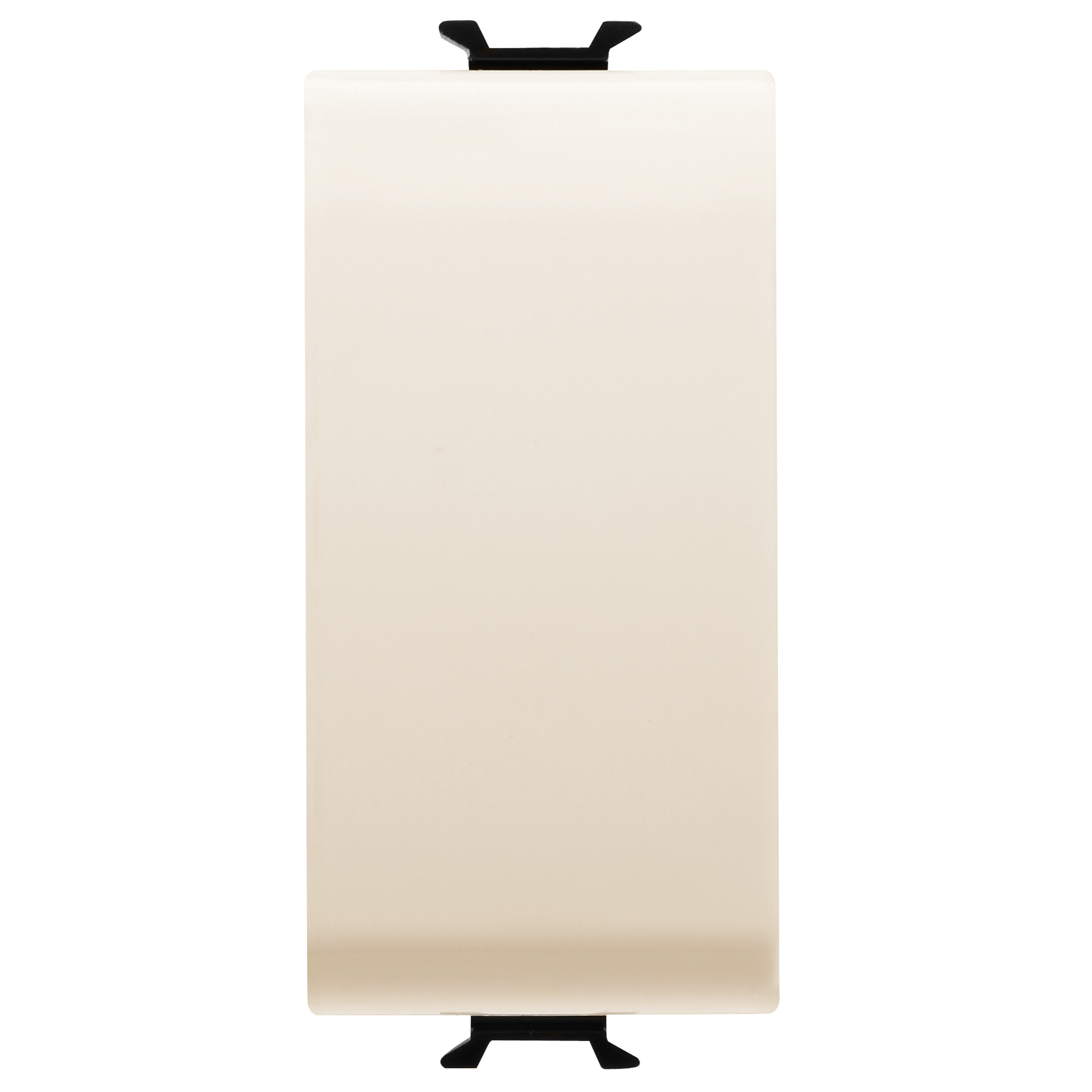

ONE-WAY SWITCH 1P 250V ac - 16AX - NEUTRAL - 1 MODULE - IVORY - CHORUSMART
GW11001
1
1P - 16AX
Neutral
200 W

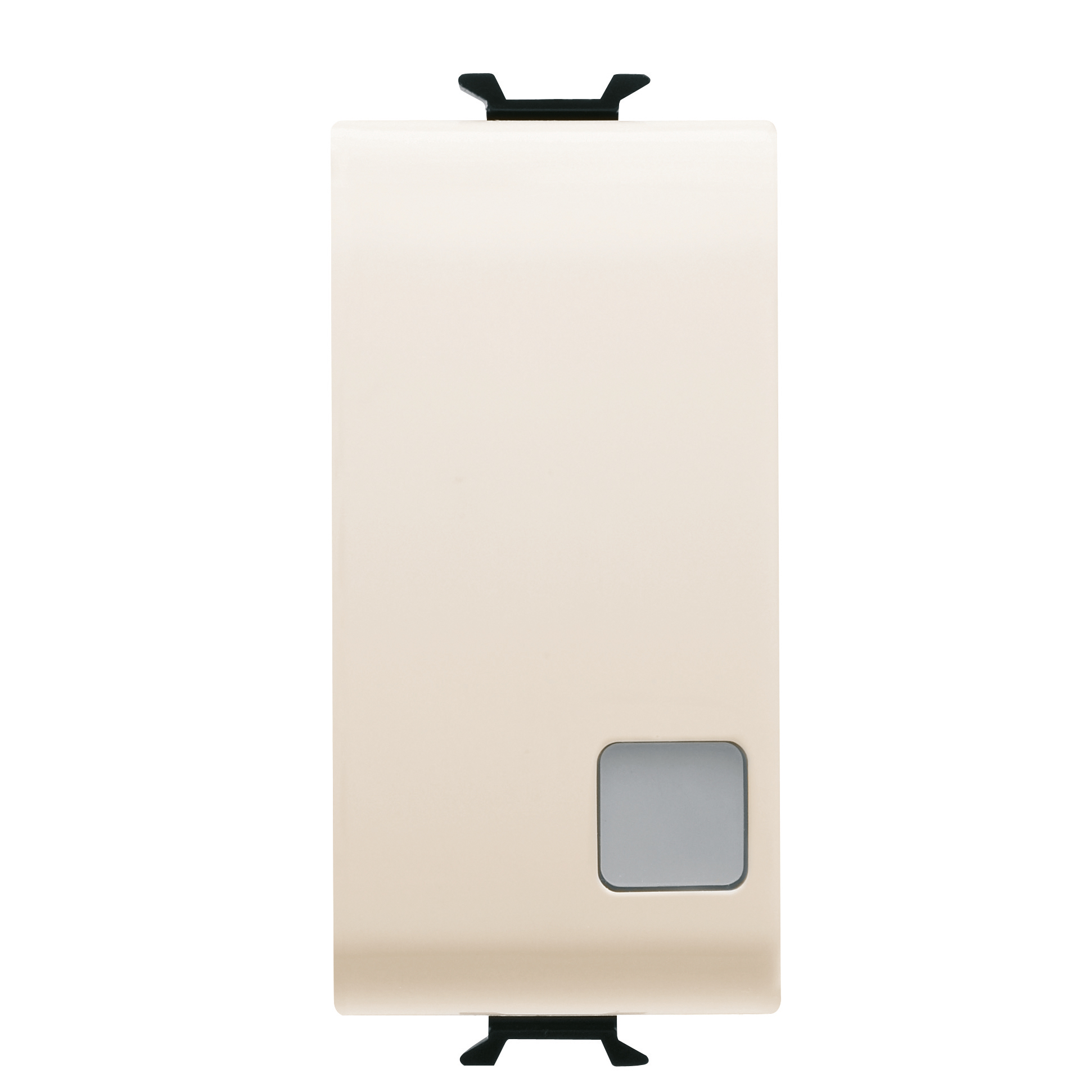

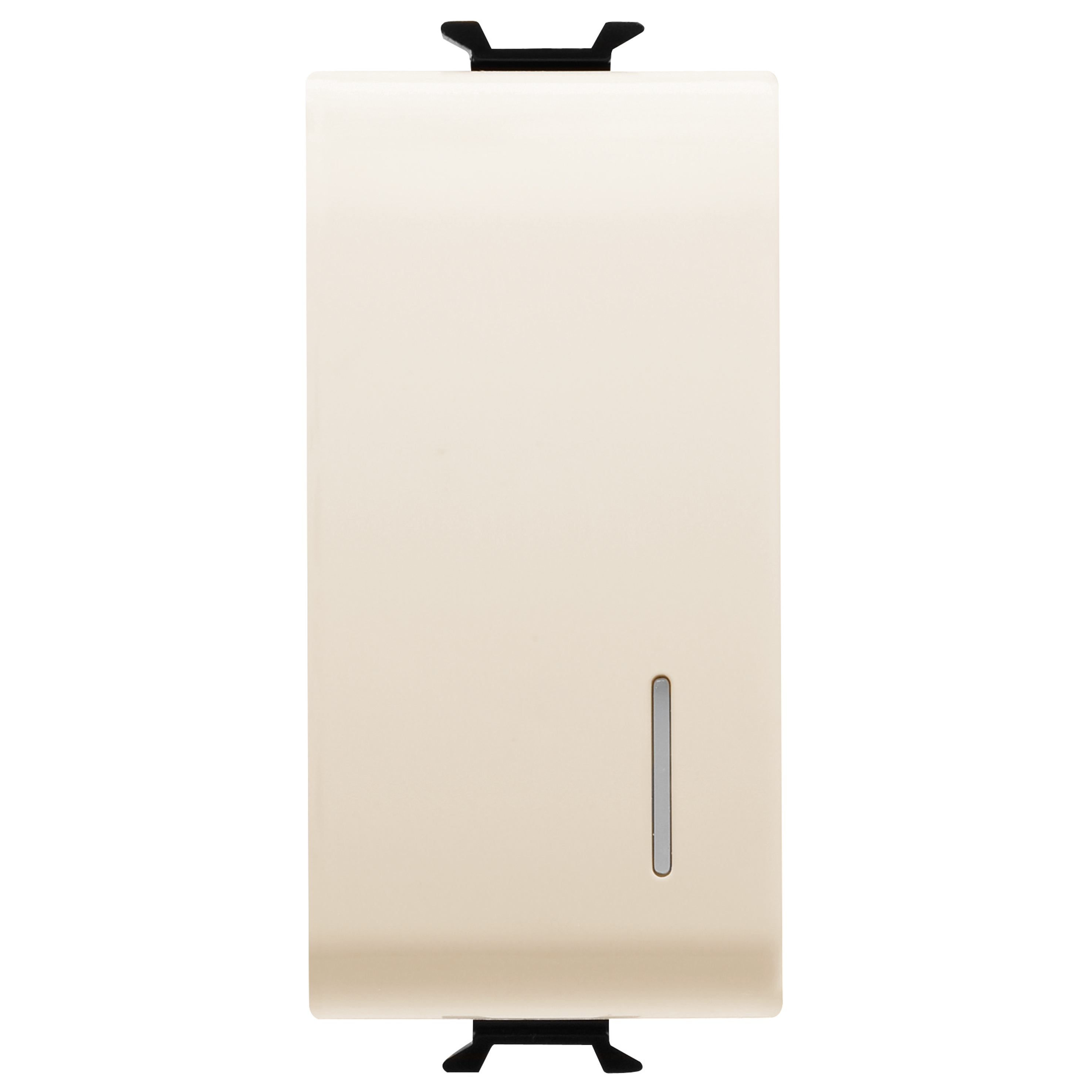

ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 1 MODULE - IVORY - CHORUSMART
GW11002
1
1P - 16AX illuminable
With diffuser
200 W
ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - IVORY - CHORUSMART
GW11003
1
1P - 16AX illuminable
With replaceable neutral lens
200 W

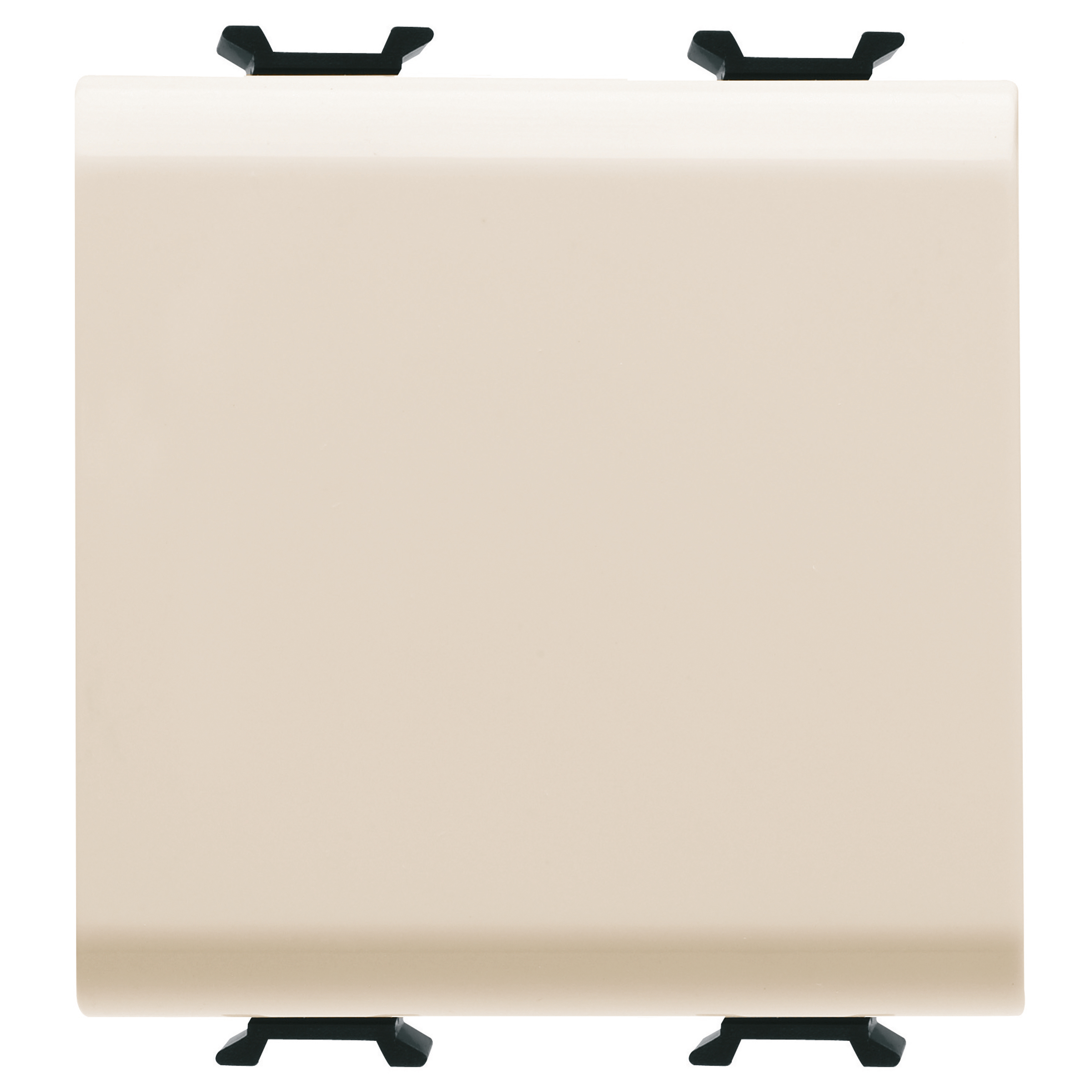

ONE-WAY SWITCH 1P 250V ac - 16AX - NEUTRAL - 2 MODULES - IVORY - CHORUSMART
GW11031
2
1P - 16AX
Neutral
200 W

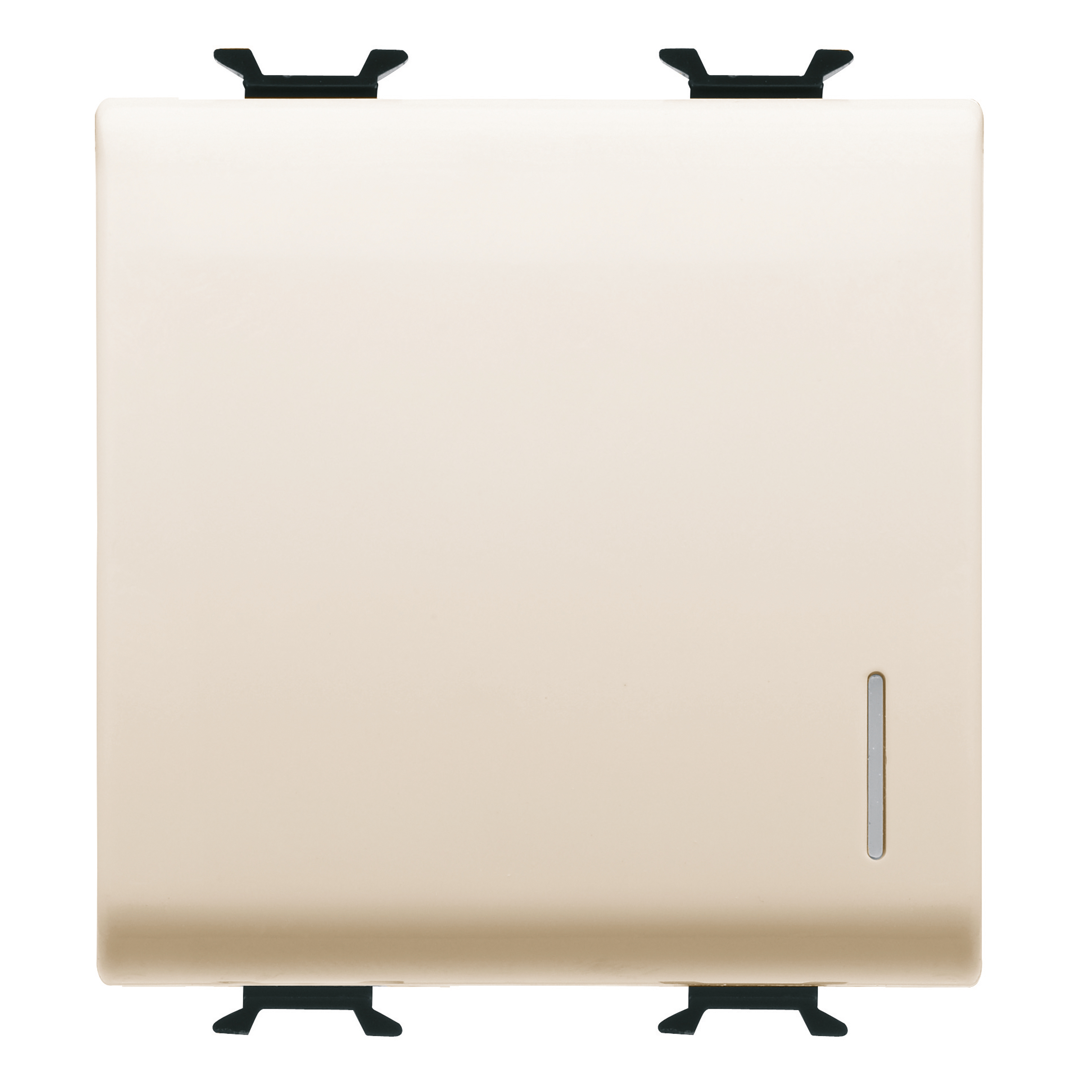

ONE-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - IVORY - CHORUSMART
GW11032
2
1P - 16AX illuminable
With diffuser
200 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps

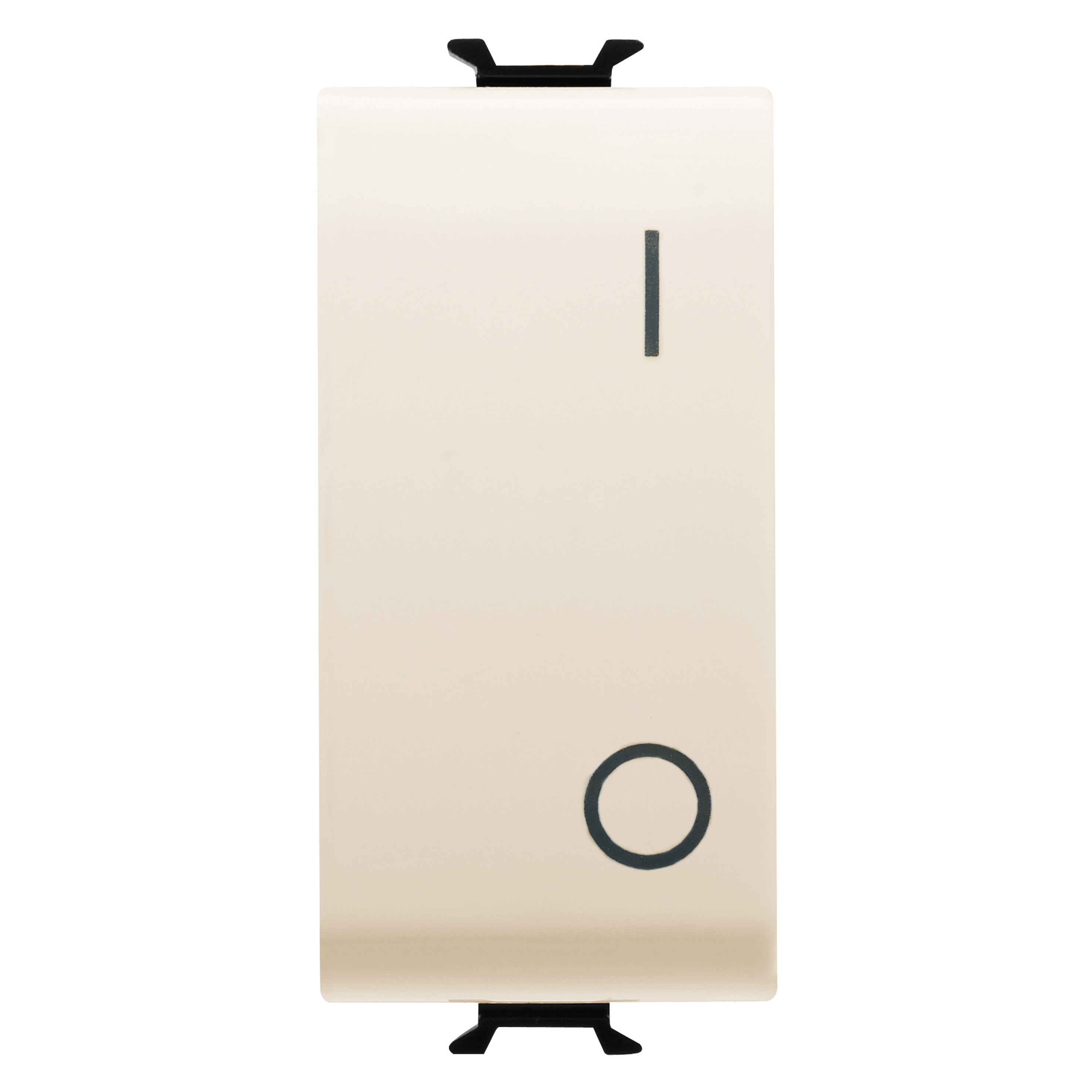

ONE-WAY SWITCH 2P 250V ac - 16AX - NEUTRAL - SYMBOL 0/I - 1 MODULE - IVORY - CHORUSMART
GW11004
1
2P - 16 AX
Neutral
0/1
200 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
TWO-WAY SWITCH 1P 250V ac - 16AX - NEUTRAL - 1 MODULE - IVORY - CHORUSMART
GW11051
1
1P - 16AX
Neutral
200 W
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 1 MODULE - .IVORY - CHORUSMART
GW11052
1
1P - 16AX illuminable
With diffuser
200 W
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - .IVORY - CHORUSMART
GW11053
1
1P - 16AX illuminable
With replaceable neutral lens
200 W
TWO-WAY SWITCH 1P 250V ac - 16AX - NEUTRAL - 2 MODULES - IVORY - CHORUSMART
GW11071
2
1P - 16AX
Neutral
200 W
TWO-WAY SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - .IVORY - CHORUSMART
GW11072
2
1P - 16AX illuminable
With diffuser
200 W
Cod Gewiss
No. modules
Description
Button key
Rated power of 230V LED lamps
REVERSING SWITCH 1P 250V ac - 16AX - NEUTRAL - 1 MODULE - IVORY - CHORUSMART
GW11091
1
1P - 16AX
Neutral
200 W
REVERSING SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 1 MODULE - IVORY - CHORUSMART
GW11092
1
1P - 16AX illuminable
With diffuser
200 W
REVERSING SWITCH 1P 250V ac - 16AX - NEUTRAL - 2 MODULES - IVORY - CHORUSMART
GW11101
2
1P - 16AX
Neutral
200 W
REVERSING SWITCH 1P 250V ac - 16AX ILLUMINABLE - WITH DIFFUSER - 2 MODULES - IVORY - CHORUSMART
GW11102
2
1P - 16AX illuminable
With diffuser
200 W
Cod Gewiss
No. modules
Description
Button key
Symbol
Rated power of 230V LED lamps

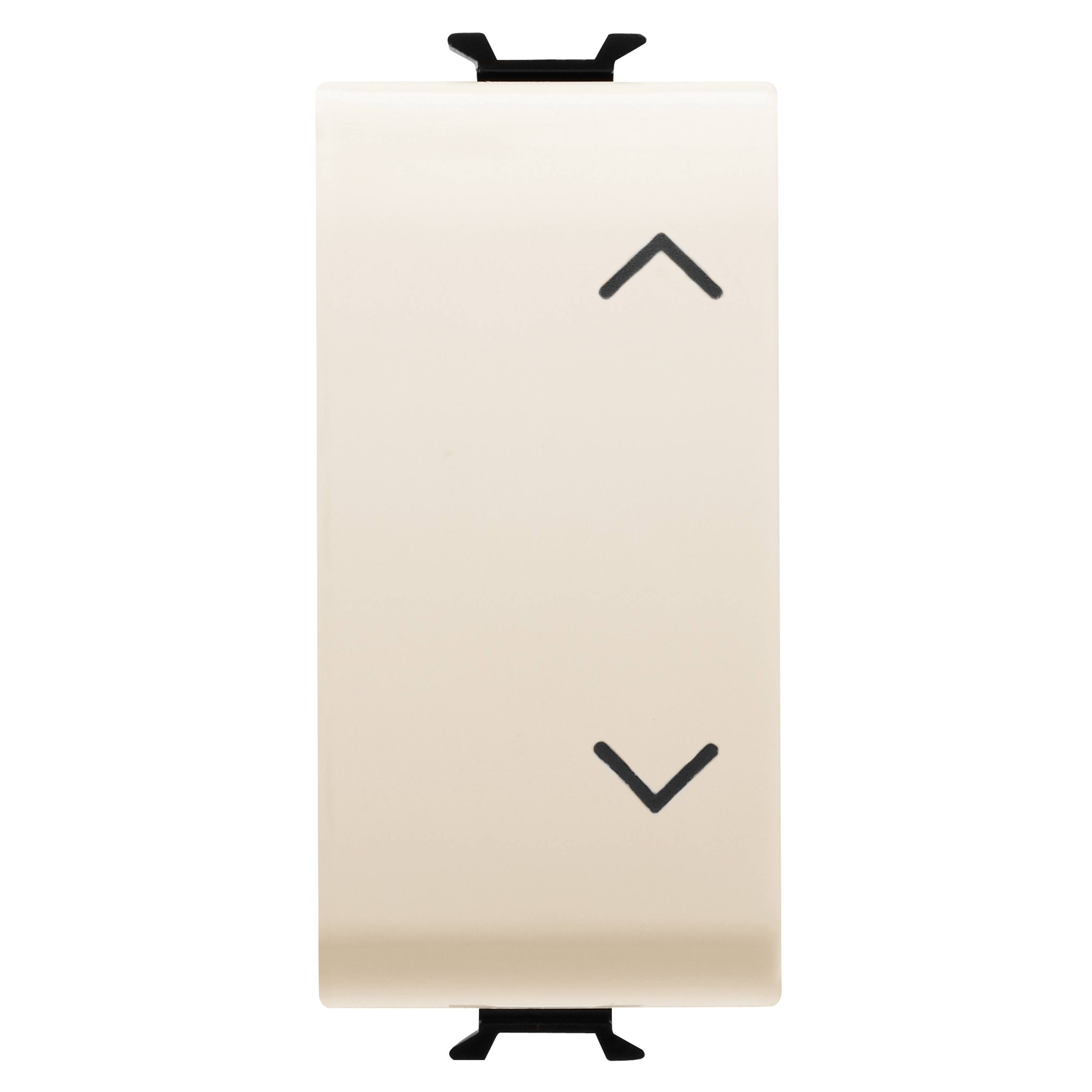

THREE-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL - SYMBOL UP-DOWN - 1 MODULE - IVORY - CHORUSMART
GW11121
1
1P - 10AX
Neutral
UP - DOWN
100 W

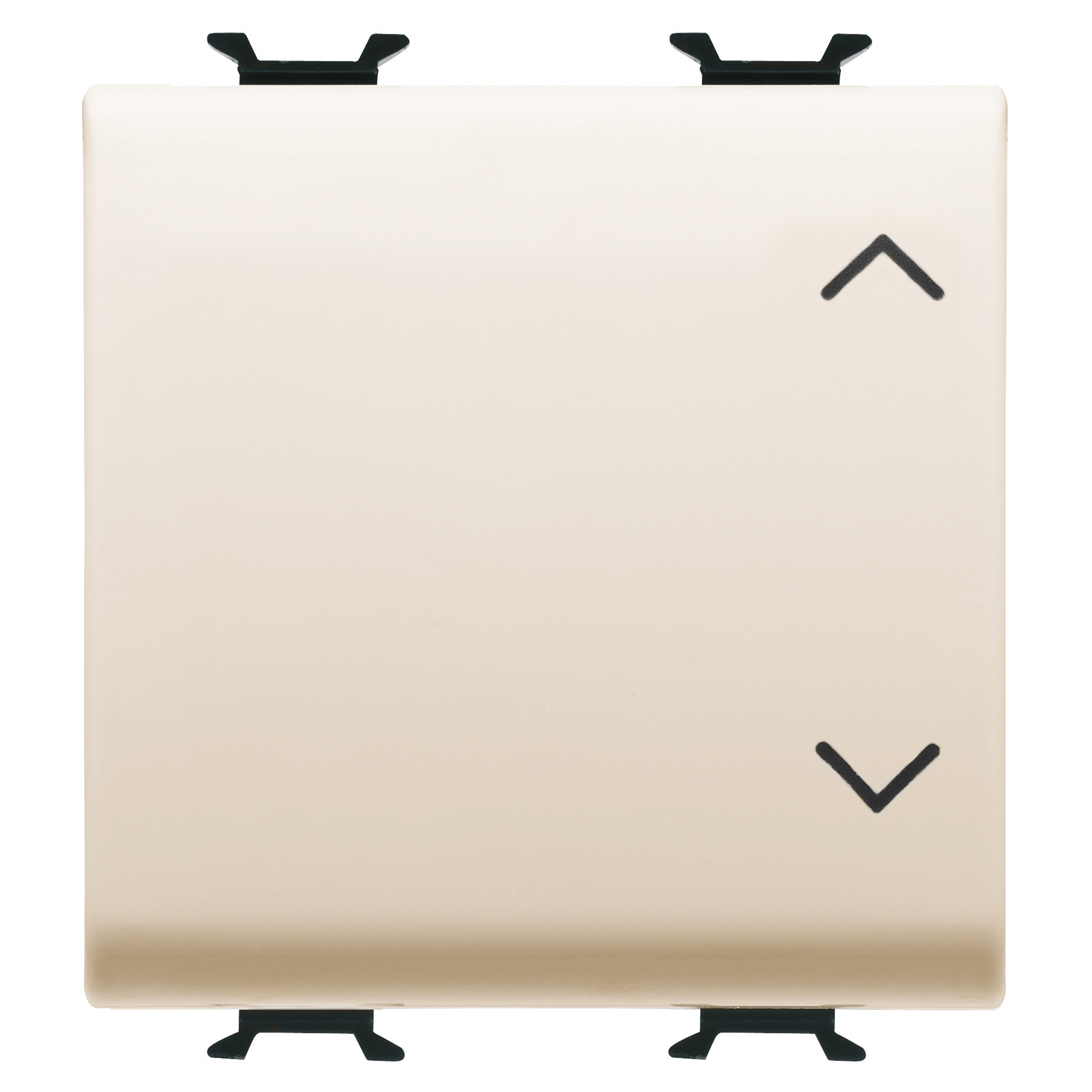

THREE-WAY SWITCH 1P 250V ac - 10AX - NEUTRAL - SYMBOL UP-DOWN - 2 MODULES - IVORY - CHORUSMART
GW11123
2
1P - 10AX
Neutral
UP - DOWN
100 W
Cod Gewiss
No. modules
Description
Button key
Symbol
PUSH-BUTTON 1P 250V ac - NO 16A - NEUTRAL - 1 MODULE - IVORY - CHORUSMART
GW11131
1
1P NO - 16A
Neutral
-
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - WITH DIFFUSER - 1 MODULE - IVORY - CHORUSMART
GW11132
1
1P NO - 16A illuminable
With diffuser
-
PUSH-BUTTON 1P 250V ac - NO 16A ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - IVORY - CHORUSMART
GW11133
1
1P NO - 16A illuminable
With replaceable neutral lens
-
PUSH-BUTTON 1P 250V ac - NO 16A - PULL-CORD - 1 MODULE - IVORY - CHORUSMART
GW11136
1
1P NO - 16A
Pull-cord
-
PUSH-BUTTON 1P 250V ac - NO+NO 10A - WITH INTERLOCK -SYMBOL: UP- DOWN - 1 MODULE - IVORY - CHORUSMART
GW11140
1
1P NO+NO - 10A
With interlock
UP - DOWN

Badge switch

Category
Badge switch

Change category

Badge switch
Cod Gewiss
Description
For badge card max. width
Rated power of 230V LED lamps
No. modules

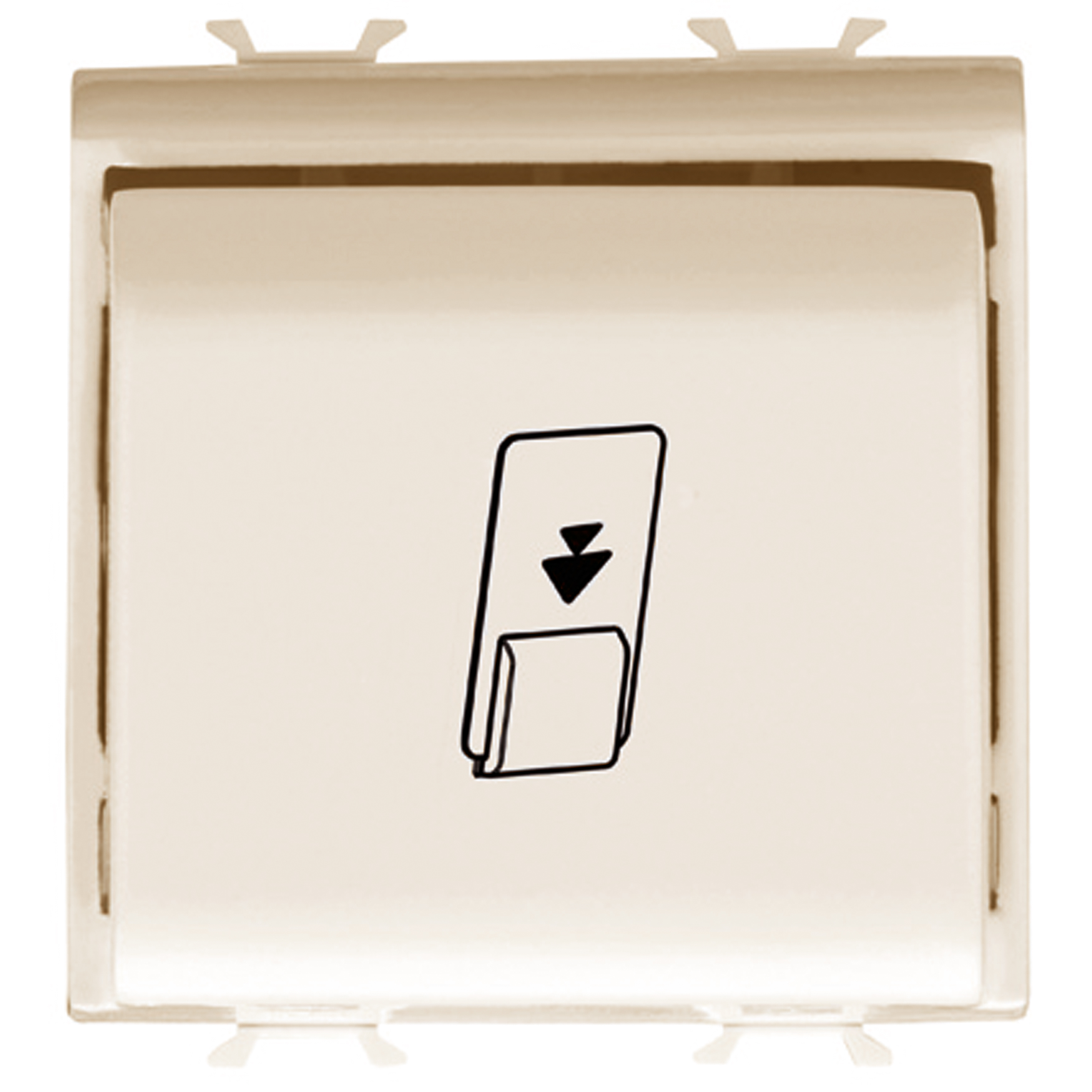

UNIVERSAL BADGE SWITCH - 1P NA 16AX - ILLUMINABLE - 2 MODULES - IVORY - CHORUSMART
GW11039
1P NO - 16 AX illuminable
54 mm
200 W
2

Blanking modules and cable outlet

Category
Blanking modules

Change category

Blanking modules
Cable outlet
Cod Gewiss
Description
No. modules

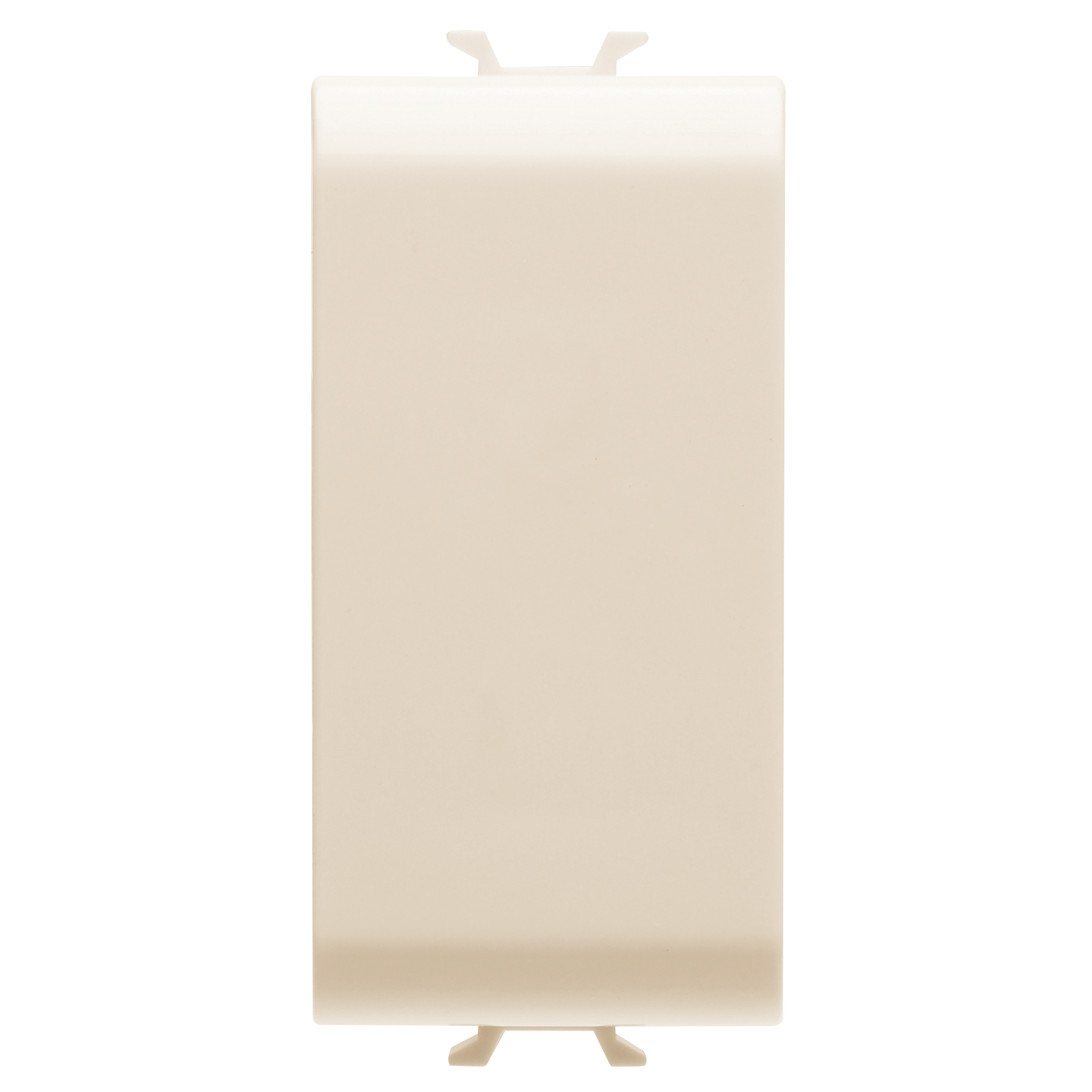

BLANKING MODULE 1 GANG - 1 MODULE - IVORY - CHORUSMART
GW11195
1 module
1
BLANKING MODULE 1/2 GANG - 1/2 MODULE - IVORY - CHORUSMART
GW11197
1/2 module
1/2
BLANKING MODULE 2 GANG - 2 MODULES - IVORY - CHORUSMART
GW11198
2 modules
2
Cod Gewiss
Description
No. modules

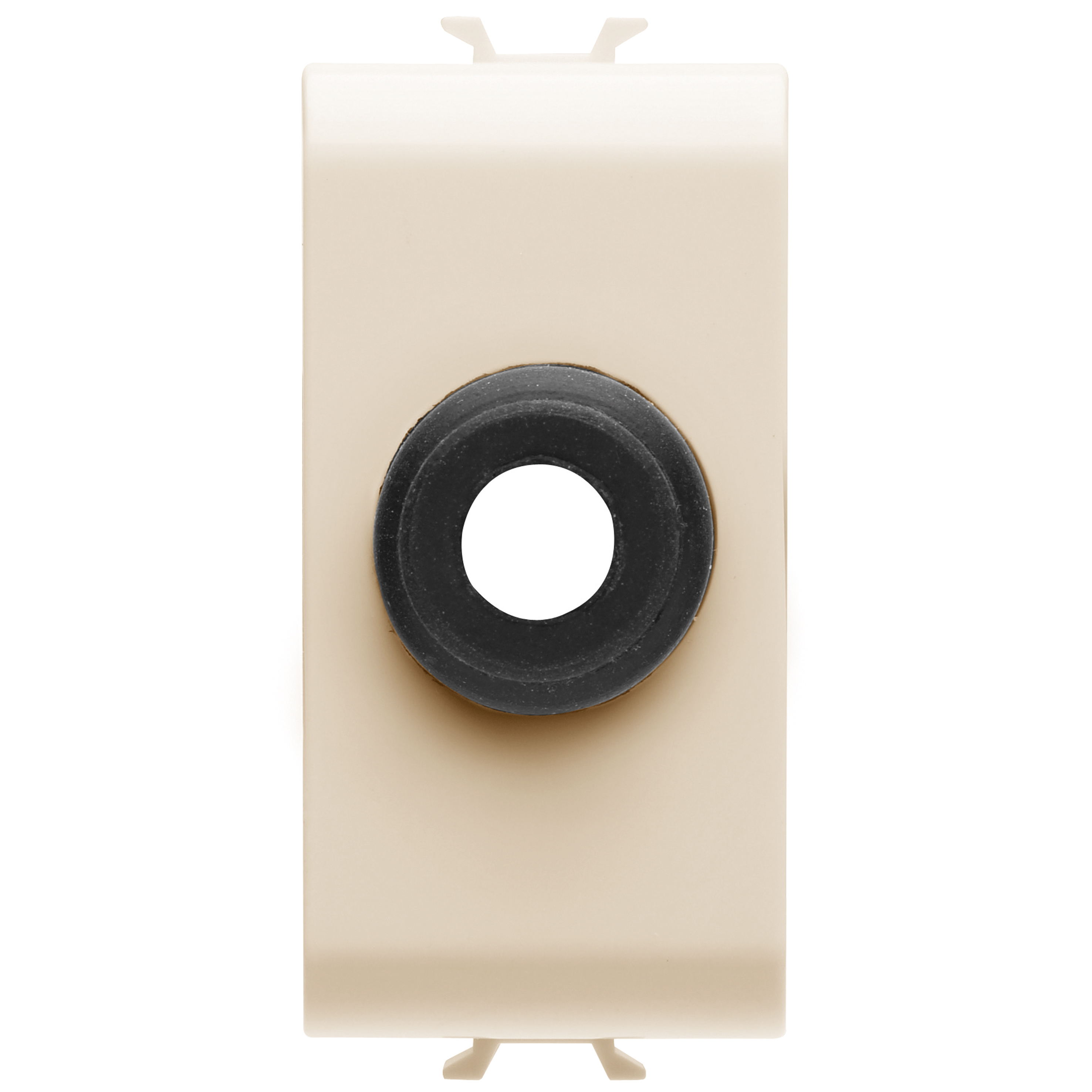

CABLE OUTLET 1 GANG - 1 MODULE - IVORY - CHORUSMART
GW11196
1 module
1
You saw 33 products on 67
Show others
