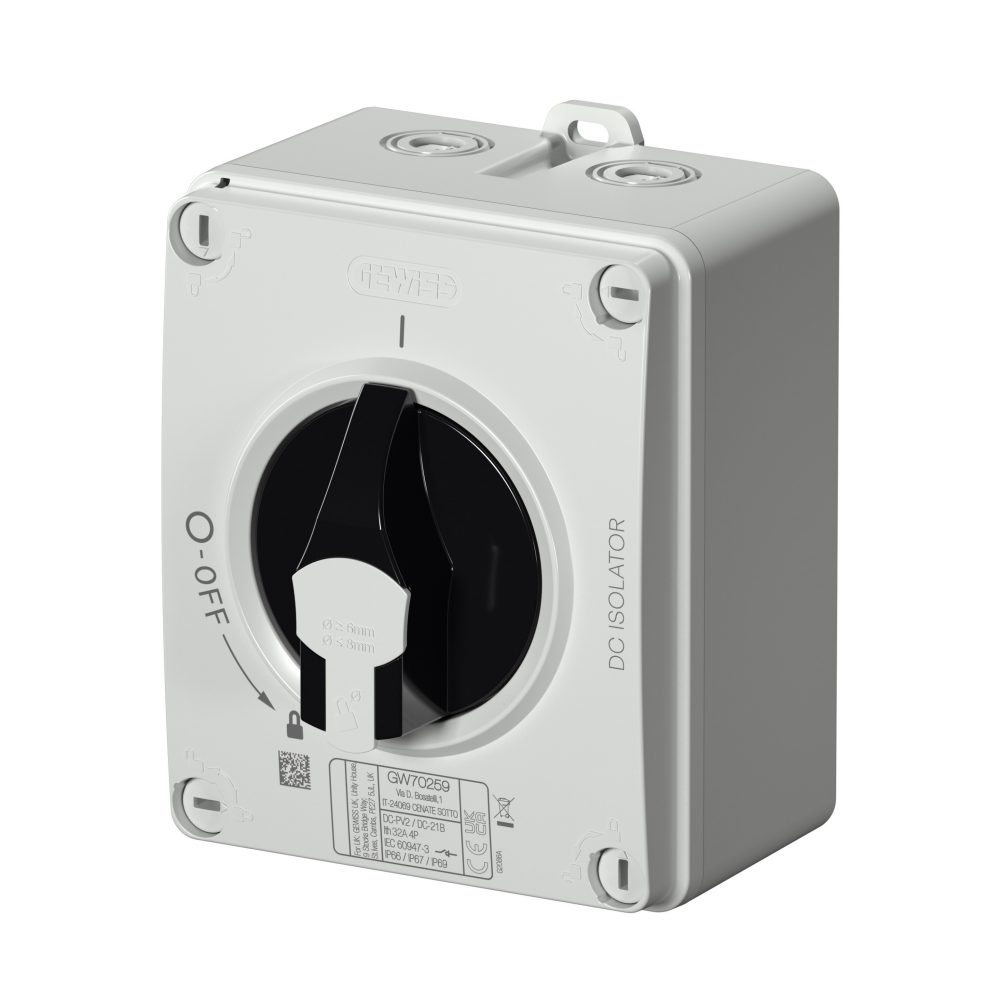

ROTARY ISOLATOR SWITCH FOR DC - HP - SURFACE-MOUNTING - PHOTOVOLTAIC APPLICATION - INSULATING BOX - 32A 4P - LOCKABLE BLACK KNOB - IP66/IP67/IP69
Code:
GW70259
Range: 70 RT HP Range
Rotary isolators
Rotary isolators
70 RT HP is a complete offer of rotary isolator switches from 16A to 160A, available in boxes both in insulating material and aluminium, in control or emergency versions, compatible with the main applications for residential, tertiary and industrial contexts. DC versions are available, suitable also for photovoltaic applications, ranging from 16A to 32A, in an insulating enclosure. The series is completed with versions for board from 16A to 1000A and for DIN rail fixing from 16A to 63A, which can be equipped with auxiliary contacts. The devices have been designed to reduce wiring time, facilitate installation and guarantee the maximum safety and robustness even in the most demanding conditions.
IP66/IP67/IP69
IK08
Technical Info
Information
Download
Software
Certificates
ELECTRICAL CHARACTERISTICS
-
CABLE ENTRIES
-
Circuit breaker
Rotary isolator
Cable entries on top
2 x Ø12/20/25 knock-outs
Rated current (A)
32
Cable entries on bottom
2 x Ø12/20/25 knock-outs
No. of poles
4P
-
-
Rated insulation voltage Ui (Vdc)
1500
RATED OPERATIONAL CURRENT DC-PV2 / DC-21B @ Ue = 600 Vdc
Ie (A)
Operating temperature
-25 +60 °C
Configuration A2+2 (Ue = 600 Vdc)
55
Cable section
4 -10 mm²
Configuration A4 (Ue = 600 Vcc)
32
-
-
Configuration A4B/A4O/A4U (Ue = 600 Vdc)
32
FUNCTIONAL CHARACTERISTICS
-
-
-
Version
Enclosed for direct current
RATED OPERATIONAL CURRENT DC-PV2 / DC-21B @ Ue = 1200 Vdc
Ie (A)
Material
Insulating
Configuration A2+2 (Ue = 1200 Vdc)
13
Type
Control
Configuration A4 (Ue = 1200 Vdc)
13
Knob colour
Black
Configuration A4B/A4O/A4U (Ue = 1200 Vdc)
32
Lockable
Yes (max. 3 padlocks in ON and OFF)
-
-
IP degree
IP66/IP67/IP69
RATED OPERATIONAL CURRENT DC-PV2 / DC-21B @ Ue = 1500 Vdc
Ie (A)
Mechanical resistance
IK08
Configuration A2+2 (Ue = 1500 Vdc)
6
Protection against indirect contact
Double insulation
Configuration A4 (Ue = 1500 Vdc)
5
Compatibility with MC4 connectors for photovoltaic appl.
Yes (Ø 12 mm knock-outs)
Configuration A4B/A4O/A4U (Ue = 1500 Vdc)
23
Ware Number
85363030
CE marking
Download
