70 RT HP Range
Rotary isolators

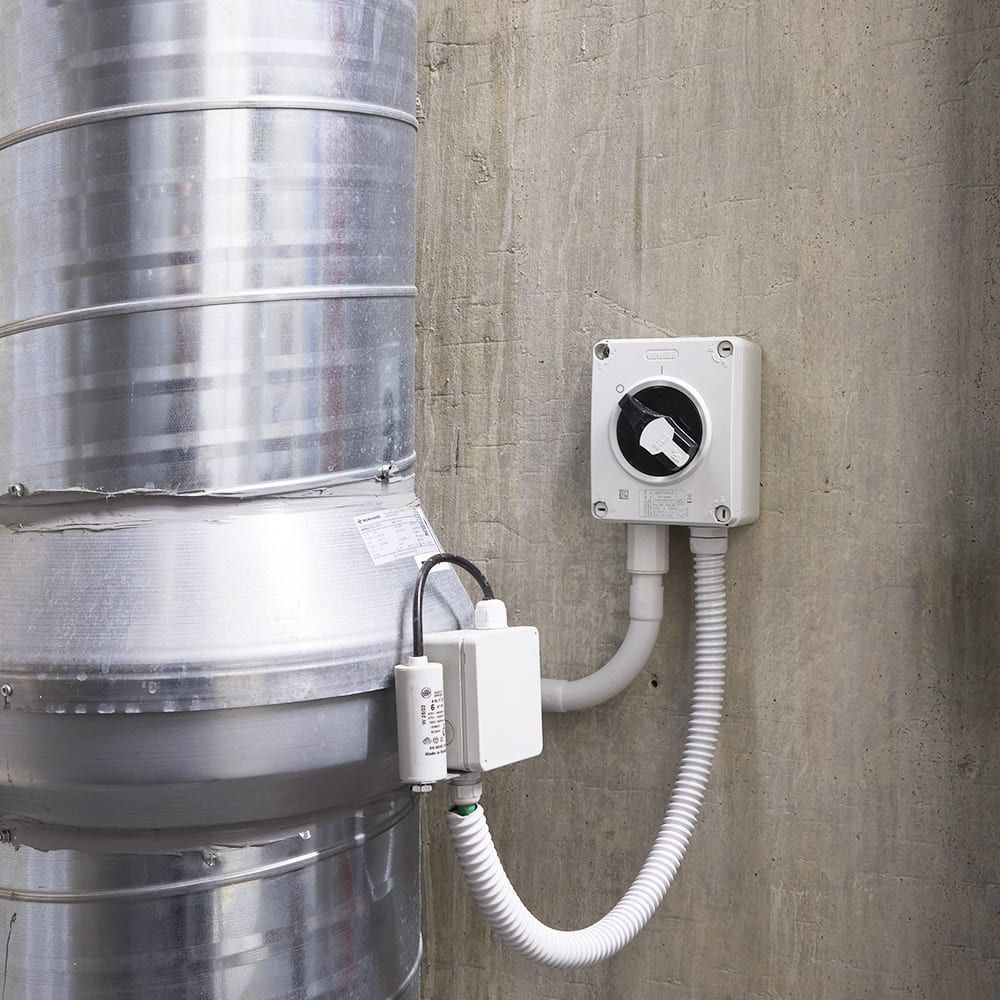

70 RT HP is a complete offer of rotary isolator switches from 16A to 160A, available in boxes both in insulating material and aluminium, in control or emergency versions, compatible with the main applications for residential, tertiary and industrial contexts. DC versions for photovoltaic applications are also available from 16A to 40A in insulating box. The series is completed with versions for board from 16A to 1000A and for DIN rail fixing from 16A to 63A, which can be equipped with auxiliary contacts. The devices have been designed to reduce wiring time, facilitate installation and guarantee the maximum safety and robustness even in the most demanding conditions.

See all product
Benefits
Total protection
Total protection
The versions in plastic box have a degree of protection up to IP66/IP67/IP69, which guarantee a total protection against the entry of dust and liquids. Thanks to their high impact resistance, this range is suitable for all the most demanding application contexts.
Quick mounting
Quick mounting
The frontal part of the versions in plastic box i is fixed with only 4 captive and sealable screws with ¼ turn: a simple and innovative system, which allows to fix or remove the cover in less time than any other system currently available on the market.
Versatile and innovative
Versatile and innovative
Double metric inputs, external points for wall fixing, large internal space for cable routing and accessorisability with different auxiliary contacts, are just some of the features that make this range suitable for various applications.
Robust and reliable
Robust and reliable
The metal box versions (IP66) are made of coated aluminium alloy, providing long-lasting high performance even in harsh conditions. ATEX versions up to 100A are also available for applications in environments with high risk of explosion.

The products of this series

262 products

Rotary isolator switches in insulating enclosure

Control versions

Category
Surface-mounting isolator - control unit with lockable black knob

Change category

Surface-mounting isolator - control unit with lockable black knob
Cod Gewiss
Rated current (A)
No. of poles
Outer dim. LxHxD (mm)
Holes entry
Lid screws (no. and type)
ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 2P - LOCKABLE BLACK KNOB - IP66/67/69
GW70401P
16
2P
125x150x75,5
2 x M20/25 + 2 x M20/25
4 insul. 1/4 turn
ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 3P - LOCKABLE BLACK KNOB - IP66/67/69
GW70402P
16
3P
125x150x75,5
2 x M20/25 + 2 x M20/25
4 insul. 1/4 turn
ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 3P+N - LOCKABLE BLACK KNOB - IP66/67/69
GW70402NP
16
3P+N
125x150x75,5
2 x M20/25 + 2 x M20/25
4 insul. 1/4 turn
ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 4P - LOCKABLE BLACK KNOB - IP66/67/69
GW70403P
16
4P
125x150x75,5
2 x M20/25 + 2 x M20/25
4 insul. 1/4 turn
ROTARY ISOLATOR SWITCH - HP - COMMAND - ISOLATING MATERIAL BOX - 16A 6P - LOCKABLE BLACK KNOB - IP66/67/69
GW70601P
16
6P
153,6x200,6x117
4xM20
4 insulation

Emergency versions

Category
Surface-mounting isolator - emergency version with lockable red knob

Change category

Surface-mounting isolator - emergency version with lockable red knob
Cod Gewiss
Rated current (A)
No. of poles
Outer dim. LxHxD (mm)
Holes entry
Lid screws (no. and type)
ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 2P - LOCKABLE RED KNOB - IP66/67/69
GW70431P
16
2P
125x150x75,5
2 x M20/25 + 2 x M20/25
4 insul. 1/4 turn
ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 3P - LOCKABLE RED KNOB - IP66/67/69
GW70432P
16
3P
125x150x75,5
2 x M20/25 + 2 x M20/25
4 insul. 1/4 turn
ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 3P+N - LOCKABLE RED KNOB - IP66/67/69
GW70432NP
16
3P+N
125x150x75,5
2 x M20/25 + 2 x M20/25
4 insul. 1/4 turn
ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 4P - LOCKABLE RED KNOB - IP66/67/69
GW70433P
16
4P
125x150x75,5
2 x M20/25 + 2 x M20/25
4 insul. 1/4 turn
ROTARY ISOLATOR SWITCH - HP - EMERGENCY - ISOLATING MATERIAL BOX - 16A 6P - LOCKABLE RED KNOB - IP66/67/69
GW70641P
16
6P
153,6x200,6x117
4xM20
4 insulation
You saw 86 products on 262
