KNX BUS CABLE - LSZH CABLE SHEATH - 4 CONDUCTORS 2x2x0.8 - DIAMETER 6.1mm - CPR CLASS CCA-S1A,D0,A1 - GREEN
Code:
GW90585
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential solutions and small-to-medium offices. The offer is highly customisable, complete with all functions and can be integrated with third-party devices and systems (video intercom, smart locks, entertainment). It can be controlled via the APP, voice assistants or touch panels. With Home and Building PRO, you can also manage ZigBee devices and communicate with the Google Home IoT platforms, Amazon Alexa and IFTTT.
Technical Info
Information
Download
Software
Certificates
Type
4 conductors 2 x 2 x 0.8
Description
LSZH Cable sheath
Ø (mm)
6.1
Colour
Green
CPR class
Cca-s1a,d0,a1
Ware Number
85444995
EQUIPMENT AND NOTES

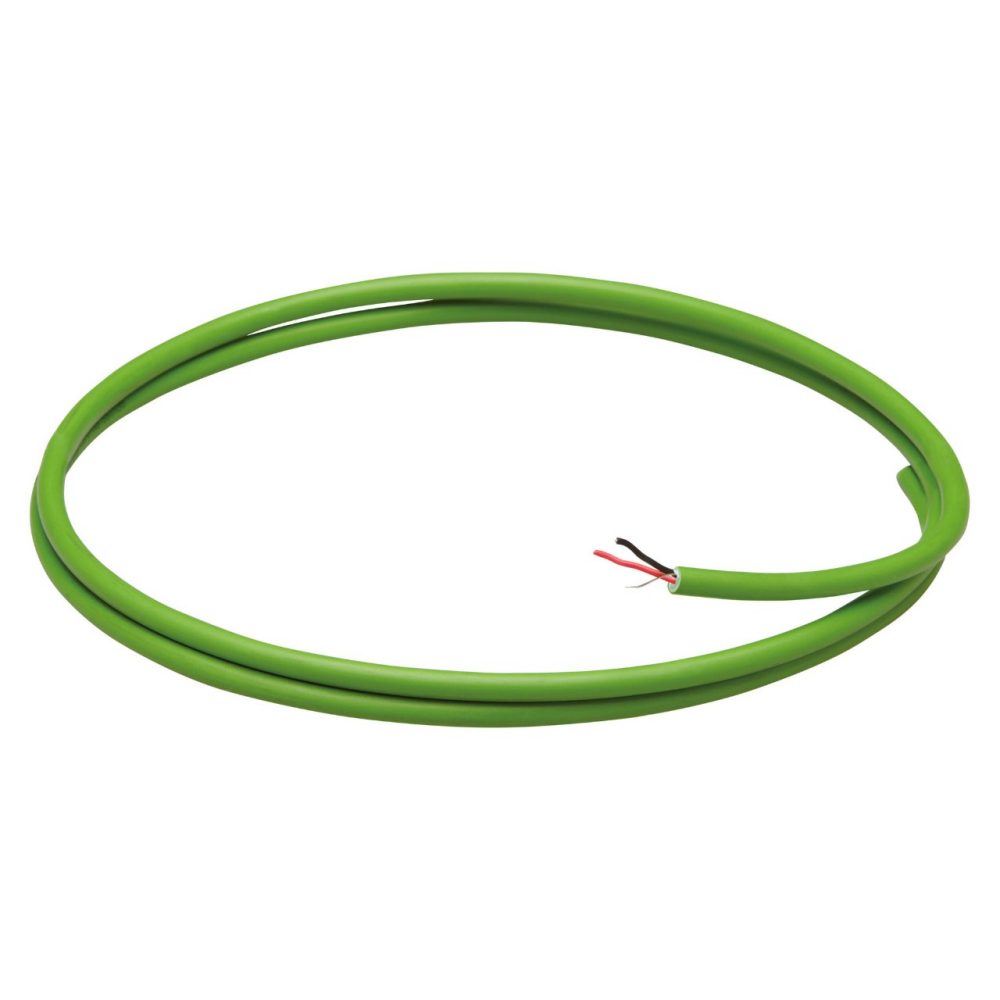

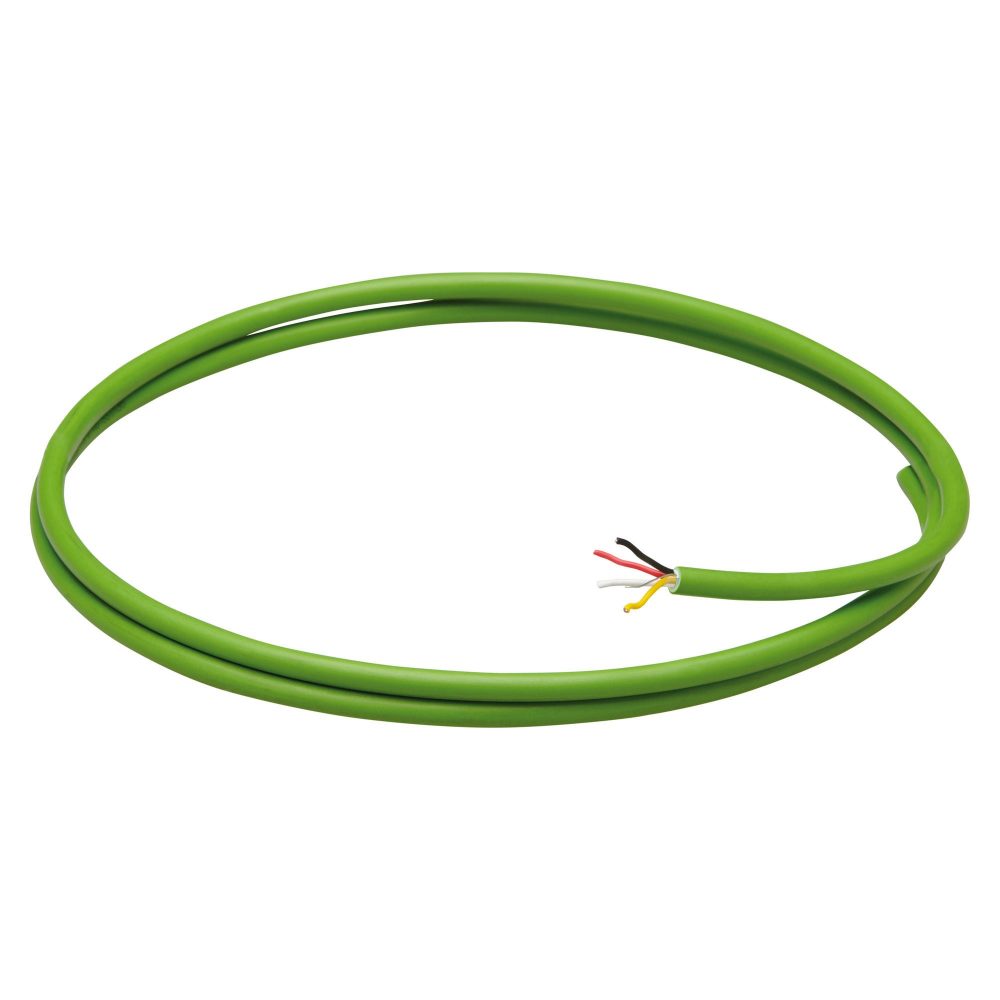

CHARACTERISTICS: GW90584 made of 1 twisted pair of wires: red/black colour used for the power supply and the data transmission of the KNX devices. GW90585 made of 2 twisted pairs of wires: red/black colour used for the power supply and the data transmission of the KNX devices, yellow/white used for another SELV service power supply.
APPLICATIONS: can be installed with the 230V power supply cable, and are recommended for protruding or flush assembly, for arrangement in conduits, in dry environments, and outdoors if protected against direct solar irradiation.
APPLICATIONS: can be installed with the 230V power supply cable, and are recommended for protruding or flush assembly, for arrangement in conduits, in dry environments, and outdoors if protected against direct solar irradiation.
