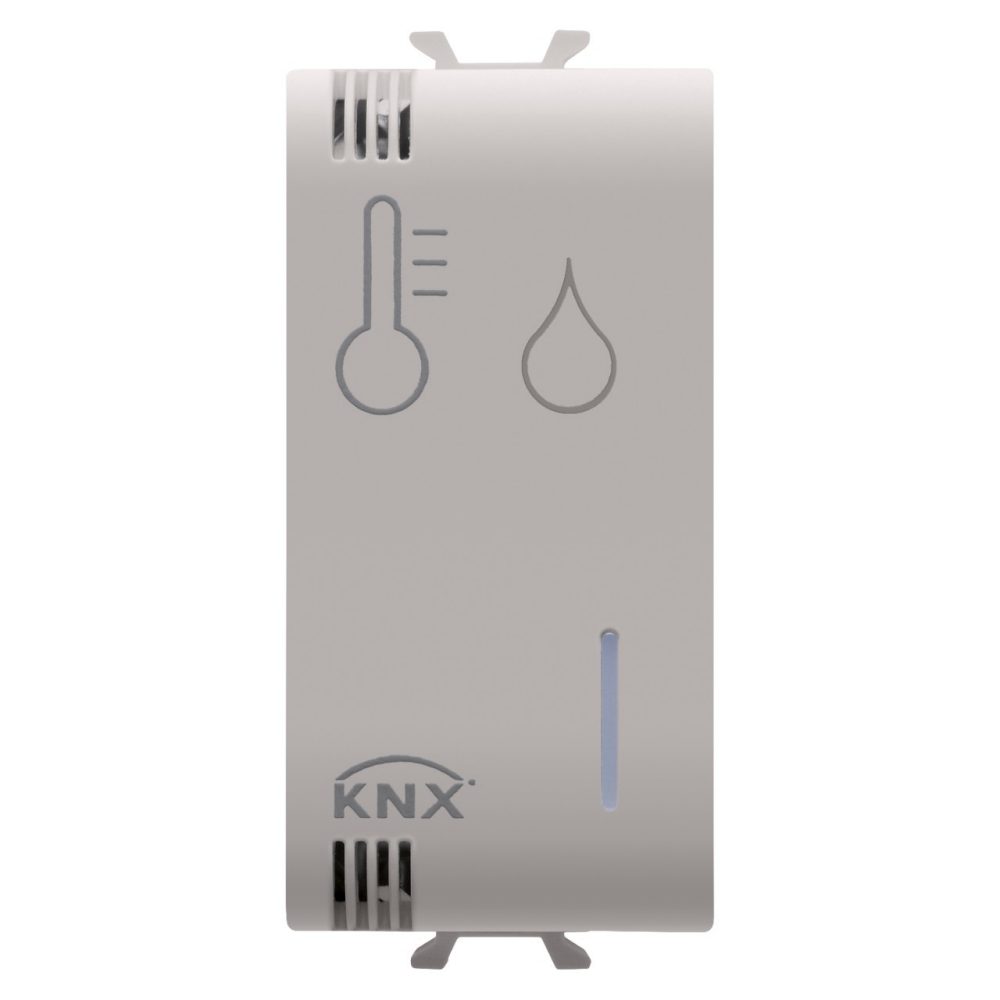

HUMIDITY/TEMPERATURE SENSOR - KNX - 1 MODULE - NATURAL BEIGE - CHORUSMART
Code:
GW13799H
Range: Home&Building Pro
Home & Building PRO system
Home & Building PRO system
Wired system based on the KNX international standard protocol, suitable for advanced automation solutions for residential and non-residential solutions. Thanks to the ThinKnx platform, Home&Building Pro solutions can be integrated with other Gewiss systems and with third-party systems (such as video door entry systems, IP cameras, burglar alarms, entertainment systems, etc.). All functions can be controlled via voice assistants (Siri and Alexa) and managed both locally and remotely using touchscreen devices, app and PC. In particular, ThinKnx allows functions and devices from Gewiss ZigBee wireless Smart Home solution to be integrated into a KNX system.
Technical Info
Information
Download
Software
Certificates
Colour
Natural satin beige
Humidity sensor
Built-in
No. modules
1
Ware Number
90329000
EQUIPMENT AND NOTES
CHARACTERISTICS: flush-mounting temperature adjustment probe with humidity sensor for controlling heating/cooling systems and humidification/dehumidification systems on the BUS. 3-level temperature profile (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (max. 3 speeds). Includes: 1 input for a potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. Equipped with a front LED signalling the operating status and the load status (solenoid valve). To be configured with ETS software.
APPLICATIONS: can be combined with thermostats GW1x795H or timed thermostats GW1x794H to adjust the temperature in specific areas and for controlling and displaying the probe parameters (the probe does not have a display).
NOTES: it is equipped with coupling terminal for connection to bus.
APPLICATIONS: can be combined with thermostats GW1x795H or timed thermostats GW1x794H to adjust the temperature in specific areas and for controlling and displaying the probe parameters (the probe does not have a display).
NOTES: it is equipped with coupling terminal for connection to bus.
