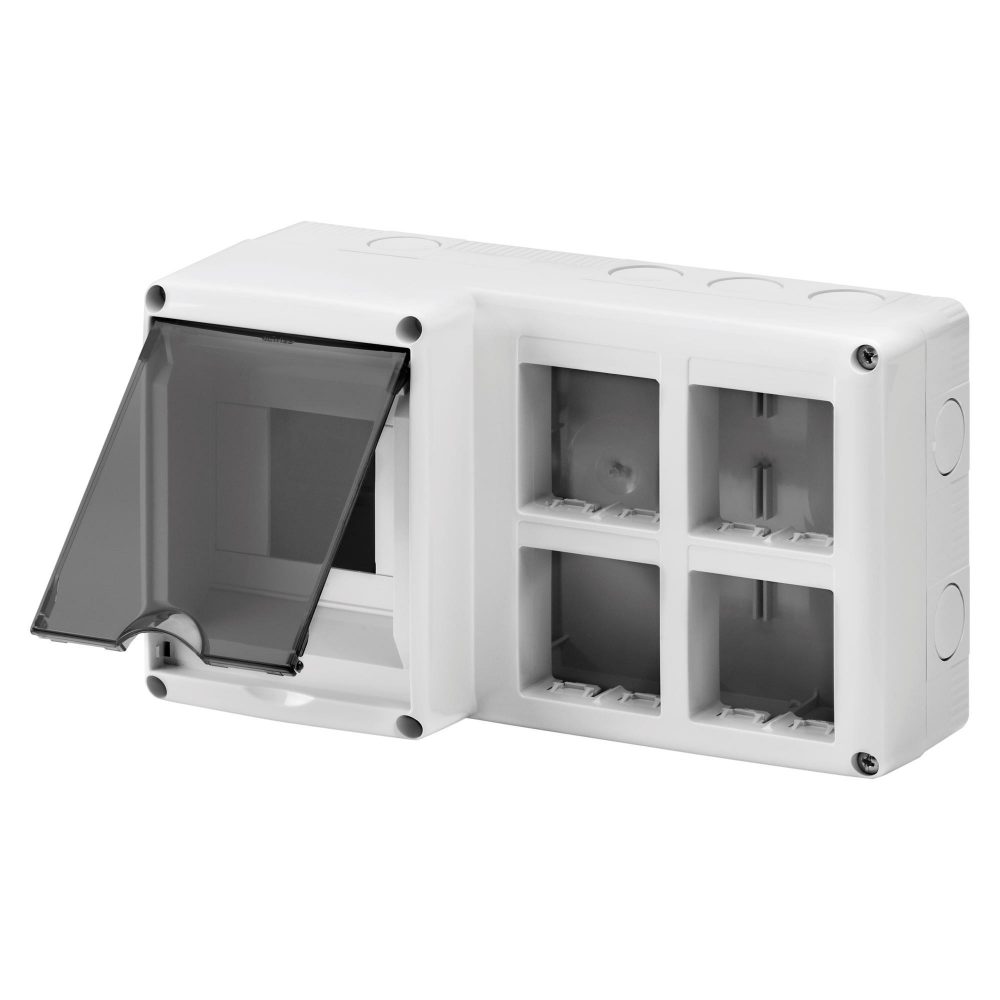

PROTECTED ENCLOSURE FOR COMBINED INSTALLATION OF MODULAR DEVICES DIN AND SYSTEM - 4 DIN MODULES - 8 SYSTEM MODULES - MODULE 2X4 - IP40 - GREY RAL 7035

Code: GW27072

Range: 27 COMBI Range
Wall-mounting enclosures and modular components

A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.

IP40

IK07

650 °C

70 °C

Technical Info

Information
Download
Software
Certificates
Description 8 gang + 4 DIN modules
Colour Grey RAL 7035
Door type Rigid
Door colour Smoked Transparent
No. knockout holes Ø23 12 on sides / 2 on the bottom
Type of knockout holes Removable with tool
IP degree IP40
Insulation class II
Mechanical resistance IK07
Configuration Module 2 x 4
Compartment pre-arrangement 2
Type of enclosure GP
No. SYSTEM modules 8
No. DIN modules 4
Characteristics Halogen free
Lid screws Stainless steel
Torque screws tightening 0.8 Newton/meter
Outer dim. LxHxD (mm) 231x132x95
Dispersible power (W) 15
Rated voltage 400V ac
Rated current (In) 32 A
Insulation voltage (Ui) 750 V
Glow Wire Test 650 °C
Thermo-pressure with ball 70 °C
Standard EN 60670-1 - EN 60670-24
Installation temperature -25 +60 °C
Electrocod 0212
Ware Number 85381000

Product Data Sheet

BIM

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

CADpro

Advanced design of electrical systems

Show more

PRICE

Estimation of electrical systems

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

Reach Declaration

Conformity declaration

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: customized to be divided into 2 vertical compartments (except for GW27071) using the special functional dividers. Knockout holes removable with tool. Enclosures are customized for fixing the earth terminal GW26407. Complete insulation can be obtained by using the screwcaps GW44622.
ACCESSORIES SUPPLIED: quick entry cable gland for cables with Ø from 4 to 14 mm and conduits Ø 16 and 20 mm.
NOTES: dispersible power calculated according to IEC 60670-24.
