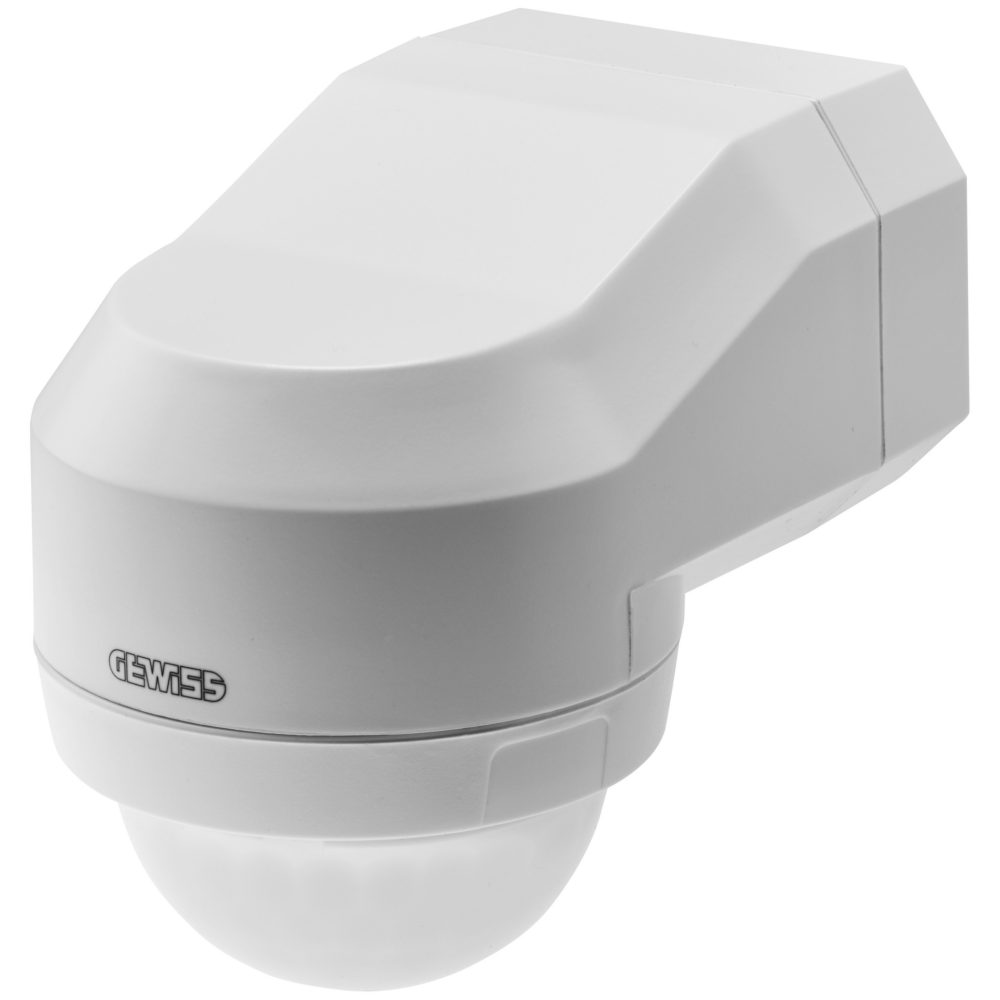

INFRARED ADJUSTABLE MOVEMENT DETECTOR - 230 V - 50 hz - IP55

Code: GW27431B
Range: 27 COMBI Range
Wall-mounting enclosures and modular components
A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors. The 27 COMBI range is available both in the IP40 version and in watertight versions with IP55 and IP65 degree of protection, recommended for all outdoor applications which are subjected to extreme atmospheric conditions.

IP55

650 °C

70 °C

Technical Info

Information
Download
Software
Certificates
IP degree IP55
Insulation class II
Outer dim. LxHxD (mm) 72x88x106
Range of action 12 m
Duration adjustment 10 sec. - 12 min.
Treshold adjustment 3 - 100 lux
Glow Wire Test 650 °C
Thermo-pressure with ball 70 °C
Standard EN 60669-2-1
Installation temperature -20 +40 °C
Electrocod 0143
Ware Number 85365080

Product Data Sheet

BIM

User guide

Disposal

Technical characteristics - EN

Technical characteristics - IT

Technical characteristics - ES

CADpro

Advanced design of electrical systems

Show more

PRICE

Estimation of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

REVIT Plugin

Plugin with GEWISS products for the design software REVIT®

Show more

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: horizontal cover range: 240°; rotating angle of the horizontal detection head: ±90°; sensitivity regulation: 3-12m. Incandescent and halogen lamps: max. 2000W, uncompensated fluorescent lamps: max. 480W, compensated fluorescent lamps: max. 200W, dimmable LED lamps 230V ac and dimmable CFL lamps: max. 8 (7÷23W).
ACCESSORIES SUPPLIED: support for installation in corners; cover kit for limiting the detection field.
