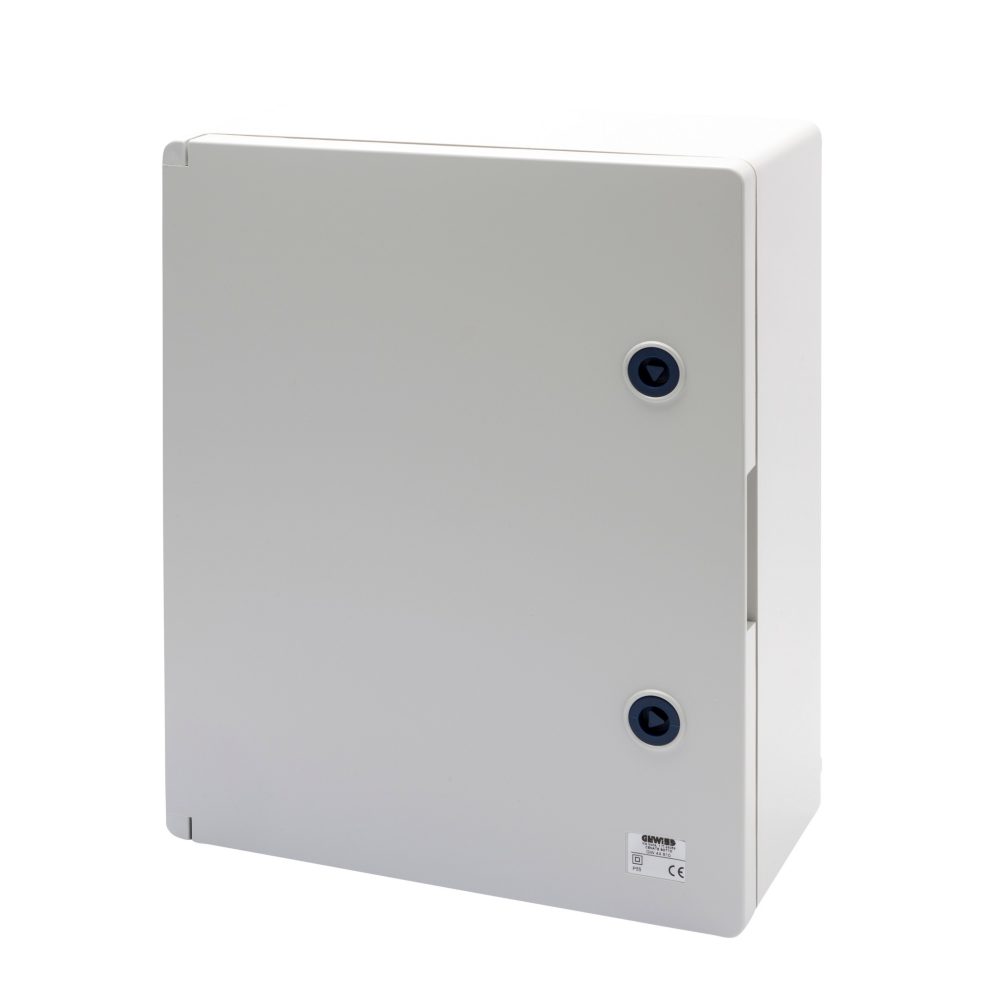

WATERTIGHT BOARD WITH BLANK DOOR FITTED WITH LOCK - GWPLAST 120 - 316X396X160 - IP55 - GREY RAL 7035

Code: GW44810

Range: 46 Range
Watertight surface-mounting distribution and automation boards

The offer includes: 46 QP boards - monobloc, Halogen Free glass fiber loaded polyester, degree of protection IP66; 46 QM boards - IP55 in metal; 46 QX boards - IP55 in stainless steel; 44 CEP boards - monobloc, Halogen Free technopolymer. The 46 QP, QM and 44 CEP boards are available in transparent and blank door versions. In addition, 46 QP, QM and QX boards features Fast & Easy accessories with metal snap fastening.

IP55

IK08

650 °C

110 °C

Technical Info

Information
Download
Software
Video
Certificates
Insulation class II
Colour Grey RAL 7035
Outer dim. LxHxD (mm) 316x396x160
IP degree IP55
Material Technopolymer GWPLAST 120
Mechanical resistance IK08
No. locks 2
No. of modules EN 50022 24 (12X2)
Dispersible power A (W) 42
Dispersible power B (W) 34
Glow Wire Test 650 °C
Operating temperature -25 +60 °C
Insulation voltage (Ui) 750 V
Type of material Halogen-free in compliance with EN 60754-2
Electrocod 1312
Thermo-pressure with ball 110 °C
Accessories for insulation restoring GW44621-GW46446-GW46451
Standard EN 61439-1, EN 61439-2, EN60670-1, IEC 60670-24
Family 44 CEP
Maximum rated insulation voltage (Ui) 750 V
Type of door Blank door
Ware Number 85381000

Product Data Sheet

Information and general recommendations

User guide

BIM

Technical characteristics - IT

Technical characteristics - EN

Technical characteristics - DE

Technical characteristics - ES

CADpro

Advanced design of electrical systems

Show more

PBT-Q

Low voltage systems and boards

Show more

PRICE

Estimation of electrical systems

Show more

AUTOCAD Plugin

Plugin with GEWISS products for the software AUTOCAD®

Show more

ENERGYpro

Boards for building sites, campings-piers and distribution

Show more

Reach Declaration

Display the certificate

CE marking

EQUIPMENT AND NOTES
CHARACTERISTICS: Doors equipped with functional grid of reference for fixing the devices. Impact resistance: 5 J.
ACCESSORIES SUPPLIED: frame for semi-flush-mounting installations, screwcap for double insulation, triangle key.
NOTES: The technical and functional characteristics, and the nominal values, refer to vertical installation only.
Dispersible power calculated according to CEI 23-49:
Dispersible power A (W): configuration of the board with relative back-mounting plate.
Dispersible power B (W): configuration of the board with relative panel with windows.
