46 Range
Watertight surface-mounting distribution and automation boards

The offer includes: 46 QP boards - monobloc, Halogen Free glass fiber loaded polyester, degree of protection IP66; 46 QM boards - IP55 in metal; 46 QX boards - IP55 in stainless steel; 44 CEP boards - monobloc, Halogen Free technopolymer. The 46 QP, QM and 44 CEP boards are available in transparent and blank door versions. In addition, 46 QP, QM and QX boards features Fast & Easy accessories with metal snap fastening.

See all product
Benefits

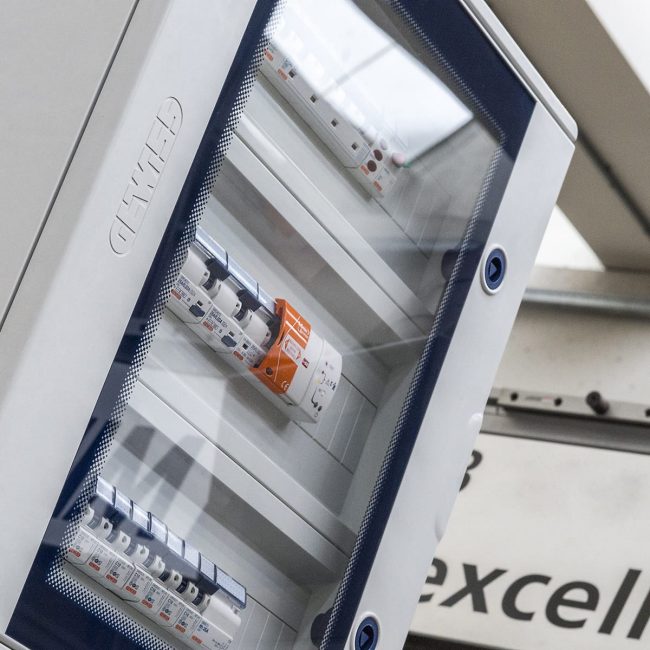

46 QP - new style and performance
46 QP - new style and performance
The 46 QP polyester boards feature an IP66 protection rating, and the modern-design transparent door versions offer more than 20% extra internal visibility than previous versions.

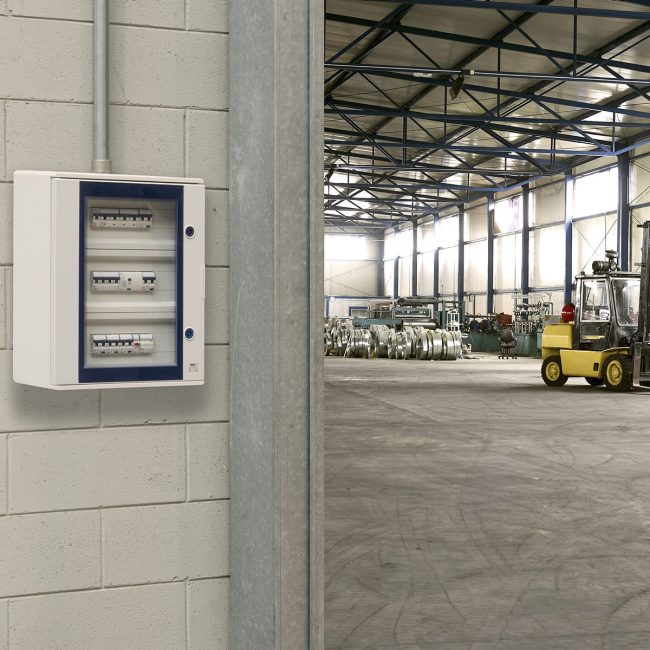

46 QP - Solutions for every application
46 QP - Solutions for every application
GEWISS has subjected the 46 QP boards to rigorous testing in order to obtain valid certifications for their use in various applications. 46 QP boards are, for example, ASC approved and certified for site applications and are ideal for photovoltaic installations.

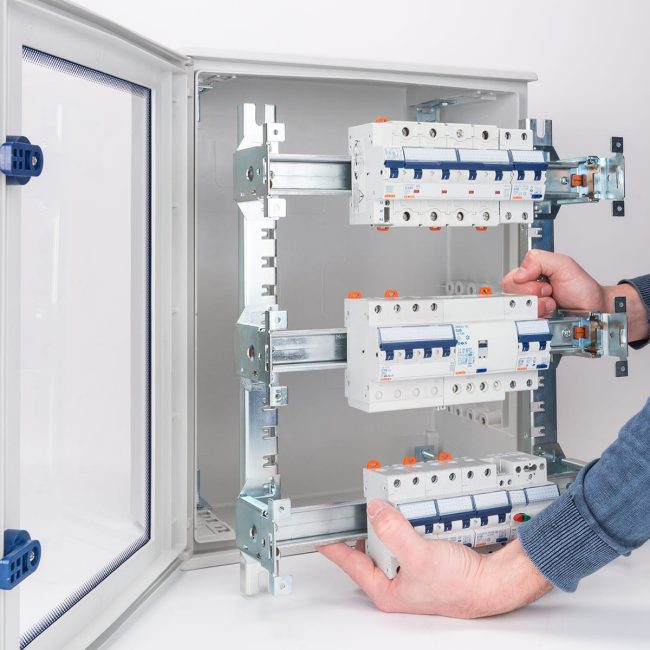

FAST & EASY – robustness, speed and multiple accessory options
FAST & EASY – robustness, speed and multiple accessory options
The FAST & EASY system, common to the 46 QP/QM/QX boards, reduces assembly time by up to 40% compared to traditional systems. Robustness and reliability are achieved through the use of metal components and via a rapid and intuitive usage.

The products of this series

180 products

46 QP - Polyester watertight boards - IP66

Distribution boards

Category
With blank door fitted with lock - Grey RAL 7035

Change category

With blank door fitted with lock - Grey RAL 7035
With transparent door fitted with lock - Grey RAL 7035
Cod Gewiss
Nominal dim. LxHxD (mm)
No. of modules EN 50022
No. locks
Dispersible power A (W)
Dispersible power B (W)
POLYESTER ENCLOSURE WITH BLANK DOOR FITTED WITH LOCK - 250X300X160 - IP66 - GREY RAL 7035
GW46001F
250x300x160
-
1
34
-
POLYESTER ENCLOSURE WITH BLANK DOOR FITTED WITH LOCK - 310X425X160 - IP66 - GREY RAL 7035
GW46002F
310x425x160
36 (12x3)
2
48
39
POLYESTER ENCLOSURE WITH BLANK DOOR FITTED WITH LOCK - 405X500X200 - IP66 - GREY RAL 7035
GW46003F
405x500x200
54 (18x3)
2
95
53
POLYESTER ENCLOSURE WITH BLANK DOOR FITTED WITH LOCK - 405X650X200 - IP66 - GREY RAL 7035
GW46004F
405x650x200
72 (18x4)
2
118
81
POLYESTER ENCLOSURE WITH BLANK DOOR FITTED WITH LOCK - 515X650X250 - IP66 - GREY RAL 7035
GW46005F
515x650x250
96 (24x4)
2
126
106
Cod Gewiss
Nominal dim. LxHxD (mm)
No. of modules EN 50022
No. locks
Dispersible power A (W)
Dispersible power B (W)
POLYESTER ENCLOSURE WITH TRANSPARENT DOOR FITTED WITH LOCK - 250X300X160 - IP66 - GREY RAL 7035
GW46201F
250x300x160
-
1
34
-
POLYESTER ENCLOSURE WITH TRANSPARENT DOOR FITTED WITH LOCK - 310X425X160 - IP66 - GREY RAL 7035
GW46202F
310x425x160
36 (12x3)
2
48
39
POLYESTER ENCLOSURE WITH TRANSPARENT DOOR FITTED WITH LOCK - 450X500X200 - IP66 - GREY RAL 7035
GW46203F
405x500x200
54 (18x3)
2
95
53
POLYESTER ENCLOSURE WITH TRANSPARENT DOOR FITTED WITH LOCK - 405X650X200 - IP66 - GREY RAL 7035
GW46204F
405x650x200
72 (18x4)
2
118
81
POLYESTER ENCLOSURE WITH TRANSPARENT DOOR FITTED WITH LOCK - 515X650X250 - IP66 - GREY RAL 7035
GW46205F
515x650x250
96 (24x4)
2
126
106

Spare parts

Category
Blank door with lock

Change category

Blank door with lock
Transparent door and lock
Cod Gewiss
For boards LxH (mm)
No. locks
QP BLANK DOOR FITTED WITH LOCK - 250X300
GW46501F
250x300
1
QP BLANK DOOR FITTED WITH LOCK - 310X425
GW46502F
310x425
2
QP BLANK DOOR FITTED WITH LOCK - 405X500
GW46503F
405x500
2
QP BLANK DOOR FITTED WITH LOCK - 405X650
GW46504F
405x650
2
QP BLANK DOOR FITTED WITH LOCK - 515X650
GW46505F
515x650
2
Cod Gewiss
For boards LxH (mm)
No. locks
QP TRANSPARENT DOOR FITTED WITH LOCK - 250X300
GW46511F
250x300
1
QP TRANSPARENT DOOR FITTED WITH LOCK - 310X425
GW46512F
310x425
2
QP TRANSPARENT DOOR FITTED WITH LOCK - 405X500
GW46513F
405x500
2
QP TRANSPARENT DOOR FITTED WITH LOCK - 405X650
GW46514F
405x650
2
QP TRANSPARENT DOOR FITTED WITH LOCK - 515X650
GW46515F
515x650
2
You saw 28 products on 180
