Range: IB Range

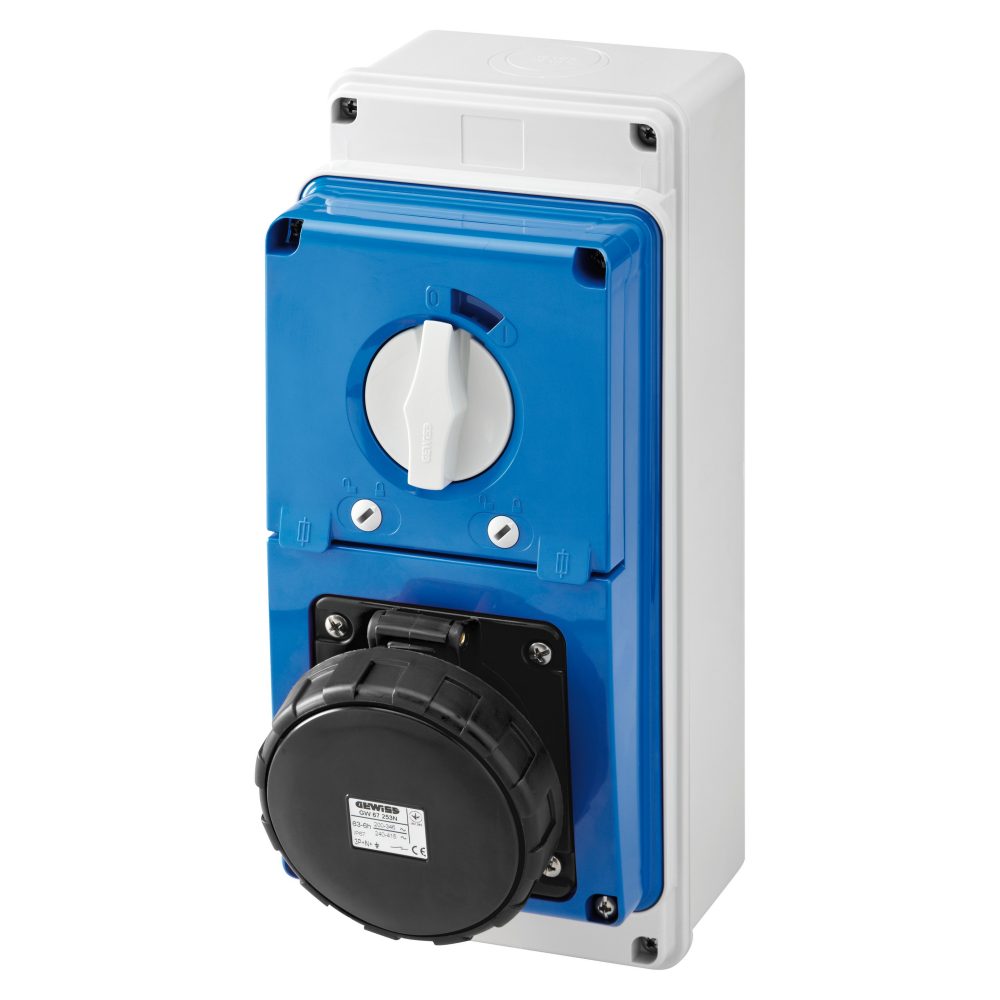

Interlocked socket-outlets IEC 309 standard
System of industrial socket-outlets for power distribution in the industrial and commercial sector, equipped with locking device, enabling the most varied professional requirements of installers and panel builder to be met. The IB range is composed of 4 product lines: IP67 standard vertical socket-outlets, IP66 vertical socket-outlets for heavy duty applications, IP44 horizontal socket-outlets and IP44 and IP55 compact socket-outlets.
125 °C (IB socket) - 80 °C (bottom)
IP67
IK08
850 °C (IB socket) - 650 °C (bottom)
Technical Info
Information
Download
Software
Certificates
Type of fuseØ 22x58 mm
TypeVertical
Fuse breacking capacity> 50 kA
Thermo-pressure with ball125 °C (IB socket) - 80 °C (bottom)
Rated insulation voltage (Ui)500 V
IP degreeIP67
No. of poles3P+E
Mechanical resistanceIK08
Frequency50/60 Hz
Operating temperature-25 +40 °C
ProtectionFuse-holder base (CBF)
With back-mounting boxYes
Electrocod2222
Glow wire test850 °C (IB socket) - 650 °C (bottom)
ACCESSORIES SUPPLIED: 4 screwcaps in insulating material, diam. 25mm. NOTES: fuses to be purchased separately. Measures for protection of person against electric shock by enclosures. CHARACTERISTICS: 63A versions equipped with a pilot contact.
