Range: IB Range

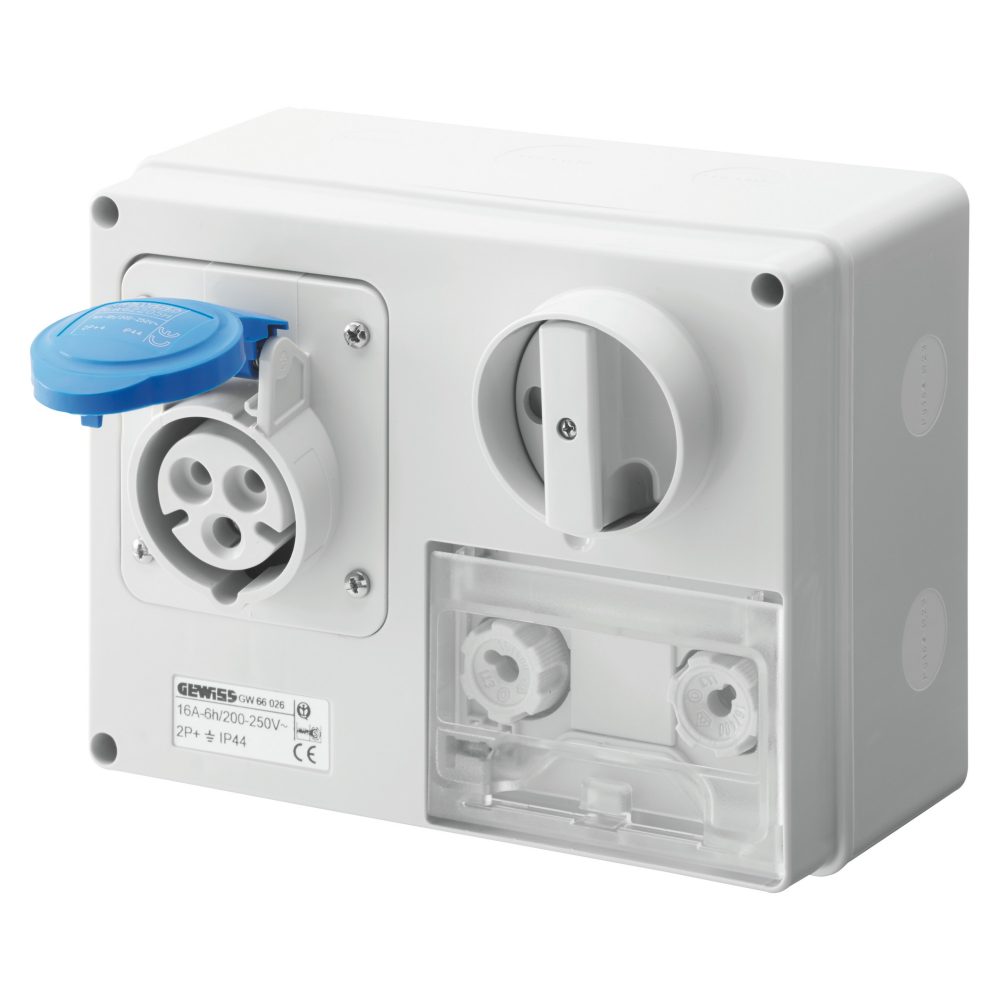

Interlocked socket-outlets IEC 309 standard
System of industrial socket-outlets for power distribution in the industrial and commercial sector, equipped with locking device, enabling the most varied professional requirements of installers and panel builder to be met. The IB range is composed of 4 product lines: IP67 standard vertical socket-outlets, IP66 vertical socket-outlets for heavy duty applications, IP44 horizontal socket-outlets and IP44 and IP55 compact socket-outlets.
125 °C (active parts) - 80 °C (passive parts)
IP44
IK08
850 °C (active parts) - 650 °C (passive parts)
Technical Info
Information
Download
Software
Certificates
TypeHorizontal
Fuse breacking capacity> 50 kA
Thermo-pressure with ball125 °C (active parts) - 80 °C (passive parts)
IP degreeIP44
No. of poles3P+N+E
Mechanical resistanceIK08
Frequency50/60 Hz
Operating temperature-25 +40 °C
ProtectionFuse-holder base (CBF)
With back-mounting boxYes
Electrocod2220
Glow wire test850 °C (active parts) - 650 °C (passive parts)
ACCESSORIES SUPPLIED: coupling for Ø 20 mm and Ø 25 mm conduits and Ø 29 mm cable gland. CHARACTERISTIC: compatible with ND fuses, except for versions 16A - 500V that have to accomodate GG cylindrical fuses ø 10,3x38 mm and version 32A - 500V that have to accommodate GG cylindrical fuses ø 14x51 mm.
